High Quality JXF Electrical Cabinet Aluminium Metal Box Power Distribution Equipment for Industrial Power Distribution

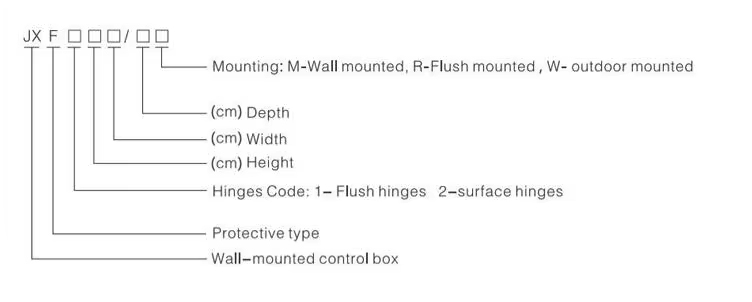

Product model and meaning

Product Overview

The enclosure features a framework welded from thin steel plates, creating a sturdy foundation for all components. Its door panel is specifically designed to accommodate measurement instruments, push-button indicators, and control switches—placing essential operational elements in an easily accessible location for user interaction.

Inside the enclosure, a dedicated rack system serves as the mounting point for core electrical components. This structured internal framework is reserved exclusively for contactors, relays, terminal blocks, and other similar hardware. This arrangement promotes organized wiring, simplifies maintenance procedures, and enhances overall system reliability by keeping critical electrical elements properly secured and separated from external interfaces.

A key design feature is the pre-fabricated knockouts on both the upper and lower walls of the enclosure. These strategically placed openings facilitate straightforward installation of various electrical conduits and cable management systems, accommodating multiple size specifications to meet diverse project requirements. This design flexibility eliminates the need for extensive on-site modifications while preserving the enclosure's structural integrity.

The welded steel construction balances durability with manageable weight, making it suitable for various installation environments. By separating user-interactive components on the door from internal electrical hardware, the design improves operational efficiency and safety. The integrated knockout system further streamlines installation, reducing setup time and ensuring compatibility with different conduit configurations.

This thoughtful configuration creates a functional, organized enclosure solution capable of supporting diverse electrical control applications while maintaining accessibility, safety, and structural reliability throughout its service life.

Main parameters

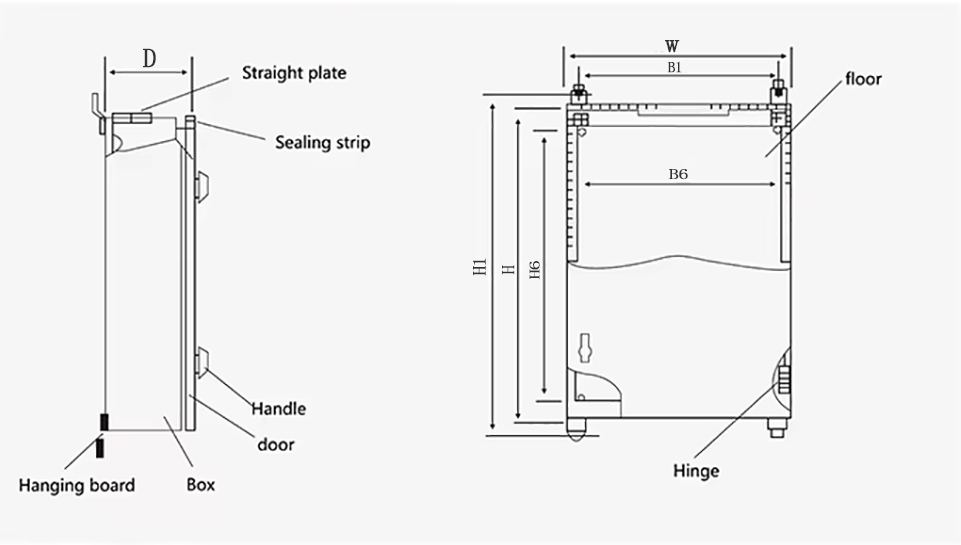

Structural diagram
