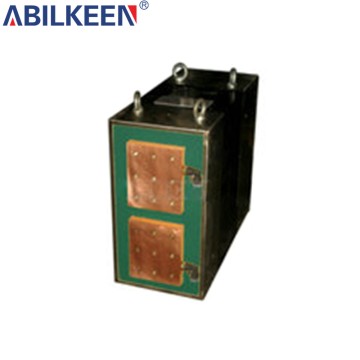

IBZPZDPS-125KVA transformer

IBZPZDPS-125KVA transformer
IBZPZDPS-100KVA transformer

IBZPZDPS-100KVA transformer
0102030405
1.IBDG-5KVA transformer.jpg

IBDG-5KVA transformer

The IBDG-5KVA is a medium-frequency welding transformer designed specifically for resistance welding machines (spot and butt welders). It features a 3KVA rated power, a 50Hz-60Hz wide-band input, a 1.5V low-voltage output, and Class F insulation. It also provides ±85°C temperature control and a 3800V withstand voltage test, making it suitable for industrial welding scenarios.

    Contact us
    Product Details

    Product Overview‌

    The IBDG-5KVA medium-frequency welding transformer utilizes Class F insulation materials, achieves high-efficiency conversion with a 50% duty cycle, and passes 3800V withstand voltage testing and 0.5mA leakage current control, ensuring stable operation under complex operating conditions. Its core function is a 1.5V low-voltage, high-current output to ensure welding stability. A built-in 85°C trigger temperature control module provides reliable protection for long welding operations. It is widely used in welding applications in fields such as metal processing and automotive manufacturing.



    Features

    ◆Accurate voltage output: 1.5V low voltage design, perfectly adapted to the high current working requirements of the welding machine;

    ◆Highly reliable protection system: Integrated 85°C temperature control protection and 3800V withstand voltage test ensure safe and stable operation of the equipment;

    ◆Broadband input compatibility: supports 50Hz-60Hz broadband input, adapting to the power grid standards of many countries around the world;

    ◆Industrial-grade insulation protection: Made of F-class insulation material, it has excellent high temperature resistance and anti-aging performance;

    ◆Long-term quality assurance: Provide 1-year warranty service, and the warranty date is clearly marked on the nameplate/bronze plate.



    Application scenarios‌

    1.Metal processing field: suitable for spot welding and butt welding of automotive parts and hardware products;

    2.Manufacturing applications: covering power support for industrial welding equipment such as sheet metal welding and wire butt welding;

    3.Maintenance scenarios: Provide reliable protection for equipment maintenance, mold repair, and other working conditions that require stable low voltage and high current.
