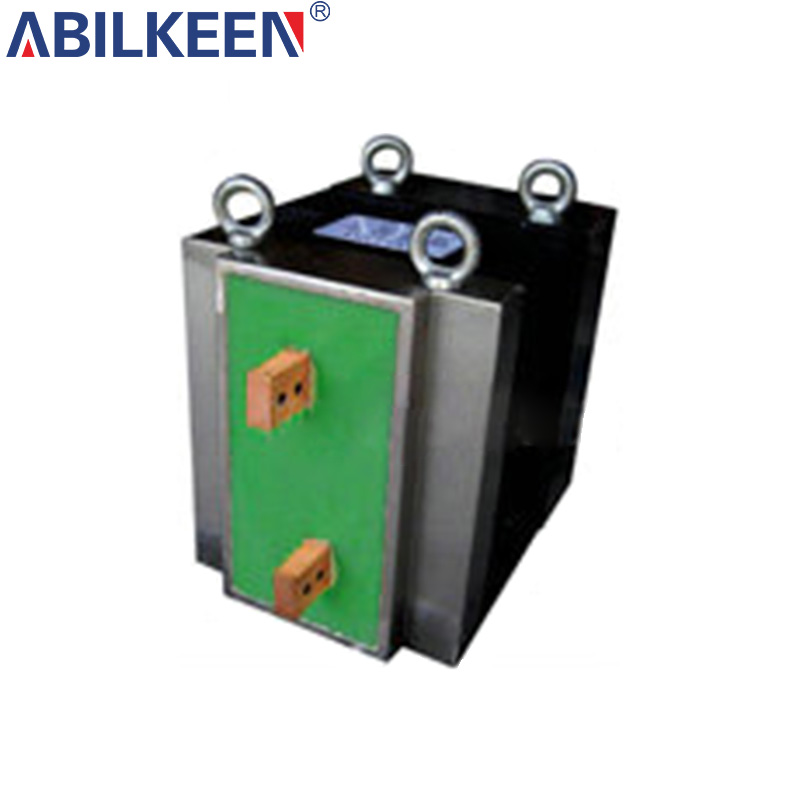

IBDG-80KVA transformer
Product Overview
The IBDG-80KVA transformer is engineered for high-energy resistance welding, delivering 80KVA power and 3000J energy storage to meet heavy-duty spot welding requirements. With F-class insulation (155℃ rating) and 3800V withstand test, it ensures durability and safety in industrial environments. Compatible with 50-60Hz power grids, it provides 13V adjustable output for precision welding applications, backed by a 1-year warranty with traceable component marking.
Product Features
1.80KVA High Power + 3000J Energy Storage – Optimized for thick metal welding.
2.50-60Hz Frequency Range – Adaptable to global industrial power standards.
3.380V Input / 13V Output – Low-voltage, high-current design for efficient welding.
4.F-Class Insulation – Enhanced thermal resistance (155℃ rating).
5.3800V Withstand Test (≤0.5mA Leakage) – Ensures long-term reliability.
6.50% Duty Cycle – Balances power output and heat dissipation.
Product Advantages
◆Industrial-Grade Durability – F-class insulation resists aging and harsh conditions.
◆Precision Welding Control – 13V output ensures stable arc and minimal spatter.
◆Safety-Certified – 3800V withstand test meets IEC 60076-5 standards.
◆Efficient Cooling – 50% duty cycle prevents overheating during prolonged use.
◆Traceable Warranty – Branded components with date marking for quality assurance.
Application Scenario
Automotive manufacturing (body welding, chassis assembly).
Metal fabrication (sheet metal welding, structural steel joining).
Electronics industry (battery tab welding, conductive material bonding).
Heavy machinery (equipment repair, large-component spot welding).
Technical Highlights
-Low-loss magnetic core – Reduces energy waste by 15%.
-Modular design – Supports easy maintenance and upgrades.
-IP54 protection – Dust and splash-resistant for harsh workshop environments.
Warranty: 1-year comprehensive coverage with date-stamped components.
