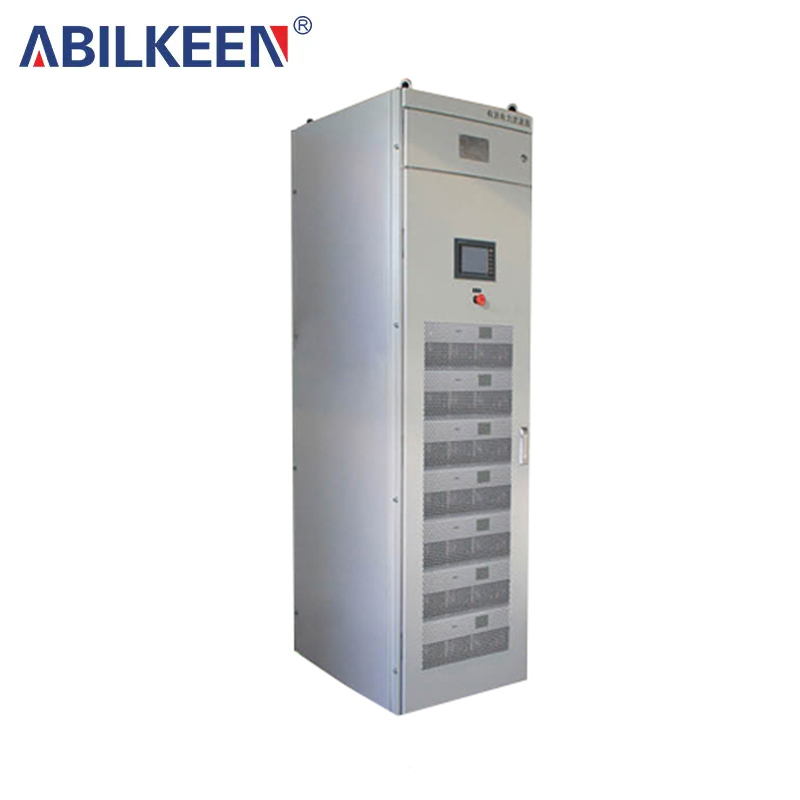

IBAPF Active Power Filter.jpg

IBAPF Active Power Filter

One of the main features of the IBAPF active power filter is its rated compensation capacity, which is available in three options: 50A, 75A and 100A. This flexibility enables users to choose the right model for their specific power needs. The target power factor can be adjusted between 2 and 60 times, and it is equipped with powerful filtering functions to support harmonic compensation, unbalance compensation and reactive power compensation. By reducing harmonics and balancing loads, the filter helps to extend the service life of mechanical equipment and reduce maintenance costs. The communication and user interface design of the IBAPF filter is simple and easy to use, and it is easy to integrate into existing systems. Equipped with an RS485 communication interface that supports the Modbus protocol, it can be seamlessly connected to other devices and systems.

    Contact us
    Product Details

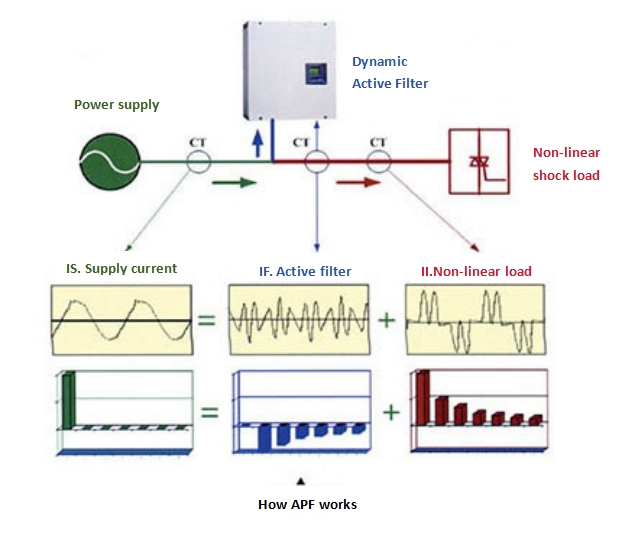

    APF Schematic

    APF Schematic.jpg

    Product Parameters

    Capacity (KVor)

    50

    75

    100

    Grid voltage

    380V(-40%-+20%)

    380V(-40%-+20%)

    380V(-40%-+20%)

    Grid frequency

    45Hz-62Hz

    45Hz-62Hz

    45Hz-62Hz

    Grid system

    3-phase 4-wire/3-phase 3-wire

    3-phase 4-wire/3-phase 3-wire

    3-phase 4-wire/3-phase 3-wire

    efficiency

    ≥97.5%

    ≥97.5%

    ≥97.5%

    Well Union

    No more than six units are recommended

    No more than six units are recommended

    No more than six units are recommended

    Rated compensation capacity

    50A

    75A

    100A

    Target power factor

    2~60 times adjustable

    2~60 times adjustable

    2~60 times adjustable

    Fast response time

    <50us

    <50us

    <50us

    Total response time

    <5ms

    <5ms

    <5ms

    Filter function

    Support harmonic compensation, unbalance compensation, reactive power compensation

    Support harmonic compensation, unbalance compensation, reactive power compensation

    Support harmonic compensation, unbalance compensation, reactive power compensation

    Protection function

    Grid over-voltage and under-voltage protection, short circuit protection, IGBT over-temperature protection, etc.

    Grid over-voltage and under-voltage protection, short circuit protection, IGBT over-temperature protection, etc.

    Grid over-voltage and under-voltage protection, short circuit protection, IGBT over-temperature protection, etc.

    Communication interface

    RS485

    RS485

    RS485

    Communication Protocol

    Modbus Protocol

    Modbus Protocol

    Modbus Protocol

    User interface

    HMI(4.3 inches)

    HMI(4.3 inches)

    HMI(4.3 inches)

    Installation

    Rack mount / wall mount

    Rack mount / wall mount

    Rack mount / wall mount

    Size

    440x575 x200mm

    456x575x232mm

    456x575 x232mm

    Weight

    32Kg

    40Kg

    45Kg

    Cooling method

    Intelligent air cooling

    Intelligent air cooling

    Intelligent air cooling

    ≤1500m, between 1500~4000m, according to national GB/T3859.2, the power is reduced by 1% for every additional 100m

    `-25℃~+45℃

    5%-95%, no condensation

    IP20, other IP levels can be customized

     In-situ governance quick reference table

    Rack-mount APF installation parameters

    Capacity(A)

    Dimensions (mm)

    Weight(Kg)

    Fixing method

    Heat dissipation requirements

    Line entry method

    50

    440x575x200

    32

    Front panel mounting ears

    Air cooling, front to back

    Back line

    75

    440x575x232

    40

    Front panel mounting ears

    Air cooling, front to back

    Back line

    100

    440x575x232

    45

    Front panel mounting ears

    Air cooling, front to back

    Back line

    Wall-mounted APF installation parameters

    Capacity(A)

    Dimensions (mm)

    Weight(Kg)

    Fixing method

    Heat dissipation requirements

    Line entry method

    50

    440x575x200

    32

    Upper and lower mounting ears

    Air cooling, bottom in and top out

    Upper line

    75

    440x575x232

    40

    Upper and lower mounting ears

    Air cooling, bottom in and top out

    Upper line

    100

    440x575x232

    45

    Upper and lower mounting ears

    Air cooling, bottom in and top out

    Upper line
