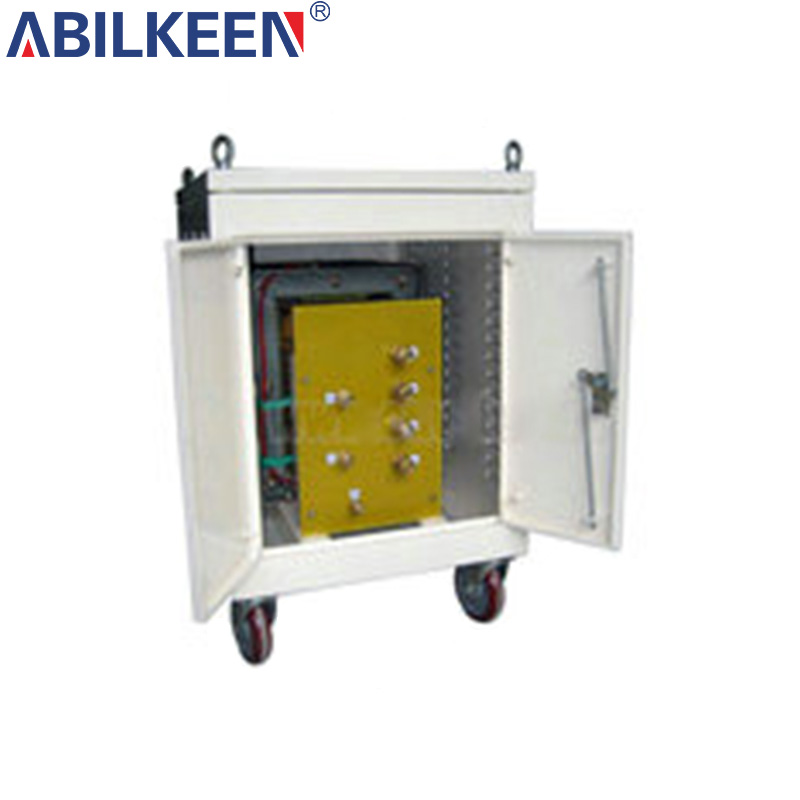

IBDG-60KVA transformer
Product Overview
This transformer features a two-phase 380V input and a stable, adjustable output voltage of 0-160V to meet the needs of various welding processes. It utilizes Class F insulation and has passed the 3800V withstand voltage test (leakage current ≤ 0.5mA), ensuring high safety and reliability. It is suitable for all types of spot and butt welders and comes with a one-year warranty.
Features
1.Wide voltage output range: Supports continuously adjustable output voltage from 0V to 160V, covering three preset welding modes of 100V/130V/160V, and can adapt to the welding process requirements of different materials and thicknesses such as carbon steel, stainless steel, and aluminum alloy.
2.Reinforced insulation system: Using F-class (155°C heat-resistant grade) insulation materials and a vacuum varnishing process ensures long-term stable operation of the windings in high-temperature and high-humidity environments, extending insulation life by more than 30%.
3.High-voltage reliability verification: Passed 3800V/1min power frequency withstand voltage test (leakage current ≤ 0.5mA), complies with IEC 60076-5 standards, and effectively prevents the risk of partial discharge and insulation breakdown.
4.Global Grid Compatibility: Built-in adaptive circuitry automatically detects 50Hz/60Hz input frequencies and maintains stable output within a wide voltage range of 180V-264V, making it suitable for industrial power fluctuations and overseas power environments.
5.Long-term quality assurance: 12-month full-machine warranty, key components use military-grade components, and the mean time between failures (MTBF) is ≥ 50,000 hours.
Product Advantages
- Efficient and stable: Optimized for welding equipment to ensure stable power supply
- Safe and reliable: High insulation level + strict voltage resistance test to reduce the risk of failure
- Flexible adaptation: Multiple voltage outputs to meet different welding process requirements
- Long life design: F-class insulation material to extend the service life of the equipment
- Widely applicable: Compatible with all types of spot welders, butt welders and industrial welding applications

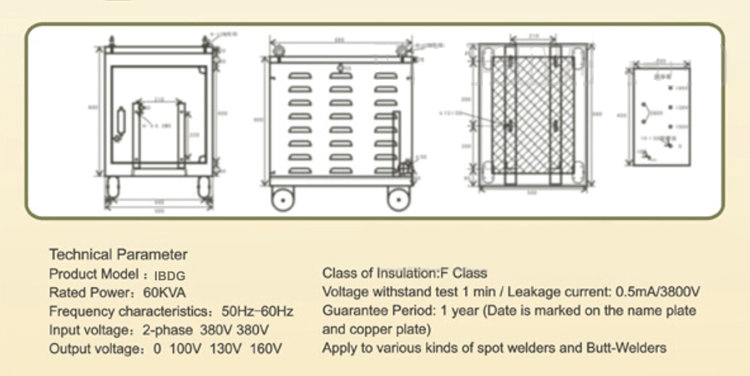

Technical Parameters
