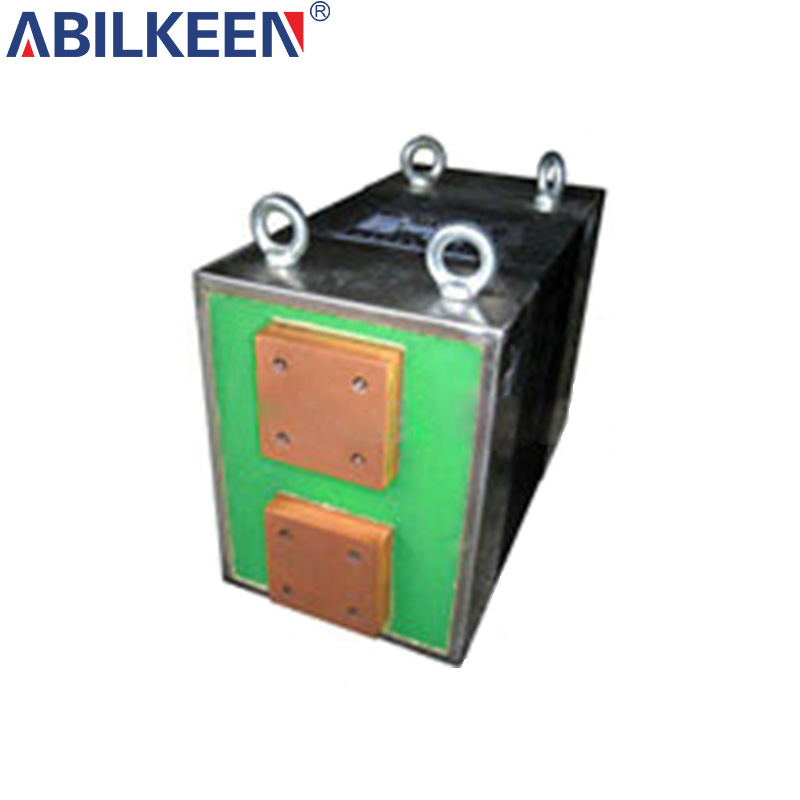

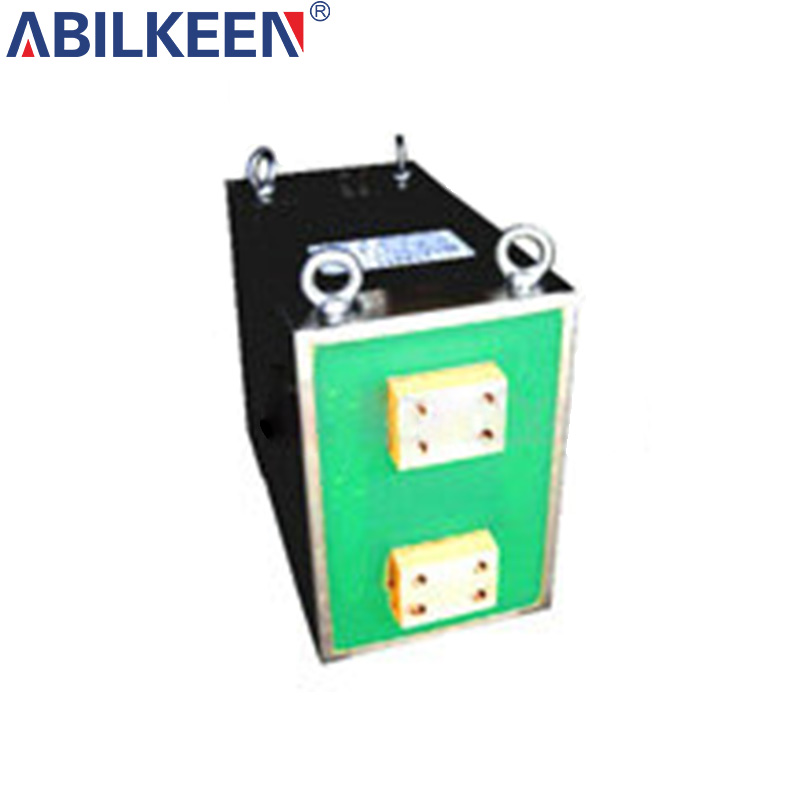

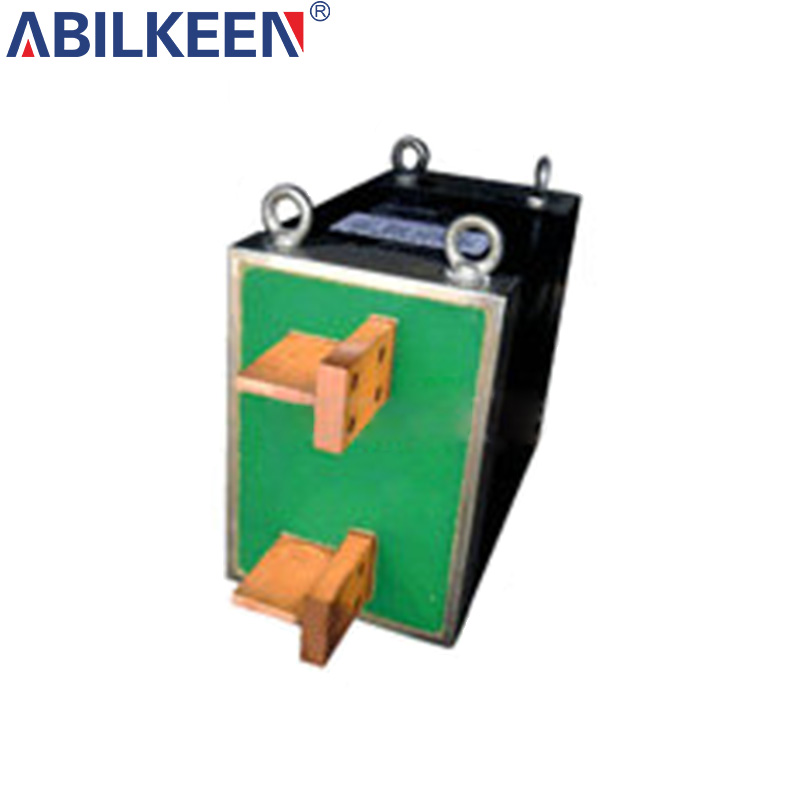

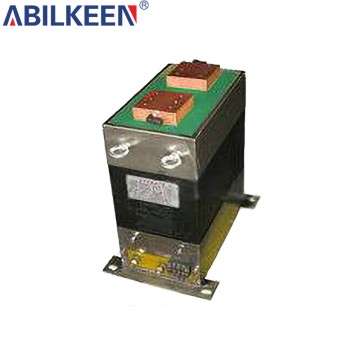

IBDG-63KVA transformer
Product Overview
The IBDG-63KVA transformer is engineered for precision welding power supply, supporting 50-80Hz frequency range and 3-level adjustable output voltage (380V) to match different welding requirements. With a 20%-50% duty cycle, it balances efficiency and heat dissipation, making it suitable for spot welding, butt welding, and other resistance welding processes. Its robust F-class insulation and 3800V high-voltage resistance guarantee long-term reliability in industrial settings.
Product Features
1.63KVA high power output
Designed specifically for high-intensity welding operations, it provides a rated power of 63kVA and can stably drive various industrial welding machines to meet high load requirements such as continuous welding and thick plate welding.
2.50-80Hz wideband adaptability
Compatible with 50Hz/60Hz industrial power grids and extended to 80Hz high-frequency output, it is suitable for different processes such as resistance welding and flash welding to ensure precise matching of welding frequencies.
3.Three-level voltage regulation (380V)
It supports three adjustable levels of 380V input voltage and achieves precise matching of welding voltage for materials such as mild steel, stainless steel, copper, and aluminum by optimizing electromagnetic parameters.
4.Class F insulation system (155°C heat resistance)
The use of vacuum impregnation technology and high-temperature resistant insulation materials ensures long-term stable operation of the winding in high-temperature environments, and the insulation life is increased by 40% compared to traditional Class B.
5.3800V high voltage withstand test (leakage current ≤ 0.5mA)
It has passed the 1-minute power frequency withstand voltage test and complies with the IEC 60076-5 standard, effectively suppressing partial discharge and ensuring the safety of equipment under voltage fluctuations.
Product Advantages
1.High Reliability：3800V withstand test ensures long-term stability.
2.Adaptable Output：Adjustable voltage levels for multiple welding applications.
3.Efficient Cooling：Optimized 20%-50% duty cycle for heat management.
4.Industrial-Grade Durability：F-class insulation resists aging and harsh conditions.
5.Safe & Compliant：Leakage current ≤0.5mA, meeting high safety standards.
