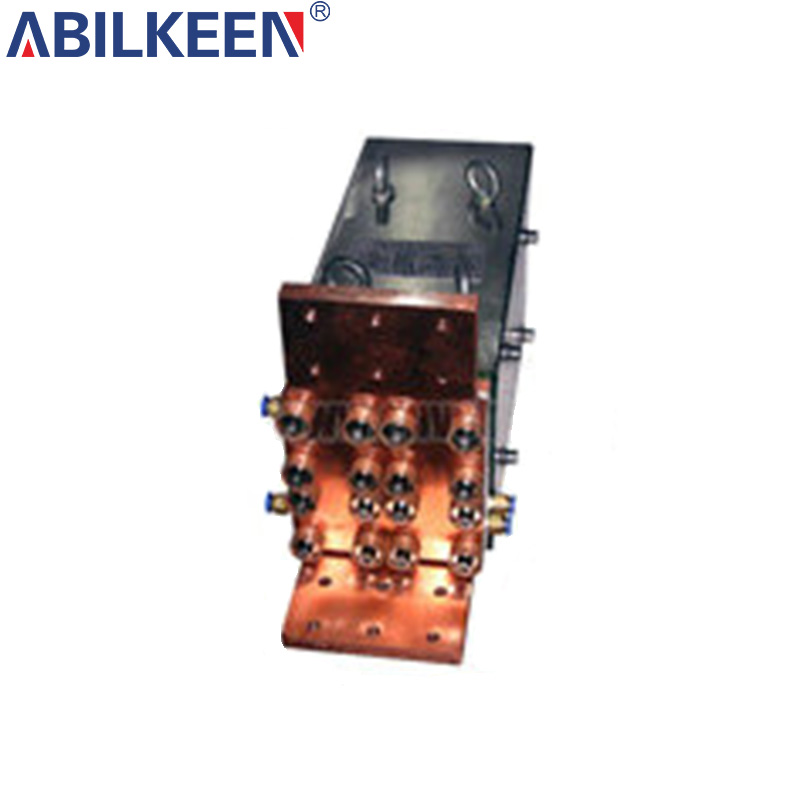

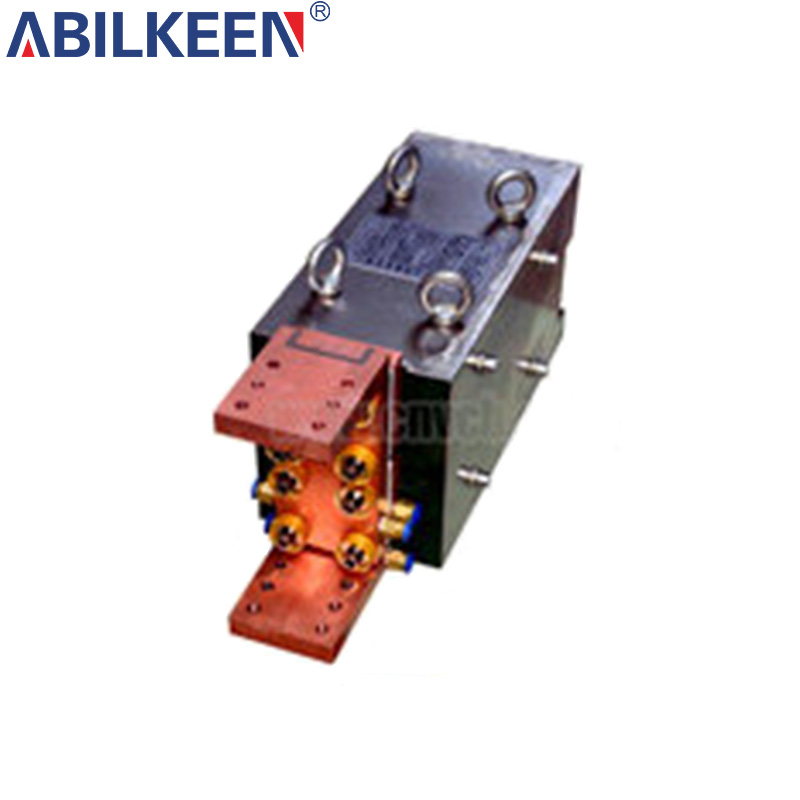

IBZPZDPS-100KVA transformer

Product Overview‌

1.Core Parameters‌

Model: IBZPZDPS-100KVA

Rated power: 100kVA

Input voltage: 500V AC (50Hz-60Hz adaptive)

Output voltage: DC 10.5V (optimized for water-cooled welding equipment)

2.Safety and Protection‌

Insulation grade: F (high temperature resistant material, long-term stable operation)

Hi-pot test: 3800V/1 minute (leakage current ≤ 0.5mA, exceeding industry safety standards)

Protection mechanism: 85°C temperature control protection + 8L/min water cooling circulation (ZG1/4 interface)

3.Performance optimization‌

Duty cycle: 50% (balance power output and heat dissipation efficiency)

Applicable scenarios: various water-cooled welding machines (such as laser welding, plasma welding, etc.)

4.Product Advantages‌

Global power grid compatibility (50Hz/60Hz adaptive), industrial-grade safety design, and efficient heat dissipation ensure continuous operation, making it an ideal power supply solution for high-end welding equipment.

Features

◆Wideband adaptability: supports 50Hz-60Hz adaptive input and is compatible with global power grid environments.

◆Intelligent protection system‌: Equipped with 85°C temperature control protection and 8L/min water cooling circulation (ZG1/4 interface) to ensure continuous and stable operation.

◆Strict safety standards: Adopts F-class insulation technology, passes 3800V withstand voltage test, and leakage current is less than 0.5mA.

◆High-performance design optimization: 50% duty cycle adjustment achieves a balance between power output and cooling performance.

Application scenarios‌

Industrial welding field: Suitable for welding equipment that requires water cooling, such as argon arc welding and plasma welding.

Precision processing scenarios: Suitable for high-frequency welding machines, laser welding machines and other automated production line equipment.

Power supply applications: Can be used as a welding power supply main unit or a 380V/500V grid auxiliary transformer.
