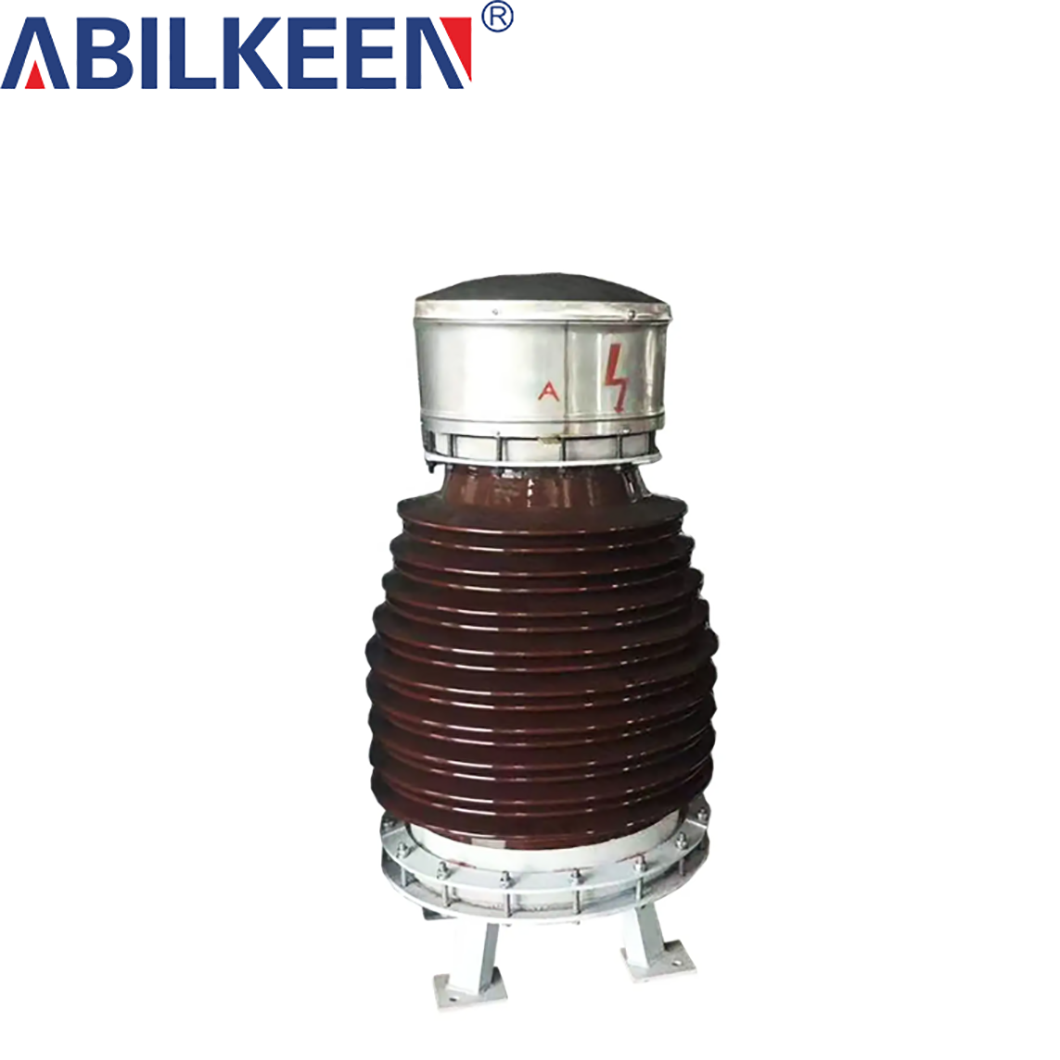

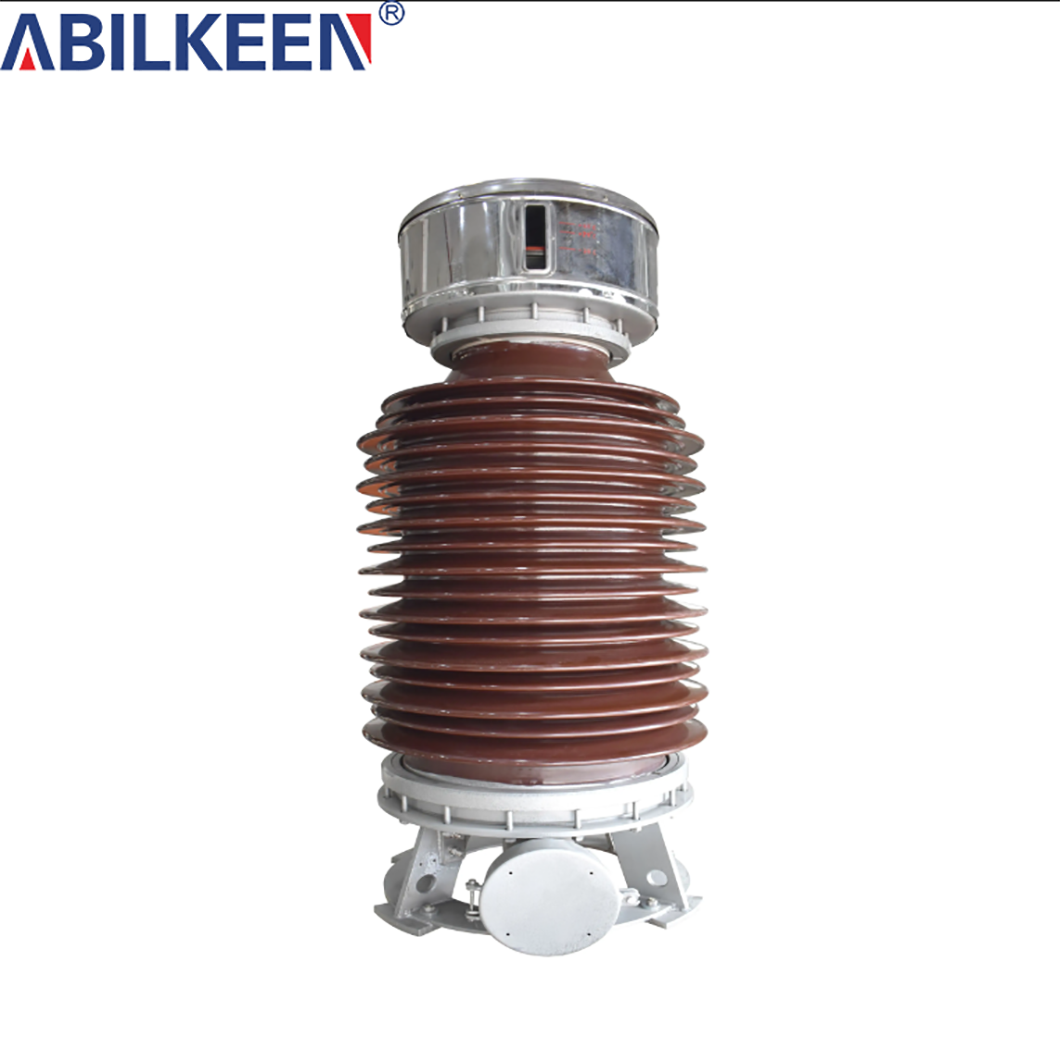

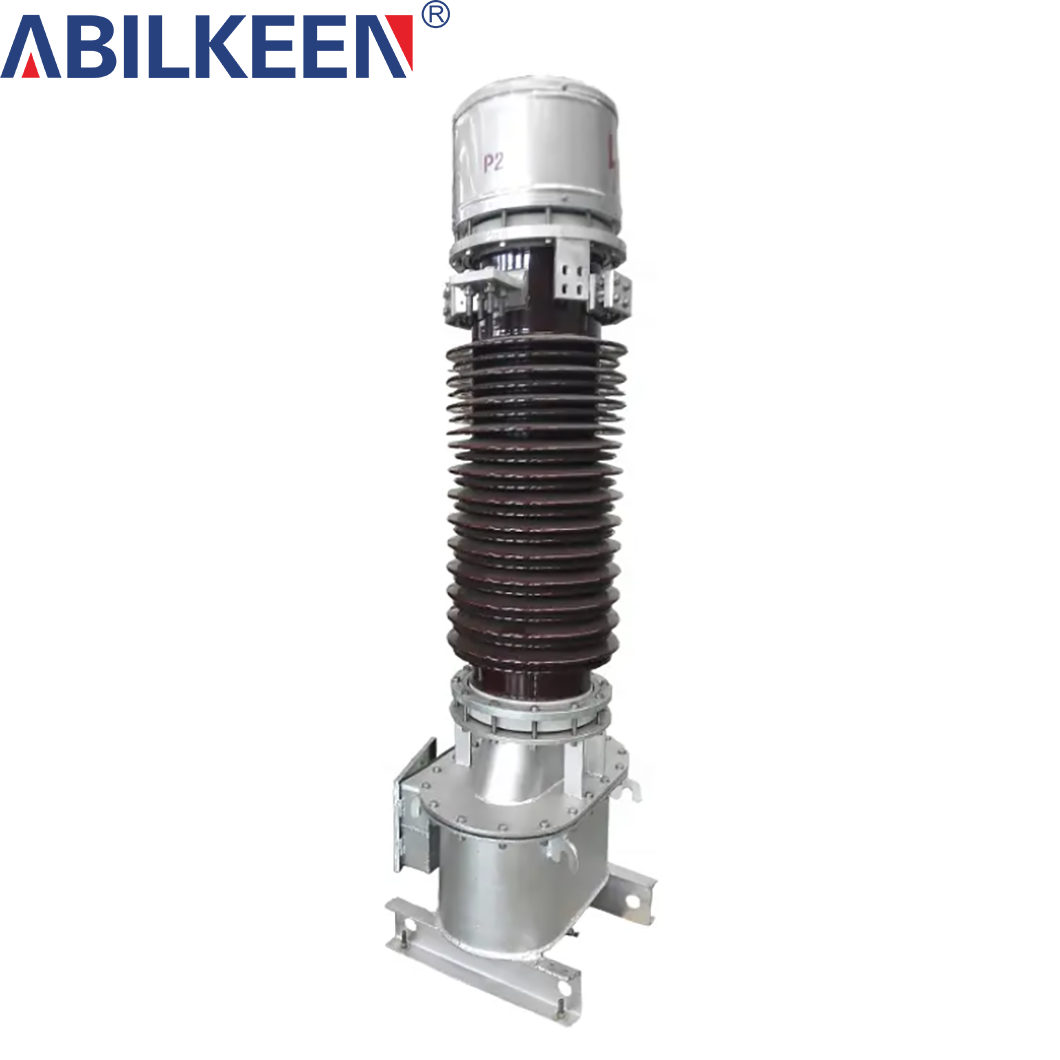

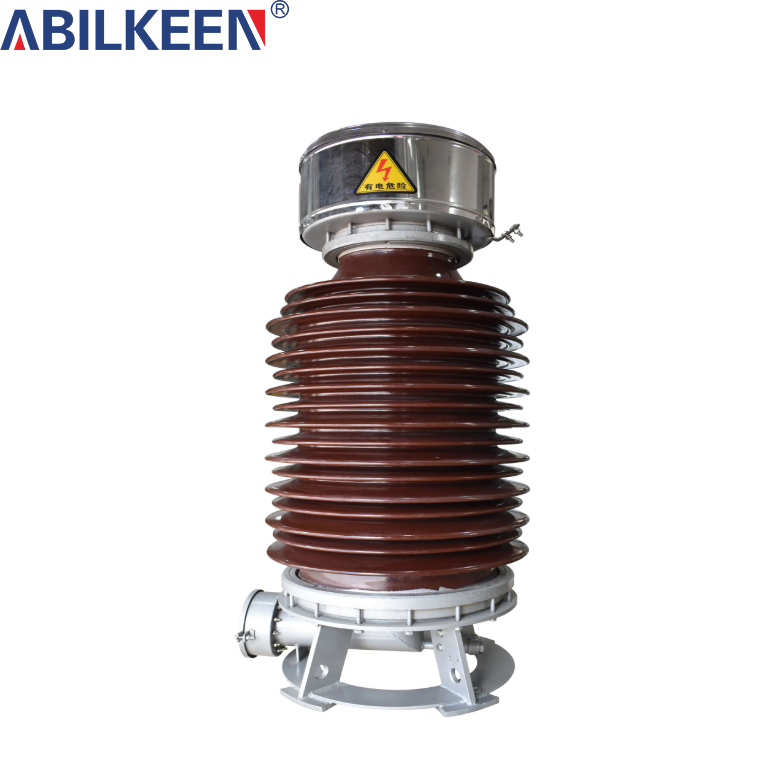

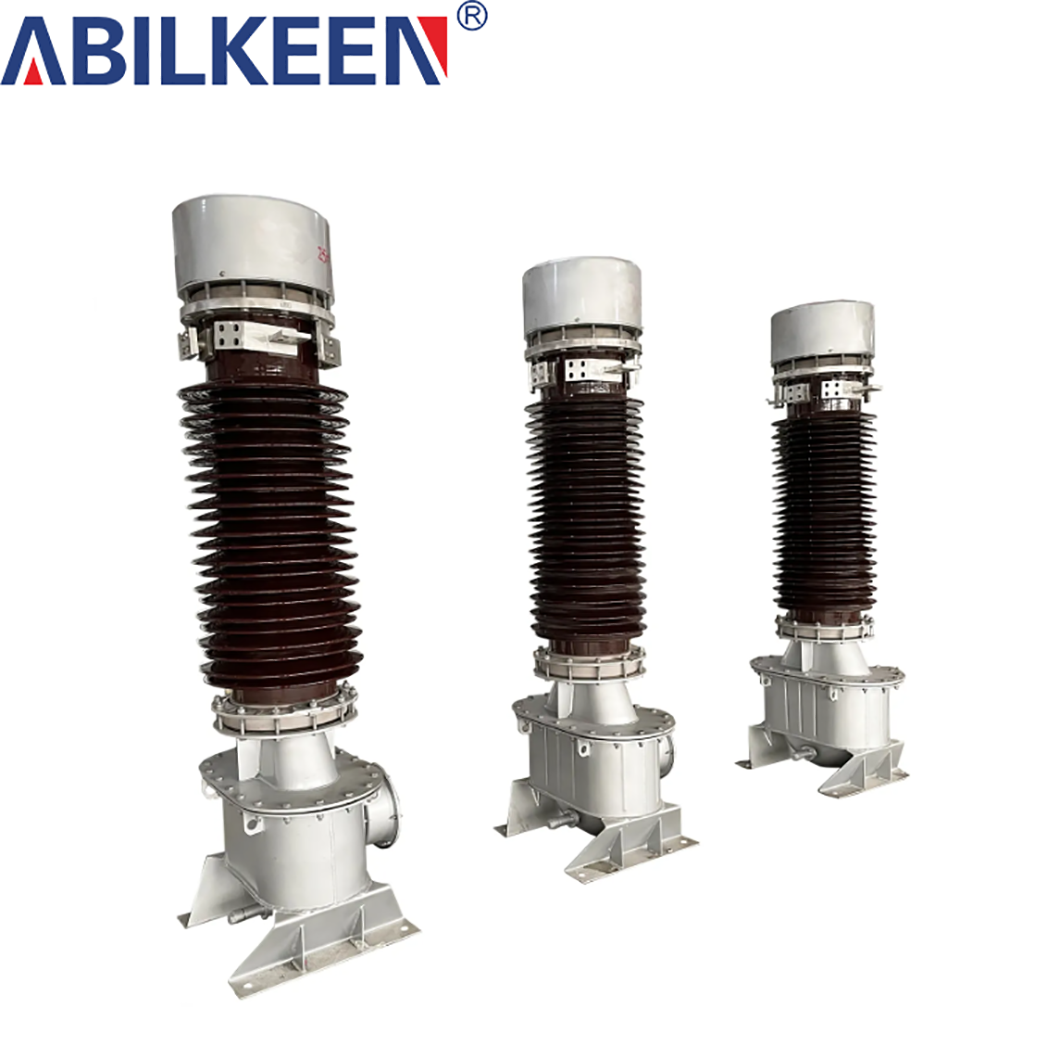

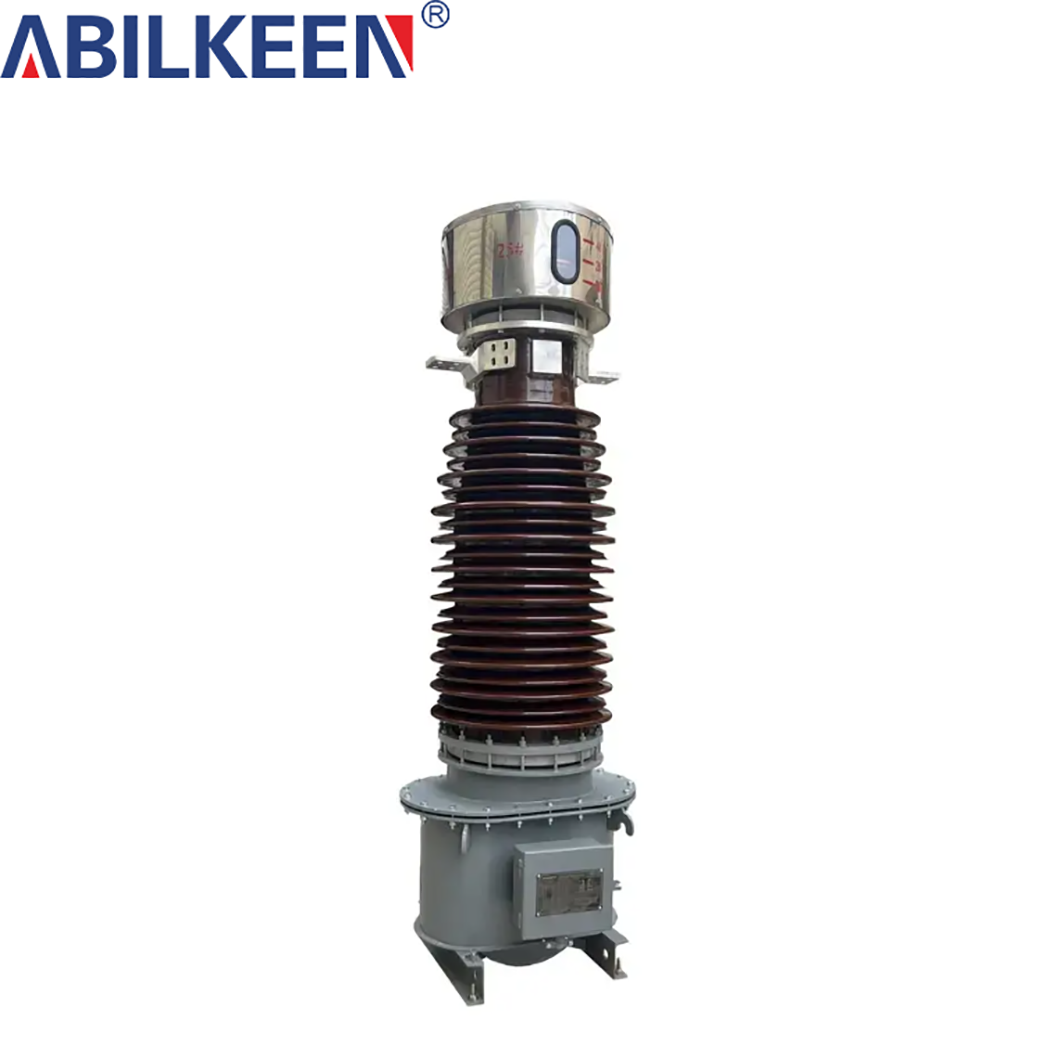

ABILKEEN Single Phase 96KV 110KV Outdoor High Voltage Current Transformer CT
Product Overview
The JDCF - 66W1 transformer features a unique construction. Its iron core and windings are ingeniously integrated through a sophisticated casting process. This model is a single - phase transformer, specifically engineered for connection between phases, making it highly suitable for specific electrical setups.
It is equipped with dual secondary windings, each with a distinct function. One winding is dedicated to precise energy measurement and voltage monitoring, providing accurate data for power consumption assessment and voltage stability tracking. The other winding is designed for reliable relay protection, ensuring the safety and stability of the electrical system by quickly responding to abnormal conditions.
The iron core of the JDCF - 66W1 is crafted from top - grade cold - rolled silicon steel sheets. This material choice guarantees outstanding magnetic properties, enabling efficient energy transfer and stable performance even under challenging electrical loads.
In terms of standards compliance, the JDCF - 66W1 strictly adheres to both international and national norms. It meets the requirements of IEC60044 - 2, an internationally recognized standard for transformers, as well as relevant national standards in China such as GB1207 - 2006, ensuring its quality and reliability across a wide range of electrical applications.This transformer is highly resistant to dirt and moisture, making it suitable for use in various environments, including tropical areas. Maintenance is hassle - free, only requiring regular removal of surface dirt. Its fully enclosed and cast insulation design results in a compact size and light weight, allowing for installation in any position and direction. A terminal box is installed at the secondary outlet terminal, which has three outlet terminal holes. Secondary wires can be drawn from different directions, offering convenient, safe, and reliable wiring, and anti - theft measures can also be easily implemented.
Technical Parameters
| model | Rated primary voltage(KV) | Measuring Secondary Winding | Protecting the secondary winding | residual voltag winding | Secondary winding limit output(VA) | rated insulation level | Crawler distance comparison CM/KV | Oil weight/total weight | ||||||
| rated voltage(KV) | Accuracy level | Rated Output(VA) | rated voltage(KV) | Accuracy level | Rated Output(VA) | rated voltage(KV) | Accuracy level | Rated Output(VA) | ||||||
| JDCF5-66W1 | 66/√3 | 0.1/3 | 0.2 | 50 | 0.1/3 | 3P | 400 | 0.1/3 | 3P | 100 | 2000 | 72.5/140/325 | 2.5 | 90/530 |

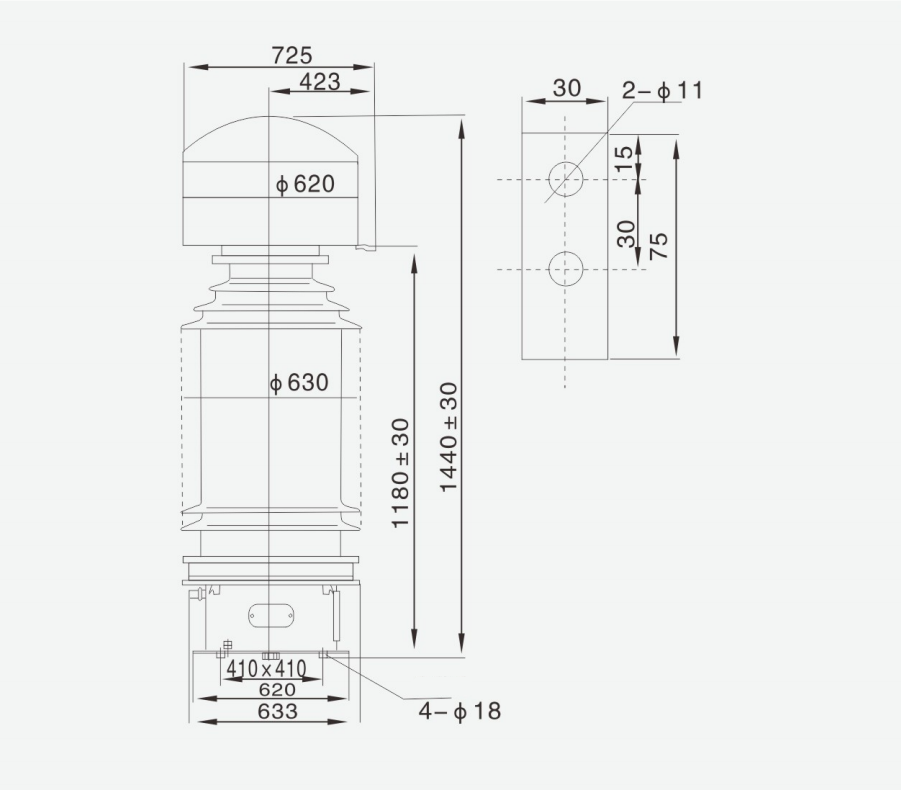

Appearance and installation dimensions
