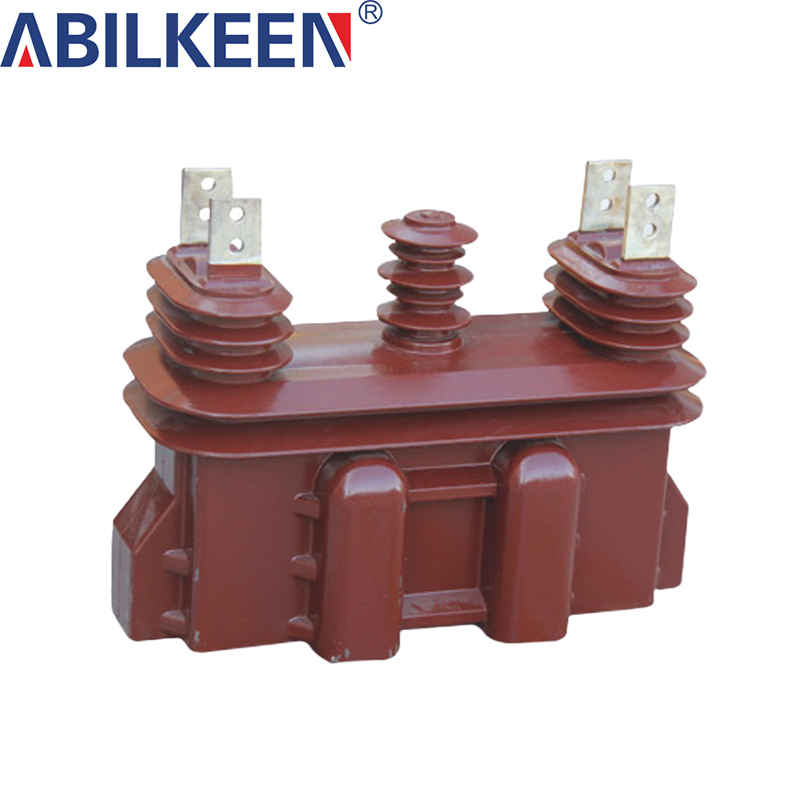

JLSZV-10/6/3 Three phase three wire dry metering box (integral casting type)

This series of meter boxes are improved on the basis of similar products. They are suitable for outdoor AC power systems with rated frequency of 50Hz and rated voltage of 10kV and 6KV for electric energy metering. They are ideal substitutes for old oil-immersed products.

This series of products consists of a voltage and current combination transformer and a meter box. The transformer contains two independent voltage and current transformers installed in phases A and C. The outer wall of the combination transformer is equipped with active and reactive watt-hour meters and a joint junction box for testing. During operation, it is covered with a meter box to prevent electricity theft. The inner core of the JLSG-10 product is cast with epoxy resin and the outer shell is made of steel barrel to prevent direct damage to the epoxy resin casting body caused by ultraviolet rays from the sun.
