JDZX9-35 Voltage transformer

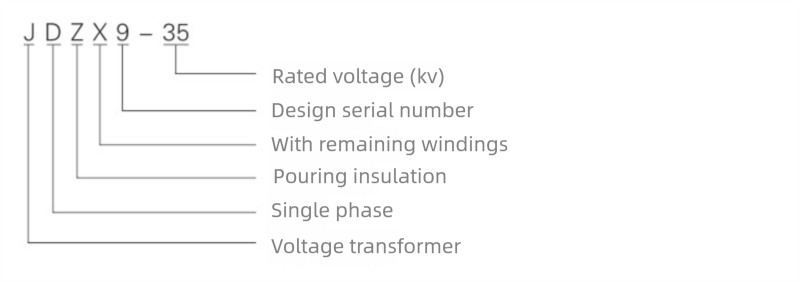

Model and meaning

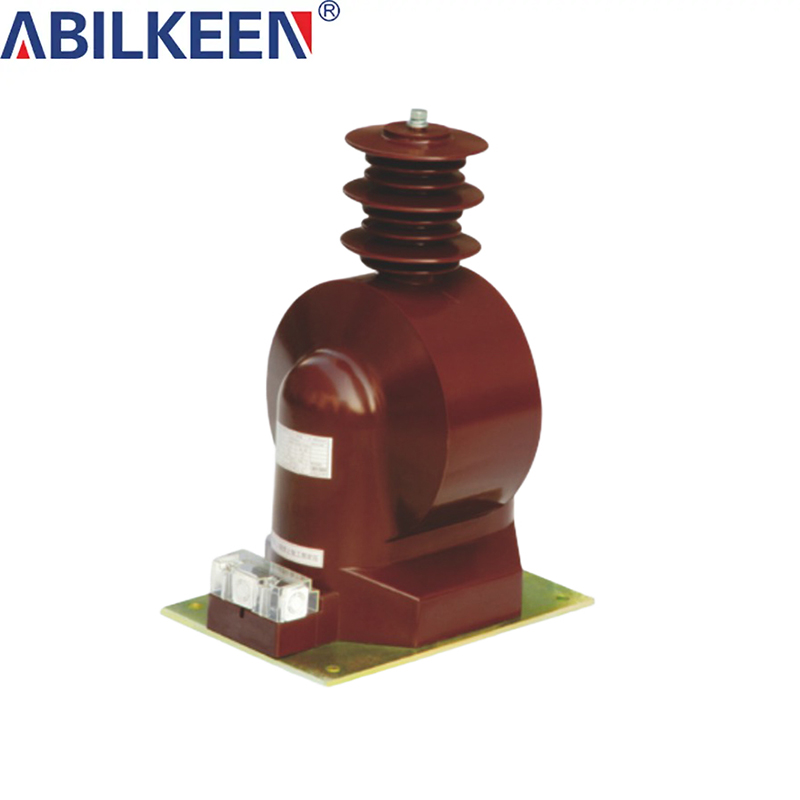

Product Overview

One of the key features of the JDZX9-35 voltage transformer is its excellent accuracy. It is available in a variety of accuracy levels, including 0.2/6P(3P), 0.5/6P(3P), 1/6P(3P), 3/6P(3P), 0.2/0.2/6P(3P), 0.2/0.5/6P(3P) and 0.5/0.5/6P(3P). These accuracy levels are critical for applications that require precise voltage measurement, ensuring that the transformer can meet a variety of operating needs. The choice of multiple accuracy levels enables users to tailor the performance of the transformer to specific needs, thereby enhancing its versatility in a variety of electrical systems.

In addition to its high accuracy, the JDZX9-35 voltage transformer is designed with thermal limit outputs of 600 VA and 300 VA. This feature is particularly important to prevent overheating and ensure the service life of the transformer. By maintaining optimal thermal performance, the JDZX9-35 is able to operate efficiently under a variety of load conditions, making it suitable for industrial and commercial applications. The thermal limit output is a testament to the rugged design of this transformer, which is critical to its operational safety and reliability.

Another important aspect is the insulation rating of the JDZX9-35 voltage transformer, which is rated at 40.5/95/200 kV. Such high insulation levels ensure that the transformer can withstand high voltage surges and electrical stresses, providing a safe operating environment. Insulation performance is essential to prevent electrical breakdown and ensure the service life of the transformer, making it a reliable choice for high voltage applications. The robust insulation design also helps ensure the overall safety of the electrical system in which the transformer is integrated.

Technical Parameters

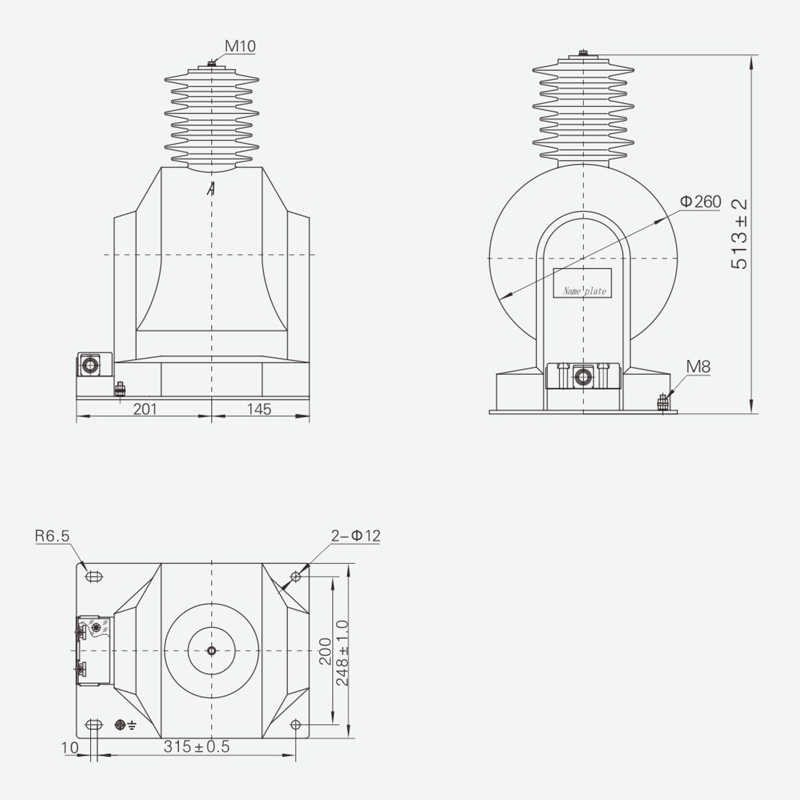

Appearance and installation dimensions
