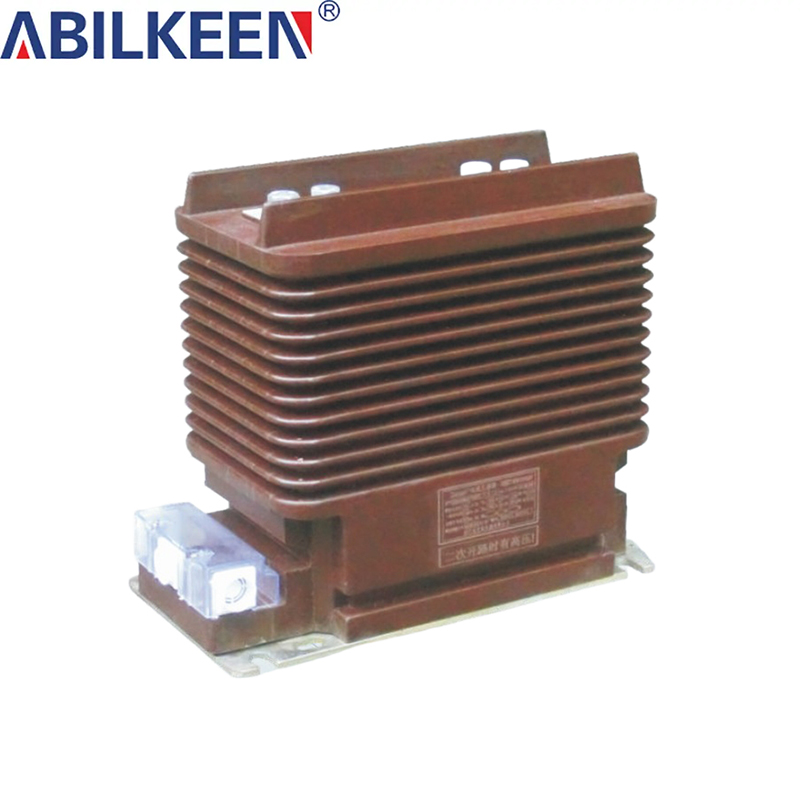

LZZB9-24/180b Current transformer

Rated currents range from 0.75 kA/s up to 80 kA/s, allowing the transformer to meet a wide range of operating requirements. This feature is particularly important in environments where current surges may occur, as it ensures that the transformer can withstand these fluctuations without compromising its integrity or performance. The ability to maintain stability under such conditions is a testament to the advanced engineering and quality materials of the LZZB9-24/180b.

Product Details

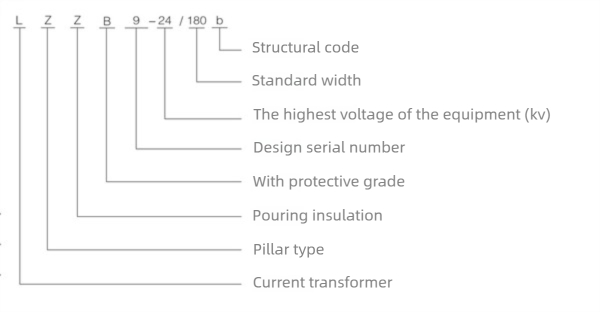

Model and meaning

Model and meaning.jpg

Product Overview

The LZZB9-24/180b current transformer also features a dynamic stable current rating, further enhancing its reliability. Dynamic stable current ratings range from 1.9 kA to an amazing 160 kA, providing users with a versatile solution for a variety of applications. This dynamic stable current range is particularly beneficial in industrial environments where equipment may experience rapid changes in load or current. The ability of the transformer to adapt to these changes without failure is a key factor in maintaining operational efficiency and safety.

The LZZB9-24/180b current transformer is designed with user convenience in mind. Its compact design allows it to be easily installed in a variety of environments, from substations to industrial plants. The transformer also has features that allow it to be easily integrated into existing electrical systems, minimizing downtime during installation. This ease of use, coupled with its powerful performance, makes the LZZB9-24/180b an ideal choice for engineers and technicians looking for a reliable current measurement solution.

Technical Parameters

Rated primary current (A)	Short-time thermal stability current (kA/s)	Rated dynamic stability current (kA)	Accuracy level combination	Rated secondary output (A)				Surface creepage distance (mm)	Weight(kg)
				0.2.0.2S	0.5,0.5S	10P10	10P15
5	0.75	1.9	0.2S/10P 0.2/10P 0.5/10P 0.5S/10P 0.2S/0.2 0.2S/0.5 0.2/0.5	10	10	15	15	430	30
10	1.5	3.8
15	2.25	5.6
20,25	3	7.5
30	4 5	11
40	6	15
50,60	7.5	18
75	11.25	28
100	15	37.5
150	22.5	56
200	31.5	80
250
300	45	112.5
400
500
600,700	63	130				20	20
750,800
1000	80	160		20	20	20	20
1200
1250
