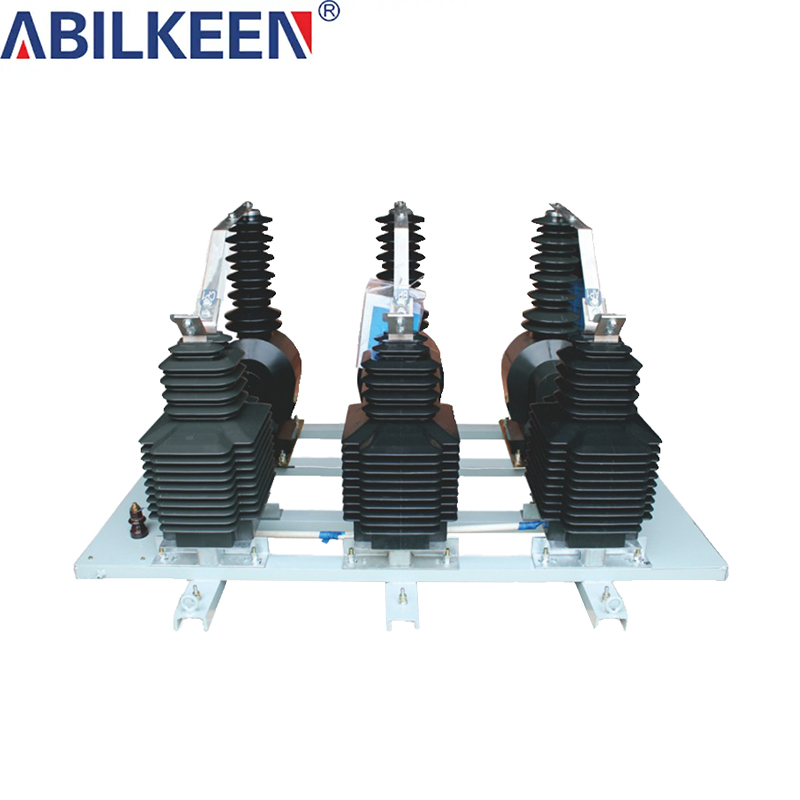

JLSZY-35W Outdoor combined transformer

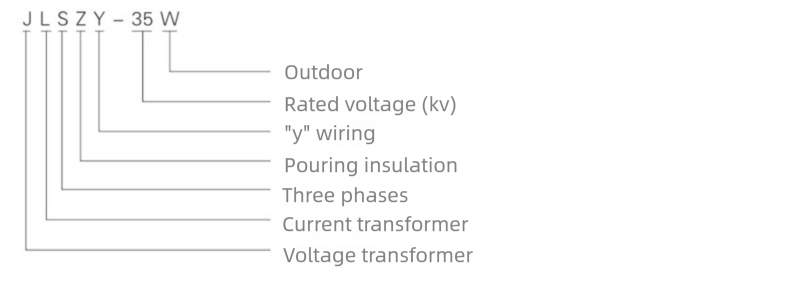

Model and meaning
Product Overview
The JLSZY-35W also has an impressive range of dynamically stable current ratings, from 1.25 kA to 100 kA. This capability ensures that the transformer can withstand dynamic loads and sudden changes in power demand without compromising performance. The ability to handle such dynamic conditions is critical for outdoor installations, as environmental factors and load changes can significantly affect system performance. The JLSZY-35W is designed to provide consistent and reliable output even in harsh conditions.
Technical Parameters
Voltage parameters
|
Model |
Rated voltage ratio(kV) |
Accuracy |
Rated secondary output (VA) |
Thermal limit output (VA) |
Rated insulation level (kV) |
Surface creepage distance (mm) |
Weight(kg) |
|
JLSZY-35W |
35/√3/0.1/√3 |
0.2 0.5 1 |
3x303x803x150 |
3x600 |
40.5/95/200 |
1250 |
260 |
Current parameters
|
Rated primary current (A) |
Rated primary current (A) |
Short-time thermal stability current (kA/s) |
Rated dynamic stability current (kA) |
Accuracy level combination |
Rated secondary output (VA) |
||
|
0.2.0.2S |
0.5S |
0.5 |
|||||
|
5/10 |
5 |
0.5 |
1.25 |
0.2S 0.2 0.5S 0.5 |
15 |
20 |
20 |
|
10/20 |
10 |
1 |
2.5 |
||||
|
- |
15 |
1.5 |
3.75 |
||||
|
15-30 |
20 |
2 |
6 |
||||
|
- |
25,30 |
3 |
7.5 |
||||
|
20-40 |
40 |
4 |
10 |
||||
|
30-50 |
50 |
5 |
12.5 |
||||
|
40-75 |
75 |
7.5 |
18.75 |
||||
|
50-100 |
100 |
10 |
25 |
||||
|
75-150 |
150 |
15 |
37.5 |
||||
|
100-200 |
200,250 |
20 |
50 |
||||
|
150-300 |
300 |
30 |
75 |
||||
|
200-400 |
400 |
40 |
100 |
||||

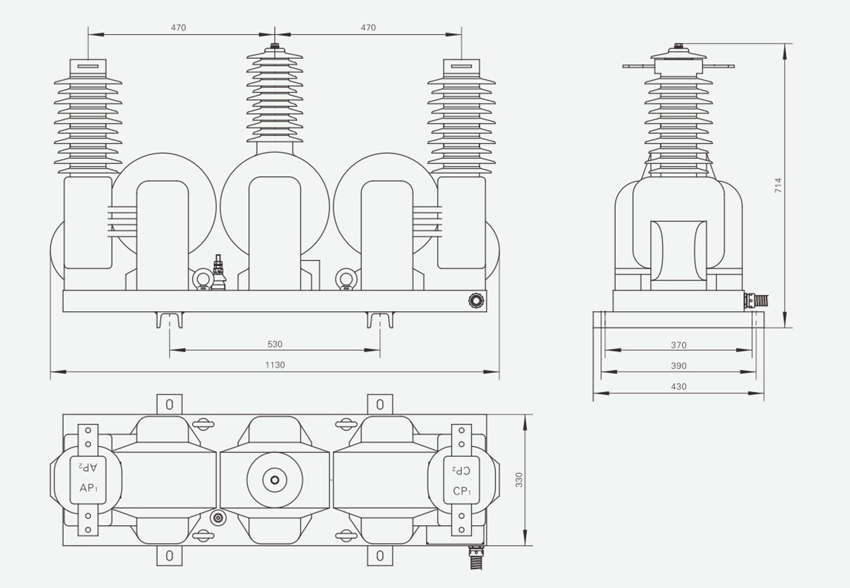

Appearance and installation dimensions
