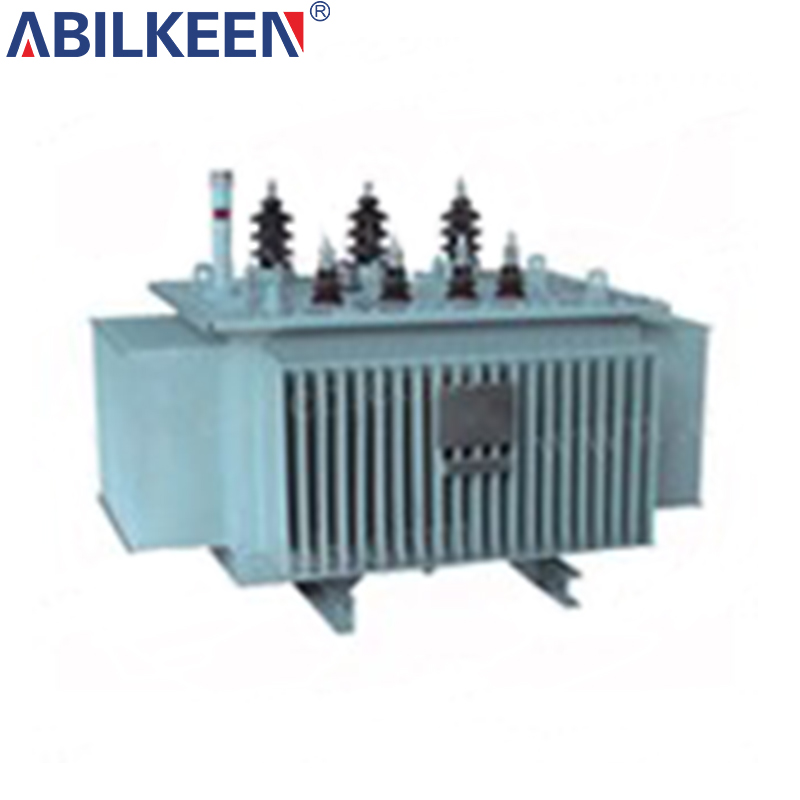

S(B)H16 M Amorphous Alloy Transformer

The S(B)H16-M amorphous alloy transformer utilizes fourth-generation Fe-Si-B amorphous strip, achieving no-load losses of ≤0.12W/kg (a 65% reduction compared to the national standard), reducing CO₂ emissions by 120 tons over its life-cycle. It meets IEC Tier 2 energy efficiency standards and is CQC certified. Suitable for rural power grids (saving 21,000 kWh annually) and new energy applications, it features a noise level of ≤42dB(A), and has been included in the National Energy Conservation Catalogue (2025 edition).

Product Details

Model

S-----------------------------Three-phase

B-----------------------------Copper foil LV coil

H-----------------------------Amorphous alloy core

16-----------------------------performance code

M -----------------------------Sealed type

□------------------------------rated capacity(KVA)

□------------------------------voltage class（KV）

Reference Standard

GB1094. 1-1996 Power Transformer Part 1 General Provisions

GB1094. 2-1996 Power transformers Part 2 Temperature rise

GB1094. 3-2003 Power Transformers Part 3, insulation level, insulation test and external insulation air gap

GB1094. 5-2003 Power Transformer Part 5 of the ability to withstand short-circuit

JB/T10318-2002 Oil-immersed amorphous alloy core distribution transformers technical parameters and requirements

GB311. 1-1997 High-voltage power transmission and transformation equipment, insulation coordination.

Technical parameter

Rated Capacity (kVA)	Join group label	Short-circuit impedance(%)	Range of voltage and tap		No-load loss(w)	Load loss(w)	No-load current(%)	Dimension(LxBxH)	weight	E1xE2 Installation Dimension
Rated Capacity (kVA)	Join group label	Short-circuit impedance(%)	HV	LV	No-load loss(w)	Load loss(w)	No-load current(%)	Dimension(LxBxH)	weight	E1xE2 Installation Dimension
30	Dyn11	4	6/6.3/10/10.5/11	0.4	33	600	1.7	910x580x875	345	400×440
50					43	870	1.3	950x620x1040	480
63					50	1040	1.2	1020x640x900	545
80					60	1250	1.1	1110x640x910	625
100					75	1500	1.0	1060x770x1070	710
125					85	1800	0.9	1130x660x1030	850	550×550
160					100	2200	0.7	1060x930x1150	940
200					120	2600	0.7	1110x930x1170	1085
250					140	3050	0.7	1180x1010x1180	1265
315					170	3650	0.5	1180x1010x1180	1485
400					200	4300	0.5	1200x1010x1180	1860	660×660
500					240	5150	0.5	1270x1160x1200	2180
630		4.5			320	6200	0.3	1450x1240x1330	2480
800					380	7500	0.3	1520x1380x1460	3048	820×820
1000					450	10300	0.3	1720x1460x1510	3420
1250					530	12000	0.2	1785x1330x1690	4218
1600					630	14500	0.2	1880x1380x1970	4922
2000		5			750	17400	0.2	2080x1540x1965	6150
2500		5			900	20200	0.2	2400x1500x2350	6742

IBDG-90KVA transformer

IBDG-80KVA transformer

IBDG-63KVA transformer

IBDG-60KVA transformer

IBDG-40KVA transformer

IBDG-5KVA transformer

IBDG-3KVA transformer

IBZPZDPS-250KVA transformer

IBZPZDPS-125KVA transformer

IBZPZDPS-100KVA transformer

S(B)H16 M Amorphous Alloy Transformer

Model

Reference Standard

Technical parameter

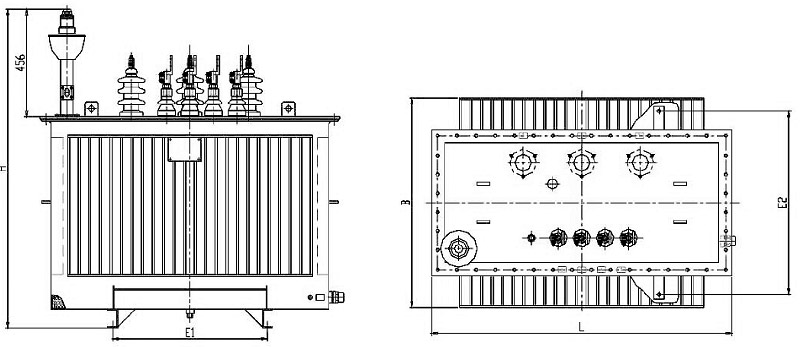

Appearance
