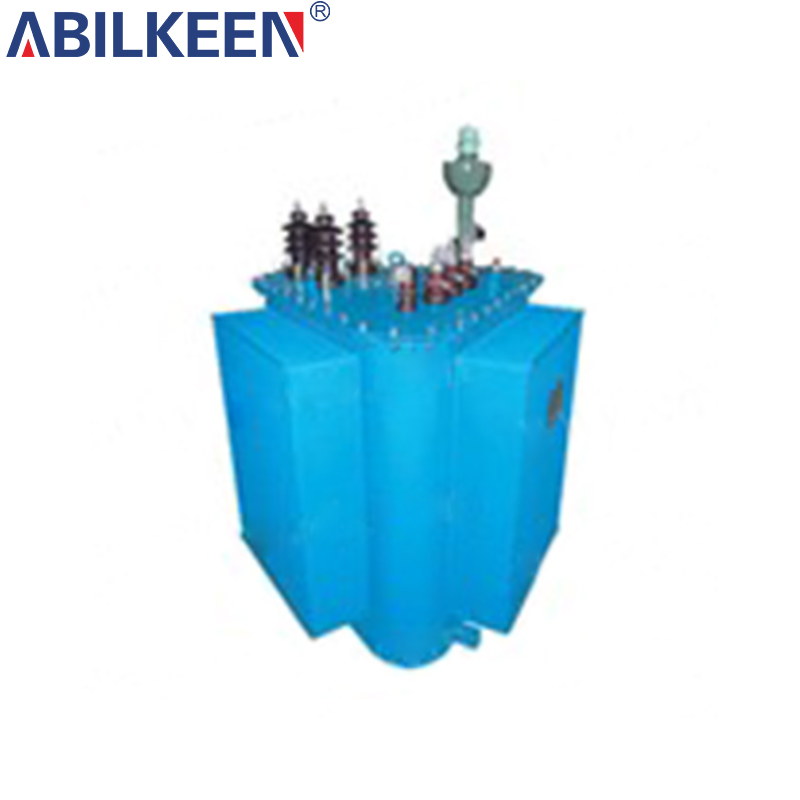

5.11kv Three Dimensional Triangular Wound Core Transformer

11kv low loss triangle roll core no-excitation and voltage regulating oil-immersed distribution transformer which inherited roll all the advantages of roll core transformer.Core is rolled by machine totally.No-load current drop more than 90%.Noise can reduce 10 to 15dB.

Product Details

Advantages

Compare to traditional interpolation chip power transformer triangle stereo roll core power transformer has the following advantages:

Prominent no-load loss reduced energy: 40 to 50% decrease load loss, 7 to 10.

Reduce no-load current line loss: reduce 90%.

Silent: noise reduces 10 to 15 decibels.

No interference: magnetic flux leakage decrease by more than 50%.

Saving material: copper iron cost decreased 20 to 30%.

Economic benefit is remarkable: in ten years, working cost is 17.2% lower than S9, 12.5% lower than amorphous transformer.

Technical Parameters

S11-M.RL-80-2500/10-20 new energy-saving three-dimensional triangular wound core transformer (GB standard)

Capacity(kVA)		80	100	160	200	250	315	400	500	630	800	1000	1250	1600	2000	2500
voltage Combination	HV	10±5% 20±5% 10±2x2.5% 20±2x2.5%
voltage Combination	LV	0.4
No-oad loss(W)		180	200	280	340	400	480	570	680	810	980	1150	1360	1640	2250	2400
Load loss(W)		1250	150	2200	2600	3050	1650	4300	5100	6200	7500	10300	12000	14500	18500	24000
No-oad Curent(%)		0.27	0.26	0.25	0.24	0.23	0.22	0.24	0.21	0.20	0.19	0.18	0.17	0.16	0.15	0.15
Short-circuit impedance(%)		4	4	4	4	4	4	4	4	4.5	4.5	4.5	4.5	4.5	4.5	5.5
body weight(kg)		278	278	439	509	591	679	818	964	1128	1424	1660	1802	2255	3166	3158
Oil weight(kg)		153	149	168	197	228	252	303	375	417	526	645	630	781	1239	1541
Total weight(kg)		525	554	746	856	986	1124	1340	1618	1939	2419	3955	3135	3784	5637	6089
Dimensions(mm)	(L)	1114	1148	1045	1091	1114	1190	1225	1394	1467	1570	1731	1761	1740	1836	1856
	(B)	722	995	905	944	965	1031	1060	1207	1270	1360	1510	1525	1510	1699	1762
	(H)	1314	1314	1376	1394	1397	1422	1477	1562	1594	1636	1656	1768	1908	1407	2088
Installation dimensions(mm)	E1	380	380	400	400	400	550	550	550	550	550	550	550	550	660	660
	E2	550	550	660	660	660	820	820	820	820	820	1070	1070	1070	1300	1300
	D	19	19	19	19	19	19	19	19	19	19	19	19	19	19	19
low-voltage phase line Terminal (mm)	Graphics	1	2	2	3	3	3	3	4	4	4	4	4	4	4	4
	b		38	38	55	55	55	55	80	80	80	100	100	120	120	155
	b1		24	24	30	30	30	30	45	45	45	50	50	60	60	50
	d		12.5	12.5	12.5	12.5	12.5	12.5	14.5	14.5	14.5	18	18	18	18	19
	＆		6.5	6.5	9	9	9	9	15	15	15	18	18	18	18	15
Low-voltage 0-line Terminal (mm)	Graphics	1	2	3	3	3	3	3	4	4	4	4	4	4	4	4
	b		38	55	55	55	55	55	80	80	80	80	80	100	100	100
	b1		24	30	30	30	30	30	45	45	45	45	45	50	50	50
	d		12.5	12.5	12.5	12.5	12.5	12.5	14.5	14.5	14.5	14.5	14.5	18	18	18
	＆		6.5	6.5	9	9	9	9	15	15	15	15	15	18	18	18

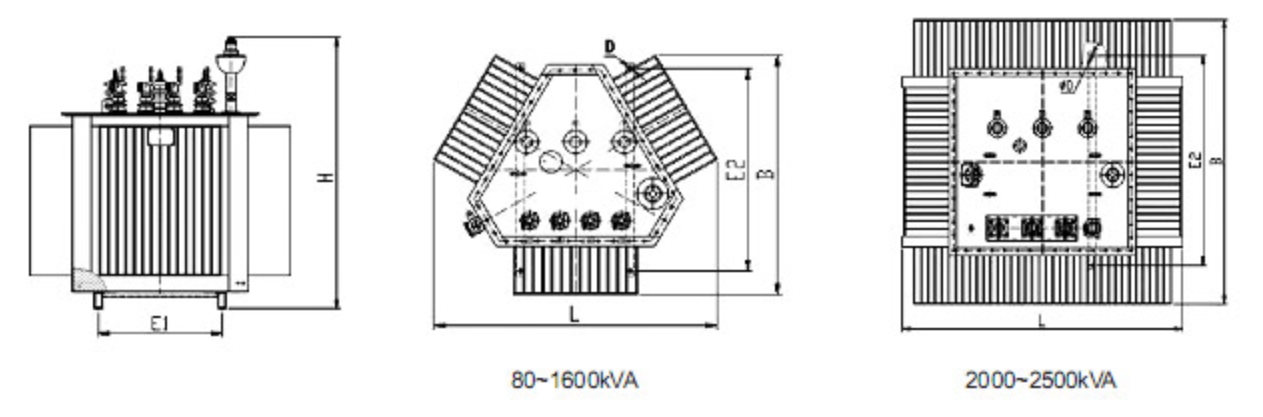

Schematic

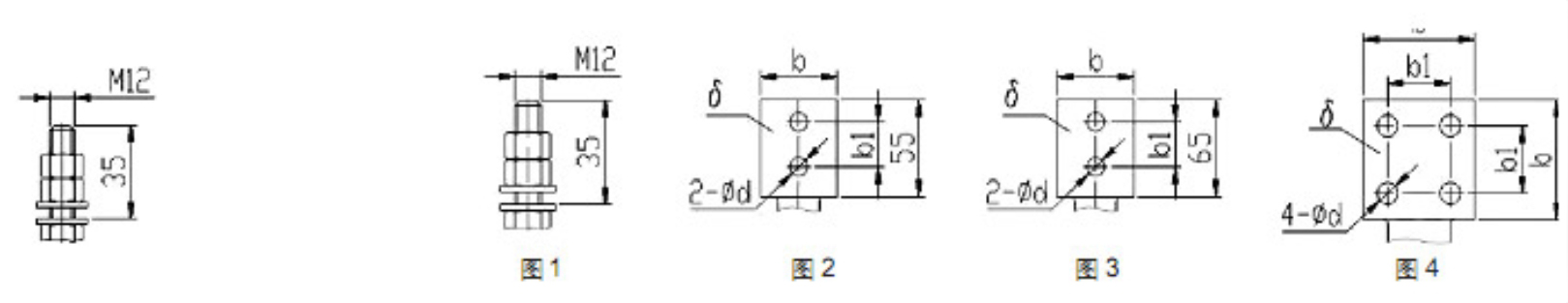

Terminal Blocks

Terminal Blocks.jpg
