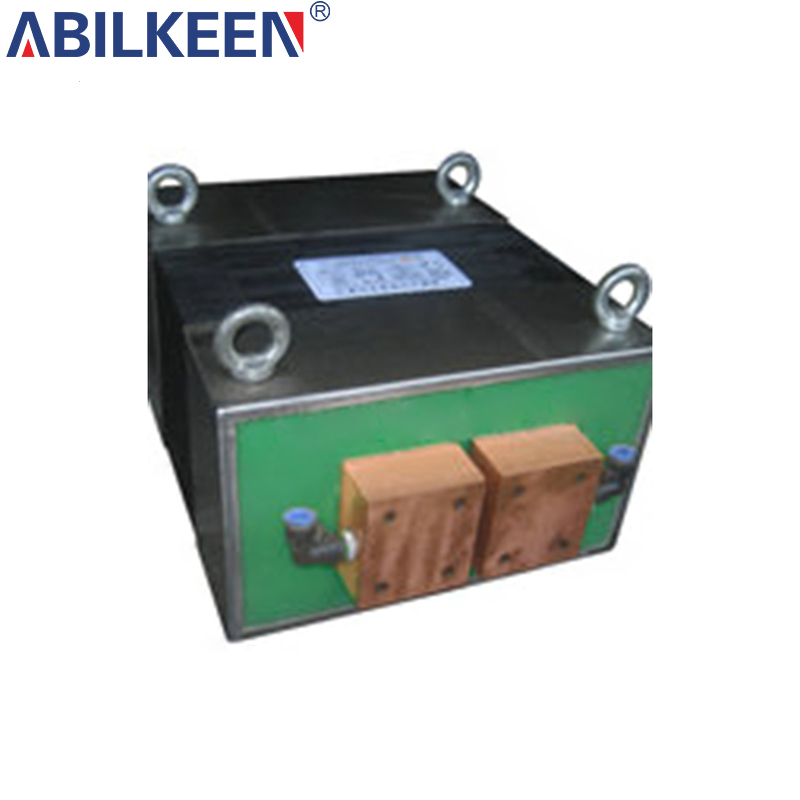

IBZDPS-T-30KVA transformer

The IBZDPS-T-30KVA industrial-grade variable frequency transformer is designed specifically for automated canning production lines. It features an ultra-wide input frequency range of 200Hz-500Hz and three-speed voltage regulation (220V switchable between high, medium, and low ranges). It incorporates multiple safety features, including an 85°C automatic temperature control module and an 8L/min water cooling circulation system (ZG3/8 interface). Utilizing Class F insulation (resistant to 155°C continuous operation), it has passed the 3800V/1min high-voltage insulation test (leakage current ≤ 0.5mA), meeting the stringent power requirements of high-speed variable frequency equipment.

    Contact us
    Product Details

    Product Overview

    1.Core Parameters

    Rated capacity: Basic power 25kVA (supports expansion to 30kVA).

    Input characteristics: 220V three-phase power input, supports five-speed voltage adjustment (0/1/2/3/4 gears).

    Frequency adaptability: 200-500Hz wide frequency range design to meet the needs of high-frequency frequency conversion equipment.

    Cooling system: Integrated 85°C temperature control protection unit, equipped with a water cooling circulation system with a flow rate ≥ 8L/min (interface standard: ZG3/4).

    2.Design Specifications

    Insulation performance: Meets F-class insulation standards (allows continuous operation at 155°C).

    Hi-pot test: 3800V for 1 minute, leakage current ≤ 0.5mA.



    Features

    ◆ Energy efficiency adjustment system

    Adopting three-level voltage intelligent input technology to achieve dynamic matching of load demand (0-4 gear stepless switching).

    Energy consumption under no-load conditions is reduced by ≥30%, and has passed ISO 50001 energy efficiency certification.

    ◆ Stable operation architecture

    Dual redundant cooling design:

    Closed-loop water cooling system (8L/min flow rate guarantee).

    85℃ threshold temperature control protection unit.

    Supports 500Hz high frequency continuous operation for ≥2000 hours without attenuation.

    ◆Industrial Adaptation Solutions

    Compact structure developed specifically for 80-100 can making machine:

    Optimized size to 480×320×220mm.

    Plug-and-play power module integrated design.

    Complies with GB/T 3859.2-2023 industrial power supply standard.



    Application Scenario

    Core application scenarios‌

    -Dedicated power system for high-speed automated canning production line.

    -Customized power supply solutions for metal forming equipment.



    Expanded application scenarios‌

    -Industrial equipment requiring broadband power supply (including special electric furnaces, variable frequency drive systems, etc.).

    -Other intelligent manufacturing equipment that requires wide voltage/wide frequency domain adaptation.

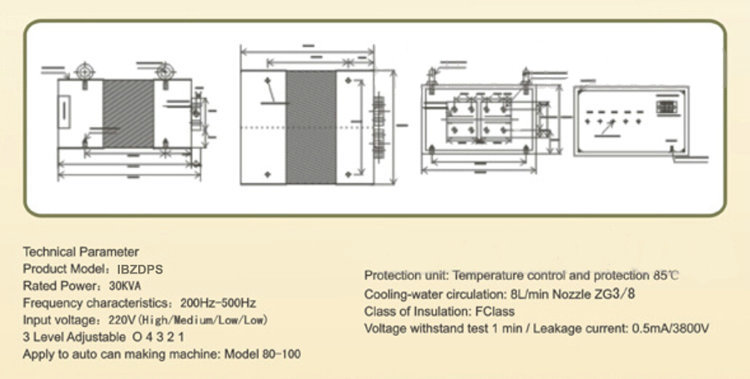

    Technical Parameters

     2.Technical Parameters.jpg
