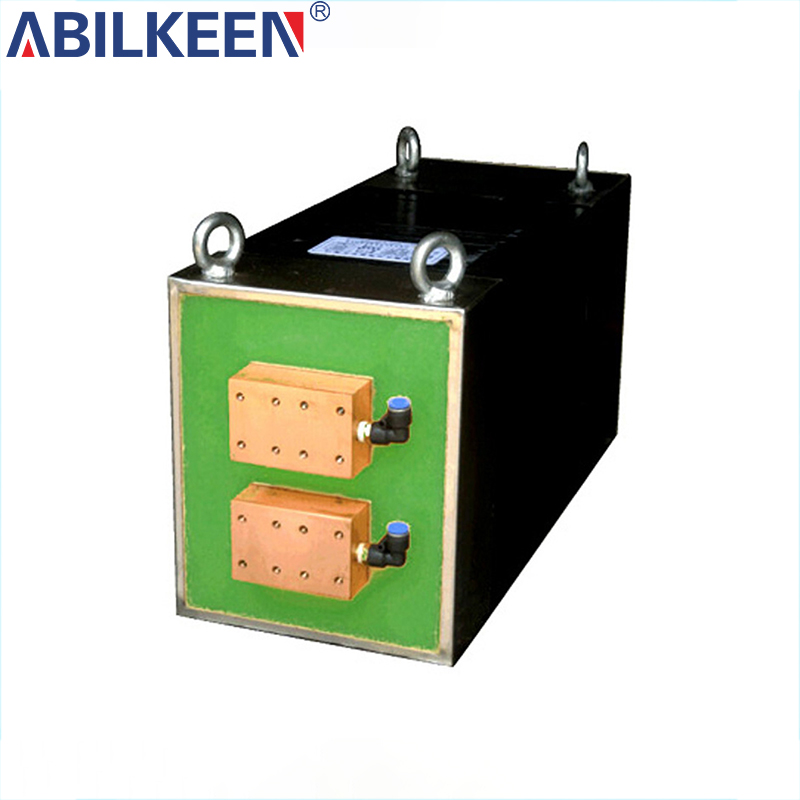

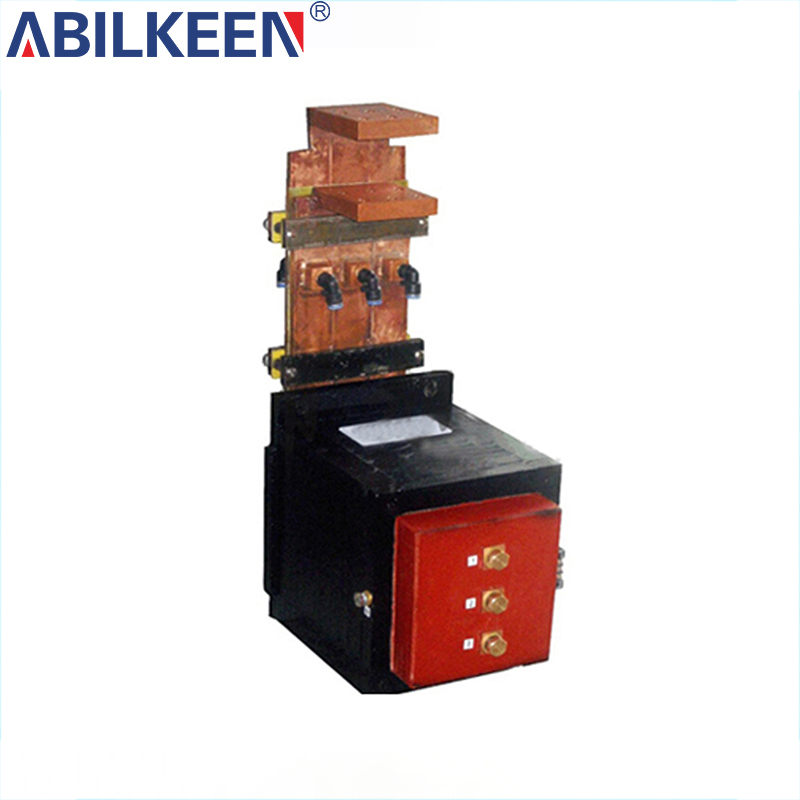

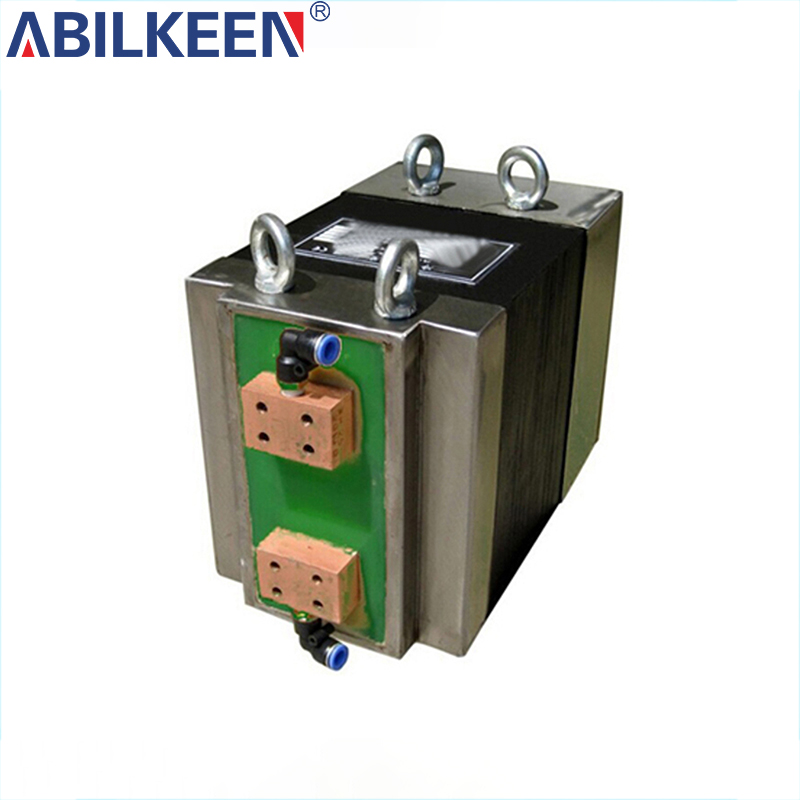

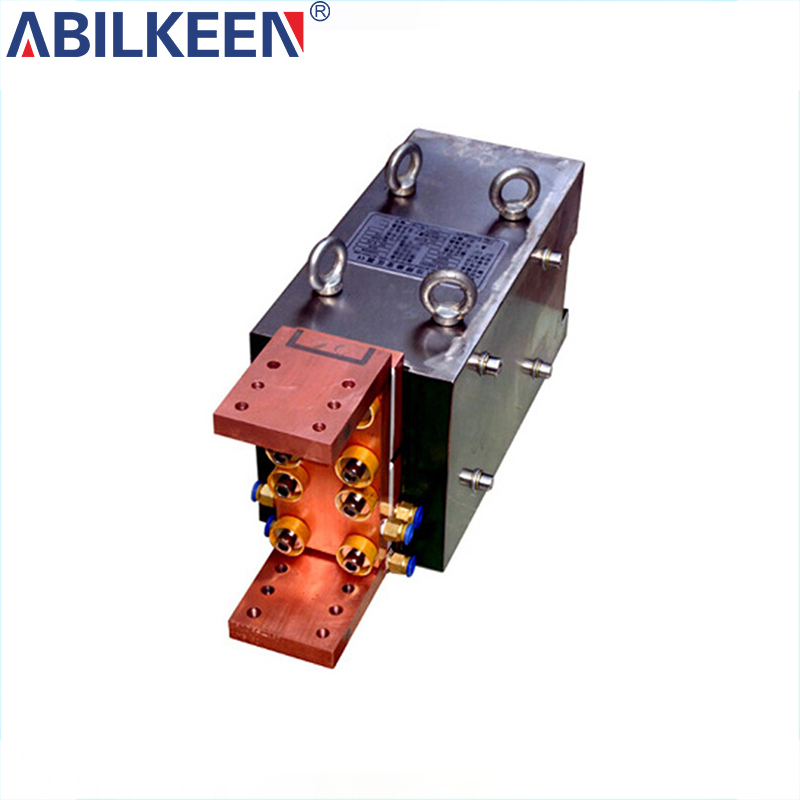

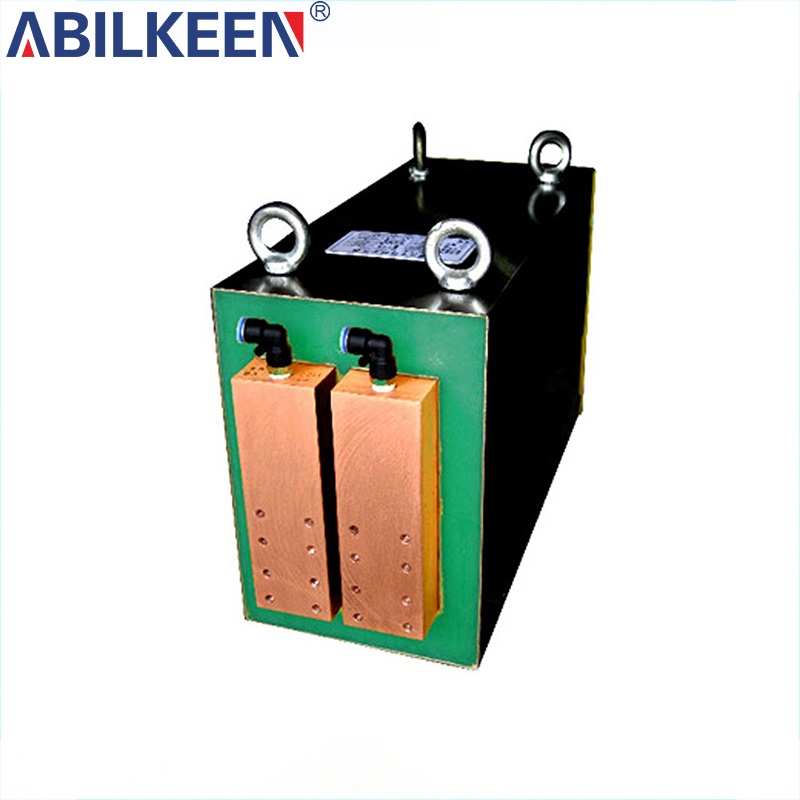

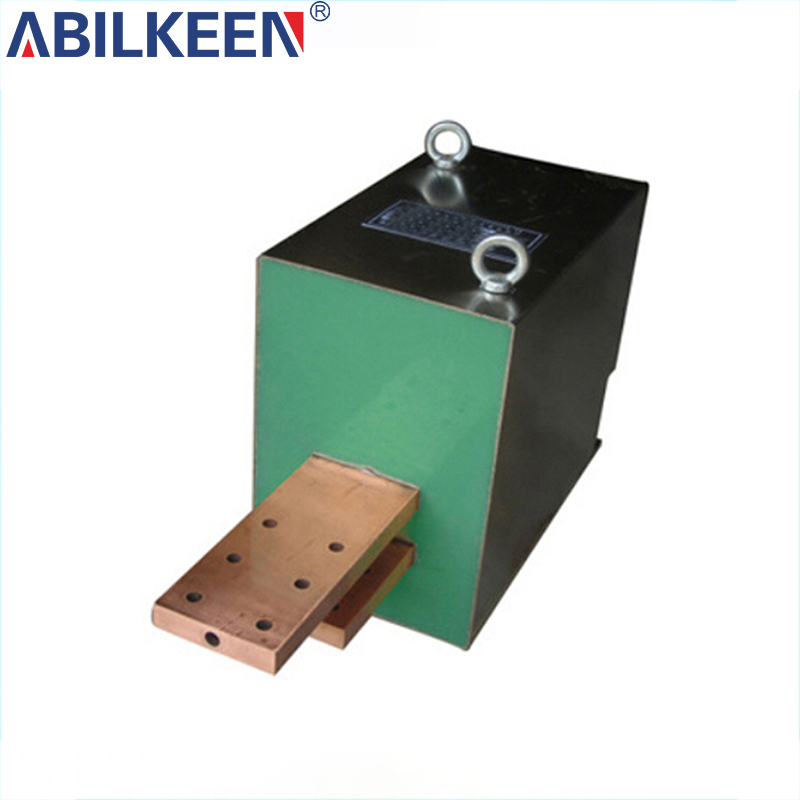

IBZDPS-W-25KVA transformer
Product Features
◆Efficient heat dissipation design
Equipped with a water cooling circulation system (flow rate 8L/min, nozzle ZG1/4), combined with forced air cooling, to ensure that the temperature rise is controllable under high load and the operating temperature is ≤85℃.
◆High insulation level
F-class insulation material (temperature resistance 155°C), passed the 3800V/1min withstand voltage test, leakage current ≤0.5mA, ensuring safe operation in high-voltage environments.
◆Broadband adaptability
It supports 50Hz-60Hz input frequency, is compatible with mainstream global power grid standards, and is suitable for frequency conversion equipment and renewable energy systems.
◆Compact structure
Modular design and industrial-grade bolt interface (IP54 protection grade) are suitable for high vibration and high humidity working conditions.
Product Overview
Core structure: The iron core is made of high magnetic permeability silicon steel sheet, the winding is F-class insulated copper wire, and the water-cooled copper tube is integrated into the shell to achieve efficient thermal management.
Control unit: Built-in temperature sensor and relay protection, automatic circuit cut-off in case of over-temperature, supports intermittent operation with 50% duty cycle.
Performance parameters: input 380V±10%, output 3.7V±2%, no-load loss ≤0.5%, short-circuit impedance <5%.
Application
1.Industrial power systems
It provides stable power for low-voltage equipment such as PLCs and servo drives, and is suitable for automated production lines and CNC machine tools.
2.Ships and offshore platforms
The anti-corrosion design is suitable for high salt spray environments and provides power for navigation equipment and communication systems.
3.Energy infrastructure
Integrated into photovoltaic inverters or energy storage systems to achieve high-voltage to low-voltage conversion and electrical isolation.

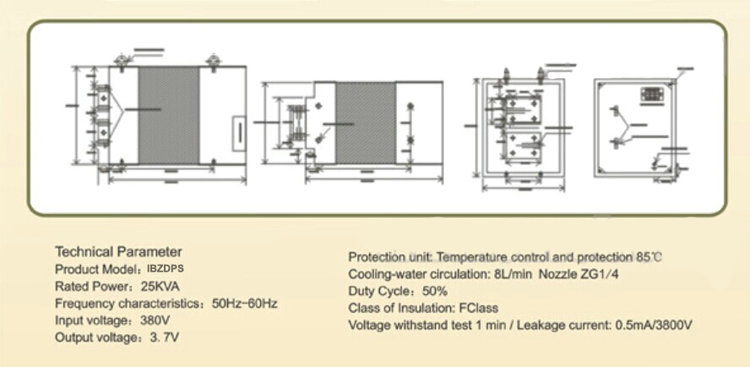

Technical Parameters
