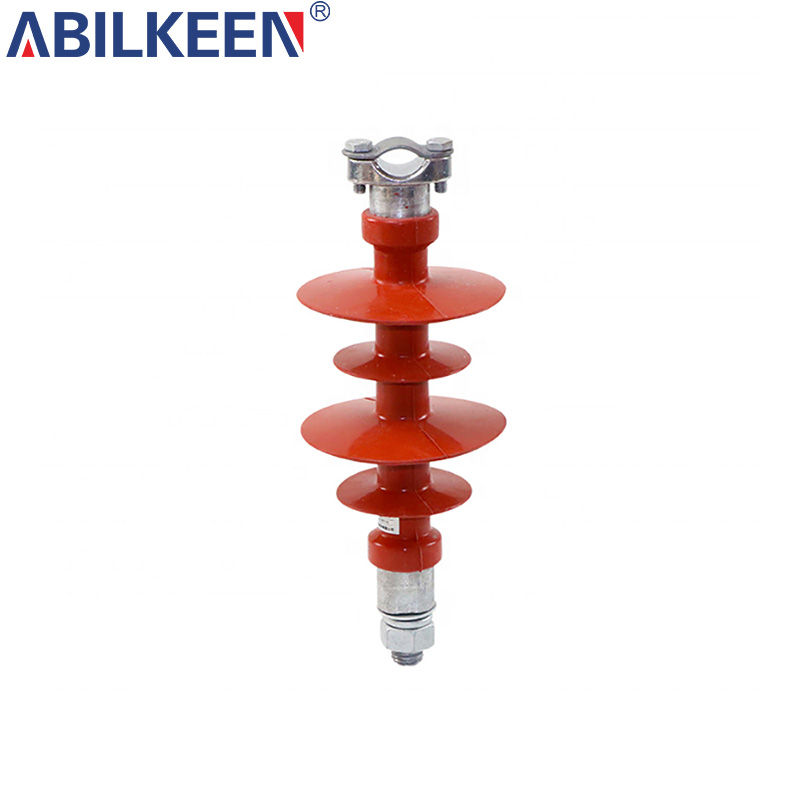

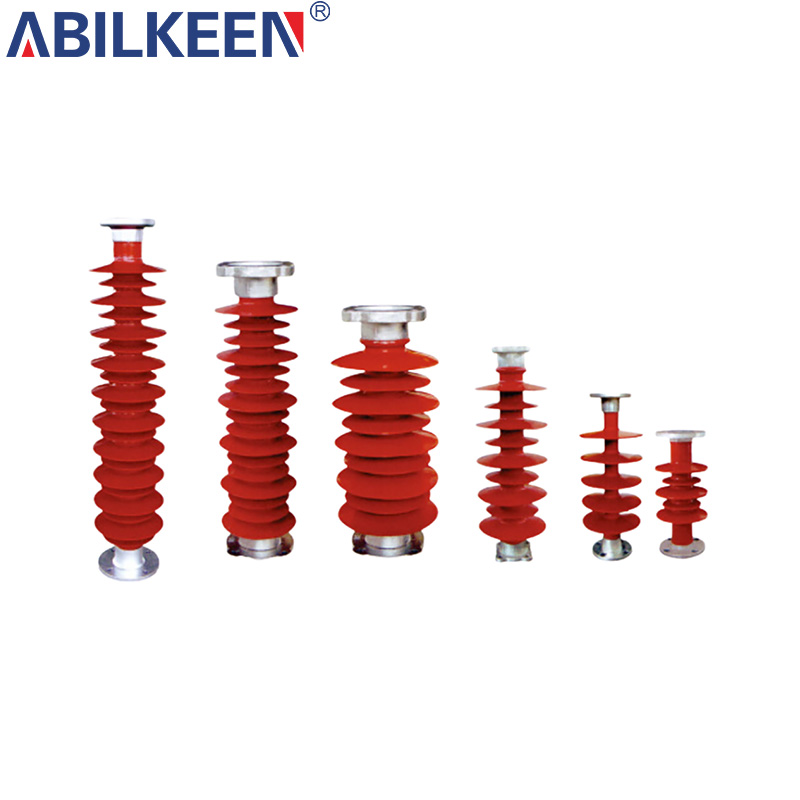

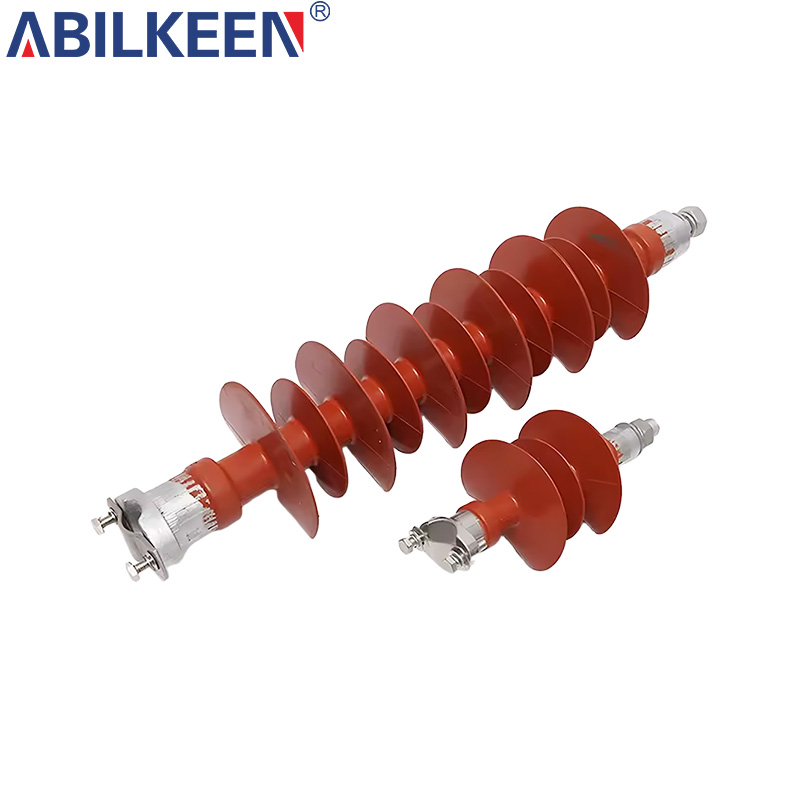

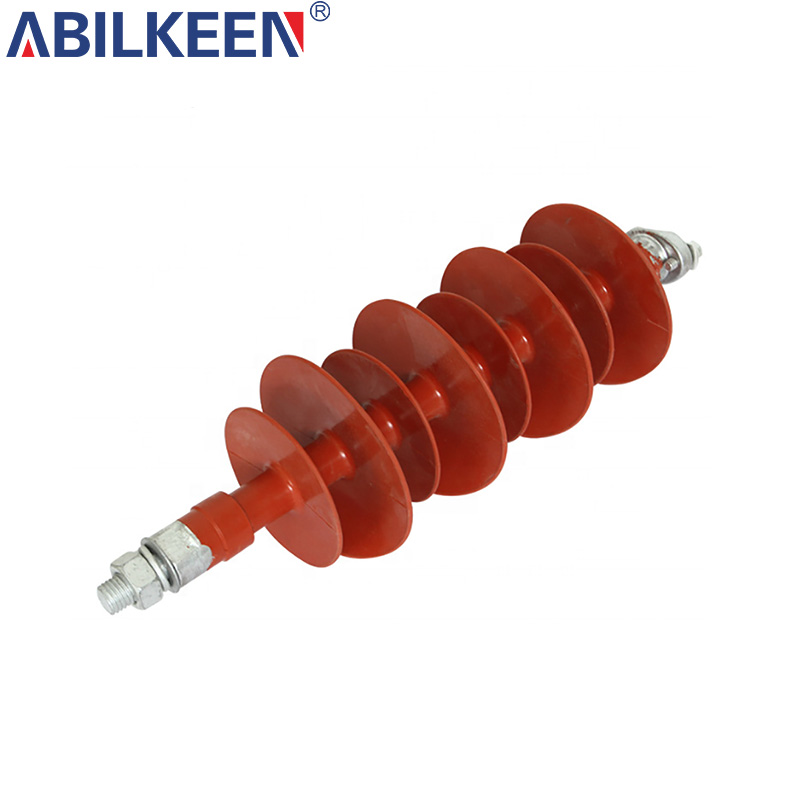

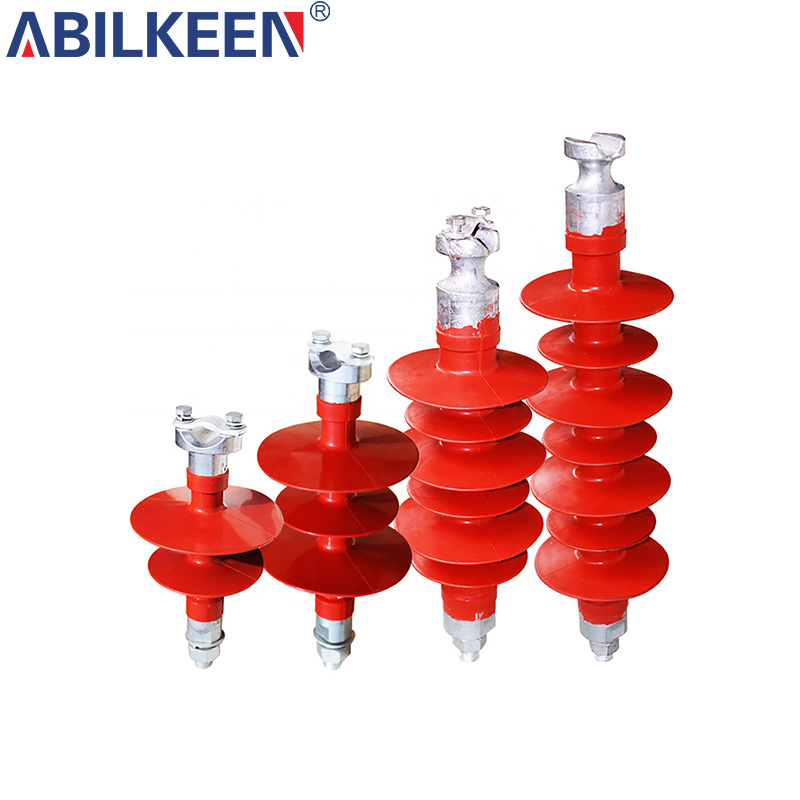

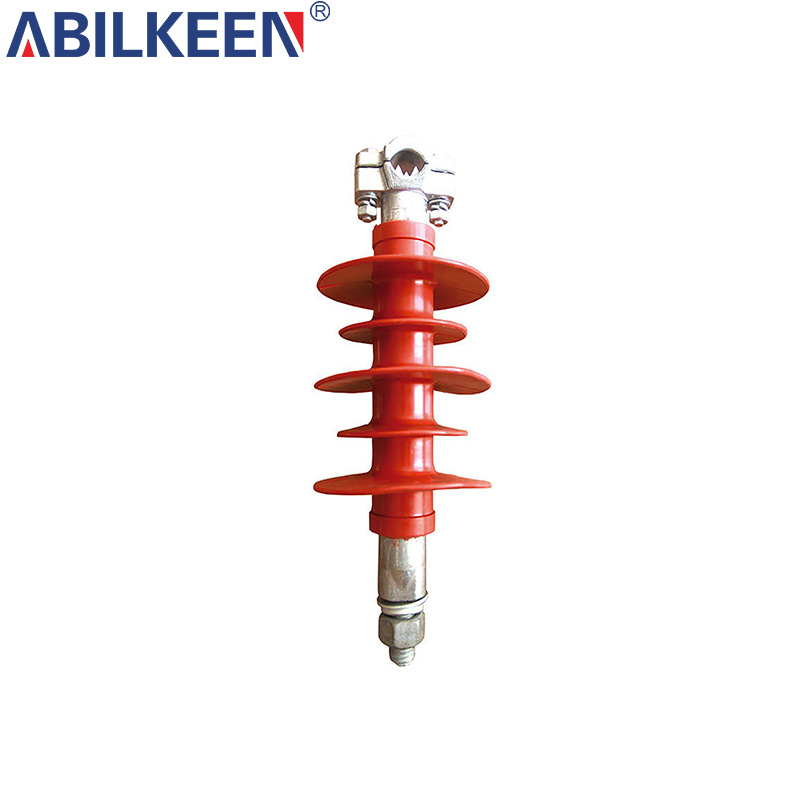

12KV Insulator Copper Screw High Voltage Composite Electrical Busbar Support Pin Insulator

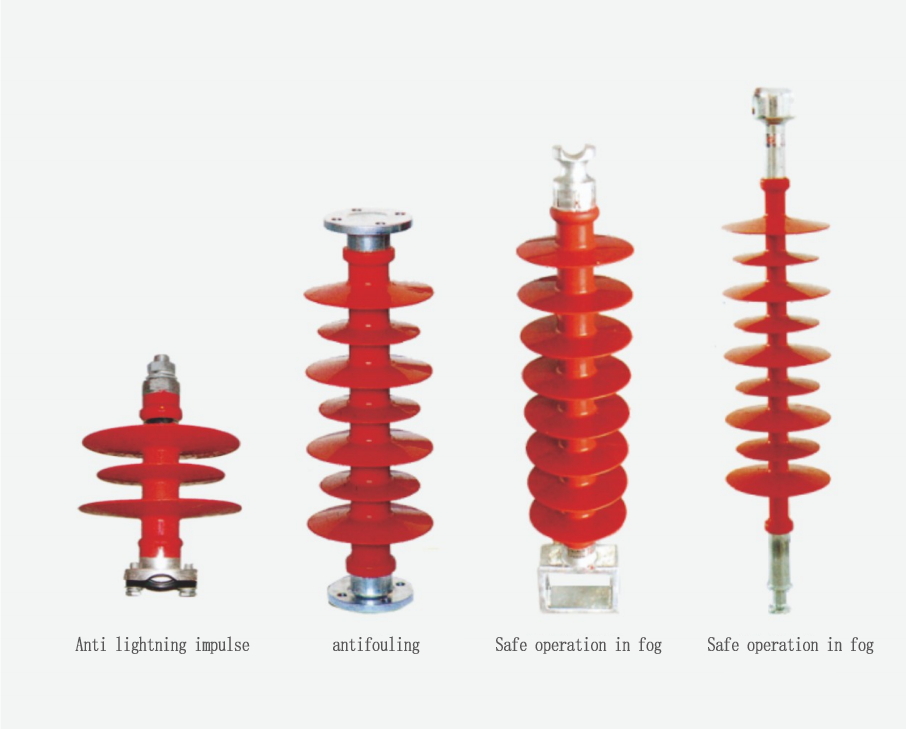

A composite insulator consists of three parts: an insulation core rod, a silicone rubber umbrella sleeve, and connecting fittings at both ends. Insulation core rod is the abbreviation for epoxy resin glass fiber pull rod. It is the skeleton of composite insulators, which plays multiple roles such as supporting umbrella sleeves, internal insulation, connecting two end fittings, and bearing mechanical loads. It has high tensile strength, generally up to 600Mpa or more, which is twice that of ordinary steel and 5-8 times that of ceramic materials.

Product Details

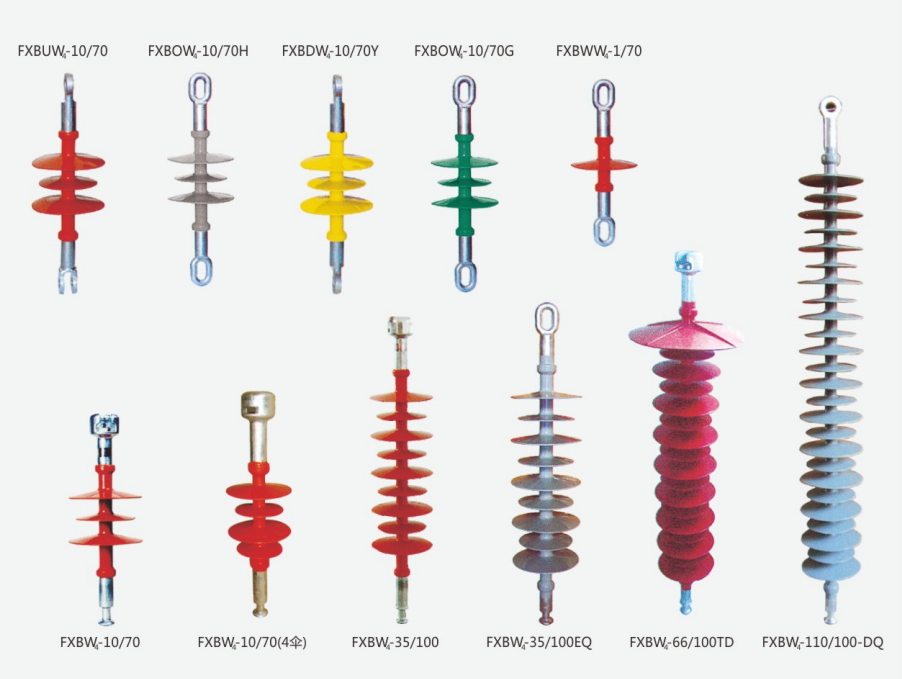

Product Overview

It has good dielectric properties and chemical resistance, as well as good resistance to bending fatigue, creep and impact. The silicone rubber umbrella cover mainly plays the role of protecting the core rod, shielding rain and snow, increasing the creepage distance and external insulation of the product. It is made of high polymer silicone rubber as the matrix, supplemented with smoldering agent, anti-aging agent, coupling agent and other fillers through high-temperature and high-pressure vulcanization. It has good hydrophobicity and mobility, as well as good corrosion resistance, anti-aging, electrical insulation and other properties. And it has high pollution flashover voltage and crush resistance, with uniform voltage distribution. Compared with it, under the same conditions, its flashover voltage is less than twice that of the material.

The composite insulators produced by our company are made of special steel fittings, and the fittings end adopts a maze design principle, multi-layer protection, and good sealing performance, which solves the most critical problem of insulators - interface electrical breakdown. The connection between the metal fittings and the core rod adopts the most advanced computer-controlled coaxial constant pressure crimping process internationally, and is equipped with a fully automatic acoustic emission testing system to ensure the reliability and stability of the connection between the metal fittings and the core rod. The core rod adopts ERC high-temperature acid resistant rod, and the interface between the core rod and silicone rubber is coated with special coupling agent. The umbrella cover adopts a one-time integral molding process under high temperature and high pressure, combined with a two-stage vulcanization process monitored by a computer, which extends the service life of the product.

Technical Parameters

Specification Model	Rated Voltage kV	Rated Mechanical Tensile Load kN	Connection Mark	Structural Height (mm)	Minimum Arc Distance (mm)	Minimum Nominal Creepage Distance (mm)	Withstand Voltage of Lightning Full - wave Impulse (Peak Value) kV, Not Less Than	Withstand Voltage of Switching Impulse (Peak Value) kV, Not Less Than	Withstand Voltage of Power Frequency Wet Test (Effective Value) kV, Not Less Than
FXBW4 - 10/40	10	40	11W	340±15	190	400	95	—	60
FXBW4 - 10/70	10	70	16W	360±15	190	490	95	—	60
FXBW4 - 10/100	10	100	16W	400±15	190	490	95	—	60
FXBW4 - 20/40	20	40	16W	450±15	280	600	170	—	75
FXBW4 - 20/70	20	70	16W	470±15	280	750	170	—	75
FXBW4 - 20/100	20	100	16W	500±15	280	750	170	—	75
FXBW4 - 20/120	20	120	16W	500±15	280	750	170	—	75
FXBW5 - 35/70	35	70	16W	750±15	530	1370	250	—	105
FXBW5 - 35/100	35	100	16W	680±15	450	1300	230	—	95
FXBW5 - 35/100	35	100	16W	750±15	530	1370	250	—	105
FXBW4 - 35/120	35	120	16W	680±15	450	1300	230	—	95
FXBW4 - 66/70	66	70	16W	900±15	700	1900	410	—	185
FXBW5 - 66/70	66	70	16W	1010±15	780	2130	410	—	185
FXBW4 - 66/100	66	100	16W	940±15	700	1900	410	—	185
FXBW5 - 66/100	66	100	16W	1010±15	780	2130	410	—	185
FXBW4 - 66/120	66	120	16W	940±15	700	1900	410	—	185
FXBW4 - 110/70	110	70	16W	1200±15	1000	3150	550	—	230
FXBW4 - 100/70 - 1420	110	70	16W	1420±15	1200	3600	550	—	230
FXBW4 - 110/100	110	100	16W	1240±15	1000	3150	550	—	230
FXBW4 - 110/100 - 1440	110	100	16W	1440±15	1200	3600	550	—	230
FXBW4 - 110/120	110	120	16W	1240±15	1000	3150	550	—	230
FXBW4 - 110/120 - 1440	110	120	16W	1440±15	1200	3600	550	—	230
FXBW4 - 110/160	110	160	20R	1300±15	1050	3600	550	—	230
FXBW4 - 110/160	110	160	20R	1440±15	1140	4200	550	—	230
FXBW3 - 220/70	220	70	16W	2150±30	1900	6300	1000	—	395
FXBW4 - 220/70	220	70	16W	2240±30	2000	6600	1000	—	395
FXBW3 - 220/100	220	100	16W	2150±30	1900	6300	1000	—	395
FXBW4 - 220/100	220	100	16W	2240±30	2000	6600	1000	—	395
FXBW5 - 220/100	220	100	16W	2470±30	2150	6900	1000	—	395
FXBW4 - 220/120	220	120	16W	2240±30	2000	6600	1000	—	395
FXBW4 - 220/160	220	160	20R	2240±30	1900	6300	1000	—	395
FXBW5 - 220/160	220	160	20R	2470±30	2150	6900	1000	—	395
FXBW4 - 220/180	220	180	20R	2240±30	1900	6300	1000	—	395
FXBW5 - 220/180	220	180	20R	2470±30	2150	6900	1000	—	395
FXBW4 - 220/210	220	210	20R	2240±30	1900	6300	1000	—	395
FXBW5 - 220/210	220	210	20R	2470±30	2150	6900	1000	—	395
FXBW3 - 330/100	330	100	16W	2930±40	2600	9075	1425	950	570
FXBW4 - 330/100	330	100	16W	2990±40	2600	9500	1425	950	570
FXBW3 - 330/120	330	120	16W	2930±40	2600	9075	1425	950	570
FXBW4 - 330/120	330	120	16W	2990±40	2600	9500	1425	950	570
FXBW3 - 330/160	330	160	20R	2930±40	2600	9075	1425	950	570
FXBW4 - 330/160	330	160	20R	2990±40	2600	9500	1425	950	570
FXBW3 - 330/180	330	180	20R	2930±40	2600	9075	1425	950	570
FXBW4 - 330/180	330	180	20R	2990±40	2600	9500	1425	950	570
FXBW3 - 330/210	330	210	20R	2930±40	2600	9075	1425	950	570
FXBW4 - 330/210	330	210	20R	2990±40	2600	9500	1425	950	570
FXBW3 - 330/240	330	240	20R	2990±40	2600	9075	1425	950	570
FXBW4 - 330/240	330	240	20R	3050±40	2600	9500	1425	950	570
FXBW3 - 500/100	500	100	16W	4030±50	3650	13750	2050	1240	740
FXBW4 - 500/100 - 4340	500	100	16W	4340±50	3650	13750	2050	1240	740
FXBW3 - 500/100	500	100	16W	4330±50	3650	13750	2050	1240	740
FXBW4 - 500/100	500	100	16W	4450±50	4000	14500	2250	1240	740
FXBW3 - 500/120	500	120	16W	4030±50	3650	13750	2050	1240	740
FXBW3 - 500/120 - 4340	500	120	16W	4340±50	3650	13750	2050	1240	740
FXBW4 - 500/120	500	120	16W	4450±50	4000	14500	2250	1240	740
FXBW3 - 500/160	500	160	20R	4030±50	3650	13750	2050	1240	740
FXBW3 - 500/160 - 4340	500	160	20R	4340±50	3650	13750	2050	1240	740
FXBW4 - 500/160	500	160	20R	4450±50	4000	15000	2250	1240	740
FXBW3 - 500/180	500	180	20R	4030±50	3650	13750	2050	1240	740
FXBW3 - 500/180 - 4340	500	180	20R	4340±50	3650	13750	2050	1240	740
FXBW4 - 500/180	500	180	20R	4450±50	4000	15000	2250	1240	740
FXBW3 - 500/210	500	210	20R	4030±50	3650	13750	2050	1240	740
FXBW3 - 500/210 - 4340	500	210	20R	4340±50	3650	13750	2050	1240	740
FXBW4 - 500/210	500	210	20R	4450±50	4000	15000	2250	1240	740
FXBW3 - 500/240	500	240	20R	4030±50	3650	13750	2050	1240	740
FXBW3 - 500/240 - 4340	500	240	20R	4340±50	3650	13750	2050	1240	740
FXBW4 - 500/240	500	240	20R	4450±50	4000	15000	2250	1240	740
FXBW3 - 500/300	500	300	24R	4340±50	3650	13750	2050	1240	740
FXBW4 - 500/300	500	300	24R	4450±50	4000	15000	2250	1240	740
FXBW4 - 500/300 - 6460	500	300	24R	6460±50	6000	15000	2250	1240	740
FXBW4 - 500/400	500	400	28R	4450±50	4000	15000	2250	1240	740
FXBW4 - 750/160	750	160	20R	6650±50	6000	21600	2700	1800	1125
FXBW4 - 750/210	750	210	20R	6650±50	6000	21600	2700	1800	1125
FXBW4 - 750/240	750	240	20R	6650±50	6000	21600	2700	1800	1125
FXBW4 - 750/300	750	300	24R	6650±50	6000	21600	2700	1800	1125
FXBW4 - 750/400	750	400	28R	6650±50	6000	21600	2700	1800	1125

Specification Model	Transition Radius of Reinforcing Rib	Rated Voltage (kV)	Rated Mechanical Tensile Load (kN)	Connection Mark	Structural Height (mm)	Insulation Distance (mm)	Minimum Nominal Creepage Distance (mm)	Withstand Voltage of Lightning Impulse (Peak Value, kV, Not Less Than)	Withstand Voltage of Switching Impulse (Peak Value, kV, Not Less Than)	Withstand Voltage of Power Frequency Wet Test (Effective Value, kV, Not Less Than)
FXBW4 - 35/70TDⅠ	Φ250	35	70	16W	650±15	450	1350	230	/	95
FXBW4 - 35/100TDⅠ	Φ250	35	100	16W	680±15	450	1350	230	/	95
FXBW4 - 66/70TDⅠ	Φ250	66	70	16W	900±15	700	2000	410	/	185
FXBW4 - 66/100TDⅠ	Φ250	66	100	16W	940±15	700	2000	410	/	185
FXBW4 - 110/70TDⅠ	Φ250	110	70	16W	1200±15	1000	3200	550	/	230
FXBW4 - 110/100TDⅠ	Φ250	110	100	16W	1240±15	1000	3200	550	/	230
FXBW4 - 220/100TDⅠ	Φ250	220	100	16W	2240±30	2000	6400	1000	/	395
FXBW4 - 220/210TDⅠ	Φ250	220	210	20R	2240±30	1900	6400	1000	/	395
FXBW4 - 330/100TDⅠ	Φ250	330	100	16W	2990±40	2600	9600	1425	950	570
FXBW4 - 330/160TDⅠ	Φ250	330	160	20R	2990±40	2600	9600	1425	950	570
FXBW4 - 330/210TDⅠ	Φ250	330	210	20R	2990±40	2600	9600	1425	950	570
FXBW4 - 110/70TDⅡ	Φ300	110	70	16W	1200±15	1000	3300	550	/	230
FXBW4 - 110/100TDⅡ	Φ300	110	100	16W	1240±15	1000	3300	550	/	230
FXBW4 - 220/100TDⅡ	Φ300	220	100	16W	2240±30	2000	6500	1000	/	395
FXBW4 - 220/210TDⅡ	Φ300	220	210	20R	2240±30	1900	6500	1000	/	395
FXBW4 - 330/100TDⅡ	Φ300	330	100	16W	2990±40	2600	9600	1425	950	570
FXBW4 - 330/160TDⅡ	Φ300	330	160	20R	2990±40	2600	9600	1425	950	570
FXBW4 - 330/210TDⅡ	Φ300	330	210	20R	2990±40	2600	9600	1425	950	570

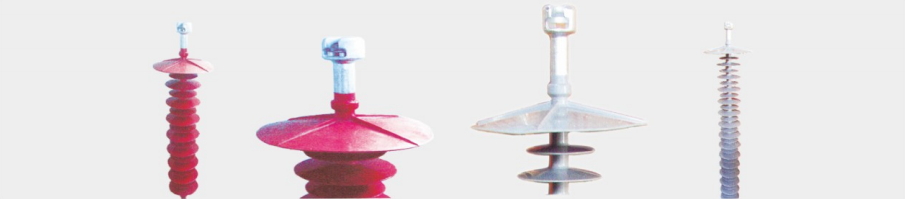

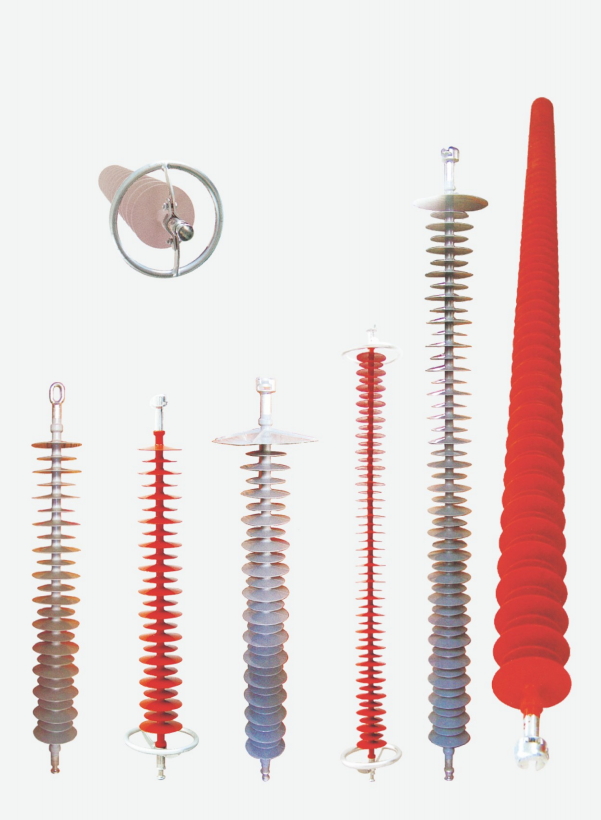

Reinforced extra large umbrella insulator

Specification Model	Diameter of Extra - large Umbrella (mm)	Increased Creepage Distance (mm)
FXBW(G)-□/□TD Ⅰ	250	100
FXBW(G)-□/□TD Ⅱ	300	150
FXBW(G)-□/□TD Ⅲ	400	250
