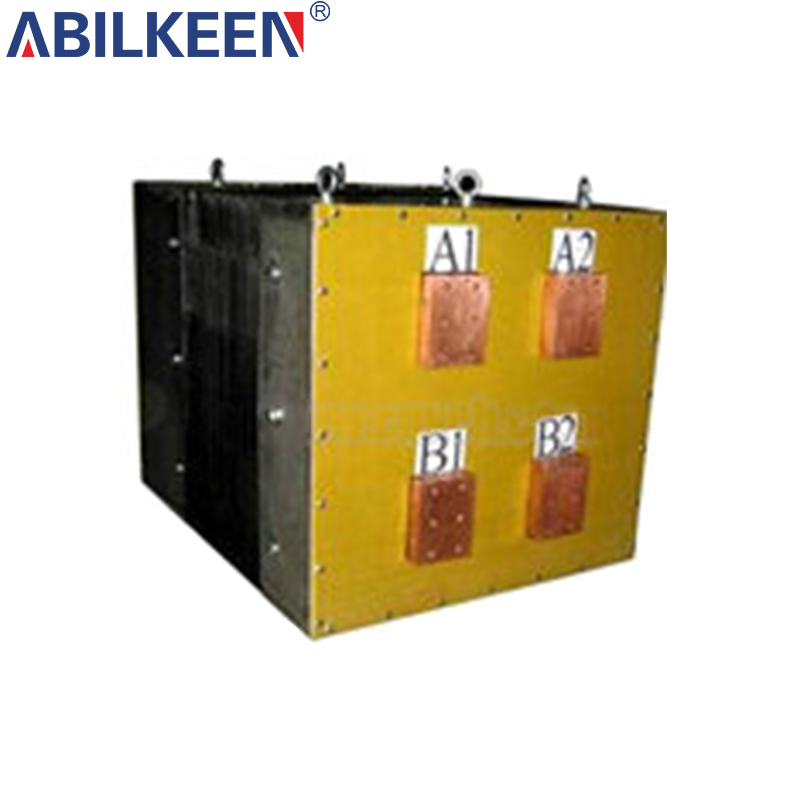

IBZDPS-T-600KVA transformer

The IBZDPS-T-600KVA is a 600KVA water-cooled transformer designed specifically for medium-frequency welding equipment. Suitable for 50Hz-60Hz power grids, it features a 380V input and multiple output ranges (11V/13V/10V/12V/9V) to meet diverse welding needs. It also offers Class F insulation and intelligent temperature control.

Product Details

Product Description

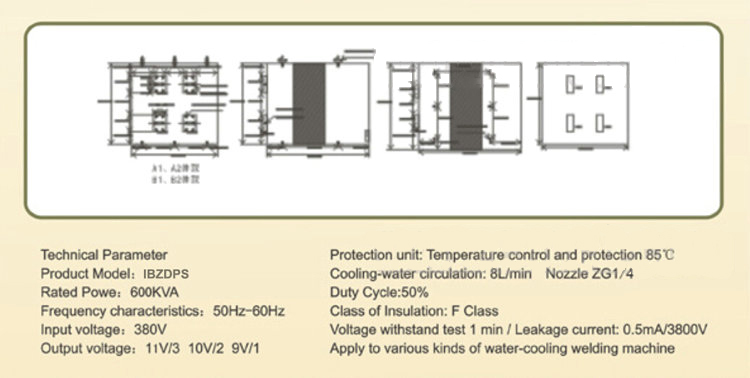

The IBZDPS-T-600KVA utilizes water cooling (with a ZG1/4 nozzle interface) and Class F insulation. It converts a 380V input into a variety of medium and low voltage outputs, making it ideal for high-load welding scenarios. Its core strengths lie in its stable cooling capacity (8L/min cooling flow) and strict electrical safety standards (3800V withstand voltage and low leakage current), making it suitable for prolonged, high-intensity operations.

Features

1.High power density: With a large capacity of 600KVA, it is designed for high-intensity operation scenarios of industrial-grade welding equipment;

2.Multi-voltage output: Provides 11V/13V/10V/12V/9V output options, which can be flexibly adjusted according to specific welding process requirements;

3.High-efficiency water cooling system: Equipped with 8L/min circulating cooling water flow, it ensures stable and efficient operation of the equipment under 50% duty cycle;

4.Smart Temperature Control: Automatically triggers a protection mechanism when the temperature reaches 85°C, effectively preventing the device from being damaged by overheating.

5.Strong protection design:

-Adopt F-class insulation material, high temperature resistance up to 155℃;

-Passed 3800V withstand voltage test for 1 minute without breakdown;

-The leakage current is strictly controlled at ≤0.5mA to ensure safe and reliable use;

-‌Intelligent Temperature Control‌: Automatically triggers a protection mechanism when the temperature reaches 85°C, effectively preventing device damage due to overheating.
