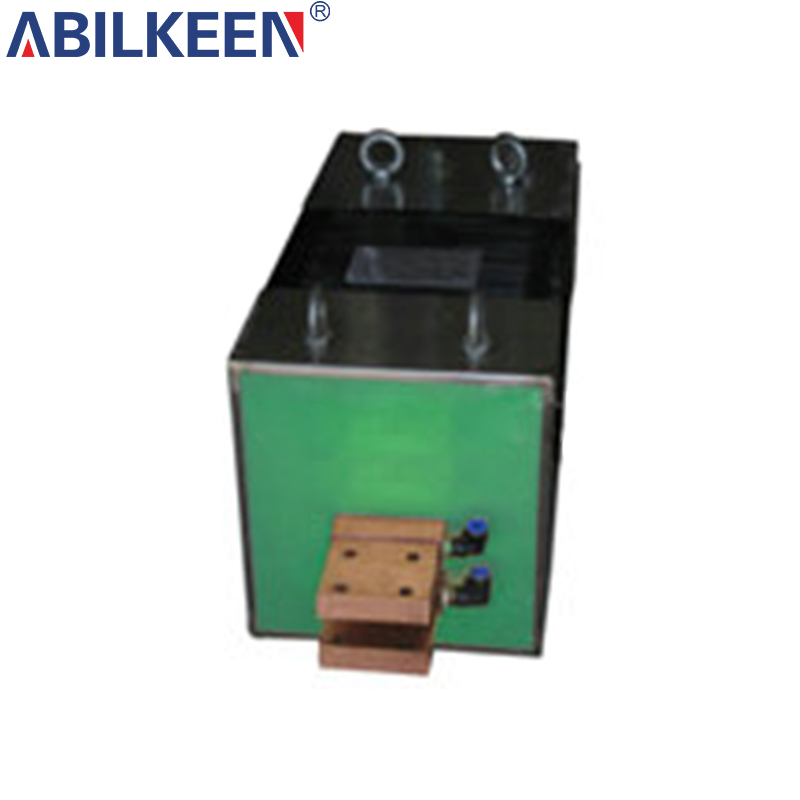

IBZDPS-138KVA transformer

The IBZDPS-138KVA transformer is a 138KVA power device designed specifically for automotive can-making machinery. It is compatible with a 50-60Hz power frequency, an input voltage of 380V, and features integrated temperature protection and forced water cooling systems, meeting Class F insulation standards.

Product Details

Product Features

1.Guarantee of continuous high-load operation‌

Rated capacity: 138KVA design power, supporting long-term continuous operation of industrial equipment such as automotive can-making machinery.

Dynamic adaptability: Optimizes winding and core structure to ensure stable output under frequent starts and stops or load fluctuations.

2.Multi-level intelligent protection mechanism‌

Temperature Control Protection‌: Real-time monitoring of core component temperatures, triggering automatic protection at an 85°C threshold to prevent overheating damage.

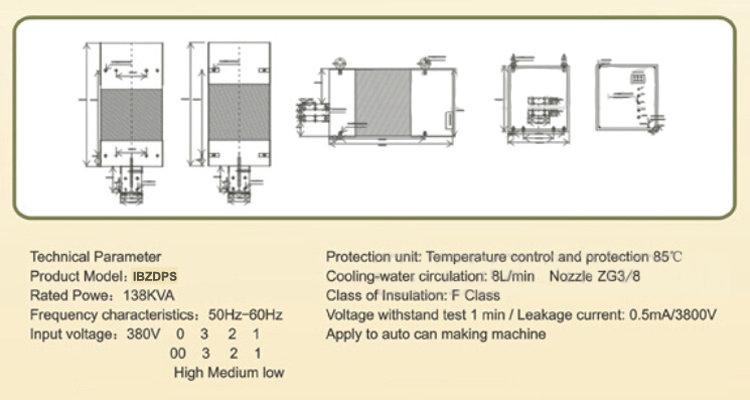

Efficient heat dissipation: Adopts ZG3/8 standard interface (Note: the original "Nozzie" in the parameter table has been corrected) water cooling circulation system, with an 8 liters/minute flow rate to quickly dissipate heat.

3.High-pressure environment safety design

Insulation performance: Class F insulation material (temperature resistance 155°C) ensures dielectric strength under high temperature conditions.

Withstand voltage certification: Passed 3800V for 1 minute high-voltage test, leakage current is strictly controlled within 0.5mA, meeting industrial safety standards.

Product Overview‌

This transformer is designed specifically for the power needs of automotive can production lines, adopts a standard 380V voltage input, and is compatible with the 50-60Hz industrial frequency band. It innovatively integrates three core technologies: an 8L/min forced water cooling system, an 85°C threshold over-temperature protection, and an F-class insulation structure. It effectively copes with high-frequency start-stop conditions and continuous high-load operation, reducing the failure rate of production line equipment by more than 40%.

Application Locations‌

This power supply is primarily used for welding and stamping equipment in automotive can production lines, and is particularly suitable for industrial workshops that require dust and moisture protection. It can also be expanded to power other metalworking machinery.
