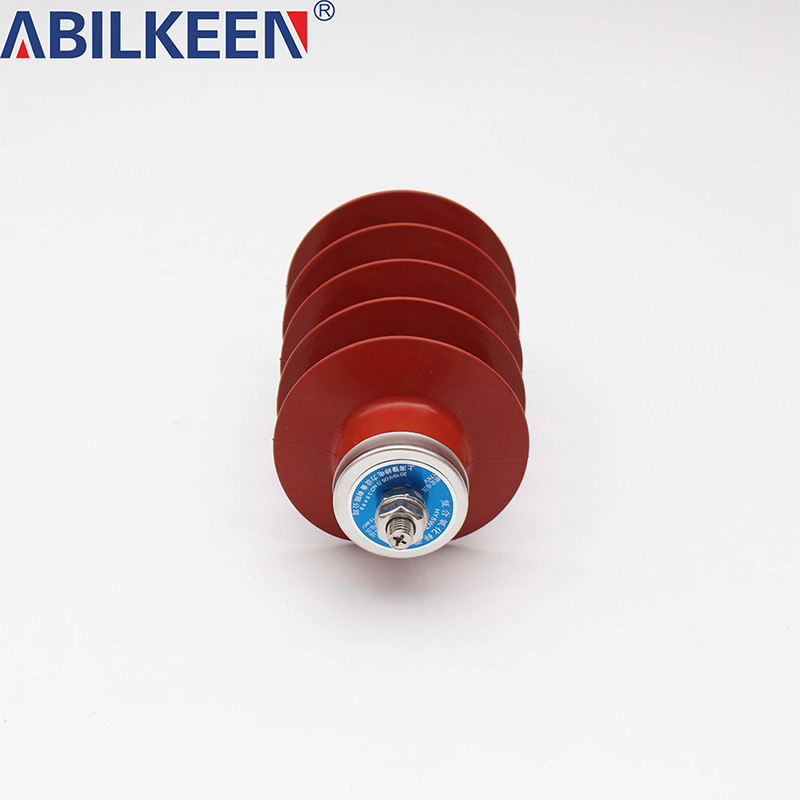

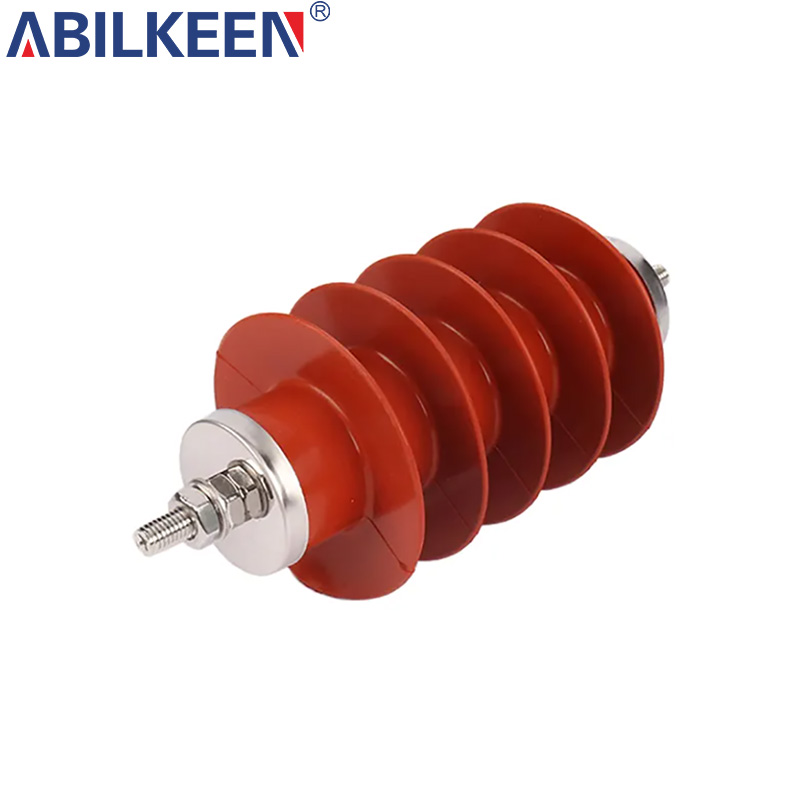

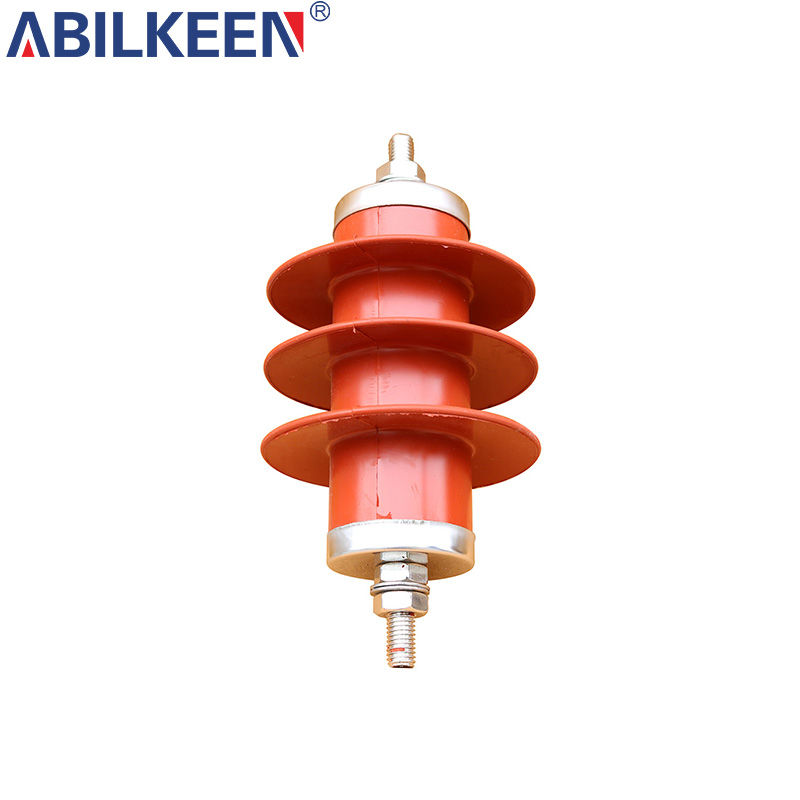

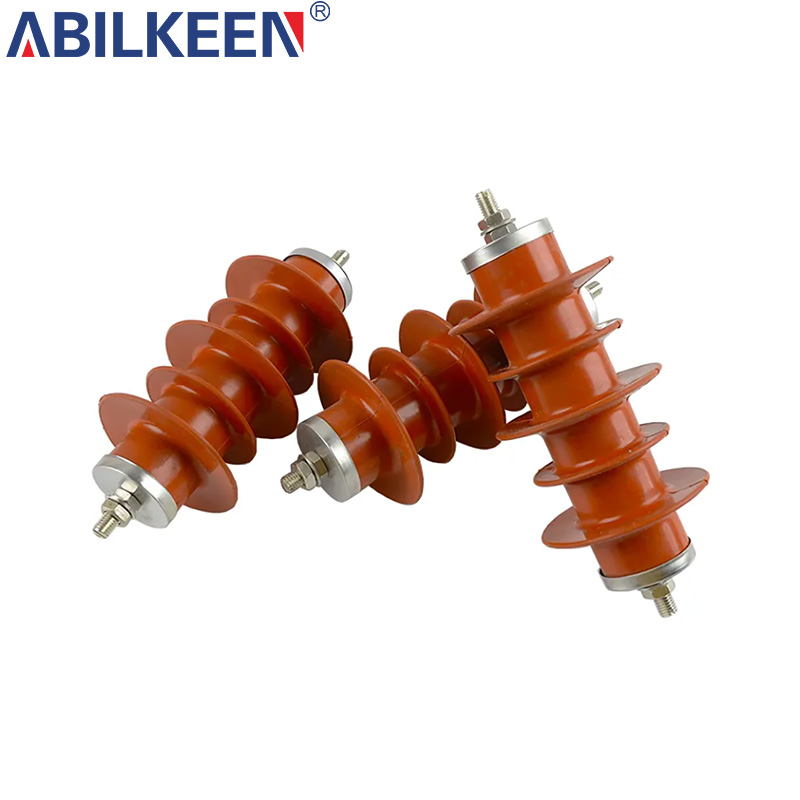

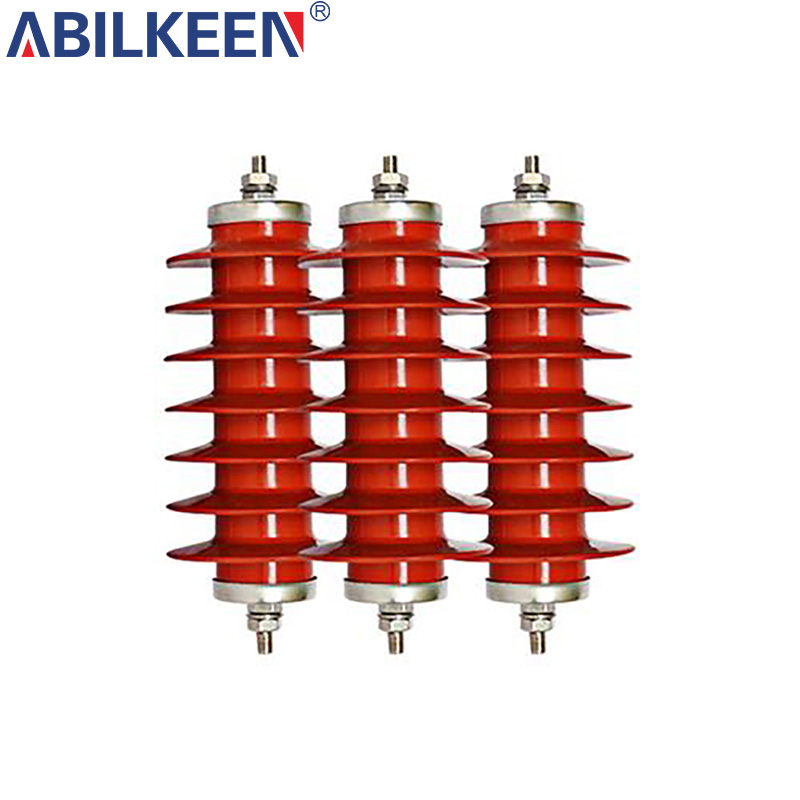

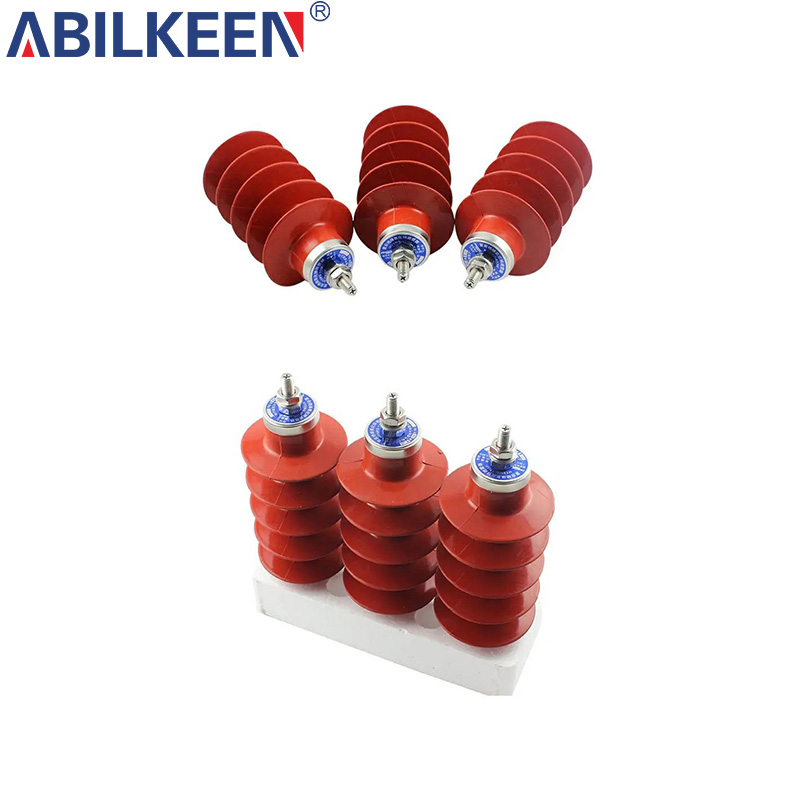

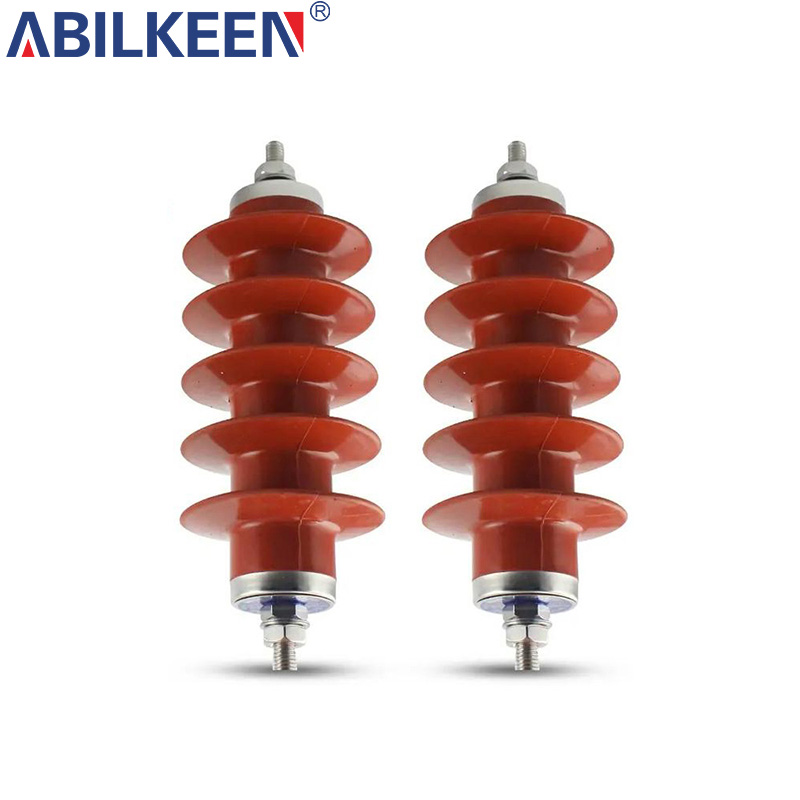

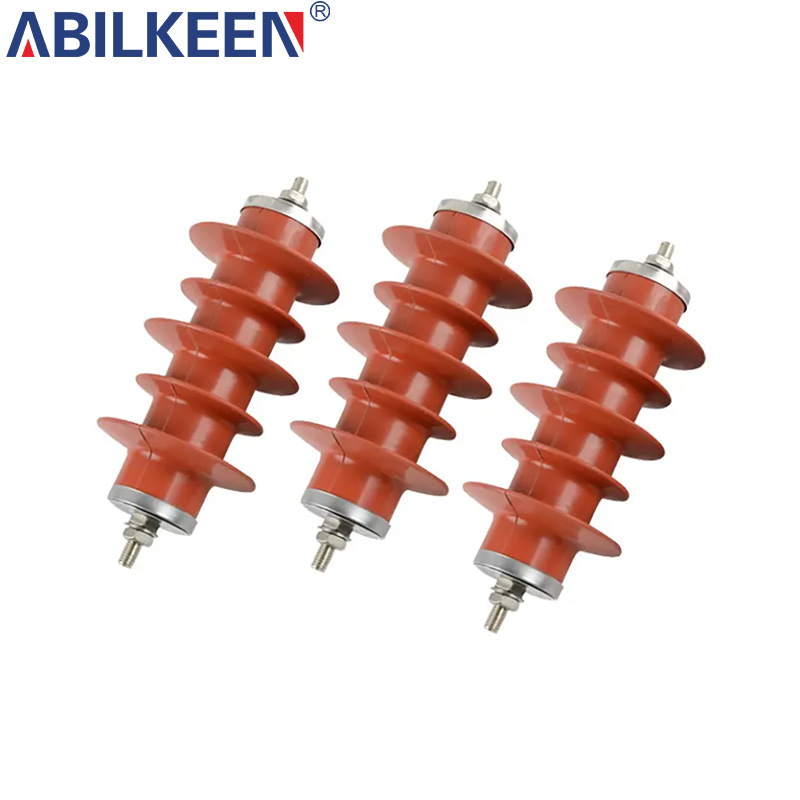

High Performance Composite jacket arrester for High Voltage Applications
Product Overview
Traditional silicon carbide lightning arresters are plagued by several notable disadvantages that hinder their performance in power systems. One of the key issues is the steep-wave discharge delay, which causes the steep-wave discharge voltage to rise to excessively high levels. This delay in responding to steep-wave surges can leave power equipment vulnerable to damage, as the voltage exceeds the safe operating limits for longer periods. Additionally, these arresters suffer from significant dispersion in operating-wave discharge, meaning the operating-wave discharge voltage varies widely under similar conditions. This inconsistency makes it challenging to ensure reliable protection, as the actual voltage during operation might unexpectedly spike beyond the designed thresholds, putting connected equipment at risk.
In sharp contrast, zinc oxide lightning arresters offer a host of advantages that address the shortcomings of their silicon carbide counterparts. They exhibit excellent steep-wave response characteristics, reacting swiftly to steep-wave surges without any extension of the steep-wave voltage. This rapid response ensures that the voltage is clamped down quickly, minimizing the exposure of power equipment to high voltages. During operation, zinc oxide arresters maintain a low residual voltage, which is crucial for protecting sensitive components from excessive electrical stress. Furthermore, they eliminate the problem of discharge dispersion, providing consistent and predictable performance across various operating conditions. These features collectively lead to a substantial improvement in the protection margins for both steep waves and operating waves. In terms of insulation coordination, a critical aspect of power system design, the protection margins for steep waves, lightning waves, and operating waves are nearly identical when using zinc oxide arresters. This uniformity ensures that all types of electrical surges are mitigated effectively, offering the best possible protection for power equipment and enhancing the overall reliability of the power system.
Technical Parameters
| Voltage Class | Place of Use | System Nominal Voltage(KV) | National standard model of lightning arrester | Rated voltage (kV) effective value of lightning arrester | Gapless lightning arrester | Gap lightning arrester | Peak residual voltage (kV) (not greater than) | 2000 μ S square wave current capacity (A) | 4/10 current withstand capacity (kA) | ||||||
| Effective value of continuous operating voltage (kV) of lightning arrester | DC 1mA reference voltage(KV) effective value | Maximum leakage at 0.75 times DC reference voltage (μ A) | The effective value of the power frequency discharge voltage (KV) shall not be less than | The peak value of 1.2/50 impulse discharge voltage (KV) shall not exceed | Maximum conductive current(μ A) | 8/20 lightning impulse current | 30/60 operation impulse current | 114 steep slope impulse current | |||||||

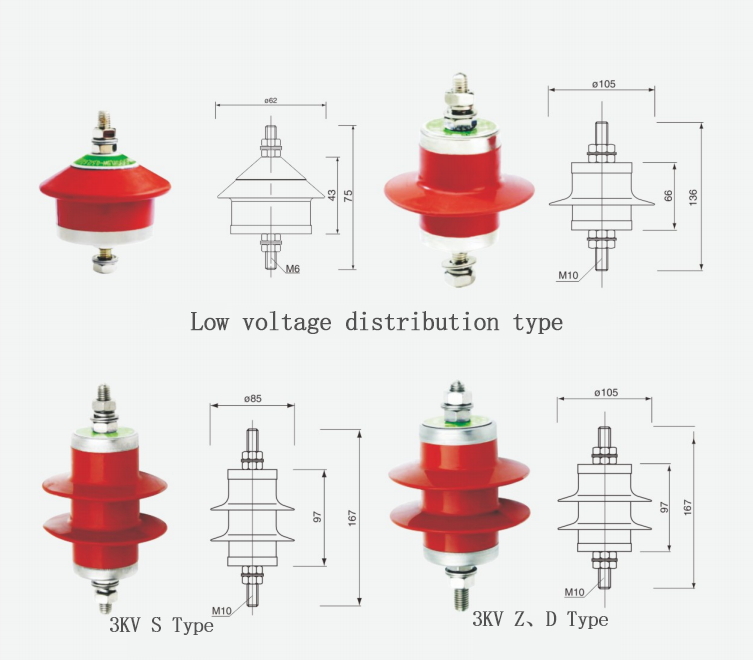

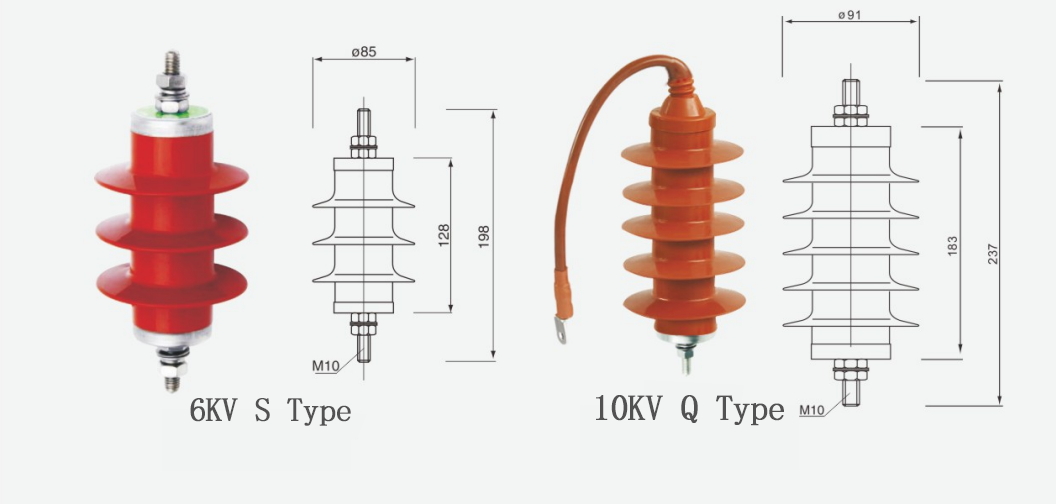

| Low pressure | Power distribution type | 0.22 | YH1.5W-0.28/1.3 | 0.28 | 0.24 | 0.6 | 50 | -- | -- | -- | 1.3 | -- | -- | 75 | 25 |
| Power distribution type | 0.38 | YH1.5W-0.5/2.6 | 0.5 | 0.42 | 1.2 | 50 | -- | -- | -- | 2.6 | -- | -- | 75 | 25 | |
| Power station type | 1.66* | YH2.5WD-1.3/3.6 | 1.3 | 0.95 | 1.8 | 50 | -- | -- | -- | 3.6 | -- | -- | 200 | 40 | |
| Power station type | 1.14* | YH2.5WD-2.67/7.2 | 2.6 | 1.9 | 3.6 | 50 | -- | -- | -- | 7.2 | -- | -- | 200 | 40 | |
| 3KV | Power distribution type | 3 | YH5WS-3.8/15 | 3.8 | 2 | 7.5 | 50 | -- | -- | -- | 15 | 12.8 | 17.3 | 75 | 40 |
| Power distribution type | 3 | YH5WS-5/15 | 5 | 4 | 7.5 | 50 | -- | -- | -- | 15 | 12.8 | 17.3 | 75 | 40 | |
| Power distribution type | 3 | YH5CS-S.8/13.5 | 3.8 | -- | -- | -- | 9 | 13.5 | 20 | 13.5 | 11.4 | 15 | 75 | 40 | |
| Power station type | 3 | YH5WZ-3.8/13.5 | 3.8 | 2 | 7.2 | 50 | -- | -- | -- | 13.5 | 11.5 | 15.5 | 200 | 65 | |
| Power station type | 3 | YH5WZ-5/13.5 | 5 | 4 | 7.2 | 50 | -- | -- | -- | 13.5 | 11.5 | 15.5 | 200 | 65 | |
| Power station type | 3 | YH5CZ-3.8/12.0 | 3.8 | -- | -- | -- | 8 | 12 | 20 | 12 | 10.2 | 13.5 | 200 | 65 | |
| Capacitive type | 3 | YH5WR-3.8/13.5 | 3.8 | 2 | 7.2 | 50 | -- | -- | -- | 13.5 | 10.5 | -- | 400 | 65 | |
| Capacitive type | 3 | YH5WR-5/13.5 | 5 | 4 | 7.2 | 50 | -- | -- | -- | 13.5 | 10.5 | -- | 400 | 65 | |
| Capacitive type | 3 | YH5CR-3.8/12.0 | 3.8 | -- | -- | -- | 8 | 12 | 20 | 12 | 9.6 | -- | 400 | 65 | |
| Generator type | 3.15* | YH5WD-3.8/9.5 | 3.8 | 2 | 5.7 | 50 | -- | -- | -- | 9.5 | 7.6 | 10.7 | 400 | 65 | |
| Generator type | 3.15* | YH5WD-4/9.54 | 4 | 3.15 | 5.7 | 50 | -- | -- | -- | 9.5 | 7.6 | 10.7 | 400 | 65 | |
| Generator type | 3.15* | YH5CD-3.8/8.6 | 3.8 | -- | -- | -- | 7.5 | 8.6 | 20 | 8.6 | 6.9 | 9.8 | 400 | 65 | |
| Electric motor type | 3.15* | YH2.5WD-3.8/9.5 | 3.8 | 2 | 5.7 | 50 | -- | -- | -- | 9.5 | 7.6 | 10.7 | 200 | 65 | |
| Electric motor type | 3.15* | YH2.5WD-4/9.5 | 4 | 3.15 | 5.7 | 50 | -- | -- | -- | 9.5 | 7.6 | 10.7 | 200 | 65 | |
| Electric motor type | 3.15* | YH2.5CD-3.8/8.6 | 3.8 | -- | -- | -- | 7.5 | 8.6 | 20 | 8.6 | 6.9 | 9.8 | 200 | 65 | |
| Neutral point type | 3.15* | YH1.5W-2.4/6 | 2.4 | 1.9 | 3.4 | 50 | -- | -- | -- | 6 | 5 | -- | 200 | 65 | |
| 6KV | Power distribution type | 6 | YH5WS-7.6/30 | 7.6 | 4 | 15 | 50 | -- | -- | -- | 30 | 25.6 | 34.6 | 75 | 40 |
| Power distribution type | 6 | YH5WS-10/30 | 10 | 8 | 15 | 50 | -- | -- | -- | 30 | 25.6 | 34.6 | 75 | 40 | |
| Power distribution type | 6 | YH5CS-7.6/27 | 7.6 | -- | -- | -- | 16 | 27 | 20 | 27 | 22.5 | 30 | 75 | 40 | |
| Power station type | 6 | YH5WZ-7.6/27 | 7.6 | 4 | 14.4 | 50 | -- | -- | -- | 27 | 23 | 31 | 200 | 65 | |
| Power station type | 6 | YH5WZ-10/27 | 10 | 8 | 14.4 | 50 | -- | -- | -- | 27 | 23 | 31 | 200 | 65 | |
| Power station type | 6 | YH5CZ-7.6/24 | 7.6 | -- | -- | -- | 16 | 24 | 20 | 24 | 20.4 | 27 | 200 | 65 | |
| Capacitive type | 6 | YH5WR-7.6/27 | 7.6 | 4 | 14.4 | 50 | -- | -- | -- | 27 | 21 | -- | 400 | 65 | |
| Capacitive type | 6 | YH5WR-10/27 | 10 | 8 | 14.4 | 50 | -- | -- | -- | 27 | 21 | -- | 400 | 65 | |
| Capacitive type | 6 | YH5CR-7.6/24 | 7.6 | -- | -- | -- | 16 | 16 | 20 | 24 | 19.5 | -- | 400 | 65 | |
| Generator type | 6.3* | YH5WD-7.6/18.7 | 7.6 | 4 | 11.2 | 50 | -- | -- | -- | 18.7 | 15 | 21 | 400 | 65 | |
| Generator type | 6.3* | YH5WD-8/18.7 | 8 | 6.3 | 11.2 | 50 | -- | -- | -- | 18.7 | 15 | 21 | 400 | 65 | |
| Generator type | 6.3* | YH5CD-7.6/17 | 7.6 | -- | -- | -- | 15 | 17 | 20 | 17 | 13.8 | 19.6 | 400 | 65 | |
| Electric motor type | 6.3* | YH2.5WD-7.6/18.7 | 7.6 | 4 | 11.2 | 50 | -- | -- | -- | 18.7 | 15 | 21 | 200 | 65 | |
| Electric motor type | 6.3* | YH2.5WD-8/18.7 | 8 | 6.3 | 11.2 | 50 | -- | -- | -- | 18.7 | 15 | 21 | 200 | 65 | |
| Electric motor type | 6.3* | YH2.5CD-7.6/17 | 7.6 | -- | -- | -- | 15 | 17 | 20 | 17 | 13.8 | 19.6 | 200 | 65 | |
| Neutral point type | 6.3* | YH1.5W-4.8/12 | 4.8 | 3.8 | 6.8 | 50 | -- | -- | -- | 12 | 10 | -- | 200 | 65 | |

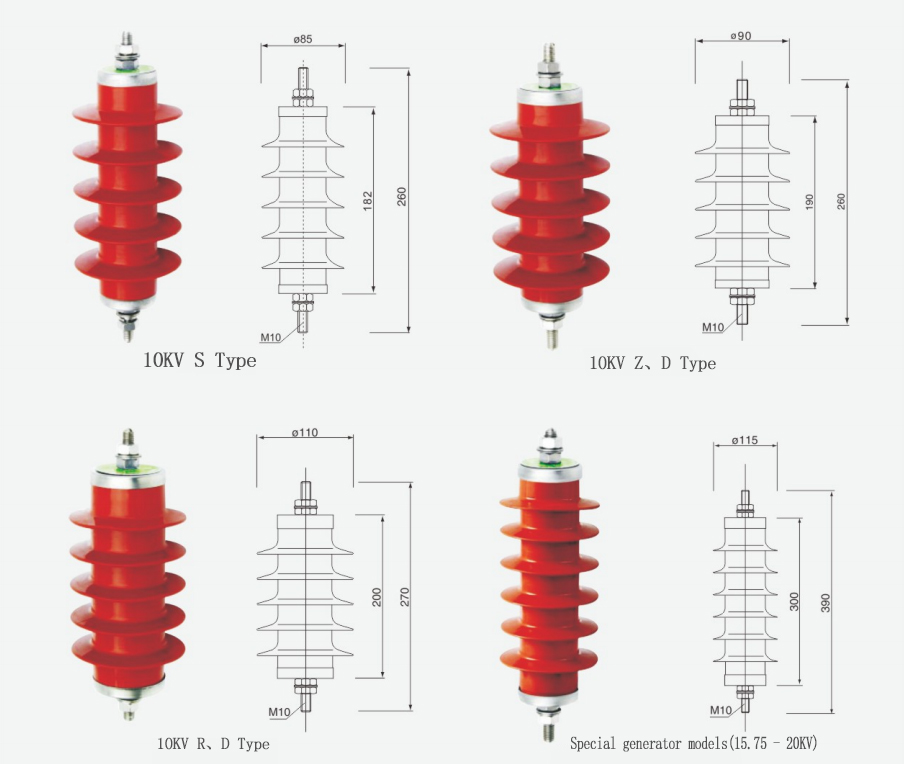

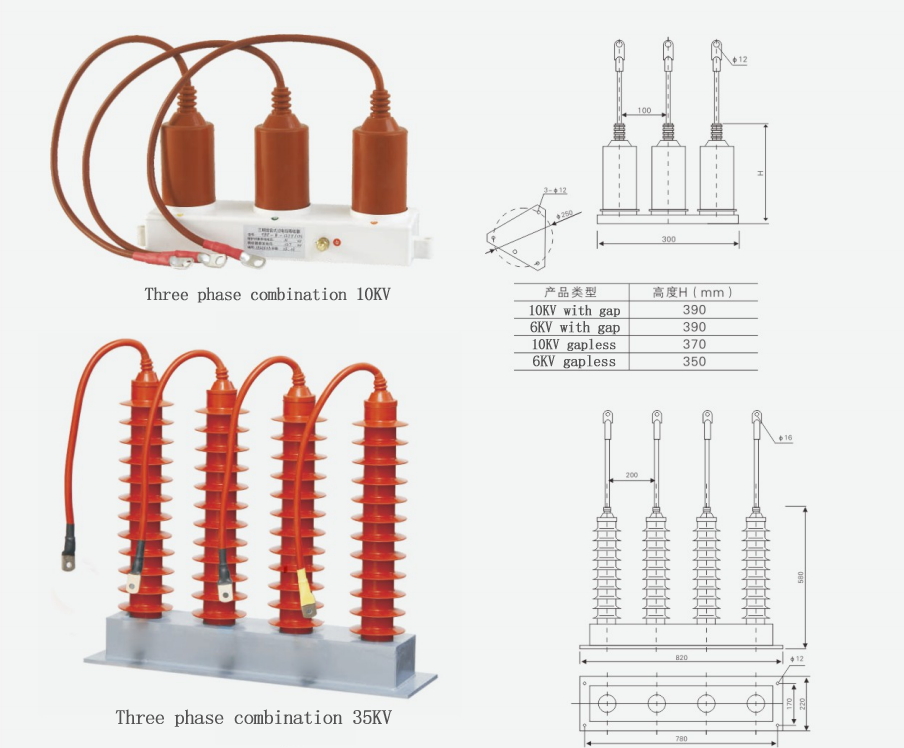

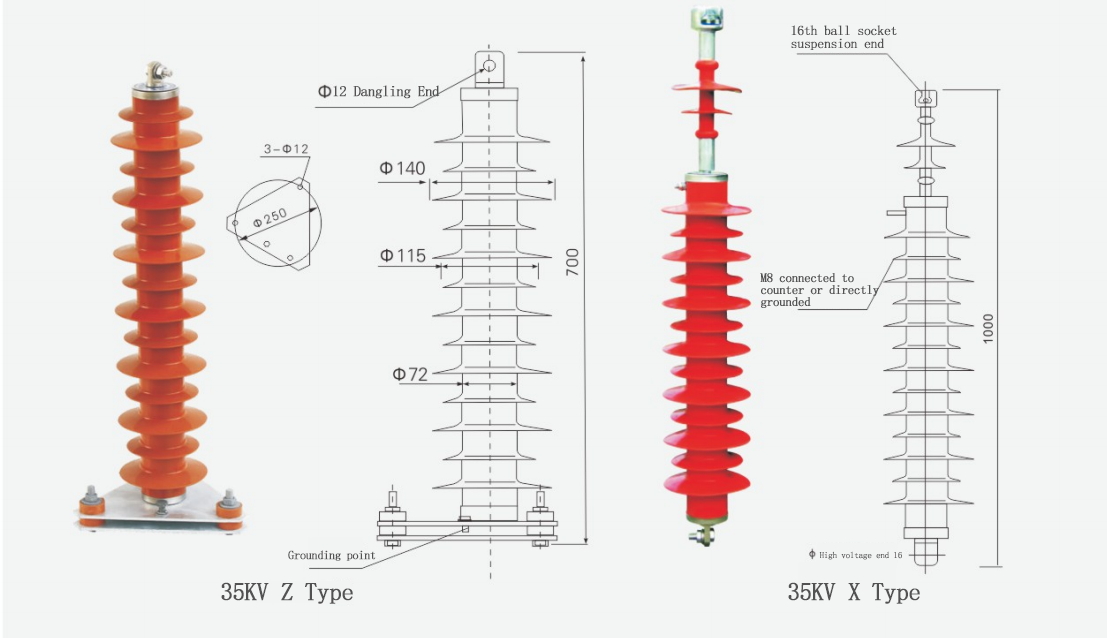

| 10KV | Power distribution type | 10 | YH5WS-12.7/50 | 12.7 | 6.6 | 25 | 50 | -- | -- | -- | 50 | 42.5 | 57.5 | 75 | 40 |
| Power distribution type | 10 | YH5WS-17/50 | 17 | 13.6 | 25 | 50 | -- | -- | -- | 50 | 42.5 | 57.5 | 75 | 40 | |
| Power distribution type | 10 | YH5WS-17/50Q | 17 | 13.6 | 25 | 50 | -- | -- | -- | 50 | 42.5 | 57.5 | 75 | 40 | |
| Power distribution type | 10 | YH5CS-12.7/45 | 12.7 | -- | -- | -- | 26 | 45 | 20 | 45 | 38.4 | 51 | 75 | 40 | |
| Power distribution type | 10 | YH5CS-12.7/45Q | 12.7 | 6.6 | 24 | 50 | -- | -- | -- | 45 | 38.4 | 51 | 200 | 65 | |
| Power station type | 10 | YH5WZ-17/45 | 17 | 13.6 | 24 | 50 | -- | -- | -- | 45 | 38.3 | 51.8 | 200 | 65 | |
| Power station type | 10 | YH5WZ-17/45 | 17 | 13.6 | 24 | 50 | -- | -- | -- | 45 | 38.3 | 51.8 | 200 | 65 | |
| Power station type | 10 | YH5CZ-12.7/41 | 12.7 | -- | -- | -- | 26 | 41 | 20 | 41 | 35 | 46 | 200 | 65 | |
| Capacitive type | 10 | YH5WR-12.7/46 | 12.7 | 6.6 | 24 | 50 | -- | -- | -- | 46 | 35 | -- | 400 | 65 | |
| Capacitive type | 10 | YH5WR-17/46 | 17 | 13.6 | 24 | 50 | -- | -- | -- | 46 | 35 | -- | 400 | 65 | |
| Capacitive type | 10 | YH5CR-12.7/41 | 12.7 | -- | -- | -- | 26 | 41 | 20 | 41 | 33 | -- | 400 | 65 | |
| Generator type | 10.5* | YH5WD-12.7/31 | 12.7 | 6.6 | 18.6 | 50 | -- | -- | -- | 31 | 25 | 34.7 | 400 | 65 | |
| Generator type | 10.5* | YH5WD-13.5/31 | 13.5 | 10.5 | 18.6 | 50 | -- | -- | -- | 31 | 25 | 34.7 | 400 | 65 | |
| Generator type | 10.5* | YH5CD-12.7/28 | 12.7 | -- | -- | -- | 25 | 25 | 20 | 28 | 22.5 | 32 | 400 | 65 | |
| Generator type | 13.8* | YH5WD-17.5/40 | 17.5 | 13.8 | 24.4 | 50 | -- | -- | -- | 40 | 32 | 44.8 | 400 | 65 | |
| Generator type | 15.75* | YH5WD-20/45 | 20 | 15.75 | 28 | 50 | -- | -- | -- | 45 | 36 | 50.4 | 400 | 65 | |
| Generator type | 18.0* | YH5WD-23/51 | 23 | 18 | 31.9 | 50 | -- | -- | -- | 51 | 40.8 | 57.2 | 400 | 65 | |
| Generator type | 20.0* | YH5WD-25/56.2 | 25 | 20 | 35.4 | 50 | -- | -- | -- | 56.2 | 45 | 62.9 | 400 | 65 | |
| Electric motor type | 10.5* | YH2.5WD-12.7/31 | 12.7 | 6.6 | 18.6 | 50 | -- | -- | -- | 31 | 25 | 34.7 | 200 | 65 | |
| Electric motor type | 10.5* | YH2.5WD-13.5/31 | 13.5 | 10.5 | 18.6 | 50 | -- | -- | -- | 31 | 25 | 34.7 | 200 | 65 | |
| Electric motor type | 10.5* | YH2.5CD-12.7/28 | 12.7 | -- | -- | -- | 25 | 25 | 20 | 28 | 22.5 | 32 | 200 | 65 | |
| Neutral point type | 10.5* | YH1.5W-8/19 | 8 | 6.4 | 11.4 | 50 | -- | -- | -- | 19 | 15.9 | -- | 200 | 65 | |
| Neutral point type | 13.8* | YH1.5W-10.5/23 | 10.5 | 8.4 | 14.9 | 50 | -- | -- | -- | 23 | 19.2 | -- | 200 | 65 | |
| Neutral point type | 15.75* | YH1.5W-12/26 | 12 | 9.6 | 17 | 50 | -- | -- | -- | 26 | 21.6 | -- | 200 | 65 | |
| Neutral point type | 18.0* | YH1.5W-13.7/29.2 | 13.7 | 11 | 19.5 | 50 | -- | -- | -- | 29.2 | 24.3 | -- | 200 | 65 | |
| Neutral point type | 20.0* | YH1.5W-15.2/31.7 | 15.2 | 12.2 | 21.6 | 50 | -- | -- | -- | 31.7 | 26.4 | -- | 200 | 65 | |
| Antifouling type | 10 | YH5WS-12.7/55 | 12.7 | 6.6 | 25 | 50 | -- | -- | -- | 50 | 42.5 | 57.5 | 75 | 65 | |
| Antifouling type | 10 | YH5WS-17/50W | 17 | 13.6 | 25 | 50 | -- | -- | -- | 50 | 42.5 | 57.5 | 75 | 65 | |
| Antifouling type | 10 | YH5WCS-12.7/45W | 12.7 | -- | -- | -- | 26 | 45 | 20 | 45 | 38.4 | 51 | 75 | 65 | |
| 35KV | Power station type | 35 | YH5WZ-51/134 | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 |
| Power station type | 35 | YH5CZ-42/124 | 42 | -- | -- | -- | 80 | 124 | 20 | 124 | 100 | 143 | 400 | 65 | |
| Power station type | 35 | YH5WZ-42/134 | 42 | 23.4 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 | |
| Capacitive type | 35 | YH5WR-51/134 | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 105 | -- | 400 | 65 | |
| Capacitive type | 35 | YH5CR-42/124-C | 42 | -- | -- | -- | 80 | 124 | 20 | 124 | 100 | -- | 400 | 65 | |
| Capacitive type | 35 | YH5WR-42/134 J | 42 | 23.4 | 73 | 50 | -- | -- | -- | 134 | 105 | -- | 400 | 65 | |

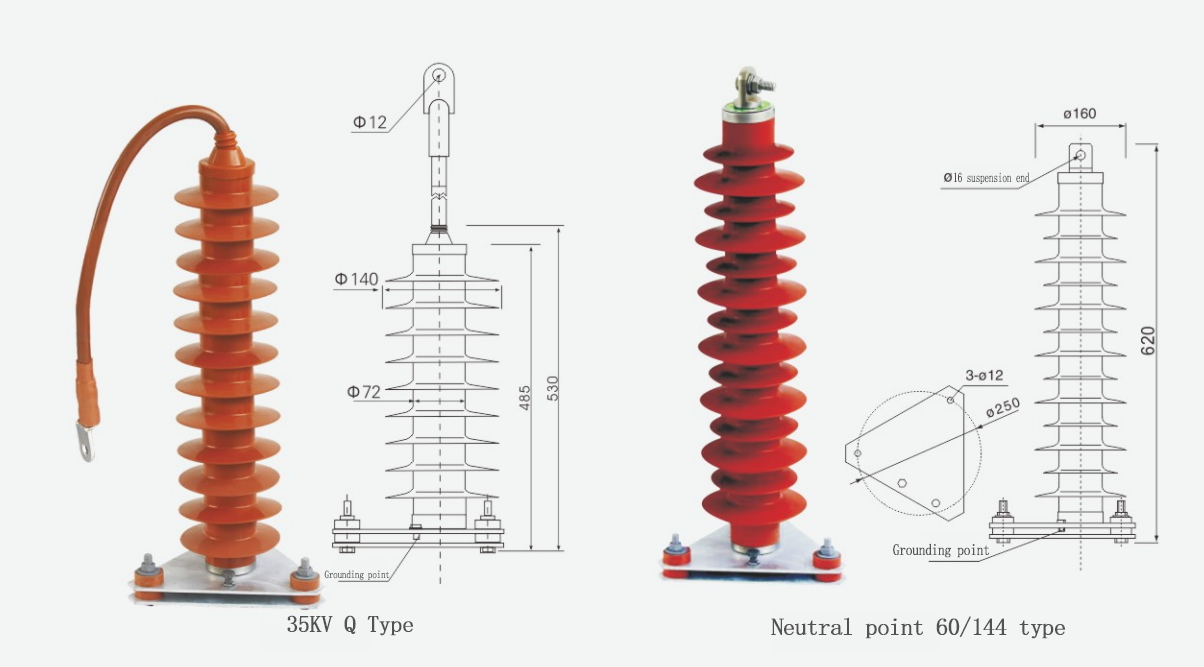

| Fully insulated type | 35 | YH5WZ-51/134Q | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 | |
| Fully insulated type | 35 | YH5WR-51/134Q | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 105 | -- | 400 | 65 | |
| Fully insulated type | 35 | YH5WZ-42/134 J | 42 | 23.4 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 | |
| Fully insulated type | 35 | YH5WR-42/134Q | 42 | 23.4 | 73 | 50 | -- | -- | -- | 134 | 105 | -- | 400 | 65 | |
| Fully insulated type | 35 | YH5WZ-51/134-J | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 | |
| Counting type | 35 | YH5CR-51/134-J | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 105 | -- | 400 | 65 | |
| Counting type | 35 | YH5CR-42/124-J | 42 | -- | -- | -- | 80 | 124 | 20 | 124 | 100 | -- | 400 | 65 | |
| Counting type | 35 | YH5WZ-42/134-J | 42 | 23.4 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 | |
| Counting type | 35 | YH5WR-42/134-J | 42 | 23.4 | 73 | 50 | -- | -- | -- | 134 | 105 | -- | 400 | 65 | |
| Line Type | 35 | YH5WX-51/134 | 51 | 40.8 | 73 | 50 | -- | -- | -- | 134 | 114 | 154 | 400 | 65 | |
| Line Type | 35 | YH5WX-54/150 | 54 | 43.2 | 77 | 50 | -- | -- | -- | 150 | 128 | 169 | 400 | 65 | |
| Line Type | 35 | YH5CX-42/120 | 42 | -- | -- | -- | 80 | 120 | 20 | 120 | 100 | 138 | 400 | 65 | |
| Line Type | 35 | YH5CX-42/150 | 42 | -- | -- | -- | 80 | 150 | 20 | 150 | 128 | 169 | 400 | 65 | |
| Neutral point type | 35 | YH1.5W-30/80 | 30 | 24 | 44 | 50 | -- | -- | -- | 80 | 67.5 | -- | 400 | 65 | |
| 66KV | Power station type | 66 | YH5WZ-84/221 | 84 | 67.2 | 121 | 50 | -- | -- | -- | 221 | 188 | 254 | 600 | 65 |
| Power station type | 66 | YH5WZ-90/235 | 90 | 72.5 | 130 | 50 | -- | -- | -- | 235 | 201 | 270 | 600 | 65 | |
| Power station type | 66 | YH10WZ-84/221 | 84 | 67.2 | 121 | 50 | -- | -- | -- | 221 | 188 | 248 | 600 | 100 | |
| Power station type | 66 | YH10WZ-90/235 | 90 | 72.5 | 130 | 50 | -- | -- | -- | 235 | 201 | 264 | 600 | 100 | |
| Line Type | 66 | YH5WX-96/250 | 96 | 75 | 140 | 50 | -- | -- | -- | 250 | 213 | 288 | 600 | 65 | |
| Line Type | 66 | YH5WX-96/275 | 96 | 75 | 154 | 50 | -- | -- | -- | 275 | 234 | 316 | 600 | 65 | |
| Line Type | 66 | YH5CX-75/218 | 75 | -- | -- | -- | 117* | 218 | 20 | 218 | -- | 246 | 600 | 65 | |

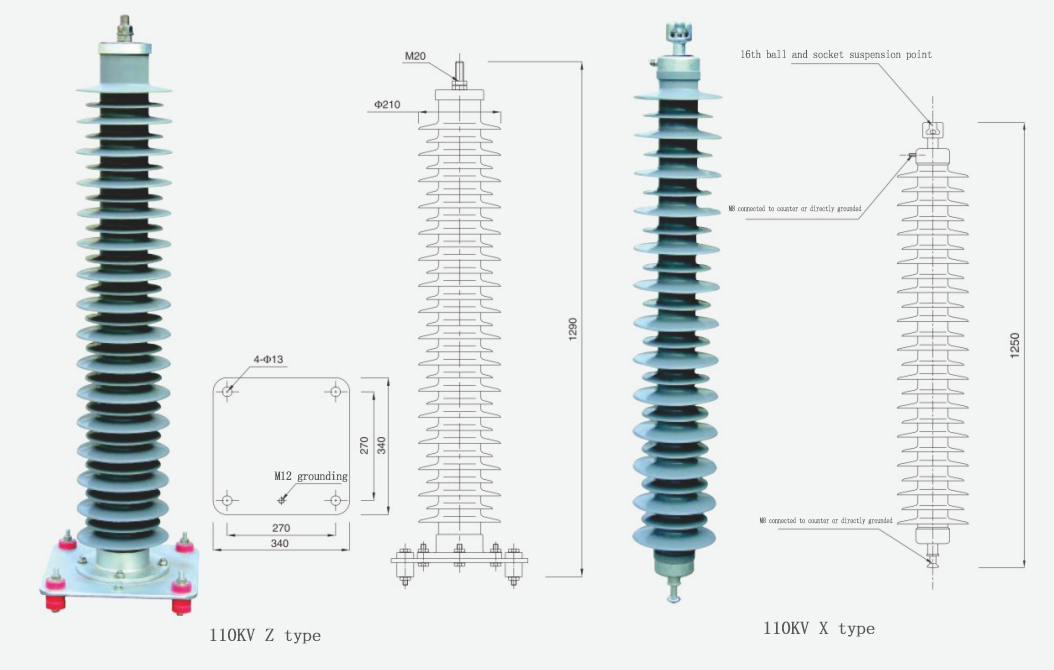

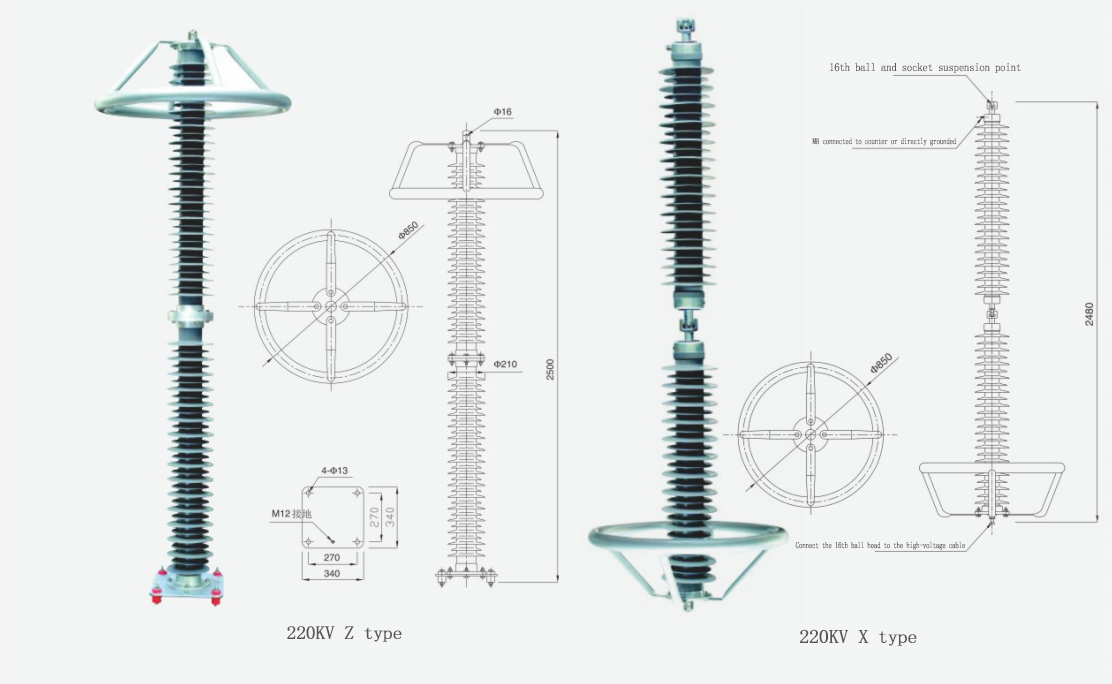

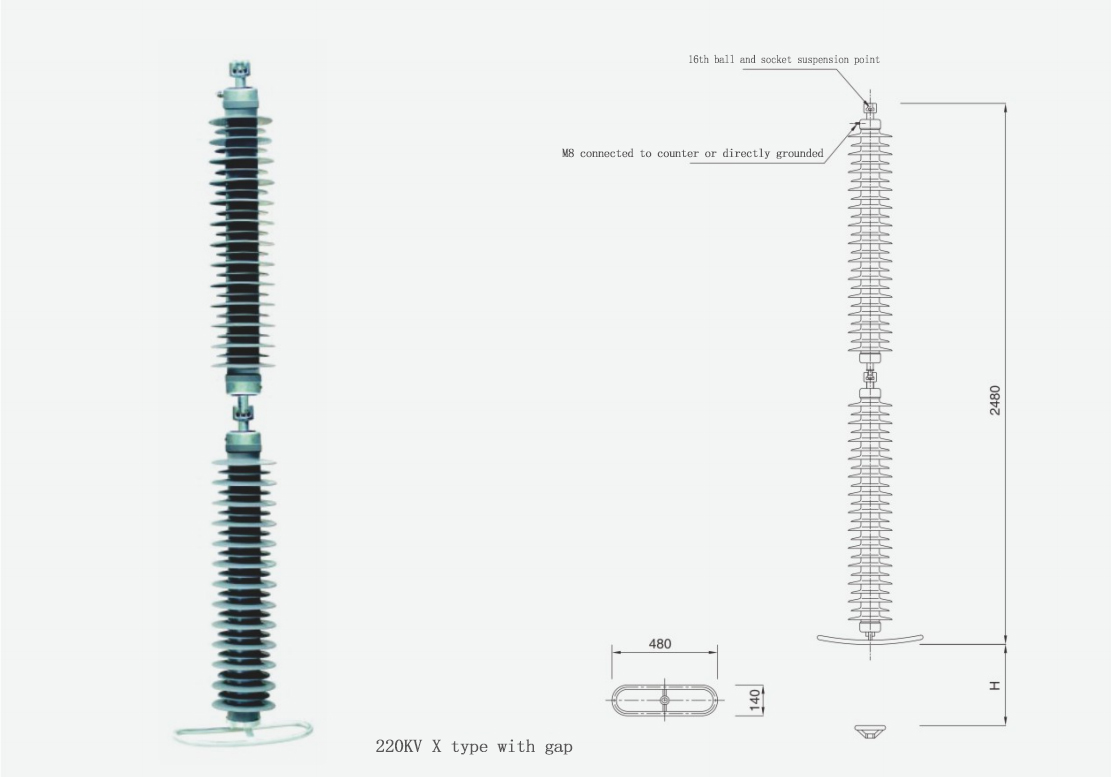

| 110KV | Power station type | 110 | YH5WZ-100/260 | 100 | 78 | 145 | 50 | -- | -- | -- | 260 | 221 | 299 | 600 | 65 |
| Power station type | 110 | YH5WZ-102/266 | 102 | 79.6 | 148 | 50 | -- | -- | -- | 266 | 226 | 305 | 600 | 65 | |
| Power station type | 110 | YH5WZ-108/281 | 108 | 84 | 157 | 50 | -- | -- | -- | 281 | 239 | 323 | 600 | 65 | |
| Power station type | 110 | YH10WZ-100/260 | 100 | 78 | 145 | 50 | -- | -- | -- | 260 | 221 | 291 | 600 | 100 | |
| Power station type | 110 | YH10WZ-102/266 | 102 | 79.6 | 148 | 50 | -- | -- | -- | 266 | 226 | 297 | 600 | 100 | |
| Power station type | 110 | YH10WZ-108/281 | 108 | 84 | 157 | 50 | -- | -- | -- | 281 | 239 | 315 | 600 | 100 | |
| Line Type | 110 | YH5WX-108/281 | 108 | 84 | 157 | 50 | -- | -- | -- | 281 | 239 | 323 | 600 | 65 | |
| Line Type | 110 | YH5WX-108/309 | 108 | 84 | 173 | 50 | -- | -- | -- | 309 | 263 | 348 | 600 | 65 | |
| Line Type | 110 | YH10WX-108/281 | 108 | 84 | 157 | 50 | -- | -- | -- | 281 | 239 | 315 | 600 | 100 | |
| Line Type | 110 | YH10WX-108/309 | 108 | 84 | 173 | 50 | -- | -- | -- | 309 | 263 | 348 | 600 | 100 | |
| Line Type | 110 | YH5WX-90/260 | 90 | -- | -- | -- | 170* | 260 | 20 | 260 | -- | 292 | 400 | 65 | |
| Line Type | 110 | YH10CX-90/260 | 90 | -- | -- | -- | 170* | 260 | 20 | 260 | -- | 292 | 600 | 100 | |
| Line Type | 110 | YH10CX-90/280 | 90 | -- | -- | -- | 170* | 280 | 20 | 280 | -- | 314 | 600 | 100 | |
| Line Type | 110 | YH10CX-102/296 | 102 | -- | -- | -- | 170* | 296 | 20 | 296 | -- | 332 | 600 | 100 | |
| Neutral point type | 110 | YH1.5W-60/144 | 60 | 48 | 85 | 50 | -- | -- | -- | 144 | 135 | -- | 400 | 65 | |
| Neutral point type | 110 | YH1.5W-72/186 | 72 | 58 | 103 | 50 | -- | -- | -- | 186 | 174 | -- | 400 | 65 | |
| 220KV | Power station type | 220 | YH10WZ-192/500 | 192 | 150 | 280 | 50 | -- | -- | -- | 500 | 426 | 560 | 800 | 100 |
| Power station type | 220 | YH10WZ-200/520 | 200 | 156 | 290 | 50 | -- | -- | -- | 520 | 442 | 582 | 800 | 100 | |
| Power station type | 220 | YH10WZ-204/532 | 204 | 159 | 296 | 50 | -- | -- | -- | 532 | 452 | 594 | 800 | 100 | |
| Power station type | 220 | YH10WZ-216/562 | 216 | 168.5 | 314 | 50 | -- | -- | -- | 562 | 478 | 630 | 800 | 100 | |
| Line Type | 220 | YH10WX-216/562 | 216 | 168 | 314 | 50 | -- | -- | -- | 562 | 478 | 630 | 600 | 100 | |
| Line Type | 220 | YH10WX-216/618 | 216 | 168 | 346 | 50 | -- | -- | -- | 618 | 526 | 693 | 600 | 100 | |
| Line Type | 220 | YH10CX-185/520 | 180 | -- | 260 | 50 | 340* | 900* | -- | 520 | -- | 584 | 600 | 100 | |
| Line Type | 220 | YH10CX-192/560 | 192 | -- | 280 | 50 | 340* | 900* | -- | 560 | -- | 628 | 600 | 100 | |
| Line Type | 220 | YH10CX-204/592 | 204 | -- | 296 | 0.5 | 340* | 900* | -- | 592 | -- | 664 | 600 | 100 | |

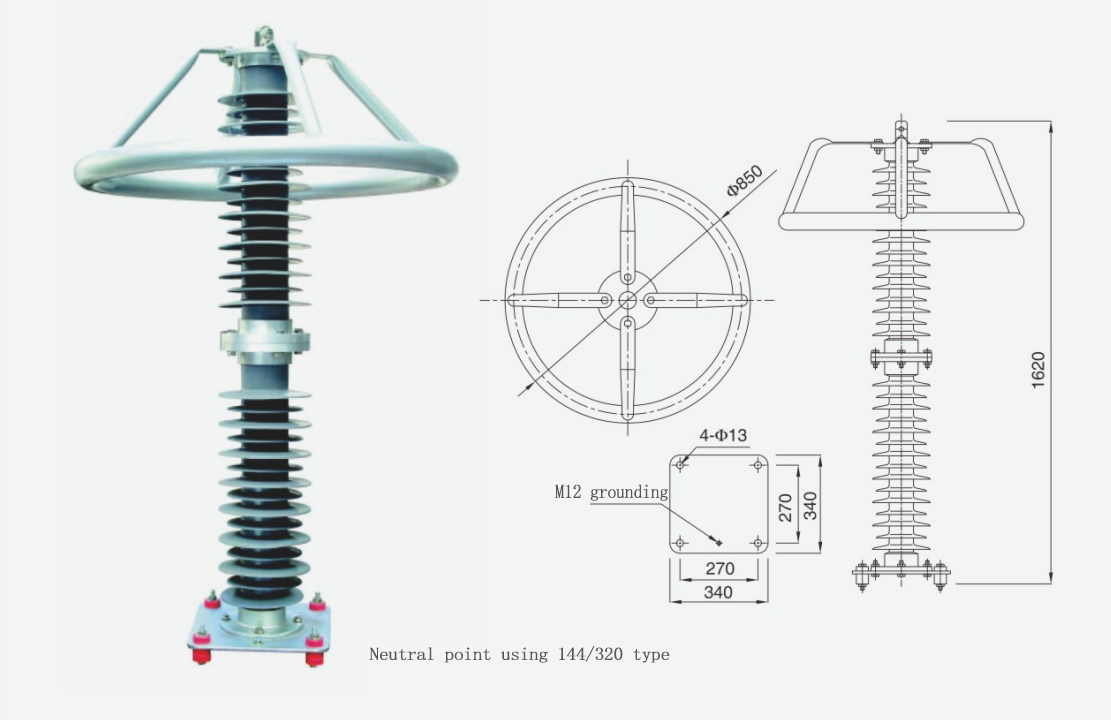

| Neutral point type | 220 | YH1.5W-144/320 | 144 | 116 | 205 | 50 | -- | -- | -- | 320 | 299 | -- | 600 | 65 | |
| 220KV | Railway type | 27.5 | YH5WT-42/120 | 42 | 34 | 65 | 50 | -- | -- | -- | 120 | 98 | 138 | 400 | 65 |
| 55KV | Railway type | 55 | YH5WT-84/240 | 84 | 68 | 130 | 50 | -- | -- | -- | 240 | 276 | 276 | 400 | 65 |
