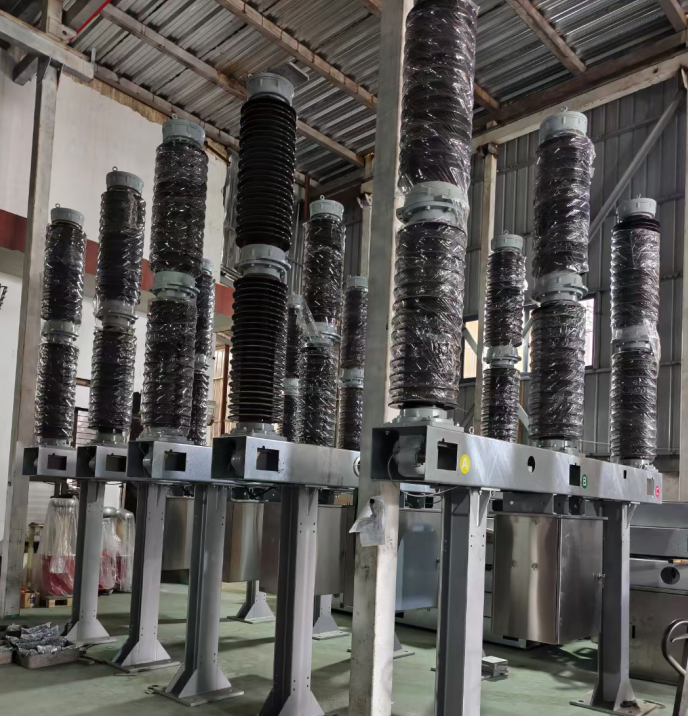

High-Performance LW36-40.5 Circuit Breaker for High-Voltage Applications
When your high-voltage network demands absolute reliability, every switching device must perform flawlessly. The ABILKEEN LW36-40.5 circuit breaker is a high-performance solution engineered specifically for 40.5kV power systems operating at 50Hz. This Outdoor Sf6 Circuit Breaker handles the most demanding switching duties in substations, power plants, factories, and mines. With the ABILKEEN name behind it, you get decades of engineering expertise condensed into a single, dependable unit. We built this breaker for utility engineers who refuse to compromise on safety, longevity, or operational consistency.
What makes the LW36-40.5 truly stand out is its versatility. It serves as a core component of electrical equipment in 36kV to 40.5kV power distribution networks. Whether you are managing a city substation or an industrial complex, this breaker adapts to your needs. It interrupts fault currents, switches load currents, and provides isolation for maintenance. The SF6 arc-quenching technology ensures that every interruption is clean, silent, and free from the risks associated with oil or air breakers. ABILKEEN has refined this design over multiple generations, resulting in a breaker that you can trust for decades.
Beyond being a standalone circuit breaker, the ABILKEEN LW36-40.5 doubles as a highly capable operating mechanism. It can be paired with disconnectors, cables, and other field apparatus to form a complete switching solution. This flexibility means you do not need separate actuators for different devices—the LW36-40.5 provides the mechanical power and control needed for coordinated switching operations. For system integrators, this reduces component count and simplifies control schemes. For maintenance crews, it means fewer unique parts to stock. ABILKEEN designed this breaker to work with your existing infrastructure, not against it.
Outdoor installation brings brutal challenges: temperature extremes, humidity, salt spray, and UV radiation. The LW36-40.5 is built to survive all of them. Its enclosure is weather-sealed and corrosion-protected, keeping internal components dry and functional for years. The SF6 gas is sealed for life under normal conditions, requiring no periodic refilling or moisture testing. You will not find yourself climbing poles on freezing mornings to top off oil or adjust contacts. This breaker asks very little of your maintenance team, giving them time back for other priorities. That is the ABILKEEN difference: engineering that respects your schedule.
Performance under fault conditions separates true high-voltage breakers from pretenders. The LW36-40.5 is rated for high short-circuit breaking capacity, capable of interrupting severe fault currents without contact welding or pressure rise. The SF6 gas extinguishes the arc in microseconds, and the operating mechanism resets quickly for reclosing duties. Power plants and heavy industrial facilities often experience multiple faults per year due to environmental factors. This breaker handles them without degradation. We have tested it through hundreds of full-fault interruptions, and the performance remains consistent from the first operation to the thousandth.
Let us talk about the operating mechanism in more detail. The LW36-40.5 features a spring-operated or motor-charged mechanism, available in both manual and electric versions. The mechanical life exceeds 10,000 operations, thanks to precision bearings, hardened cams, and anti-corrosion coatings. You will feel the difference when you manually close the breaker—smooth, positive, and requiring no heroic effort. For remote-controlled substations, the motor drive integrates with standard protection relays and SCADA systems. Auxiliary switches provide position feedback, and the mechanism includes anti-pumping protection to prevent multiple close-open cycles during a fault. ABILKEEN thought of everything.
Where exactly should you deploy the ABILKEEN LW36-40.5? Anywhere that requires reliable 40.5kV switching. Power plants use it for generator outlet switching and auxiliary transformer protection. Factories with their own 35kV class substations install it as the main incoming breaker. Mines rely on it for underground and surface distribution networks. Wind farms and solar plants use it on the medium-voltage collection side. The breaker's compact footprint and standardized mounting dimensions make it suitable for both new builds and retrofits. If you have an aging oil breaker or an obsolete SF6 model, the LW36-40.5 is a drop-in replacement candidate.
Are you ready to bring high-performance switching to your 40.5kV network without the headaches of legacy equipment? The ABILKEEN LW36-40.5 circuit breaker is available now through our global distribution network. Each unit ships with full type test reports, wiring diagrams, and installation manuals. Our technical support team can assist with sizing, control scheme design, and on-site commissioning. Whether you need a single unit for a critical substation or a fleet for a regional utility project, ABILKEEN delivers consistency and quality. Contact us today to request a quotation or to speak with an application engineer. Choose ABILKEEN—where high voltage meets high dependability.
