ABILKEEN GW5-40.5 Outdoor Electric Isolation Switch – Superior Insulation
When you need to visibly isolate a section of your 40.5kV outdoor transmission line, nothing delivers confidence like a purpose-built disconnect switch. The ABILKEEN GW5-40.5 outdoor Electric Isolation Switch is engineered for operators who demand visible safety, reliable insulation, and smooth mechanical performance. Whether you are working in a utility substation, an industrial power yard, or a renewable energy plant, this double column horizontal fracture center opening type disconnect switch provides the clear break that linemen trust. With ABILKEEN, you are not just buying a switch—you are investing in decades of switching certainty.

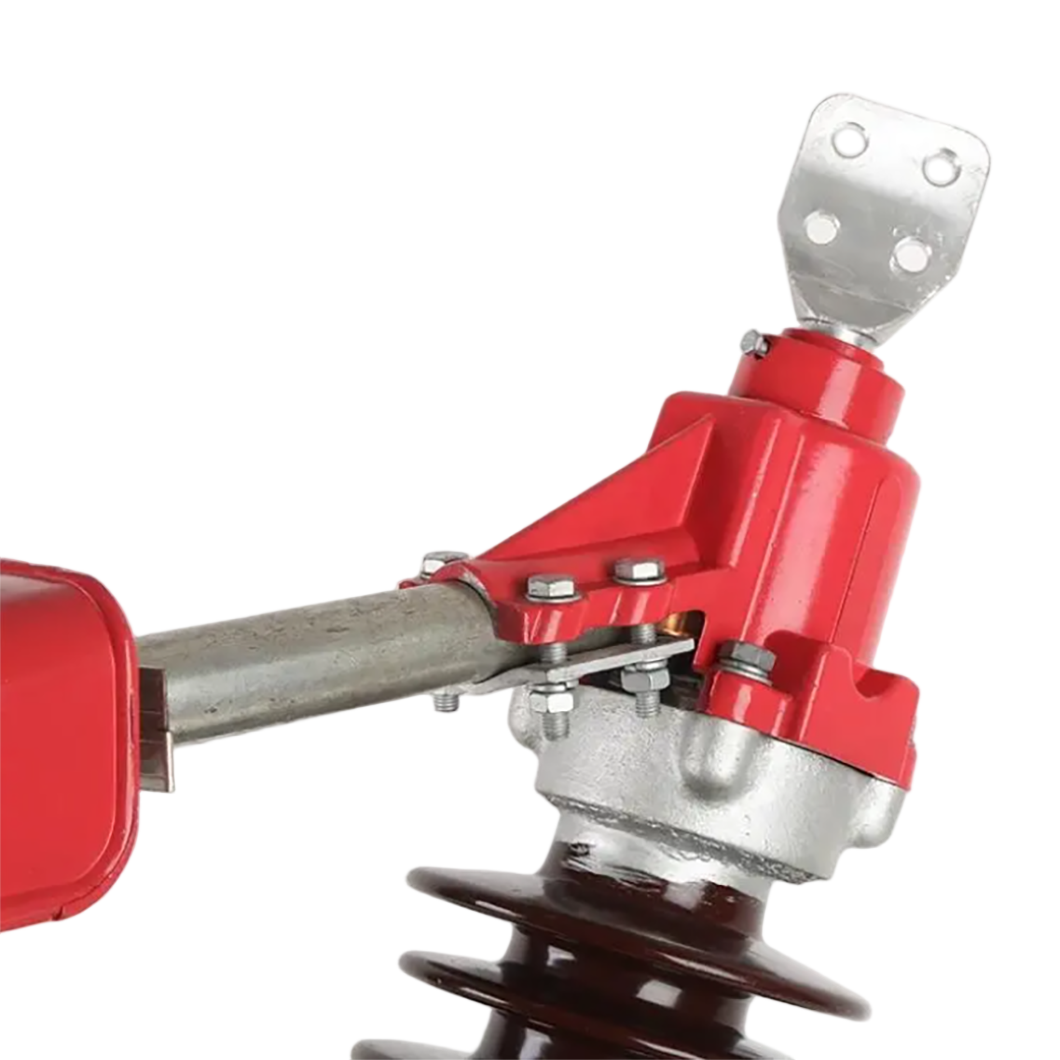

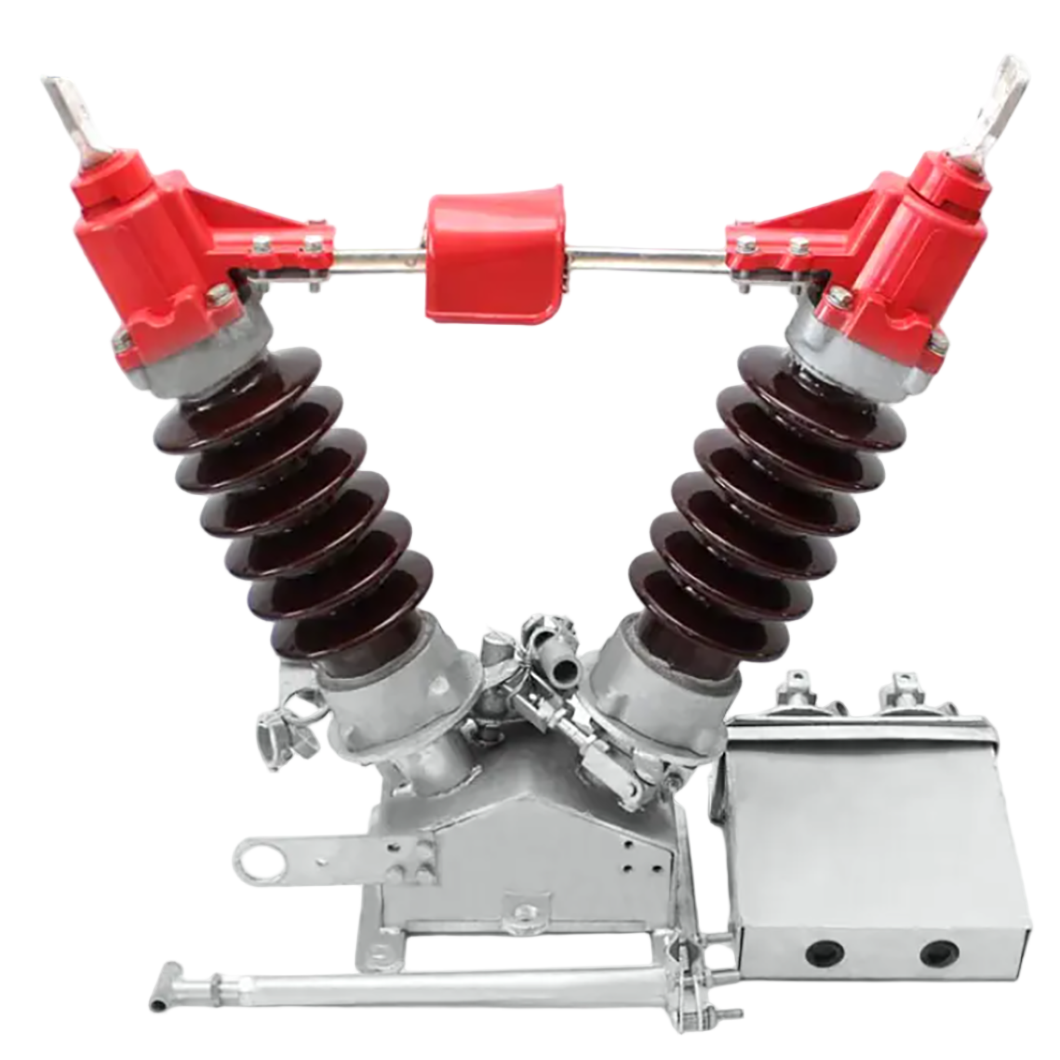

The GW5-40.5 features a double column, horizontal fracture, center opening design. In plain language, the switch opens by rotating two insulator columns in opposite directions, pulling the moving contacts apart from the center outward. This configuration offers excellent visibility of the open gap, which is critical for safety lockout/tagout procedures. It also provides superior insulation distance compared to vertical break designs. The robust porcelain or composite insulators resist tracking and flashover even in polluted environments. ABILKEEN has refined this classic design with modern materials and precision machining to ensure smooth operation and long service life.
Flexibility in grounding options sets the ABILKEEN GW5-40.5 apart. You can order this disconnect switch with a grounding switch on one side (left or right) or on both sides. When closed, the grounding switch safely shunts the disconnected line to earth, protecting maintenance crews from induced voltage or accidental backfeed. The grounding blades interlock mechanically with the main blades to prevent closing the main switch while the ground is still engaged. This interlock is not an afterthought—it is a core safety feature. ABILKEEN offers both single-sided and double-sided grounding configurations to match your substation layout and operational procedures.
Operating mechanisms matter because field crews interact with them every day. For the main isolation switch with 90° transmission, ABILKEEN supplies the CS17 manual operation mechanism, designed for three-pole linkage operation. A single handle movement opens or closes all three phases simultaneously, ensuring balanced switching and reducing operator error. The 90° rotation gives a clear positional feel—a quarter turn from open to closed. Mechanism housings are weather-sealed and corrosion-resistant, with built-in locking provisions for padlocks. For new installations or retrofits, the CS17 is a field-proven workhorse.
When the application calls for 180° transmission, the ABILKEEN GW5-40.5 adapts accordingly. For this configuration, we offer the CJ6 type electric motor operating mechanism as well as the CS17G type manual mechanism. The CJ6 motor mechanism enables remote open/close control from a control room or SCADA system. It includes a gearbox, limit switches, and a hand crank for emergency manual operation. The motor operator is rated for frequent cycling and includes anti-condensation heaters. For sites that prefer manual but need the 180° rotation, the CS17G manual mechanism provides smooth operation with increased gear reduction for heavier blade loads. Three-pole linkage remains standard across all options.
What about the grounding switch operation? The grounding switch on the ABILKEEN GW5-40.5 is typically equipped with the CS17G manual operation mechanism, also configured for three-pole linkage. This means all three grounding blades close simultaneously when you operate the handle. The mechanism includes clear position indication (open/grounded) and a provision for padlocking. If you choose double-sided grounding, you receive two independent operating handles—one for each side—with mechanical interlocks preventing the main switch from closing unless both ground switches are open. ABILKEEN pays obsessive attention to these interlock details because safety is never optional.
Superior insulation is not a marketing phrase—it is a measurable characteristic. The ABILKEEN GW5-40.5 uses high-grade porcelain or silicone rubber insulators that meet or exceed IEC 60168 standards. The creepage distance is selected based on your local pollution level (light, medium, heavy, or very heavy). For coastal or industrial areas with salt fog or cement dust, extra-high creepage insulators are available. The double column design inherently provides a longer leakage path than single-column designs. When combined with hydrophobic silicone rubber sheds, the switch maintains high insulation resistance even in wet conditions. You will not see tracking or flashovers during fog or light rain.
Are you ready to specify a 40.5kV outdoor disconnect switch that combines mechanical robustness, flexible grounding, and superior insulation? The ABILKEEN GW5-40.5 is available now in standard and custom configurations. Choose your transmission angle (90° or 180°), operation mechanism (CS17 manual, CS17G manual, or CJ6 electric motor), grounding arrangement (none, one side, or both sides), and insulator material (porcelain or silicone rubber). Each switch undergoes full factory assembly, mechanical operation testing, and insulation withstand tests before shipping. Contact ABILKEEN today for a dimensional drawing, a technical datasheet, or a project-specific quotation. Trust the brand that puts safety and performance at the center of every switch. Choose ABILKEEN.
