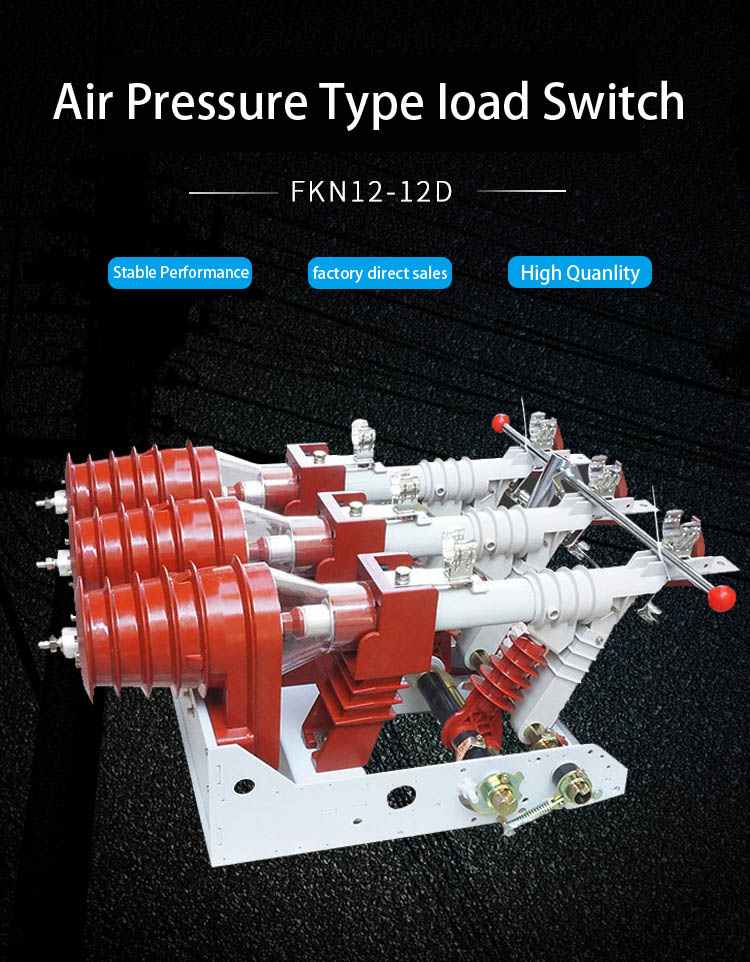

ABILKEEN FKRN12-12 Indoor High Voltage Compressed Air Load Switch
Walk into any 12kV indoor substation, and you will see the quiet workhorses of power distribution: load switches. The ABILKEEN FKRN12-12 indoor high voltage compressed air load switch is one such workhorse—designed specifically for three‑phase distribution systems up to 12kV. It controls and protects transformers, cables, overhead lines, and other critical equipment. But what makes the FKRN12-12 different is the engineering philosophy behind it: simple, reliable, and built for the daily grind of switching loads in terminal substations, box‑type substations, and urban or rural networks. ABILKEEN has refined this design over years of field feedback, and the result is a switch that operators actually enjoy using.
Let us talk about the interrupting medium. Many load switches use SF6 gas or vacuum bottles, but the FKRN12-12 uses compressed air. Why? Because air is free, non‑toxic, and does not contribute to global warming. When the switch opens, a puff of compressed air blows across the arc, extinguishing it within milliseconds. This technology has been proven over decades in millions of installations worldwide. It handles normal load currents and overloads without difficulty. For ABILKEEN, choosing compressed air was a deliberate decision to offer a green, low‑maintenance alternative to gas‑filled switches. You will never worry about gas leaks or pressure gauges again.
The FKRN12-12 comes in two main variants. The first is the pure load switch (FKN12A-12D series). Its job is clear: disconnect and connect load current and overload current up to its rated value. When you need to isolate a transformer for maintenance or switch a capacitor bank, this switch performs with a clean, visible break. The second variant is the load switch‑fuse combination (FKRN12A-12D series). This adds fuse protection that handles short‑circuit currents. When a fault downstream exceeds the switch's breaking capacity, the fuse blows, and a striker trips the load switch open. The combination gives you both switching flexibility and fault protection in one compact package.
Urban and rural network operators face different challenges. In cities, space is tight, and switchgear must fit into prefabricated substations or underground vaults. The ABILKEEN FKRN12-12 is compact and can be mounted in any orientation. In rural areas, reliability is paramount because crews may travel long distances for repairs. The compressed air mechanism is mechanical and robust, with fewer parts that can fail compared to electronic or hydraulic systems. ABILKEEN has seen FKRN12-12 units operate for twenty years in coastal villages and mountain substations with nothing more than an occasional inspection. That is the kind of dependability that keeps the lights on.
Terminal substations and box‑type substations are the end points of distribution networks. They feed power directly to homes, shops, and small factories. In these locations, the FKRN12-12 excels as an incoming or outgoing switch. Its clear position indication (open/closed/grounded) gives local operators confidence. The optional earthing switch allows you to safely ground the downstream circuit for maintenance. The enclosure is designed for easy cable connection from the bottom or rear. ABILKEEN also offers a range of accessories: auxiliary switches, shunt trips, undervoltage releases, and motor operators for remote control. You get a switch that adapts to your specific substation layout.
Ring networks and double‑radiation power supply units demand switches that can operate under all conditions—including fault conditions on adjacent feeders. The FKRN12-12 load switch‑fuse combination is particularly well‑suited here. In a ring main unit (RMU), the switch handles load current from one direction, while the fuse provides short‑circuit protection. If a fault occurs on a cable spur, the fuse clears it, and the load switch isolates the faulty section. The rest of the ring remains energized. This selective coordination reduces outage duration and improves system reliability. ABILKEEN has supplied FKRN12-12 units to hundreds of ring main installations, and field feedback confirms their consistent performance.
Installation and maintenance crews have a saying: "A good switch is one you do not think about." The ABILKEEN FKRN12-12 lives up to that. The compressed air mechanism requires no special tools for routine inspection. The visible break between contacts gives you immediate visual confirmation that the circuit is open. The fuse replacement is straightforward—open the front cover, remove the blown fuse, insert a new one, and close. There is no complex calibration or testing after fuse replacement. For organizations with limited skilled labor, this simplicity is a real asset. ABILKEEN provides clear manuals and labeling, but most electricians figure out the FKRN12-12 in minutes because it follows logical mechanical principles.

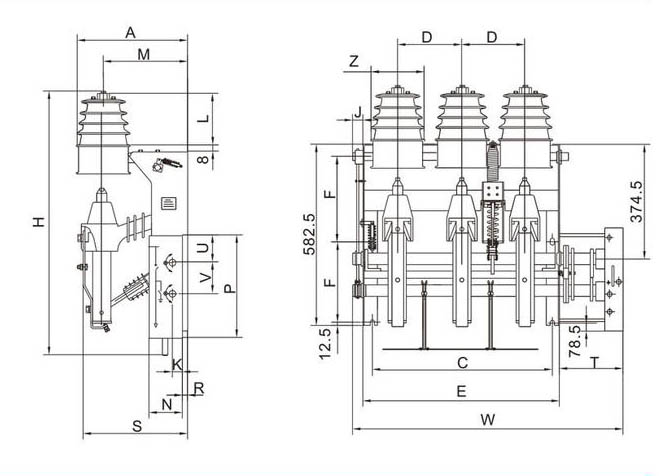

Are you ready to specify a 12kV indoor load switch that combines compressed air simplicity, fuse protection, and ABILKEEN reliability? The FKRN12-12 series is available now in standard ratings: 12kV, 630A load current, and short‑circuit breaking capacity up to 20kA (with fuses). Choose from pure load switch or load switch‑fuse combination. Add options like earthing switch, auxiliary contacts, motor mechanism, and padlockable handles. Each unit is factory‑tested for insulation, mechanical operation, and contact resistance. Contact ABILKEEN today for a datasheet, a dimensional drawing, or a quotation. Join the network operators who trust ABILKEEN for their most critical switching points. Choose reliability. Choose ABILKEEN.
