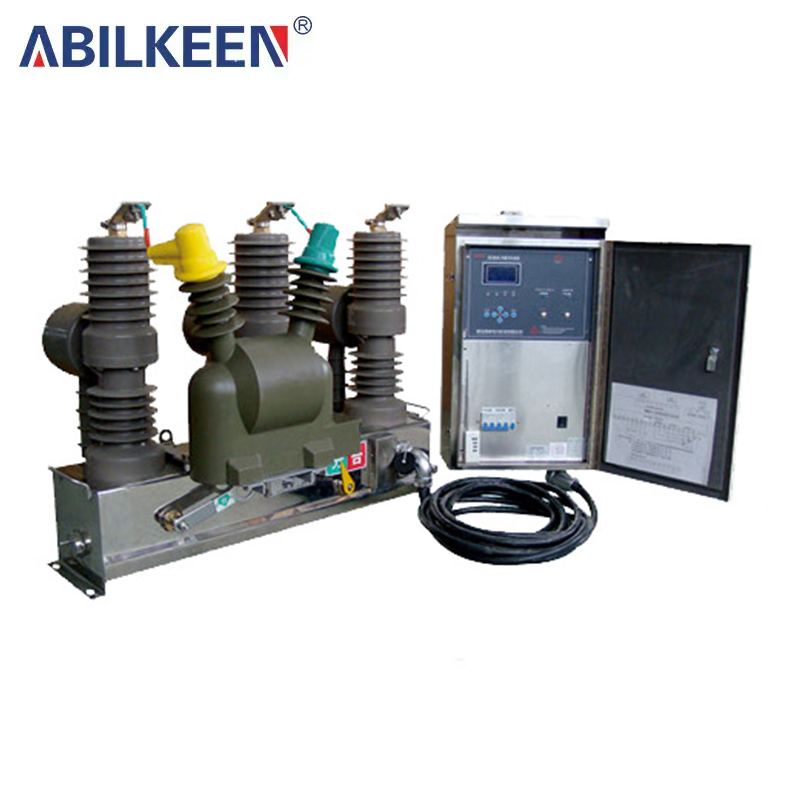

ZW32-12M (D) Outdoor Intelligent High Voltage Vacuum Circuit Breaker
Structural features
The permanent magnet mechanism type consists of four parts: vacuum switch body, monostable permanent magnet operating mechanism, intelligent controller, external voltage transformer (PT) or solar panel. Therefore, it has a wide range of coordination and flexible and convenient action program setting method, with high working reliability and safety. It is a new type of "mechatronics" intelligent high-voltage switchgear with control and protection functions. The electric mechanism type consists of four parts: vacuum switch body, electric operating mechanism, intelligent controller, external voltage transformer (PT) or solar panel. Therefore, it has a wide range of coordination and flexible and convenient action program setting method, with high working reliability and safety. It is a "mechatronics" intelligent high-voltage switchgear with control and protection functions.
Technical Parameters
|
Name |
Unit |
Data |
||
|
Rated voltage |
kV |
12 |
||
|
Rated insulation level |
1min power frequency withstand voltage |
Dry test (to ground, between poles/break) |
42/48 |
|
|
Wet test |
34 |
|||
|
Lightning impulse withstand voltage (peak value, pole-to-pole/break) |
75/85 |
|||
|
Rated current |
A |
630 |
||
|
Rated short-circuit breaking current |
kA |
20 |
||
|
Rated operating sequence |
|
O~0.3-CO-180S-COS |
||
|
Rated short-circuit breaking current breaking times |
Second-rate |
30 |
||
|
Rated short-circuit making current (peak value) |
kA |
50 |
||
|
Rated peak withstand current |
||||
|
Rated short-time withstand current |
20 |
|||
|
Rated short circuit duration |
s |
4 |
||
|
Opening time (the time from when the control unit receives the opening command to when the three-phase contacts separate) |
0.040-0.060 |
|||
|
Closing time (the time from when the control unit receives the closing command to when the three-phase contacts close) |
0.070-0.120 |
|||
|
Mechanical life |
Second-rate |
10 |
||
|
Rated closing operating voltage |
v |
DC110 |
||
|
Rated opening operating voltage |
DC110 |
|||
|
Overcurrent protection |
Current setting multiple |
|
0.2-2.5 |
|
|
Setting current tolerance |
|
±10% |
||
|
Delay setting value |
s |
0-5 |
||
|
Delay tolerance |
|
±10% |
||
|
Quick-break protection |
Current setting multiple |
|
2.5-10 |
|
|
Setting current tolerance |
|
±10% |
||
|
Delay setting value |
s |
0-0.5 |
||
|
Delay tolerance |
|
±10% |
||
|
Control unit AC charging input current |
Rating |
A |
5 |
|
|
Fluctuation range |
A |
0.5-8 |
||
