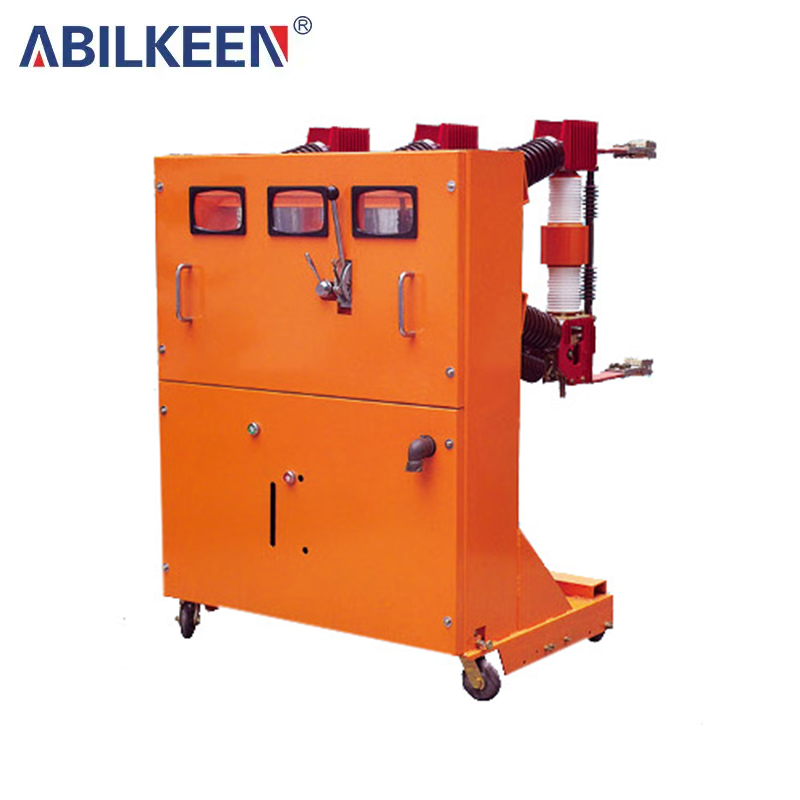

ZN23-40.5C Indoor high voltage vacuum circuit breaker
Technical Parameters
|
Serial number |
Name |
Unit |
Data |
|
1 |
Energy storage motor rated power |
W |
250 |
|
2 |
Rated voltage of energy storage motor |
V |
200、-220 |
|
3 |
Energy storage time |
s |
15 |
|
4 |
Closing electromagnet rated voltage |
V |
200、-220 |
|
5 |
Rated current of overcurrent release |
A |
5 |
|
6 |
Auxiliary switch rated current |
A |
10 |
|
7 |
Rated current of travel switch |
A |
2 |
CD10Ⅱ electromagnetic operating mechanism parameters
|
Serial number |
Name |
Unit |
Data |
|
1 |
220V closing coil current |
A |
147 |
|
2 |
220V closing coil resistance |
Ω |
1.5±0.12 |
|
3 |
110V closing coil current |
A |
294 |
|
4 |
110V closing coil resistance |
Ω |
0.38±0.03 |
|
5 |
220V trip coil current |
A |
2.5 |
|
6 |
220V trip coil resistance |
Ω |
88±4.4 |
|
7 |
110V disconnect line current |
A |
5 |
|
8 |
110V trip coil resistance |
Ω |
22±1.1 |
