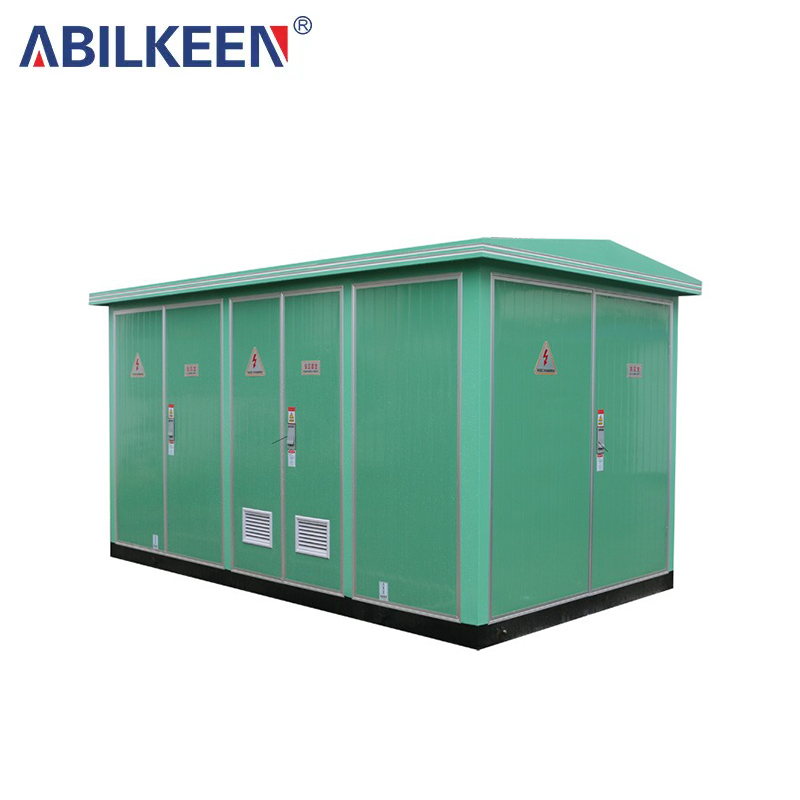

YB□-12/0.4 (European style) outdoor prefabricated substation

Product Introduction

YB prefabricated substation has the remarkable characteristics of strong completeness, small size and compact structure. Compared with conventional civil substations, the floor space of box-type substations with the same capacity is usually only 1/10 to 1/5 of that of conventional substations. This advantage greatly reduces the design workload and construction workload, thereby effectively reducing construction costs. The YB series substation is safe and reliable in operation, easy to maintain, and has mobility, which can flexibly adapt to different usage scenarios and needs.

In the power distribution system, the YB prefabricated substation can be used not only in the ring network distribution system, but also in the dual power supply or radial terminal distribution system, showing extremely high adaptability and flexibility. This makes it a new set of equipment in the current construction and renovation of urban and rural substations, which can effectively support the modernization and upgrading of power infrastructure.

The YB prefabricated substation complies with the national standard GB/T17467-1998 "High-voltage/Low-voltage Prefabricated Substation", ensuring safety and reliability during its design and manufacturing process. Compliance with this standard not only enhances the market competitiveness of the product, but also provides users with greater confidence, ensuring its stability and efficiency in practical applications. Through these superior performances, the YB series prefabricated substation has shown a wide range of application prospects and important market value in the field of power distribution.

Main technical parameters

Environmental conditions for use

1.The upper limit of ambient air temperature is ≤40℃ and the lower limit is ≥-10℃

2.Sunlight radiation ≤ 1000W/m²

3.Altitude ≤ 1000m

4.Ice coverage ≤ 20mm

5.Wind speed ≤ 35m/s

6.Humidity Daily average relative humidity ≤ 95% Monthly average relative humidity ≤ 90% Daily average relative water vapor pressure ≤ 2.2 kPa Monthly average relative water vapor pressure ≤ 1.8 kPa

7.Earthquake ≤ 8 degrees

8.Places without fire, explosion hazards, serious pollution, chemical corrosion and severe vibration.

Note: Special use conditions should be discussed with the manufacturer when ordering.

Structural features

This product is connected by a high-voltage distribution device, a transformer and a low-voltage distribution device, and is divided into three functional compartments: a high-voltage room, a transformer room and a low-voltage room. The high-voltage room and the low-voltage room are fully functional and can support a variety of power supply methods, including ring network power supply, terminal power supply and dual power supply, etc. At the same time, high-voltage metering components can be installed to meet the needs of high-voltage metering. The transformer room can choose low-loss oil-immersed transformers or dry-type transformers such as S9 and SC series to ensure high efficiency and reliability. According to the specific requirements of the user, the low-voltage room can adopt a panel or cabinet-mounted structure to provide power distribution, lighting distribution, reactive power compensation, electric energy metering and electricity measurement and other functions to meet the different needs of users, facilitate power supply management and improve power supply quality.

The high-voltage room has a compact and reasonable structure design, and is equipped with comprehensive anti-misoperation interlocking functions to ensure safety. When required by users, the transformer room can be equipped with tracks to facilitate the transformer to enter and exit from the two side doors. Each compartment is equipped with automatic lighting devices to ensure good lighting in any situation. In addition, all components selected for the high-voltage and low-voltage rooms are reliable and easy to operate, ensuring safe and reliable product operation and convenient maintenance.

This product adopts both natural ventilation and forced ventilation. The transformer room and high and low voltage rooms are equipped with ventilation ducts. The exhaust fan equipped with a temperature control device can automatically start and shut down according to the set temperature to ensure that the transformer operates within the normal temperature range.

The box structure design can effectively prevent rain and dirt from entering. The material is made of colored steel plates, which have anti-corrosion and heat-insulating functions, ensuring that it can adapt to long-term outdoor use conditions. It has good anti-corrosion, waterproof and dustproof properties, extending its service life. At the same time, it has a beautiful appearance and meets modern design requirements.
