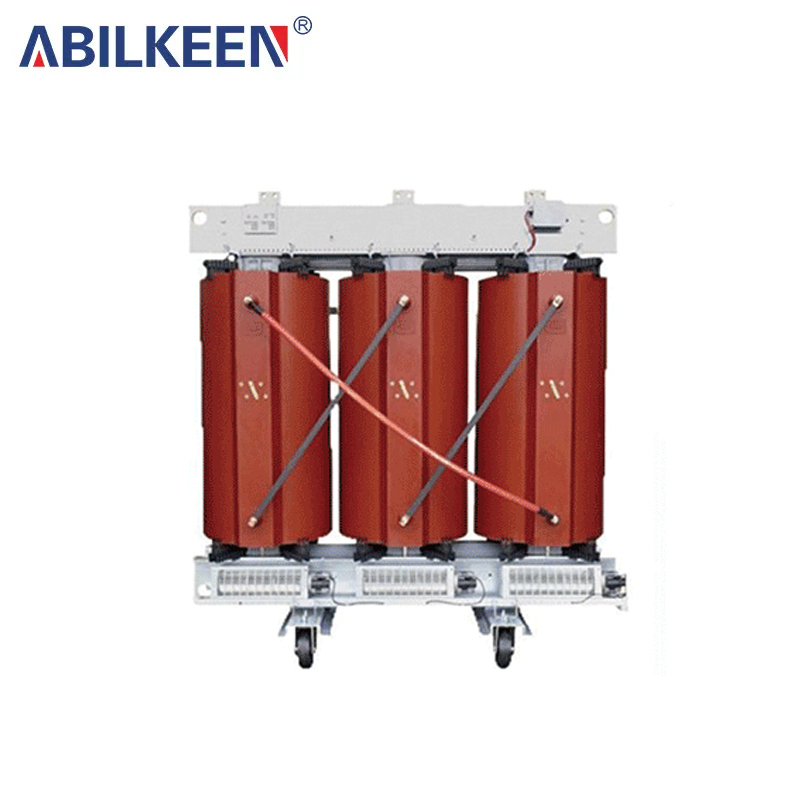

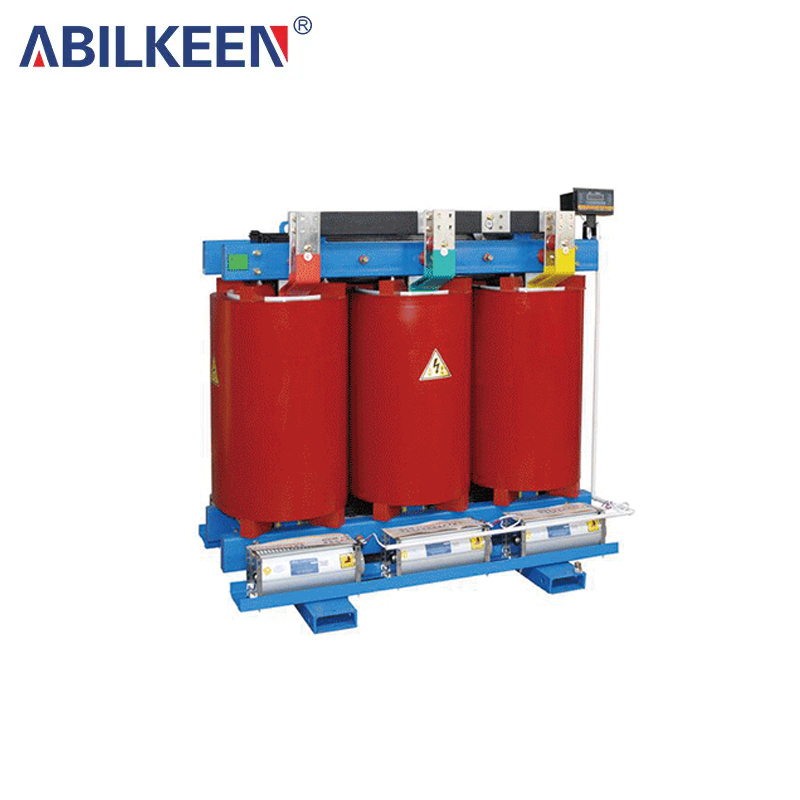

Three Phase Epoxy-resin Dry-type Transformer
Product Introduction
The three-phase epoxy resin dry-type transformer complies with international and domestic standards such as IEC60076, GB6450 and GB/T10228-1997, and has many superior features. Its low-loss design ensures that energy loss can be effectively reduced during operation, improving overall energy efficiency. The transformer is compact and lightweight, making it more convenient to install and maintain, and adapting to the strict requirements of modern power systems on space and weight.
The low noise level of this transformer makes it widely used in noise-sensitive environments such as cities and residential areas. Its excellent moisture resistance allows it to operate stably in humid environments, ensuring the long-term reliability of the equipment. At the same time, the three-phase epoxy resin dry-type transformer has high mechanical strength and can withstand large external shocks and vibrations, making it suitable for use in harsh working conditions.
In terms of safety, this transformer has good flame retardant properties, which can effectively reduce the risk of fire, and is particularly suitable for places with special requirements for fire safety. Its strong overload capacity enables the transformer to maintain stable operation under large load fluctuations, ensuring the reliability of power supply.
Three-phase epoxy resin dry-type transformers are widely used in power transmission and distribution systems, especially in heavy-load centers and places with high fire safety requirements, such as hospitals, shopping malls, industrial parks, etc. Through continuous technological innovation and optimization, these transformers not only improve the safety and stability of the power system, but also provide users with more efficient and environmentally friendly power solutions.
Technical Data Sheet
Technical Data for 35KV Class Three Phase Epoxy-resin Dry-type Transformer
|
Rated Power |
High Voltage |
Low Voltage |
Connection Symbol |
Short Circuit |
Loss(W) |
No load Current(%) |
|
|
No-load Loss(W) |
On-load Loss(W) |
||||||
|
50 |
35 |
0.4 |
Dyn11 |
6 |
500 |
1500 |
2.8 |
|
100 |
700 |
2200 |
2.4 |
||||
|
160 |
880 |
2960 |
1.8 |
||||
|
200 |
980 |
3500 |
1.8 |
||||
|
250 |
1100 |
4000 |
1.6 |
||||
|
315 |
1310 |
4750 |
1.6 |
||||
|
400 |
1530 |
5700 |
1.4 |
||||
|
500 |
1800 |
7000 |
1.2 |
||||
|
630 |
2070 |
8100 |
1.2 |
||||
|
800 |
2400 |
9600 |
1.2 |
||||
|
1000 |
2700 |
11000 |
1.0 |
||||
|
1250 |
3150 |
13400 |
0.9 |
||||
|
1600 |
3600 |
16300 |
0.9 |
||||
|
2000 |
4250 |
19200 |
0.9 |
||||
|
2500 |
4950 |
23000 |
0.9 |
||||
Note:The above data is only subject to our standard design,special requirement can be customized.
Technical Data for 20KV Class Three Phase Epoxy-resin Dry-type Transformer
|
Rated Power |
High Voltage |
Low Voltage |
Connection Symbol |
Short Circuit |
Loss(W) |
No load Current(%) |
|
|
No-load Loss(W) |
On-load Loss(W) |
||||||
|
50 |
20 |
0.4 |
Dyn11 |
6 |
380 |
1300 |
2.4 |
|
100 |
600 |
2100 |
2.2 |
||||
|
160 |
750 |
2600 |
1.8 |
||||
|
200 |
820 |
3100 |
1.8 |
||||
|
250 |
940 |
3600 |
1.6 |
||||
|
315 |
1080 |
4300 |
1.6 |
||||
|
400 |
1280 |
5100 |
1.4 |
||||
|
500 |
1500 |
6100 |
1.4 |
||||
|
630 |
1700 |
7200 |
1.2 |
||||
|
800 |
1950 |
8700 |
1.2 |
||||
|
1000 |
2300 |
10300 |
1.0 |
||||
|
1250 |
2650 |
12150 |
1.0 |
||||
|
1600 |
3100 |
14600 |
1.0 |
||||
|
2000 |
3600 |
17250 |
0.8 |
||||
|
2500 |
4300 |
20400 |
0.8 |
||||
Note:The above data is only subject to our standard design, special requirement can be customized.
Technical Data for 10KV Class Three Phase Epoxy-resin Dry-type Transformer
|
Rated Power |
High Voltage |
Low Voltage |
Connection Symbol |
Short Circuit |
Loss(W) |
No load Current(%) |
|
|
No-load Loss(W) |
On-load Loss(W) |
||||||
|
50 |
6 |
0.4 |
Dyn11 |
4 |
270 |
990 |
2.0 |
|
100 |
400 |
1570 |
1.8 |
||||
|
160 |
540 |
2120 |
1.4 |
||||
|
200 |
620 |
2520 |
1.4 |
||||
|
250 |
720 |
2750 |
1.4 |
||||
|
315 |
880 |
3460 |
1.2 |
||||
|
400 |
970 |
3980 |
1.2 |
||||
|
500 |
1160 |
4880 |
1.2 |
||||
|
630 |
1340 |
5870 |
1.0 |
||||
|
800 |
1520 |
6950 |
1.0 |
||||
|
1000 |
1760 |
8120 |
0.8 |
||||
|
1250 |
2090 |
9690 |
0.8 |
||||
|
1600 |
2450 |
11730 |
0.8 |
||||
|
2000 |
3320 |
14450 |
0.6 |
||||
|
2500 |
4000 |
17170 |
0.6 |
||||
Note:The above data is only subject to our standard design, special requirement can be customized.
