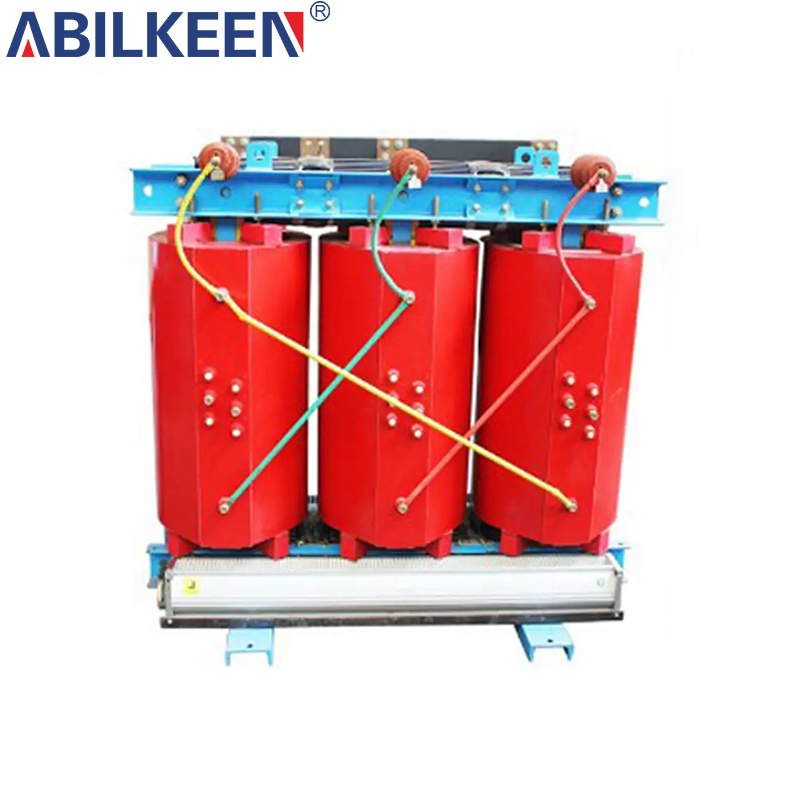

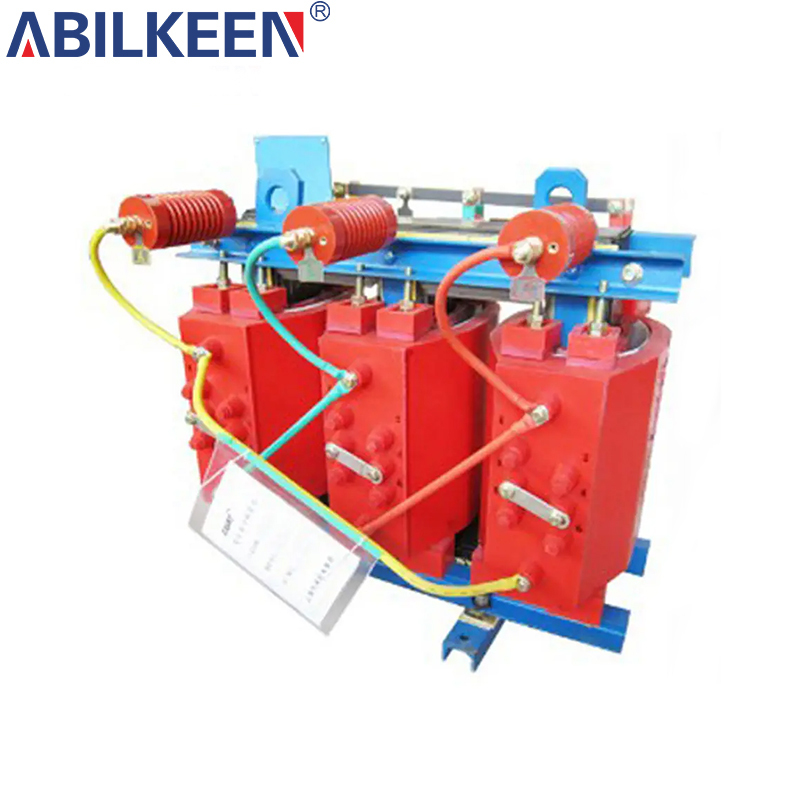

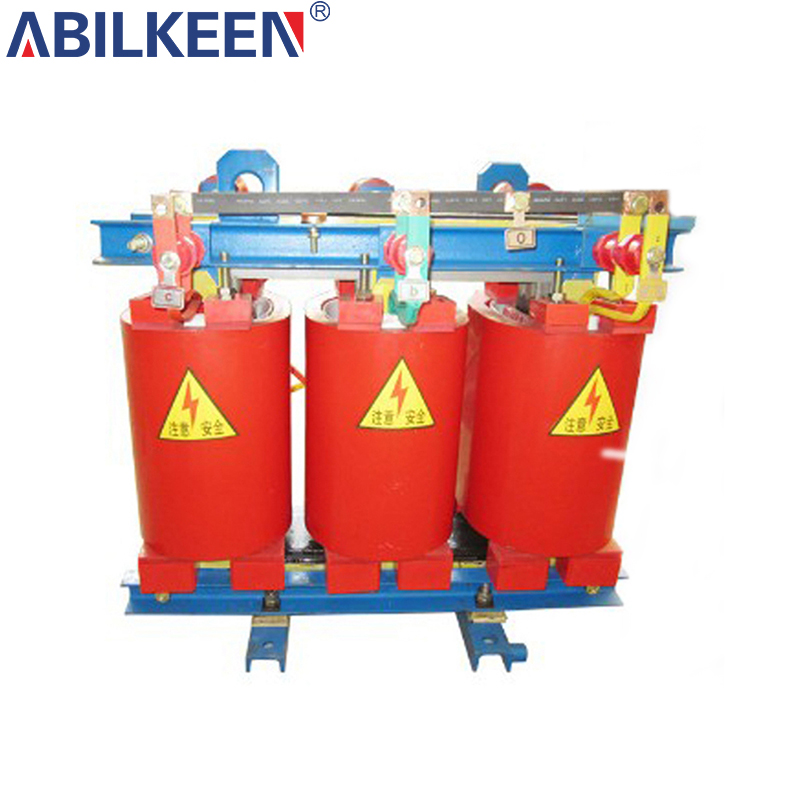

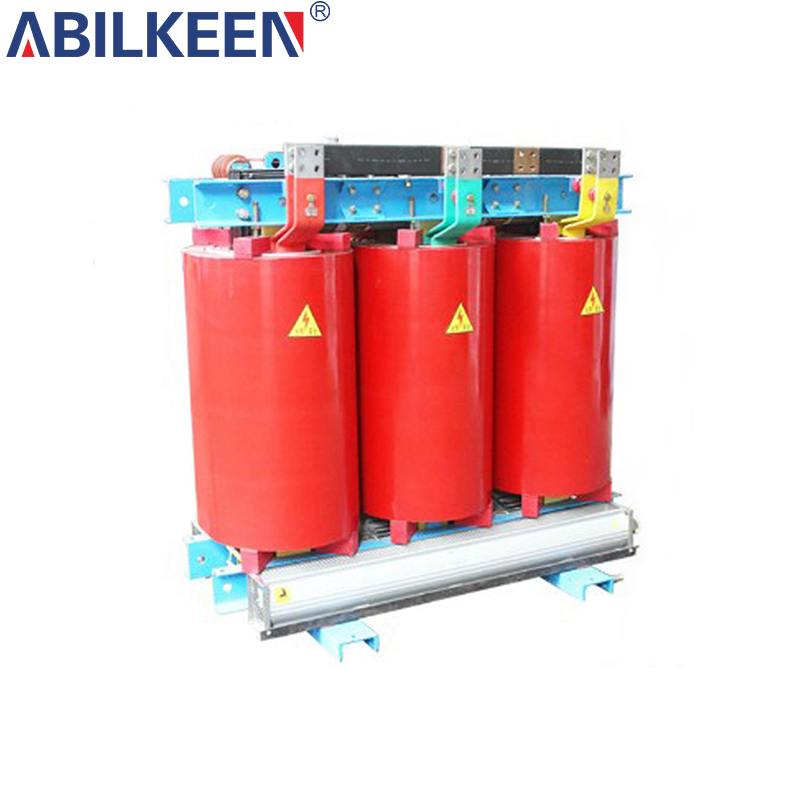

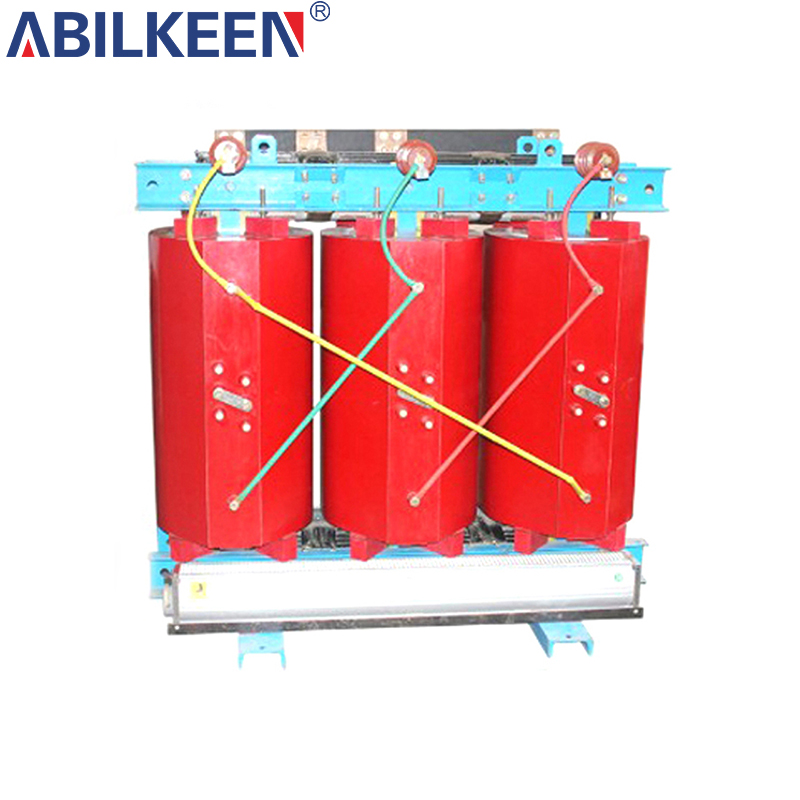

Three-phase electrical 10KV dry-type transformer insulated by epoxy resin

Three-phase epoxy-resin dry-type transformers comply with international and national standards, including IEC60076, GB6450, and GB/T10228-1997. These transformers are designed to offer several key advantages, such as minimized energy losses, a space-efficient and lightweight structure, reduced noise emissions, excellent moisture resistance, robust mechanical durability, fire-retardant properties, enhanced overload capacity, and low partial discharge characteristics. They are ideal for various power transmission and distribution systems, particularly in areas with high power demands and locations that require strict fire safety measures.

    Contact us
    Product Details

    Product Description

    Our three-phase epoxy resin dry-type transformers adhere to globally recognized standards including IEC60076, GB6450, and GB/T10228-1997, embodying a suite of advanced characteristics that set them apart in the electrical equipment market.



    Designed with an emphasis on energy conservation, these transformers significantly minimize power dissipation during operation, thereby boosting the overall efficiency of electrical systems. Their streamlined and lightweight architecture simplifies installation procedures and maintenance tasks, meeting the stringent spatial and weight constraints of contemporary power infrastructure.



    The ultra-quiet operation of these transformers makes them the ideal choice for noise-sensitive urban settings and residential zones. With remarkable resistance to moisture, they can function flawlessly in damp conditions, ensuring prolonged and dependable service life. The high mechanical resilience of these transformers allows them to endure substantial external impacts and vibrations, rendering them suitable for deployment in challenging operational environments.



    In terms of safety, the inherent flame-retardant properties of these transformers act as a safeguard against potential fire hazards, making them highly recommended for locations with strict fire safety regulations. The robust overload capabilities enable the transformers to maintain stable performance even under fluctuating heavy loads, guaranteeing uninterrupted power supply.



    These transformers find extensive application in power transmission and distribution networks, especially in high-demand load centers and fire-sensitive facilities like hospitals, commercial complexes, and industrial parks. Through continuous innovation and refinement, our three-phase epoxy resin dry-type transformers not only enhance the safety and stability of power systems but also deliver more efficient and sustainable electrical solutions to our customers.

    Product Parameters

    Rated Power(KVA] High Voltage(KV) Low Voltage(KV) Connection Symbol Short CircuitImpedance(%) Loss(W) No load Current(%)
    No-load Loss(W) 0n-load Loss(W)
    50 6
    6.3
    6.6
    10
    10.5
    11
    13.2
    or others    		 0.4 Dyn11
    YNynO    		 4，6 270 990 2
    100 400 1570 1.8
    760 540 2120 1.4
    200 620 2520 1.4
    250 720 2750 1.4
    315 880 3460 1.2
    400 970 3980 1.2
    500 1160 4880 1.2
    630 1340 5870 1.0
    800 1520 6950 1.0
    1000 1760 8120 0.8
    1250 2090 9690 0.8
    1600 2450 11730 0.8
    2000 3320 14450 0.6
    2500 4000 17710 0.6
