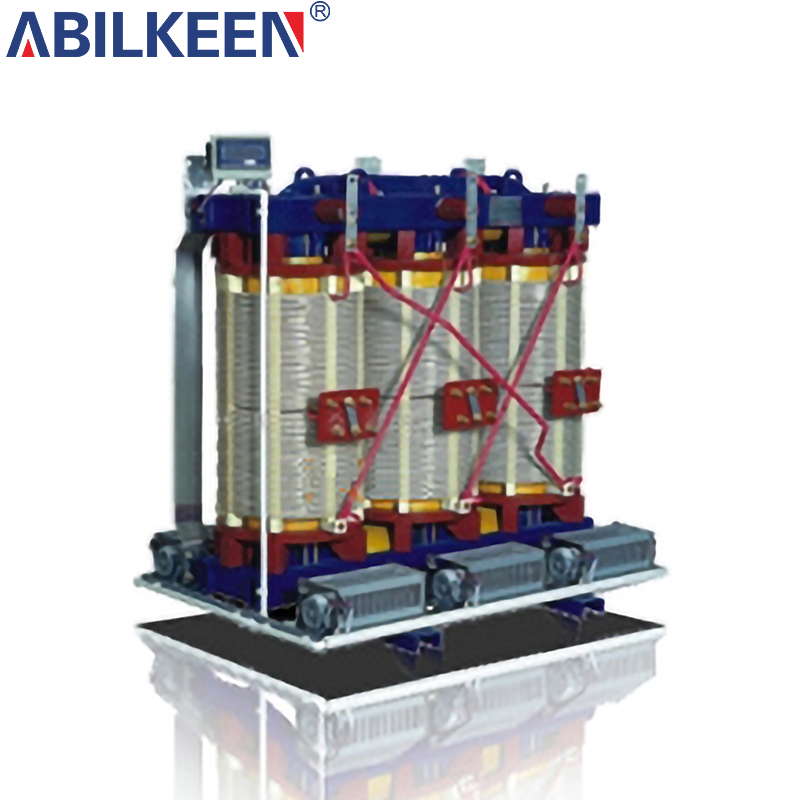

SGB11-R H Class No-encapsulated-coil Dry-type Power Transformer
Model
S------------------------------three phase
G ------------------------------dry type (air insulation) transformer
B ------------------------------ LV copper foil
□------------------------------ technology performance code
R------------------------------wound core
□------------------------------ rated capacity(KVA)
□------------------------------ voltage class（KV）
Product Overview
1.Revolutionary structural design
Adopting composite cross-section winding technology jointly developed by China and Germany
Innovative magnetic circuit structure enables three-phase no-load current balance to reach ±2%
The overall protection layout is certified according to IEC 60076-11
2.Excellent energy efficiency
No-load loss is reduced by 80% compared with GB/T 10228 (actual value)
Load loss decreased by 40% (compared to the 2025 energy efficiency standard)
Noise level controlled below 55dB(A)
3.Compact Engineering Solutions
Volume reduced by 30% (at the same capacity)
25% weight reduction (using nanocrystalline alloy)
Supports vertical/horizontal multi-directional installation
4.Special environment adaptation
KEMA certified fire and explosion protection system
Moisture-proof version for underground projects (suitable for 100% humidity)
Class 1E, Class K3 certified product line for nuclear power plants
5.Full-scenario application coverage
Urban space: super high-rise buildings/subway and light rail
Industrial field: oil platform/chemical park
Special scenario: nuclear submarine power supply and distribution system
Technical parameter
|
Specification & capacity (KVA) |
No-load loss(W) |
Load loss(145℃) |
No-load current（%） |
Noise（LPA）db |
Impedance voltage (%) |
External dimension(L*W*H) |
||||
|
GB |
ES |
GB |
ES |
GB |
ES |
GB |
ES |
|||
|
50 |
360 |
230 |
1490 |
1040 |
2.8 |
0.2 |
55 |
45 |
4 |
1120*700*1050 |
|
80 |
460 |
300 |
2150 |
1500 |
2.6 |
0.2 |
55 |
45 |
4 |
1120*700*1050 |
|
100 |
510 |
330 |
2550 |
1530 |
2.4 |
0.4 |
55 |
45 |
4 |
1120*700*1050 |
|
125 |
600 |
390 |
3050 |
1830 |
2.2 |
0.4 |
56 |
45 |
4 |
1130*700*1135 |
|
160 |
700 |
450 |
3650 |
2190 |
2.2 |
0.4 |
58 |
45 |
4 |
1150*700*1145 |
|
200 |
820 |
500 |
4680 |
2808 |
21 |
0.3 |
58 |
46 |
4 |
1170*800*1160 |
|
250 |
950 |
600 |
5500 |
3300 |
2 |
0.3 |
58 |
46 |
4 |
1195*800*1220 |
|
315 |
1100 |
700 |
6600 |
3960 |
1.8 |
0.3 |
60 |
46 |
4 |
1220*800*1260 |
|
400 |
1300 |
780 |
7800 |
4680 |
1.8 |
0.3 |
60 |
46 |
4 |
1260*900*1350 |
|
500 |
1500 |
920 |
9350 |
5610 |
1.8 |
0.3 |
62 |
46 |
4 |
1295*900*1455 |
|
630 |
1750 |
1010 |
10900 |
6540 |
1.6 |
0.3 |
62 |
48 |
4 |
1451*1000*1340 |
|
630 |
1680 |
1050 |
11500 |
6900 |
1.6 |
0.3 |
62 |
48 |
6 |
1415*1000*1340 |
|
800 |
2120 |
1270 |
13600 |
8160 |
1.6 |
0.2 |
64 |
48 |
6 |
1475*1000*1355 |
|
1000 |
2480 |
1485 |
15700 |
9420 |
1.4 |
0.2 |
64 |
49 |
6 |
1525*1000*1490 |
|
1250 |
2980 |
1785 |
18400 |
11040 |
1.4 |
0.2 |
65 |
49 |
6 |
1580*1100*1510 |
|
1600 |
3420 |
2050 |
21300 |
12780 |
1.4 |
0.2 |
66 |
49 |
6 |
1660*1250*1570 |
|
2000 |
4150 |
2490 |
25000 |
15000 |
1.2 |
0.2 |
66 |
50 |
6 |
1730*1250*1715 |
|
2500 |
5000 |
3000 |
29100 |
17460 |
1.2 |
0.2 |
67 |
50 |
6 |
1825*1250*1760 |
