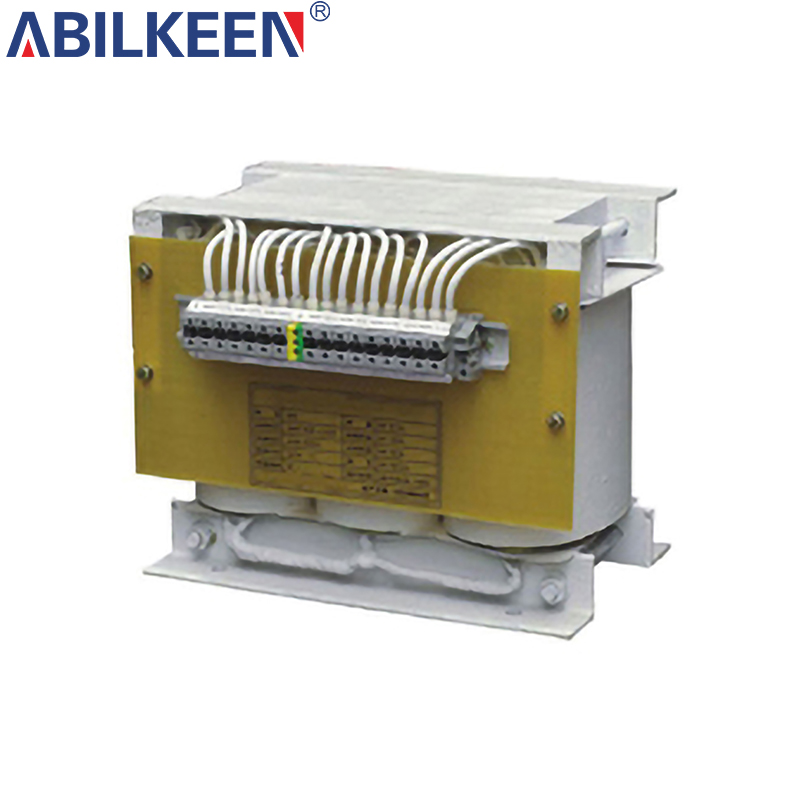

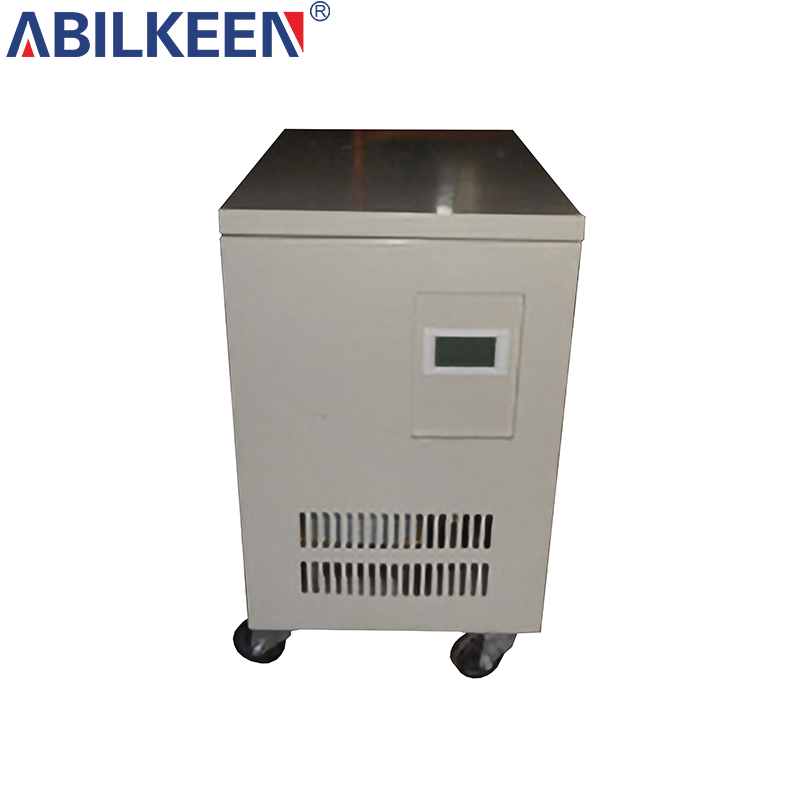

SG Three Phase Dry Transformer
Product Technical Background and Positioning
As a model product for the localization of Siemens technology, the JSG series covers the full power range from 160VA small control transformers to 600KVA industrial-grade transformers. The 160VA-16KVA power range is achieved through three key technological innovations:
Mechanical compatibility: The mounting flange hole distance tolerance is controlled within ±0.3mm, and it is 100% interchangeable with the Siemens 4AP series.
Thermal design optimization: Adopting stepped heat dissipation channel design, the temperature rise is reduced by 15K compared with the traditional structure (measured data).
Electromagnetic compatibility: passed EN55011 Class A EMC test, radiated interference <30dBμV/m.
Analysis of Core Technology Innovation
1. Standardized design system
Standardized structure: 16KVA and below products all use a 235×180×210mm (length×width×height) chassis
Electrical standardization: ±5% taps are standard on the primary side (±2×2.5% fine adjustment is optional); the secondary single-phase winding supports a maximum capacity allocation of 30%; the rectifier circuit is adaptable to 6-pulse/12-pulse topologies
2 .Customized service capabilities
Electrical parameter customization:
Voltage combination: supports 27 common combinations including 380V/220V→220V/127V
Special requirements: Can provide secondary multi-winding (up to 4 groups) independent output
Structure customization:

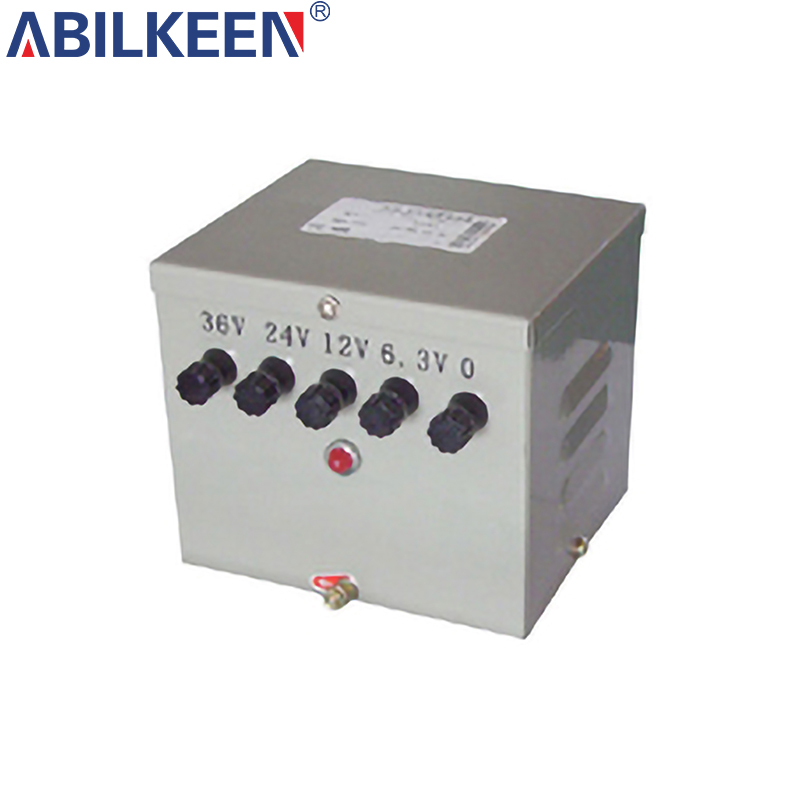

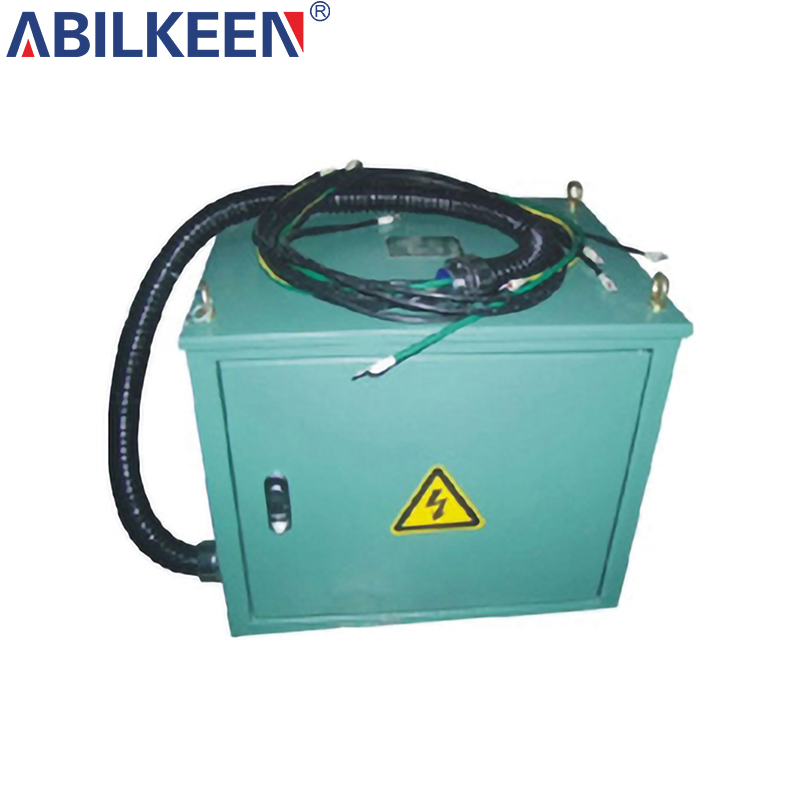

Protection level: IP20 (standard) / IP54 (with housing)
Installation method: DIN rail / base / wall mount optional
Quality Assurance System
1 Certification Standards
International certification: VDE0550 (Germany), IEC439 (International)
Domestic certification: GB5226.1-2019 Machinery Safety Standard
Special certification: Passed UL5085-1 American industrial equipment certification
2 Production process control
Winding process: Vacuum pressure impregnation (VPI) treatment, partial discharge <5pC
Core assembly: Silicon steel sheet stacking coefficient ≥ 0.96, no-load loss is 20% lower than the limit of JB/T10094
Factory test: Each product has passed:
Power frequency withstand voltage test (3kV/1min)
Sudden short circuit test (simulating 25 times rated current impact)
Typical Application Scenarios
CNC machine tools: FANUC/Siemens 840D system.
Medical equipment: Provide isolated power supply for CT machine high voltage generator.
Rail transit: Meet the vibration requirements of EN50155 standard.
