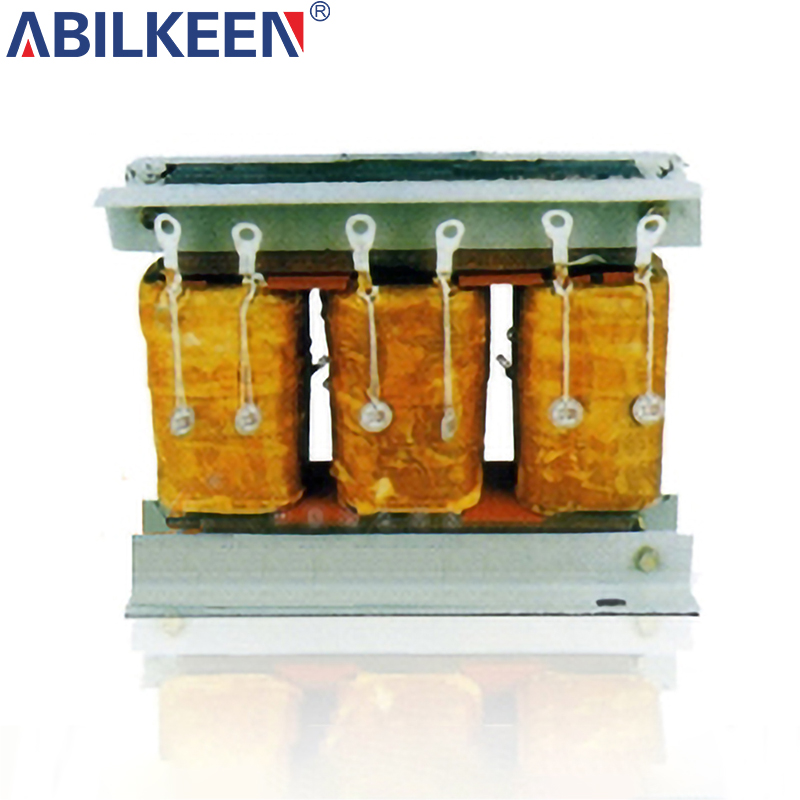

QZB series of Auto Transformer
Model
Q---------------------------------voltage releasing starting
Z----------------------------------autotransformer
B----------------------------------transformer
□---------------------------------control motor power KW
Technical parameter
|
specification |
Control motor power（KW） |
Rated working current (A) |
|
QZB-14 |
14 |
28 |
|
QZB-20 |
20 |
40 |
|
QZB-28 |
28 |
56 |
|
QZB-30 |
30 |
59 |
|
QZB-40 |
40 |
80 |
|
QZB-55 |
55 |
110 |
|
QZB-75 |
75 |
142 |
|
QZB-115 |
115 |
230 |
|
QZB-135 |
135 |
270 |
|
QZB-190 |
190 |
370 |
|
QZB-225 |
225 |
410 |
|
QZB-260 |
260 |
475 |
|
QZB-300 |
300 |
535 |
|
specification |
External dimension |
Installation dimension |
K*J |
Weight (KG) |
|||
|
Bmax |
Dmax |
Emax |
A±5 |
C±5 |
|||
|
QZB-14 |
290 |
150 |
240 |
220 |
105 |
10*20 |
28 |
|
QZB-20 |
290 |
150 |
240 |
220 |
105 |
10*20 |
30 |
|
QZB-28 |
290 |
150 |
240 |
220 |
105 |
10*20 |
30 |
|
QZB-30 |
320 |
165 |
270 |
220 |
115 |
10*20 |
40 |
|
QZB-40 |
320 |
165 |
270 |
220 |
115 |
10*20 |
40 |
|
QZB-55 |
320 |
165 |
270 |
220 |
115 |
10*20 |
40 |
|
QZB-75 |
350 |
175 |
280 |
280 |
125 |
10*20 |
55 |
|
QZB-115 |
390 |
190 |
295 |
280 |
135 |
10*20 |
70 |
|
QZB-135 |
390 |
210 |
315 |
310 |
155 |
12*20 |
85 |
|
QZB-190 |
390 |
210 |
315 |
310 |
155 |
12*20 |
85 |
|
QZB-225 |
410 |
175 |
340 |
310 |
135 |
12*20 |
90 |
|
QZB-260 |
410 |
175 |
340 |
310 |
135 |
12*20 |
90 |
|
QZB-300 |
440 |
190 |
360 |
310 |
155 |
12*20 |
120 |
|
QZB-14 |
480 |
200 |
380 |
310 |
155 |
12*20 |
130 |
|
QZB-20 |
540 |
190 |
430 |
310 |
155 |
12*20 |
190 |
|
QZB-28 |
560 |
210 |
460 |
310 |
170 |
12*20 |
200 |
