ABILKEEN ZN85-40.5 Indoor High Voltage Vacuum Circuit Breaker
Inside a 40.5kV indoor substation, space is always at a premium. Every inch of switchgear real estate matters. The ABILKEEN ZN85-40.5 indoor High Voltage Vacuum Circuit Breaker is engineered specifically for these tight environments. It handles three‑phase AC 50Hz power systems at a rated voltage of 40.5kV, making it the ideal choice for industrial and mining enterprises, power plants, and utility substations. When you need to separate or connect load current, interrupt overloads, or clear fault currents, this breaker performs with precision. ABILKEEN brings you a unit that does not just fit into your switchgear—it elevates your entire protection scheme.

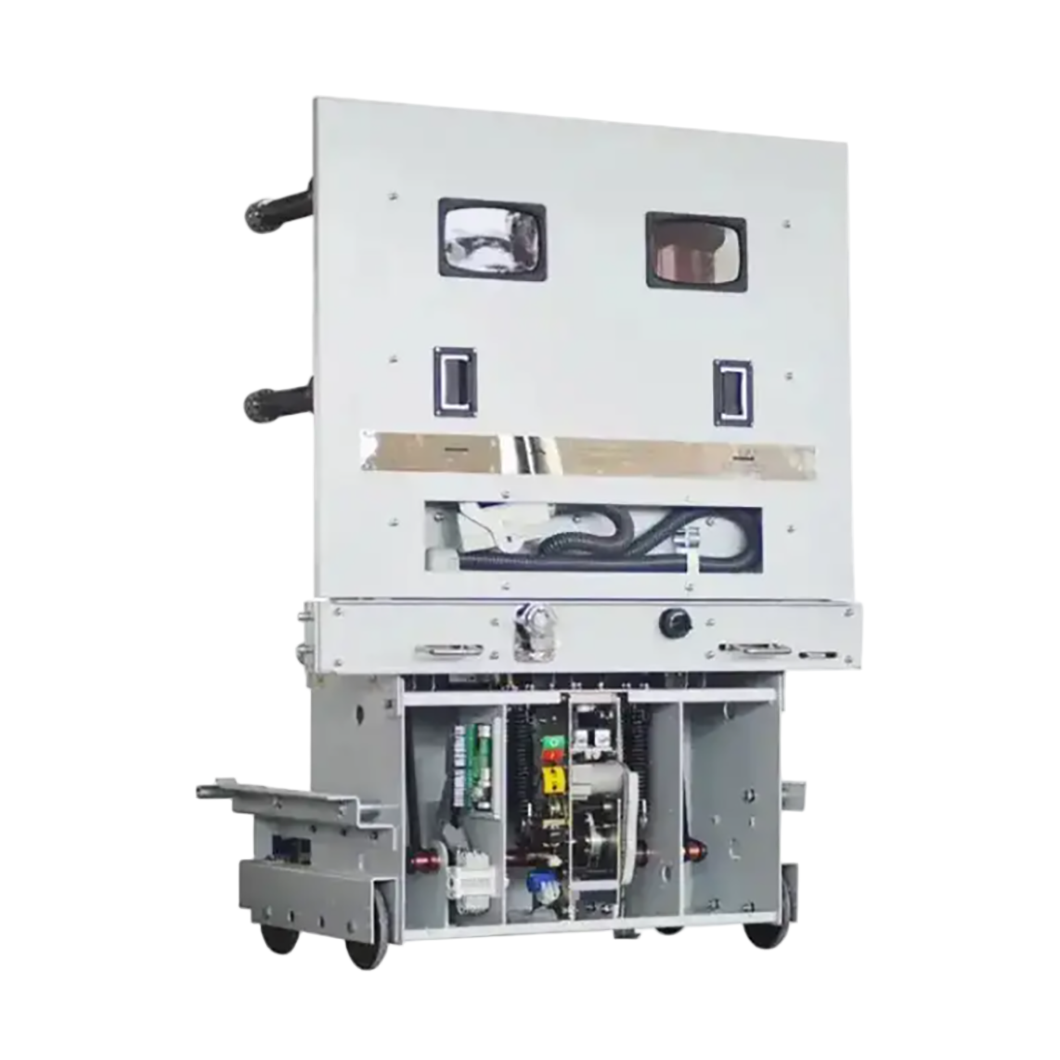

What immediately sets the ZN85-40.5 apart is its unique mechanical layout. The circuit breaker and its operating mechanism are arranged in an upper and lower configuration. This design choice is not cosmetic. It effectively reduces the depth of the circuit breaker compared to traditional side‑by‑side arrangements. For panel builders and switchgear manufacturers, this means you can design shallower cubicles, saving floor space and material costs. For end users, it means easier handling during installation and replacement. The overall layout is reasonable, visually clean, and surprisingly simple—exactly what experienced engineers want to see.
Vacuum interruption technology is the heart of this breaker. Inside the ABILKEEN ZN85-40.5, a sealed vacuum interrupter houses the fixed and moving contacts. When the breaker opens under load or fault conditions, the arc is drawn inside the vacuum chamber. Without any gas or oil to ionize, the arc extinguishes within the first half‑cycle. There is no hot gas exhaust, no flame, and no contact erosion beyond a microscopic level. This translates to exceptional electrical endurance. You can expect tens of thousands of normal load operations and dozens of full‑fault interruptions without degrading performance. ABILKEEN builds vacuum interrupters that last.
Frequent operations are the death of many circuit breakers. Mechanisms wear out. Contacts pit. Springs lose tension. The ZN85-40.5 laughs at frequent switching duties. Whether you are controlling capacitor banks, reactor switching, or motor starting, this breaker handles repeated open‑close cycles with ease. The operating mechanism is designed for high mechanical life, with precision bearings and hardened components. Field data from ABILKEEN installations shows the ZN85-40.5 exceeding 20,000 mechanical operations before any significant wear appears. For applications that require daily switching—like arc furnaces or regenerative drives—this breaker is your workhorse.
The operating mechanism deserves a closer look. ABILKEEN offers both spring‑operated and permanent magnetic actuator versions of the ZN85-40.5. The spring mechanism stores energy via a manual or motor‑charged handle, then releases it to open or close the breaker at consistent speed regardless of operator input. The magnetic actuator version uses a bistable permanent magnet system, with no mechanical latches. Both options provide reliable closing and opening, with anti‑pumping protection and optional auxiliary switches. The mechanism enclosure is sealed against dust and moisture, making it suitable for harsh industrial environments.
Maintenance teams will appreciate the thought ABILKEEN put into serviceability. The ZN85-40.5 features a maintenance‑free mechanism for the spring‑operated version under normal operating conditions. You do not need to lubricate linkages or adjust travel every six months. The vacuum interrupter requires no contact replacement over its service life. When inspection is required—typically every few years—the breaker’s modular construction allows easy access to the interrupter, the mechanism, and the control wiring. The upper‑lower arrangement also means you can remove the mechanism cassette without disturbing the primary circuit. Downtime measured in hours, not days.
Where does the ZN85-40.5 truly shine? Any indoor application that demands compact size, flexible operation, and reliable electrical performance. Industrial plants with their own 35kV class substations use it as the incoming or feeder breaker. Power plants install it for auxiliary transformer protection. Commercial buildings with medium‑voltage distribution rely on it for tenant switching. The breaker also excels in harsh operating conditions: high ambient temperatures, dusty environments, and areas with limited ventilation. ABILKEEN has validated this breaker in cement factories, steel mills, and mining operations—places where lesser breakers fail within months.
Are you ready to upgrade your 40.5kV indoor switchgear with a circuit breaker that combines compact dimensions, vacuum reliability, and a maintenance‑free mechanism? The ABILKEEN ZN85-40.5 indoor high voltage vacuum circuit breaker is available now for new projects or as a retrofit for existing cubicles. Its reduced depth and standard mounting dimensions simplify replacement. Every unit undergoes full factory testing, including contact resistance measurement, insulation withstand, and mechanical endurance verification. Contact ABILKEEN today for technical datasheets, dimensional drawings, and a competitive quotation. Let us help you protect your power system with a breaker that is as reliable as your operations demand. Choose ABILKEEN—where indoor protection meets outdoor‑grade thinking.
