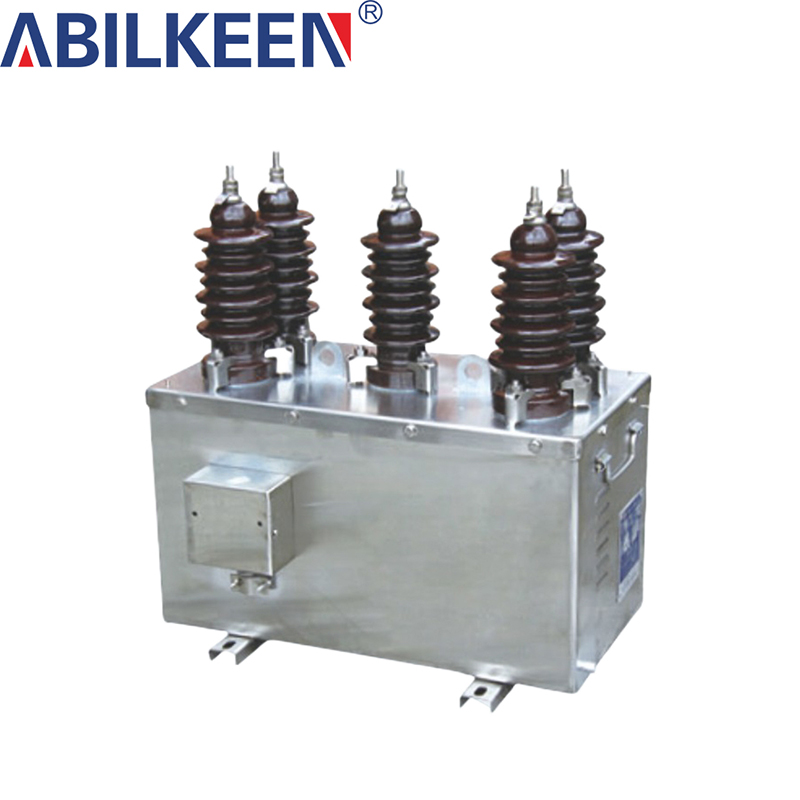

JLSZV囗-6/10 Outdoor high voltage power metering box

Overview

One of the main features of the JLSZV囗-610 is its excellent accuracy levels, including 0.2S, 0.2, 0.5S and 0.5. Such a high accuracy range ensures that users can choose the most appropriate option according to their specific measurement needs, thus achieving flexibility in various operating environments. The device is designed to handle a rated voltage ratio of 10000/100, which is very suitable for high voltage applications. This is crucial for industries operating at high voltages, as it ensures the accuracy and reliability of measurement results.

With a rated primary current range of 5-400A, the JLSZV囗-610 is flexible for different power systems. In addition, it offers a choice of rated secondary currents of 5A or 1A, allowing users to customize the device to their needs. This adaptability is particularly beneficial for organizations that may have different operating requirements or transition between different power systems. The ability to adapt to different rated currents ensures that the JLSZV囗-610 can function effectively in a variety of applications.

In terms of capacity, the JLSZV囗-610 has impressive specifications. The voltage section is rated at 0.2 class with a capacity of 2x15VA; the current section is rated at 0.2S and 0.2 class with a capacity of 2x10VA. These ratings indicate that the device is capable of handling larger power loads without compromising accuracy or performance. In addition, the rated short-time heating current multiple of 80lln/ls and the rated dynamic stable current multiple of 200ln highlight the device’s ruggedness and ability to withstand transient conditions common in high voltage environments.

Main technical parameters

◆Products comply with the standard: GB17201-1997;

◆Accuracy level: 0.2S, 0.2, 0.5S, 0.5; Rated voltage ratio: 10000/100;

◆Rated primary current: 5-400A;

◆Rated secondary current: 5A or 1A;

◆Rated capacity: voltage part: 0.2 level, 2xI5VA;

current part: 0.2S, 0.2 level, 2x10VA;

◆Rated short-time thermal current multiple: 80lln/ls;

◆Rated dynamic stability current multiple: 200ln;

Technical Parameters
