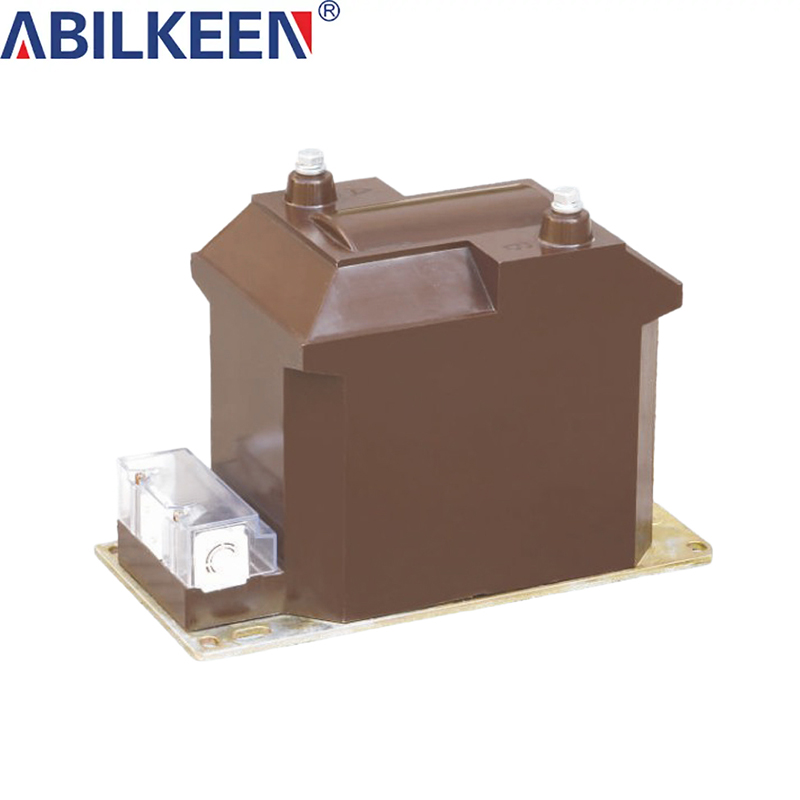

JDZ10-3、6、10(A1、A2、B)/JDZX10-3、6、10(A1G、A2G、BG)Current transformer

One of the key features of the JDZ10 and JDZX10 current transformers is their ability to maintain accuracy and reliability under varying load conditions. These transformers are designed to provide precise current measurement, which is critical for monitoring and controlling electrical systems. This accuracy is particularly important in applications such as power generation, distribution, and industrial automation, where safety and efficiency are critical. The thermal limits of these transformers also ensure that they can operate safely without overheating, further enhancing their reliability.

In terms of applications, JDZ10-3, 6, 10 and JDZX10-3, 6, 10 current transformers are widely used in substations, switchgear and other electrical equipment. They are key components of relay protection, metering and monitoring systems, enabling operators to make informed decisions based on real-time data. In addition, these transformers are also suitable for renewable energy systems, such as solar and wind power generation installations, where accurate current measurement is critical to optimizing performance and ensuring safety.

    Contact us
    Product Details

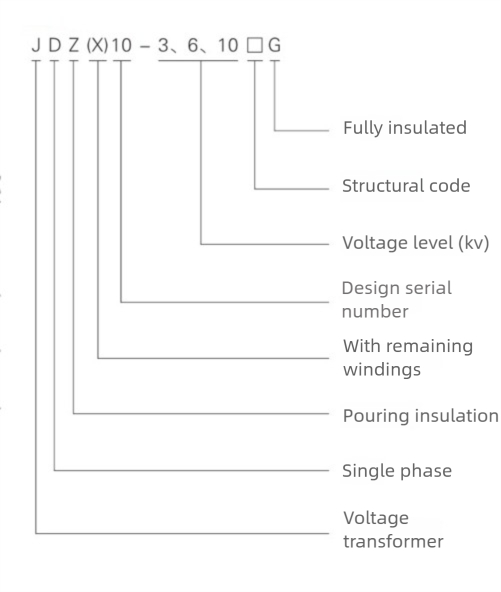

    Model and meaning

    Model and meaning.jpg

    Product Parameters

    Model

    Rated voltage ratio(kV)

    Accuracy level or combination of accuracy levels

    Rated secondary output (VA)

    Thermal limit output (VA)

    Rated insulation level (kV)

    Wiring Diagram

    Surface creepage distance (mm)

    Weight(kg)

    JDZ10-3A1

    3/0.1

    0.2   0.5     1       3

    15     30     60     150

    150

    3.6/25/40

    Figure 1-Figure 2

    210

    20

    JDZ10-6A1

    6/0.1

    7.2/32/60

    JDZ10-10A1

    10/0.1

    12/42/75

    JDZ10-3A2

    3/0.1

    0.2   0.5     1       3

    20     60    100   200

    300

    3.6/25/40

    Figure 1-Figure 2

    230

    24

    JDZ10-6A2

    6/0.1

    7.2/32/60

    JDZ10-10A2

    10/0.1

    12/42/75

    JDZ10-3B

    3/0.1

    0.2   0.5     1       3

    30     80    150   300

    500

    3.6/25/40

    Figure 1-Figure 2

    280

    34

    JDZ10-6B

    6/0.1

    7.2/32/60

    JDZ10-10B

    10/0.1

    12/42/75

    JDZ10-3A2

    3/0.1/0.1(0.22)

    0.2/0.2 0.2/0.5 0.5/0.5
    0.2/3 0.5/3

    10/10   10/15   25/25 15/300(220V)30/300(220V)

    150

    3.6/25/40

    Figure 3-Figure 4

    230

    24

    JDZ10-6A2

    6/0.1/0.1(0.22)

    7.2/32/60

    JDZ10-10A2

    10/0.1/0.1(0.22)

    12/42/75

    JDZ10-3B

    3/0.1/0.1(0.22)

    0.2/0.2 0.2/0.5 0.5/0.5
    0.2/3 0.5/3

    15/15   15/20   30/30 25/500(220V)50/500(220V)

    300

    3.6/25/40

    Figure 3-Figure 4

    280

    34

    JDZ10-6B

    6/0.1/0.1(0.22)

    7.2/32/60

    JDZ10-10B

    10/0.1/0.1(0.22)

    12/42/75

    JDZ10-6A2G

    6000/100√

    0.2/6P(3P) 0.5/6P(3P)1/6P(3P) 3/6P(3P)

    15/50   30/50   60/50  150/50

    200

    7.2/32/60

    Figure 5

    230

    24

    JDZ10-10A2G

    10000/100√

    12/42/75

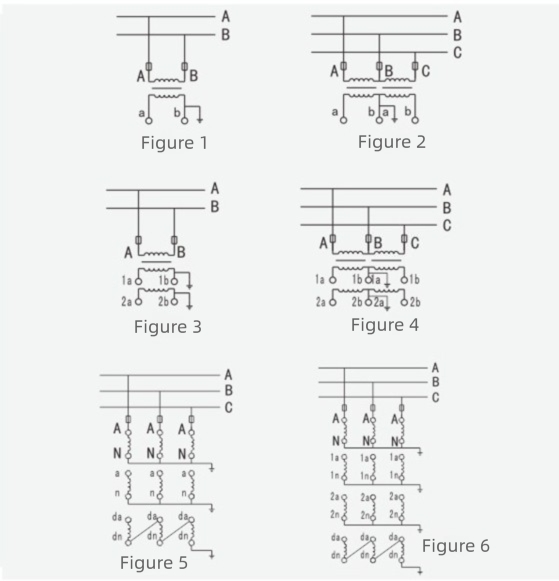

    Wiring Diagram

    Wiring Diagram.jpg

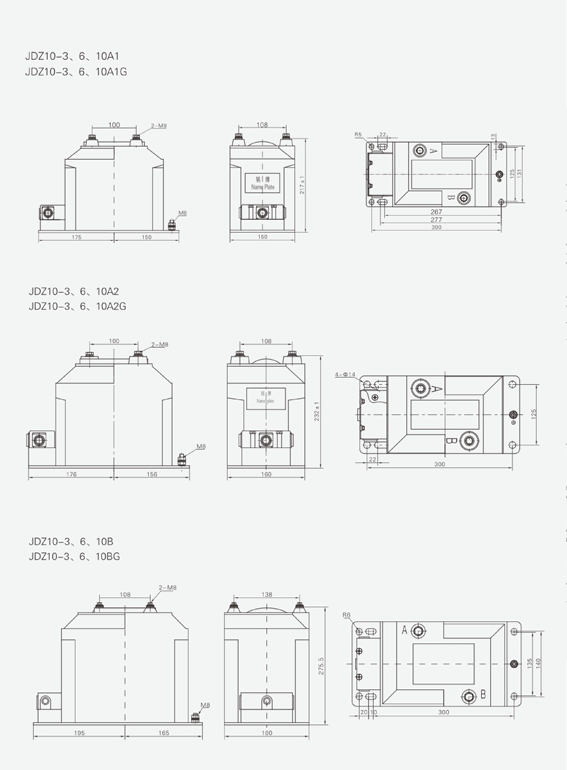

    Appearance and installation dimensions

    Appearance and installation dimensions.jpg
