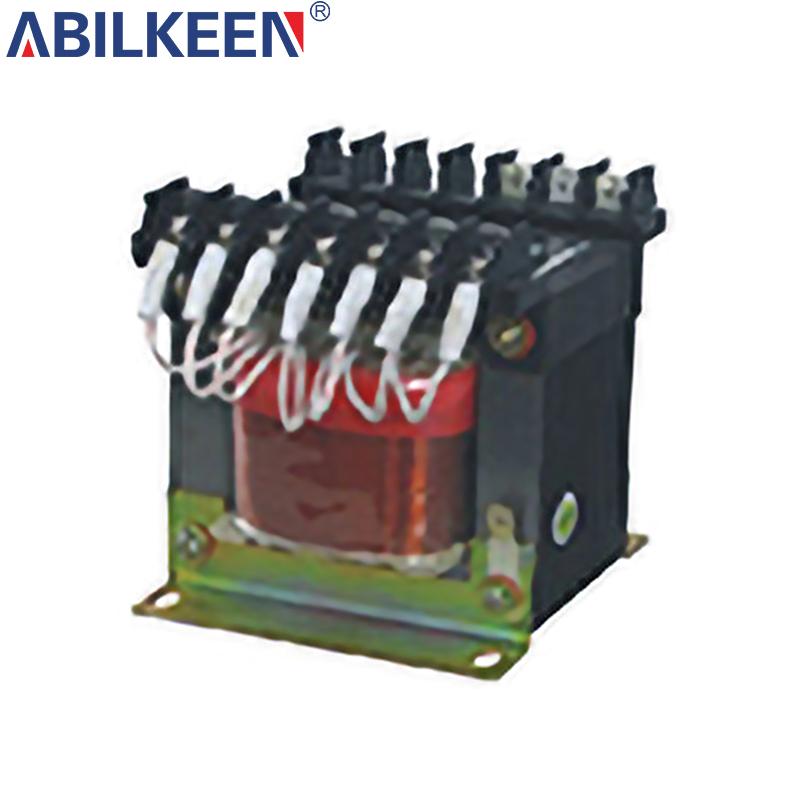

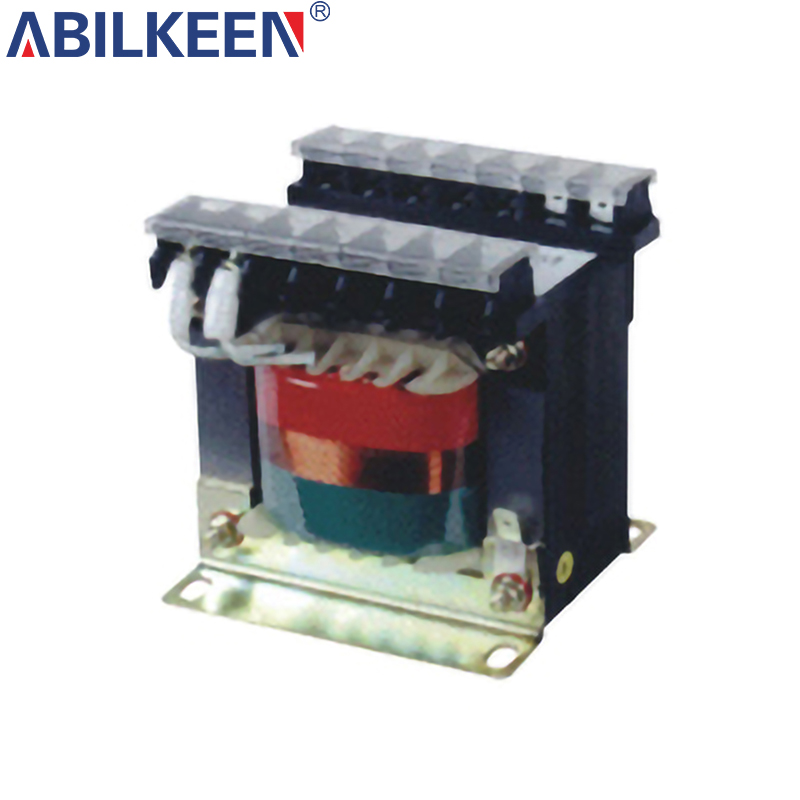

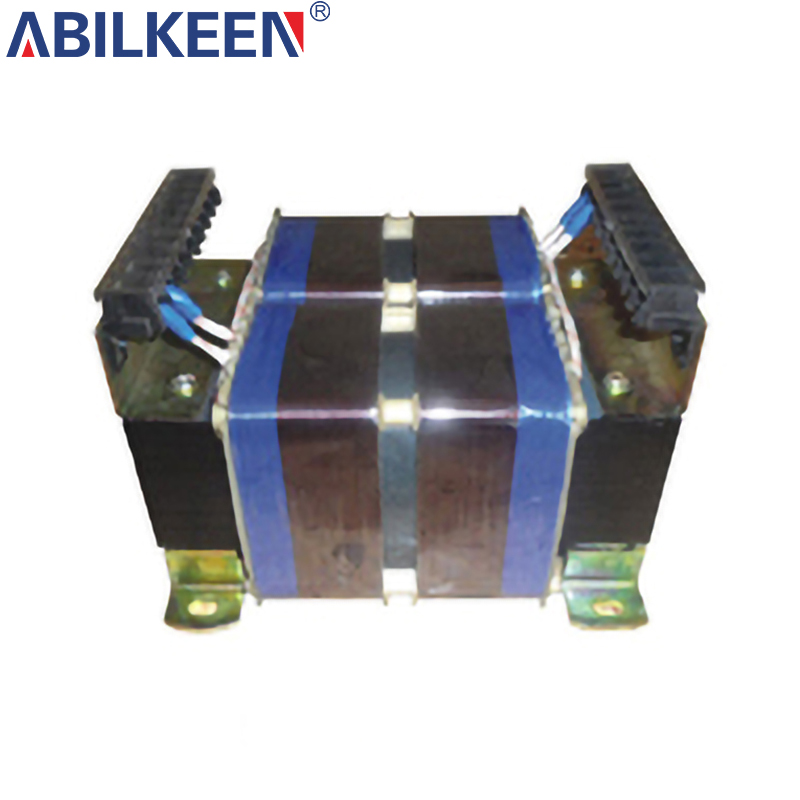

JBK Series Transformer
Product Overview
As an upgraded product of traditional control substation transformers, this series adopts German imported silicon steel sheets and cold-pressed terminal technology, and achieves performance breakthroughs through three core technologies:
Multi-scenario adaptation:

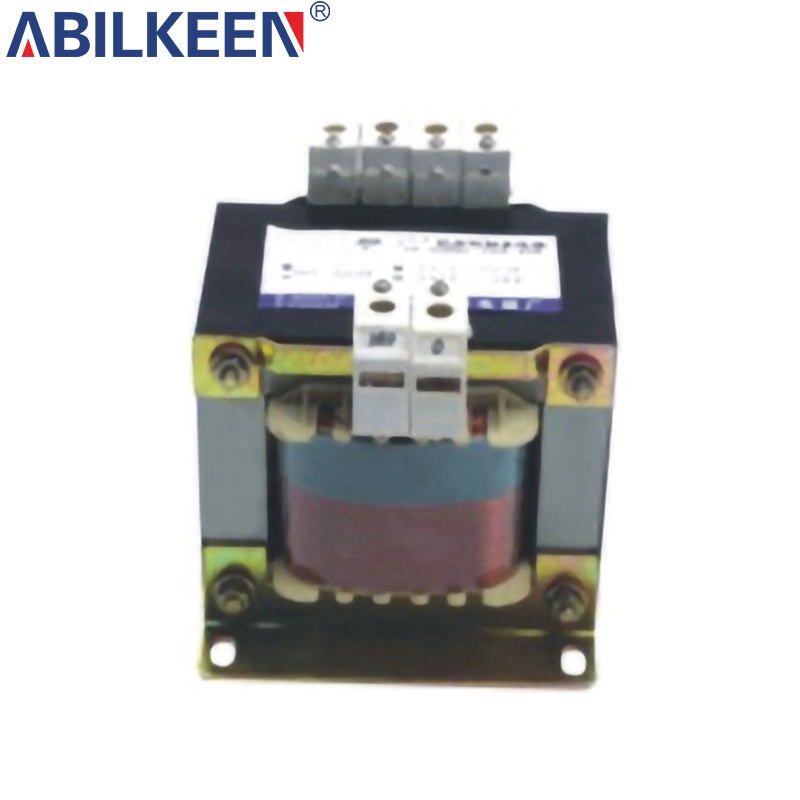

Covering all JBK standard/JBK3/JBK5 models, supporting 220V-24V and other multi-voltage conversions, meeting the differentiated power supply needs of CNC machine tools, medical equipment and other precision equipment
Energy efficiency optimization:
no-load loss is reduced by 18%-25% compared to traditional models, and the overload capacity reaches 2 times the rated current for 1 minute
Security Architecture:
The power frequency withstand voltage between windings is 2500V for 1 minute without breakdown
IP2LX protection level and alloy base plate integrated design
It complies with international standards such as VDE0550 and IEC204-1 and is suitable for harsh industrial environments with an altitude of ≤3000m and temperatures between -15°C and +40°C.

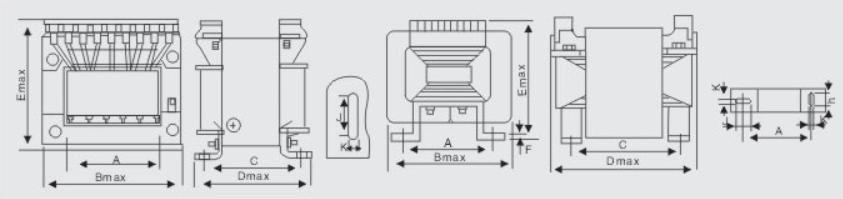

Shape size and installation dimensions
|
TYPE |
Shape and Size |
Disrance to install |
Installation hole KXJ |
|||
|
B max |
D max |
E max |
A |
C |
||
|
|
78 |
70 |
86 |
56±0.5 |
51±3 |
4.8x9 |
|
|
78 |
70 |
86 |
56±0.5 |
51±2 |
4.8x9 |
|
|
85 |
85 |
93 |
64±0.5 |
67±0.5 |
4.8x9 |
|
|
96 |
90 |
103 |
84±0.5 |
74±2 |
5.8x11 |
|
|
96 |
105 |
103 |
84±0.5 |
88±2 |
5.8x11 |
|
|
96 |
115 |
114 |
84±0.5 |
96±2 |
5.8x11 |
|
|
120 |
113 |
123 |
90±0.5 |
90±2 |
7x13 |
|
|
150 |
118 |
145 |
122±0.5 |
86±2 |
7x13 |
|
|
150 |
128 |
145 |
122±0.5 |
100±2 |
7x13 |
|
|
155 |
205 |
145 |
127.5±2 |
152±2 |
7x12horizontal |
|
|
180 |
230 |
160 |
140±2 |
176±2 |
7x12horizontal |
