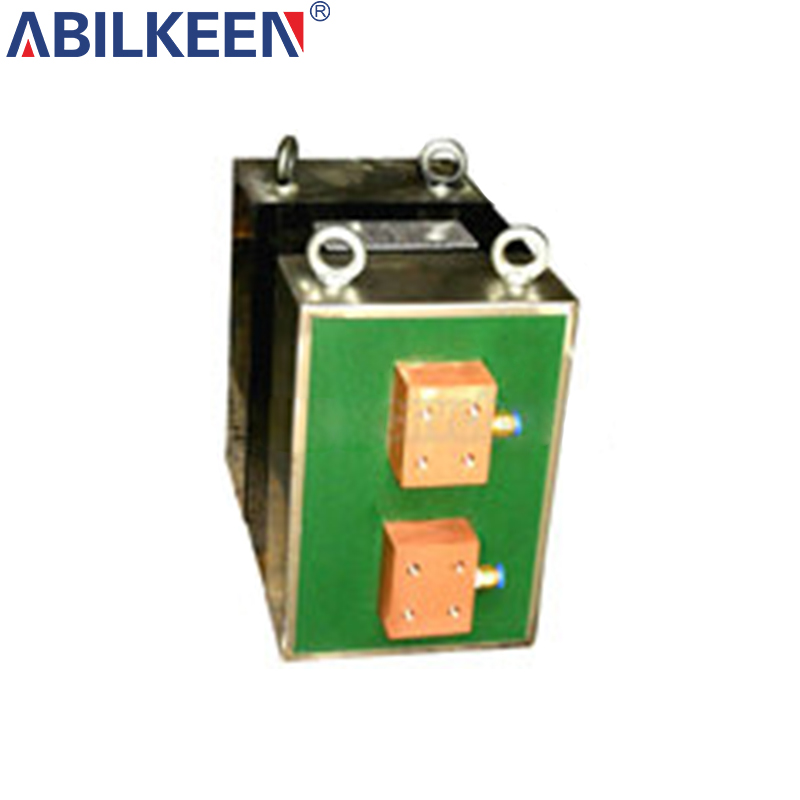

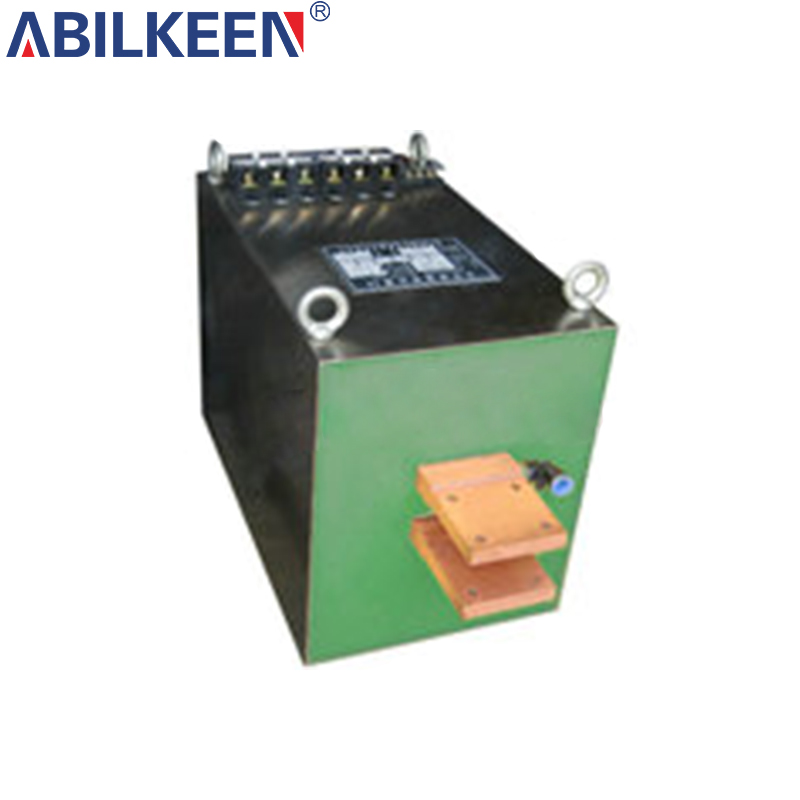

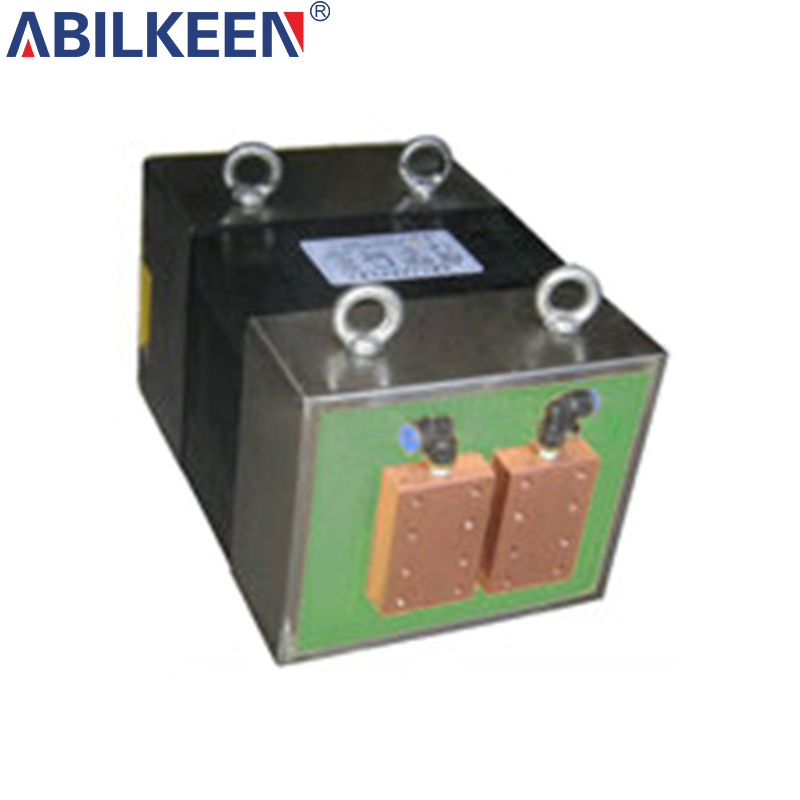

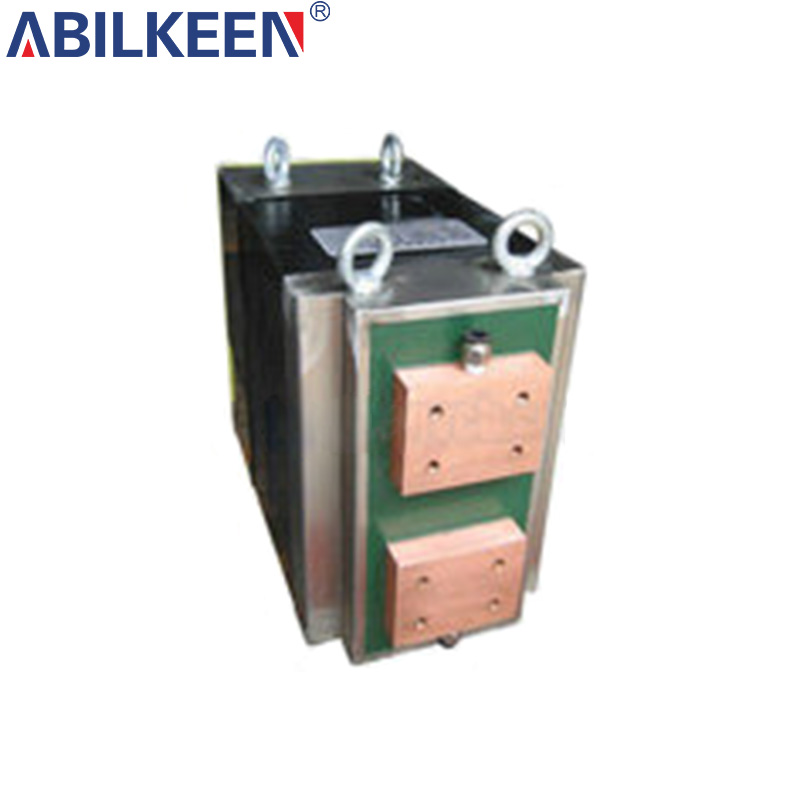

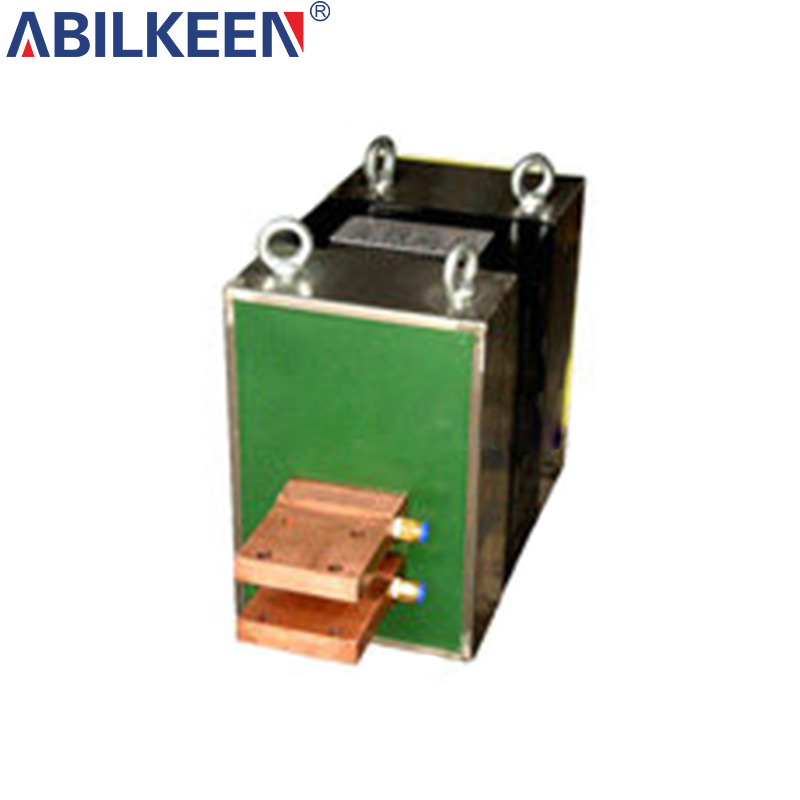

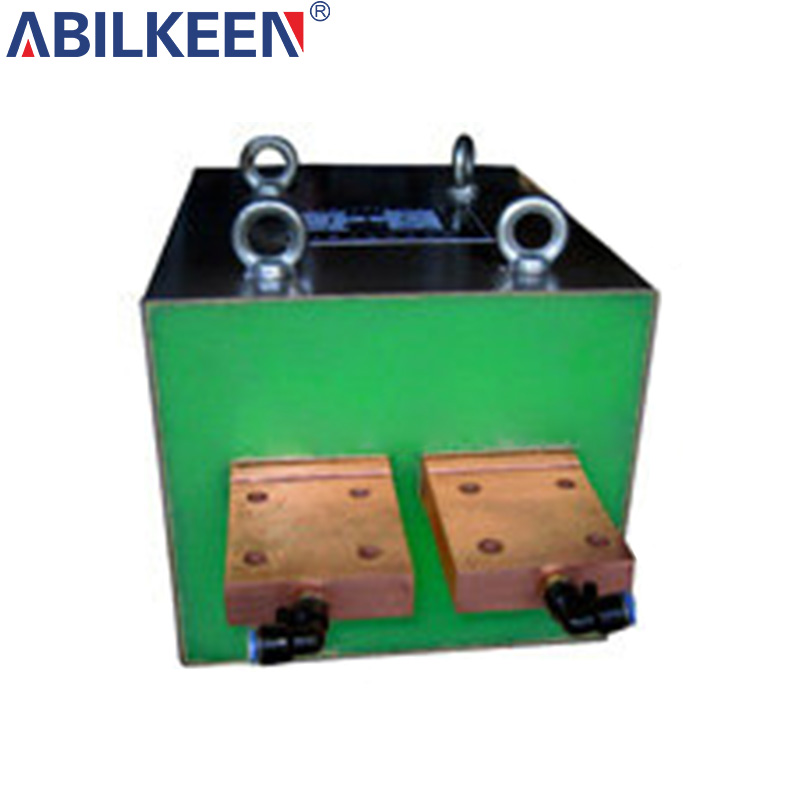

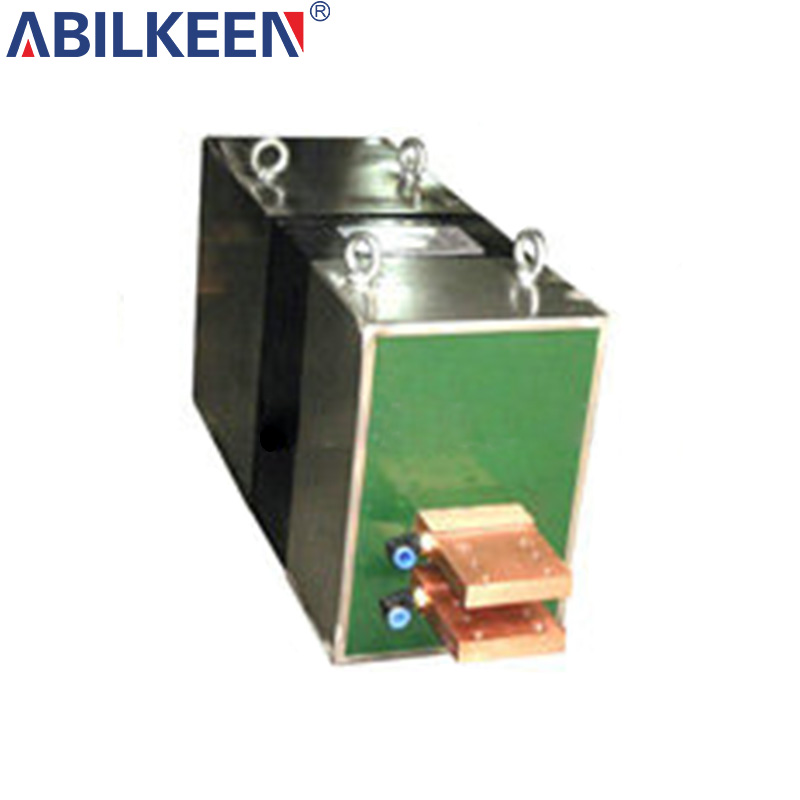

IBZDPS-T-40KVA transformer

Product Overview‌

Designed for the Mode 1150-200 automatic canning machine, this transformer has a rated power of 40 kVA and an input voltage of 220 V (adjustable in four settings: high/medium/medium-low/low). It utilizes Class F insulation and has passed the 3800 V/1 min withstand voltage test (leakage current ≤ 0.5 mA). Its core features include: ① a 100-300 Hz wideband adaptive circuit; ② an 85°C automatic temperature control unit; and ③ an 8 L/min circulating water cooling system (ZG3/8 interface). It is particularly suitable for metal packaging production lines requiring high-frequency, stable power.

Features

Intelligent voltage regulation system: Four-level voltage regulation (04321 code) to meet different process requirements

-High frequency stability: 100-300Hz operating frequency band, meeting the requirements of high-speed stamping equipment.

-Enhanced protection: F-class insulation + 85°C overheat protection dual safety mechanism.

-Efficient heat dissipation: 8L/min forced water cooling ensures continuous full-load operation.

-Industrial-grade verification: Passed 3800V withstand voltage test, leakage current controlled within 0.5mA.

Application scenarios‌

1.Canning automation field‌

It is particularly suitable for the Model 1150-200 fully automatic canning production line, providing precise power support for metal can stamping, welding, sealing and other processes, meeting the needs of efficient production of food/chemical canned containers.

2.High-frequency induction system support‌

As a dedicated power supply unit for high-frequency induction heating devices, it can stably output 20-50kHz high-frequency current and is suitable for industrial scenarios such as heat treatment of metal materials and brazing that require rapid heating.

3.Packaging machinery power center

Provide voltage conversion and power distribution solutions for metal packaging equipment (such as can production lines and spray can forming machines), achieving safe conversion from 380V industrial power to the operating voltage required by the equipment.

4.Smart production line energy management‌

Through the 0.1-300Hz wide-band adjustment function, it is compatible with all types of automation equipment that require variable frequency drive, and is particularly suitable for the power adaptation needs of precision manufacturing production lines such as automotive parts and electronic components.
