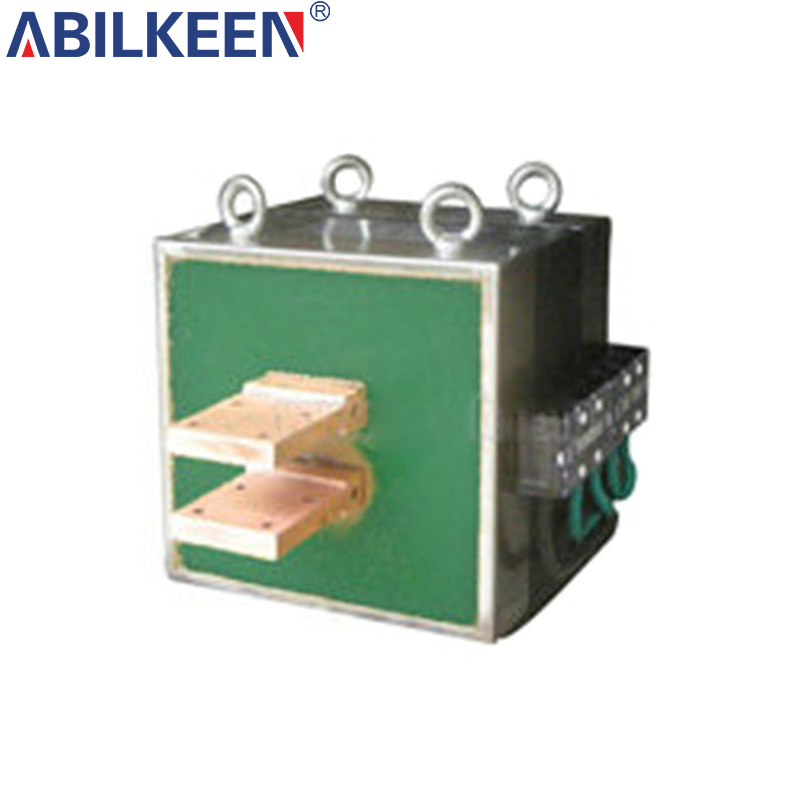

IBZDPS-T-13KVA transformer
Product Overview
This transformer utilizes copper foil winding technology (conductivity ≥99.9% IACS) and Class F composite insulation (temperature resistance 155°C continuous/180°C peak). A built-in DSP control chip enables automatic frequency matching and features an active harmonic suppression module (THD <3%). The cooling system utilizes 304 stainless steel channels (Ra ≤ 1.6μm), compatible with industrial cooling water circulation networks. This product is certified according to GB/T 18494.1-2025 for industrial transformers.
Features
1.Dynamic frequency response technology
50-500Hz full frequency band adaptive (±1% voltage fluctuation)
Built-in high-frequency harmonic filter (THD<2%)
2.Intelligent temperature control system
Bimetallic strip + electronic double protection (85℃ action/95℃ fuse)
F-class insulation material (180°C short-term withstand)
3.Efficient cooling architecture
ZG1/8 imperial threaded water cooling port (ISO 228 standard)
8L/min circulation flow rate (ΔP≤0.2MPa)
4.Industrial-grade security verification
3800V/1min withstand voltage test (leakage current ≤ 0.5mA)
IP54 protection level (dust-proof and splash-proof design)
Application
◆Intelligent high-speed canning production line system
Suitable for 80 series automation equipment
Production rate ≥300 cans/minute (ISO 15747 standard)
Integrated visual inspection module (0.1mm positioning accuracy)
◆Ultra-thin metal plate precision welding workstation
Suitable for processing 0.1-0.3mm materials
Equipped with laser displacement sensor (±5μm repeatability accuracy)
Complies with EN 60974-1 welding power supply safety standard
◆Special material heat treatment energy system
Wideband power input (50-60Hz adaptive)
Temperature control range 200-1200℃ (±1℃ stability)
Support argon/nitrogen protective atmosphere
◆Highly dynamic power supply nodes for industrial robots
Instantaneous response time <1ms
Peak power compensation function (300% overload capacity)
Complies with ISO 10218-1 robot safety standards

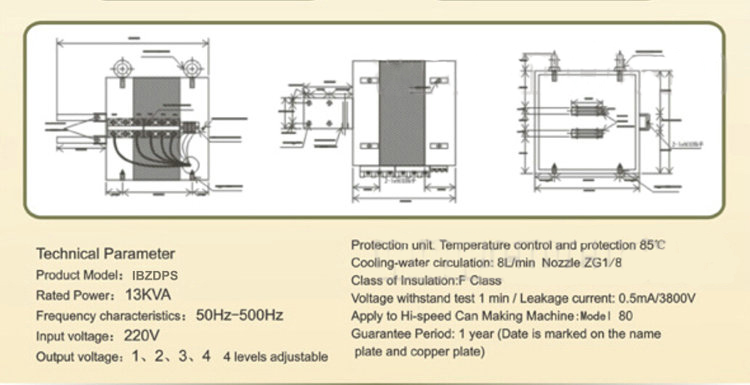

Technical Parameters
