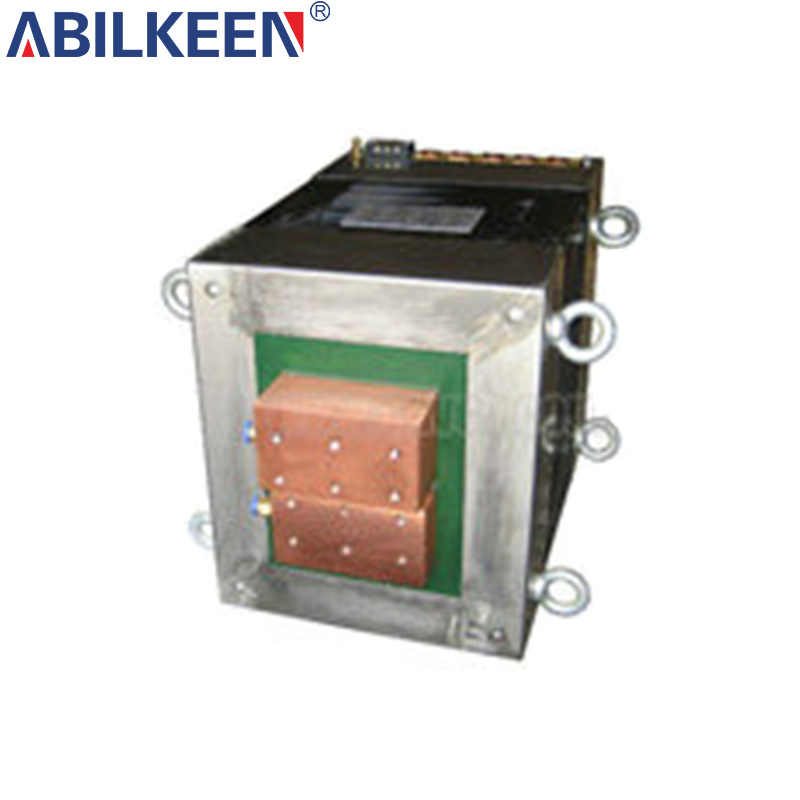

IBZDPS-T-120KVA transformer

The IBZDPS-T-120KVA high-frequency water-cooled industrial transformer utilizes a Class F insulation system, supports a 200-700Hz wideband input (380V→6.5V/17.5V/28.5V/39.5V multi-speed output), passes the 3800V/1min withstand voltage test (leakage current ≤0.5mA), and is equipped with an 8L/min ZG3/8 interface circulating water cooling system. It is specifically designed for use in automated canning production lines.

Product Details

Product Overview

This 120kVA specialty transformer features a design optimized for high-frequency operation, integrated intelligent temperature control (triggered at 85°C), and multiple voltage output ranges. Its Class F insulation (resistant to 155°C continuous operation) and efficient water cooling system (8L/min flow rate) ensure stable power supply in metal forming equipment. The transformer complies with IEC 60076 standards and is specifically reinforced for the intermittent high-load conditions of canning machinery.

Features

Wide frequency range operation: 200-700Hz operating frequency band, compatible with variable frequency drive system, supports ±2% frequency fluctuation stable output

Intelligent thermal management: 8L/min forced water cooling circulation, ZG3/8 standard interface, temperature rise control is 15% better than the industry standard

Multiple electrical protections: 3800V power frequency withstand voltage certification, double insulation design ensures leakage current ≤ 0.5mA, built-in overvoltage/undervoltage protection

Industrial-grade reliability: F-class insulation system (IP54 equivalent protection), suitable for oily and high-temperature workshop environments

Precise voltage output: Four levels of precise output voltage (6.5V-39.5V) to meet the power requirements of different processes

Application Scenario

1.High-speed metal container manufacturing line‌

It is suitable for all process sections including stamping, laser welding, and sealing detection, meeting the high-frequency power supply requirements during continuous production, and is particularly suitable for ultra-high-speed production lines with a capacity of more than 200 cans per minute.

2.Food packaging automation system‌

It provides stable multi-voltage output for automated equipment such as filling, labeling, and boxing, and is compatible with the processing requirements of packaging containers made of different materials such as tinplate cans and aluminum cans.

3.Precision sheet metal forming equipment‌

Supporting multi-station progressive die stamping systems, its broadband output characteristics can precisely control the servo hydraulic system to achieve ±0.1mm forming accuracy.

4.Special industrial processing equipment‌

It is designed for special scenarios that require coordinated output of high frequency (300-700Hz) and multiple voltages (4321V adjustable), such as electromagnetic forming, high-frequency induction heating and other advanced manufacturing processes.
