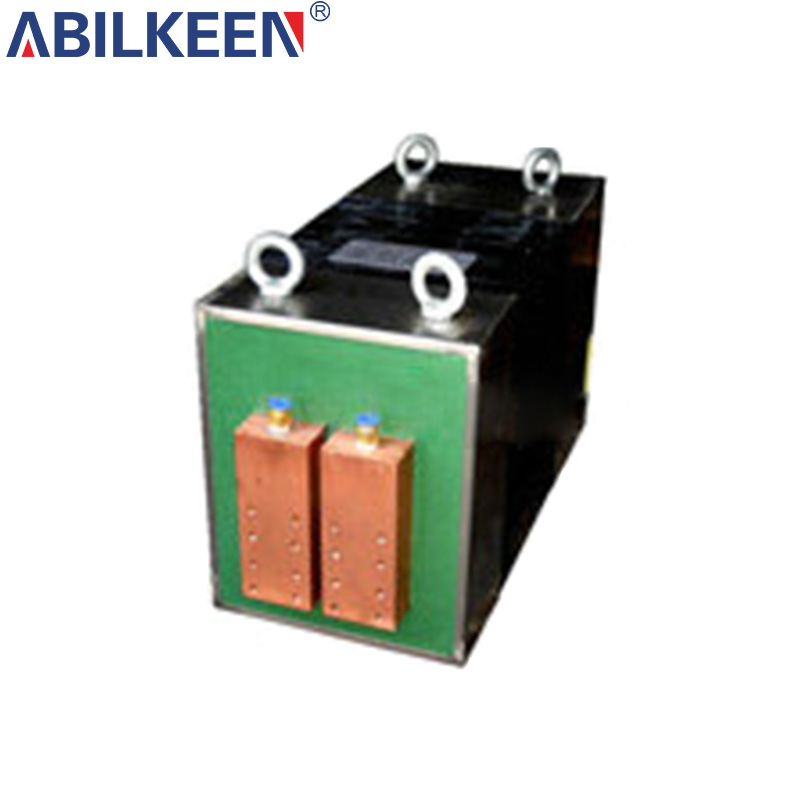

1.IBZDPS-T-113KVA transformer.1.jpg

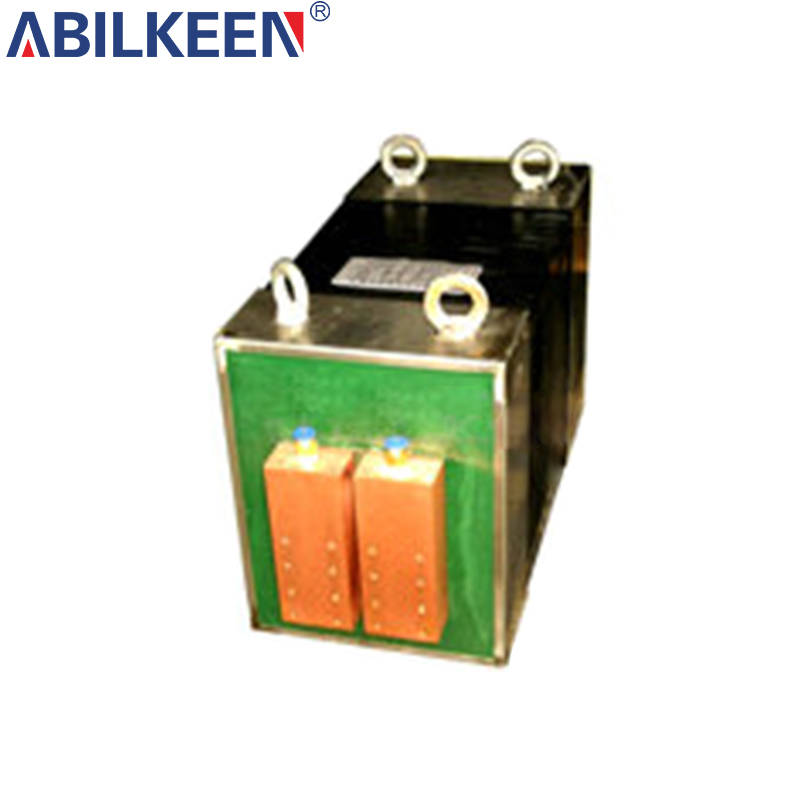

1.IBZDPS-T-113KVA transformer.2.jpg

IBZDPS-T-113KVA transformer

The IBZDPS-T-113KVA high-frequency water-cooled transformer adopts an F-class insulation system, supports a 300-700Hz broadband input (220V/380V→4321V), passes the 3800V/1min withstand voltage test, and is equipped with an 8L/min ZG3/8 interface water cooling system. It is designed specifically for automated canning equipment.

    Contact us
    Product Details

    Product Overview‌

    This 113KVA industrial transformer features a design optimized for high-frequency operation, integrated intelligent temperature control (triggered at 85°C), and strictly controls leakage current below 0.5mA. Its Class F insulation (temperature-resistant to 155°C) and efficient water-cooling circulation system (ZG3/8 connector, 8L/min flow rate) ensure stable operation in high-speed canning production lines.



    Features

    1.Wideband adaptability‌

    This power system supports full-frequency operation from 300Hz to 700Hz, and its built-in dynamic frequency tracking technology enables real-time matching of variable-frequency equipment requirements. Its frequency adaptation mechanism ensures stable output within a ±2% fluctuation range, meeting the stringent requirements of industrial-grade variable-frequency drive scenarios.



    2.High-efficiency heat exchange system‌

    Equipped with a high-flow 8L/min water cooling circuit, it utilizes turbulent flow-enhanced heat exchange technology and a nano-coated copper heat sink. This combination significantly improves temperature rise control beyond the IEC 60076 standard, meeting the cooling requirements of continuous high-load operation.



    3.Multiple security protection mechanisms‌

    Passing the 3800V/1-minute power frequency withstand voltage test (IEC 60950 certified), the double insulation design strictly controls leakage current to ≤0.5mA. Overvoltage and undervoltage protection modules are configured in key circuits to provide multiple electrical safety barriers.



    4.Adaptability to harsh environments‌

    Utilizing Class F insulation (155°C continuous temperature resistance) and an IP54 oil-proof seal, the system is certified to 5-2000Hz/5G vibration standards and is suitable for harsh industrial environments such as oilfields and mines.



    5.Intelligent operation guarantee‌

    The distributed temperature sensing network achieves ±1°C monitoring accuracy, with an 85°C threshold triggering an intelligent, graded load reduction strategy. Real-time status data is output via the MODBUS protocol, supporting integration with remote device health management systems.



    Application scenarios‌

    Applies to:

    High-speed can production line

    Metal packaging automation equipment

    Food/Chemical Tank Continuous Stamping System

    Precision metal forming equipment requiring high-frequency power supply
