HDCR-12 10kv 12KV 200A 400A 630A Outdoor High Voltage Porcelain Disconnector
Product Overview
The HDCR-12/630 HGW10-12/630 outdoor single pole isolation switch is a single-phase, pole-mounted device designed specifically for outdoor use. It offers a distinct advantage by providing a clearly visible break, which is crucial for maintenance personnel to ensure safety during inspections and repairs. Additionally, it functions effectively as a break point in electrical circuits.

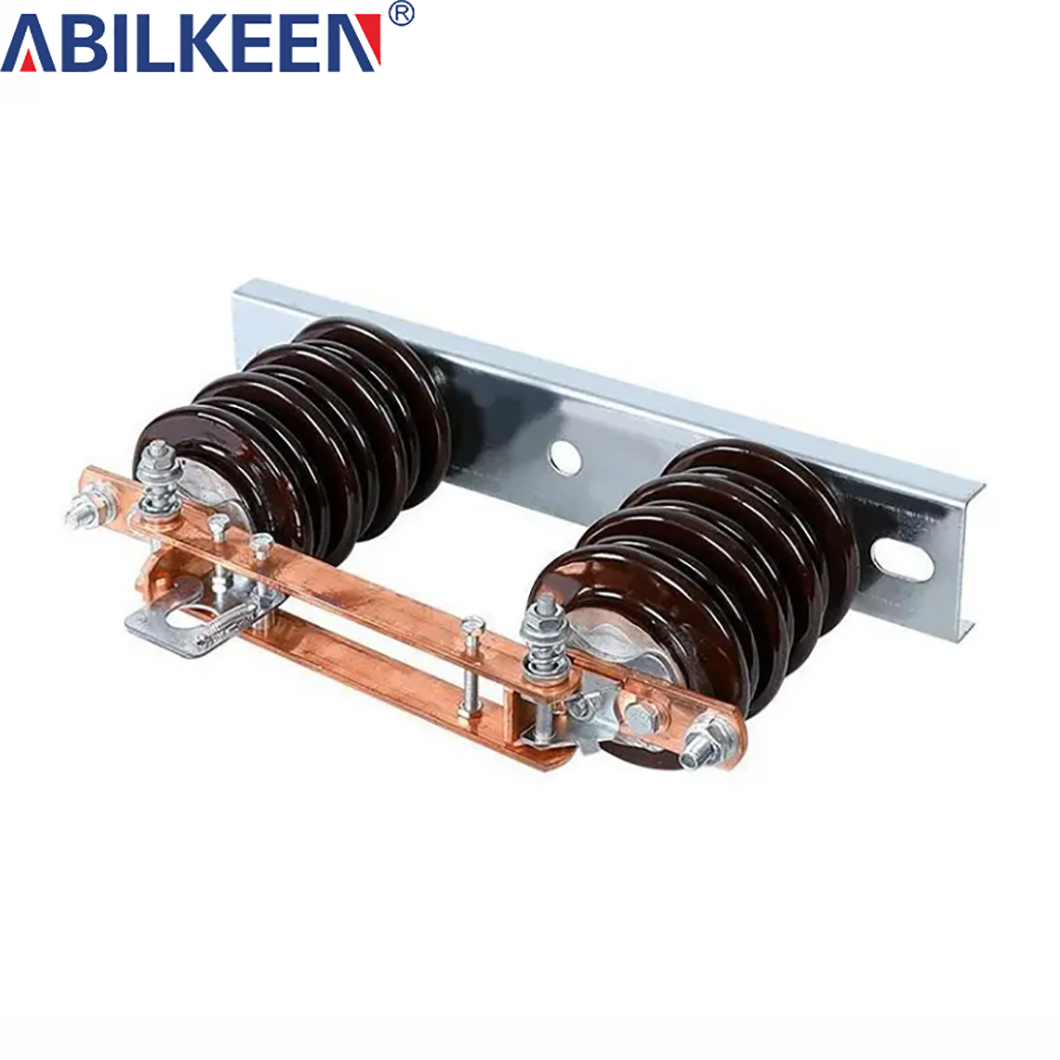

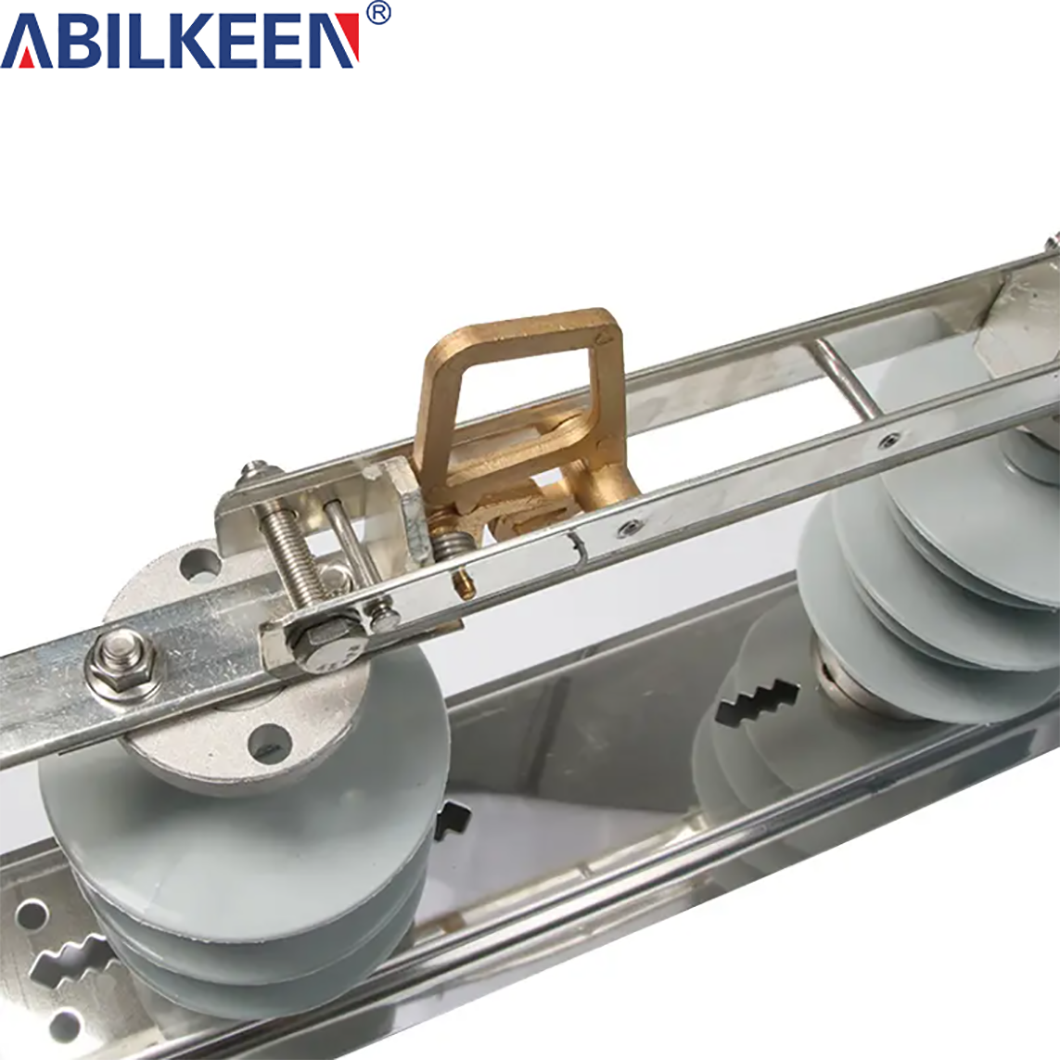

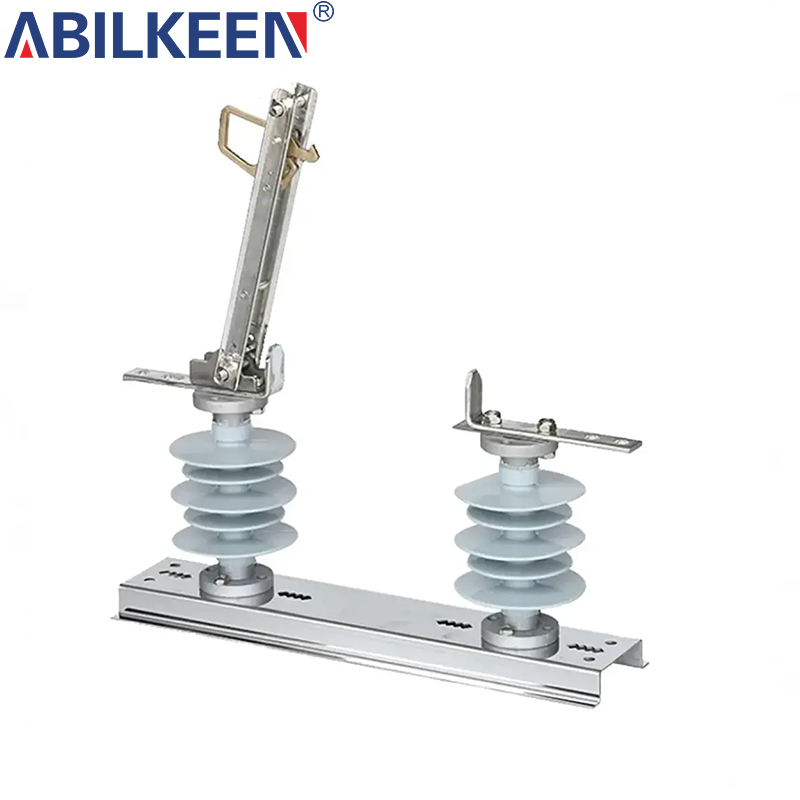

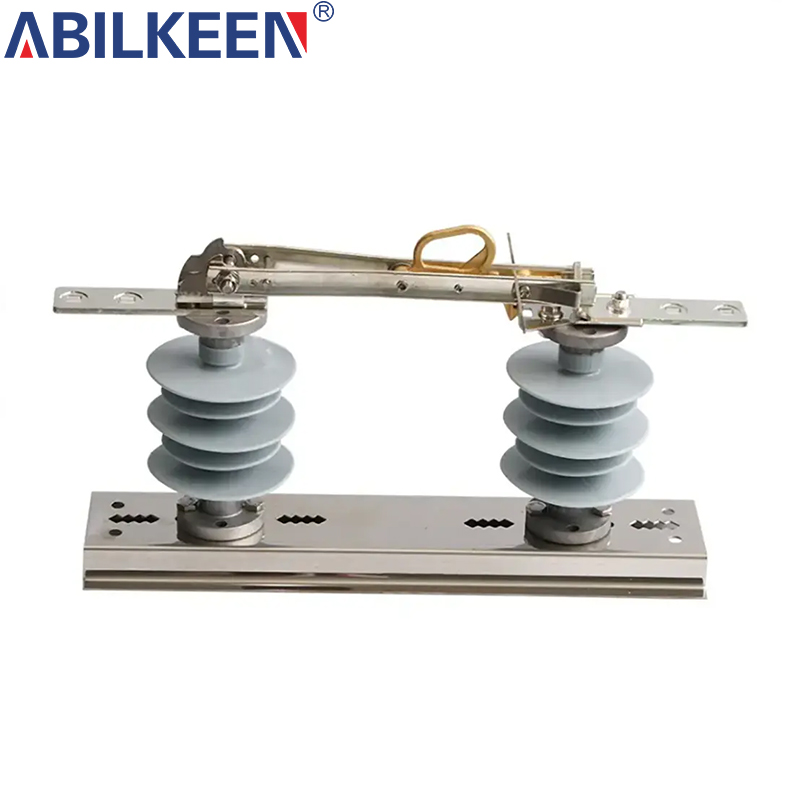

This isolation switch features a double column structure. Insulators and bolts are securely fastened to a base that has undergone hot-dip galvanization for anti-corrosion treatment. Operation is straightforward; simply pulling the pull ring allows for easy activation of the switch. By default, the isolation knife opens to a limit of 160 °, but this can be adjusted to 90 ° on-site or even removed for unrestricted movement.
When it comes to installing the DWR-12/630HDMR isolation switch, an optional installation backplane is available. This backplane can be conveniently clamped onto the crossbar, providing a stable and secure way to fix the switch in place during the installation process.
Product Parameters
| Rated Voltage | kV | 10 | 15 | 20 | |||||
| Maximum Operating Voltage | 12 | 12 | 24 | ||||||
| Rated Insulation Level | 1min Power Frequency Withstand Voltage | To Ground | 40 | 40 | 65 | ||||
| Break | 47 | 47 | 79 | ||||||
| Lightning Impulse Withstand Voltage (Peak Value) | To Ground | 105 | 105 | 125 | |||||
| Break | 120 | 120 | 145 | ||||||
| Rated Frequency | Hz | 50 | |||||||
| Rated Current | A | 200 | 400 | 630 | 800 | 1000 | 1250 | ||
| 4 - second Thermal - stable Current (RMS Value) | kA | 6.3 | 12.5 | 20 | 25 | 25 | 31.5 | ||
| Dynamic - stable Current (Peak Value) | kA | 16 | 31.5 | 50 | 63 | 63 | 80 | ||
| Creepage Distance | mm | 300 | 380 | ||||||
| Mechanical Life | Times | 2000 | 2000 | ||||||
