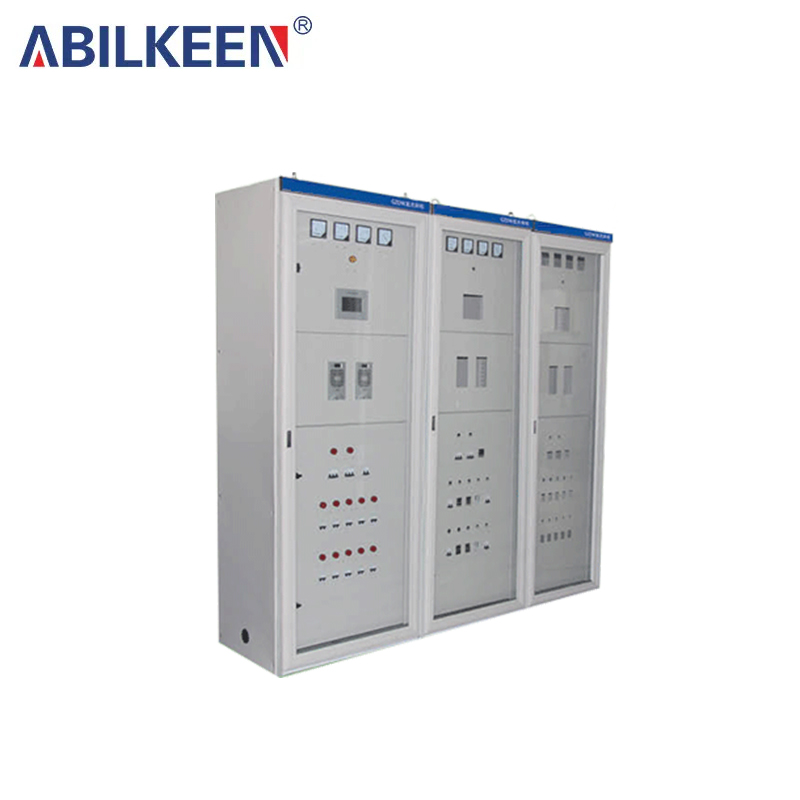

GZDW High Frequency Switching Current DC Screen
Structural features and number of cabinets
Structural characteristics
1. The front of the cabinet is a full-length glass door, and the back door is a double-door, with a beautiful and large appearance；
2. The cabinet structure design is convenient for equipment installation, commissioning, maintenance, repair and operation；
3.The overall dimensions are 226*800*800*600mm, 2360*800*6020 and other standard specifications；
4.Cabinet color can be customized according to customer needs.
Cabinet quantity
The number of cabinets is related to factors such as modules, number of feeder circuits, battery capacity and model, and DC voltage level.
Main technical indicators
|
Project |
Technical indicators |
Remark |
|
|
Enter |
AC input voltage |
AC380V+20% or AC220V+20% |
Three-phase or single-phase |
|
AC input frequency |
50Hz+10% |
|
|
|
Output Characteristics |
Adjustable extraction voltage range |
180~330V continuously adjustable (220V series) 90-150V continuously adjustable (110V series) |
|
|
Rated draw current |
5-200A (220V series) 10-400A (110V series) |
|
|
|
Output Characteristics |
Output current limiting |
110% rated output current |
|
|
Voltage stabilization accuracy |
<±0.5% |
|
|
|
Flow Accuracy |
<±1% |
|
|
|
Ripple factor |
<0.5% |
|
|
|
Protection and alarm |
Input overvoltage protection |
≥456V±5V AC or 263±3V Ac shutdown |
|
|
Input undervoltage alarm |
≤260+5V AC or 176+3V AC |
|
|
|
Output overvoltage protection |
≥275±3V DC (220V series) shutdown ≥135±5V DC (110V series) shutdown |
|
|
|
Output undervoltage alarm |
≤198±5V DC (220V series) |
|
|
|
Input phase loss protection function |
have |
|
|
|
Input short circuit protection feature |
have |
|
|
|
Overheat protection |
90±5℃ |
|
|
|
Abnormal voltage alarm |
have |
|
|
|
Abnormal control mother voltage alarm |
have |
|
|
|
Abnormal battery voltage alarm |
have |
|
|
|
Insulation reduction alarm |
have |
|
|
|
Battery switch disconnect alarm |
have |
|
|
|
Power module fault alarm |
have |
||
