GCK Low-voltage Withdrawable Switchgear
Features
·This series of products features high breaking capacity, excellent dynamic thermal stability, and an advanced, reasonable structure. The electrical scheme aligns with practical applications, showcasing a high degree of series consistency.
·With strong versatility, various scheme units can be combined arbitrarily. Each cabinet accommodates numerous circuits, which saves space while maintaining an aesthetically pleasing appearance. Additionally, it boasts a high level of protection, ensuring safety and reliability, along with convenient maintenance.
·Moreover, this product complies with IEC 439, NEMA ICS 2-322 standards, as well as the GB 7251-2005 national standard for "Low - Voltage Complete Switchgear" and the ZBK 36001 professional standard for "Low-Voltage Withdrawable Complete Switchgear." These certifications further underscore its quality and reliability in diverse applications.
Use Environment Conditions
1.Elevation should not exceed 2000 meters.
2.The surrounding air temperature must not be higher than +40℃ , and the average temperature within 24 hours should not exceed +35℃. Additionally, the surrounding air temperature must not be lower than -50℃.
3.Atmospheric conditions: The air should be clean, with relative humidity not exceeding 50% at a temperature of +40℃. Higher relative humidity is permissible at lower temperatures, for example, 90% at +20℃.
4.The installation site should be free from fire, explosion hazards, severe pollution, chemical corrosion, and intense vibrations.
5.The angle of inclination with respect to the vertical plane should not exceed 5 °.
6.This product is suitable for transportation and storage at temperatures between -25℃ and +55℃, with short-term exposure ( not exceeding 24 hours) up to +70℃.
7.If the above application conditions cannot be met, users should communicate their requirements to our company at the time of order to negotiate a solution.
Major Technical Parameters of Switch Cabinet
|
Rated Working Frequency (HZ) |
|
50 |
|
Rated Working Voltage(V) |
|
380,660 |
|
Rated Insulation Voltage (V) |
|
660 |
|
Rated Working Current (A) |
Horizontal Bus |
630-3150 |
|
Vertical Bus |
600 |
|
|
Rated Short-time Withstand Current |
Horizontal Bus |
80kA (Valid Value)/1s |
|
Vertical Bus |
50kA (Valid Value)/1s |
|
|
Rated Peak Withstand Current |
Horizontal Bus |
176kA/0.1s |
|
Vertical Bus |
110kA/0.1s |
|
|
Main Circuit Connector (A) |
|
200,400 |
|
Auxiliary Circuit Connector (A) |
|
10 |
|
Power Frequency Withstand Voltage 1Min(V) |
|
2500 |
|
Level of Protection |
|
IP40 |
|
Operation Mode |
|
On the Spot, In the Distance,Automatically |

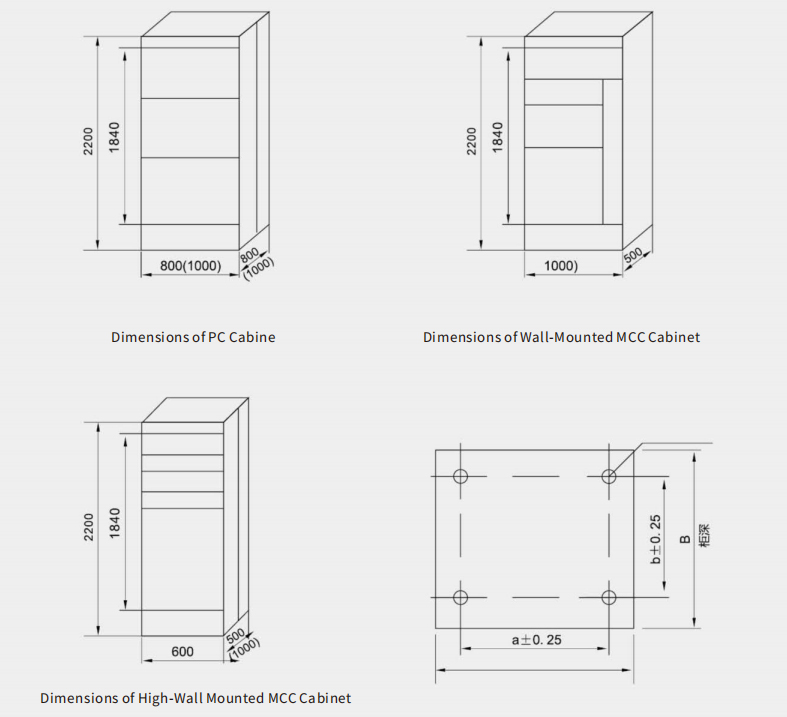

Product size
Installation Dimensions
|
Cabinet Width (A) |
Cabinet Depth (B) |
Installation Hole Space (a) |
Installation Hole Space (b) |
|
800 |
500 |
685 |
385 |
|
800 |
800 |
485 |
685 |
|
800 |
1000 |
485 |
885 |
|
800 |
800 |
685 |
685 |
|
800 |
1000 |
685 |
885 |
|
1000 |
800 |
885 |
685 |
|
1000 |
1000 |
885 |
885 |

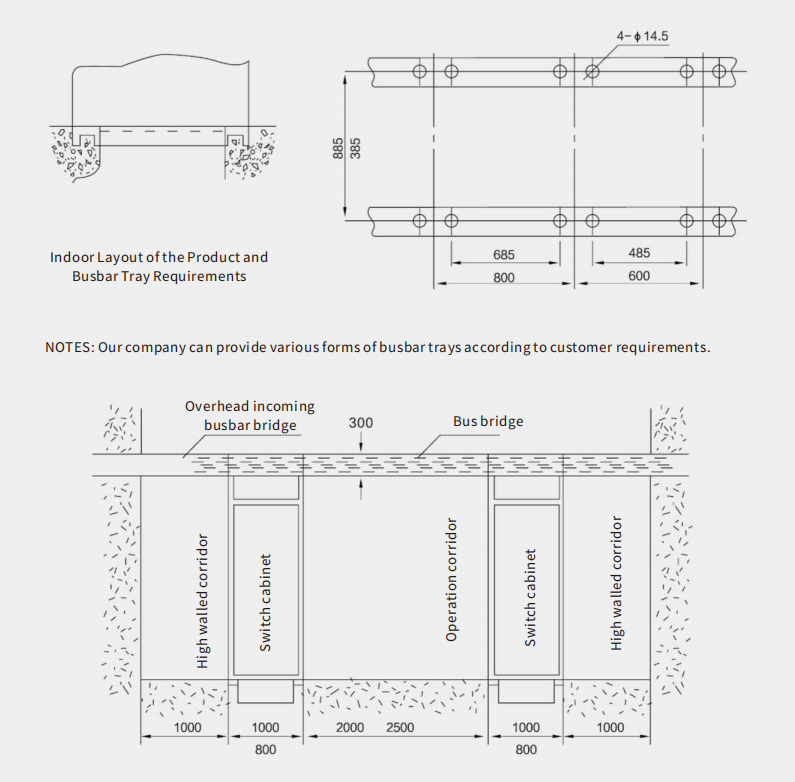

Installation Diagram
