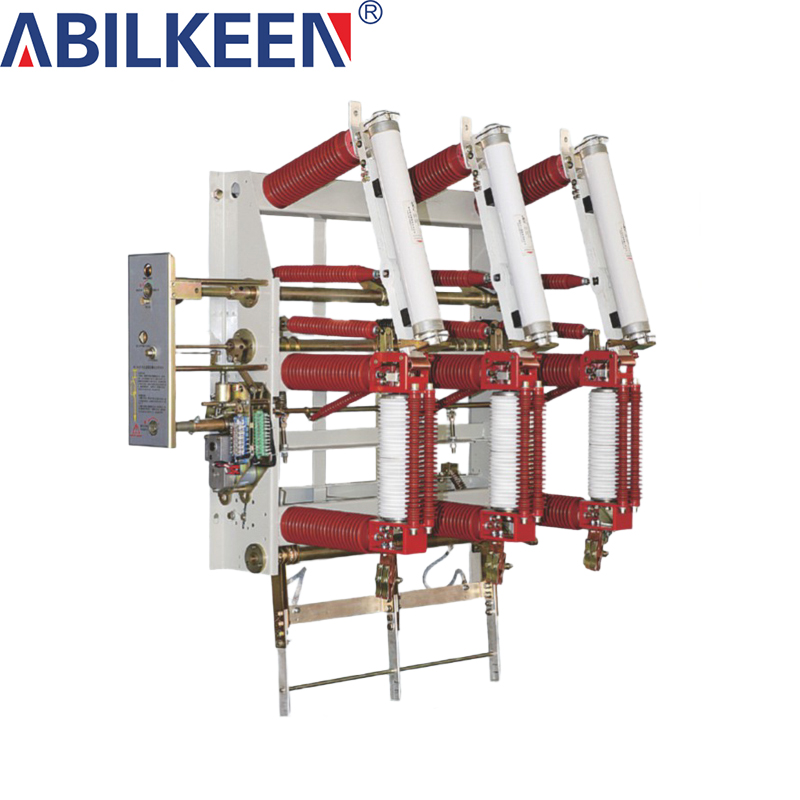

FZN21-40.5 Indoor high voltage vacuum load switch

FZN21-40.5 high-voltage vacuum load switch and combined electrical appliances are suitable for three-phase AC 40.5kV, 50Hz power systems, or used in conjunction with power distribution equipment and ring network switch cabinets, combined AC power stations, etc. They are widely used in wind power generation, power network construction and renovation projects, industrial and mining enterprises, high-rise buildings and public facilities, etc. They can be used as ring network power supply units or terminal equipment to distribute, control and protect electric energy. The technical performance of this product complies with GB16926-1997 "AC High Voltage Load Switch-Fuse

The product has the advantages of large breaking capacity, safety and reliability, long electrical life, frequent operation, compact structure, small size, light weight, and basically no maintenance. It has the ability to break rated current, overload current, short-circuit current and prevent equipment from running in phase loss. The switch has a clearly visible isolation break, is equipped with a grounding switch with closing ability and an electric spring mechanism, and has remote control capabilities.
