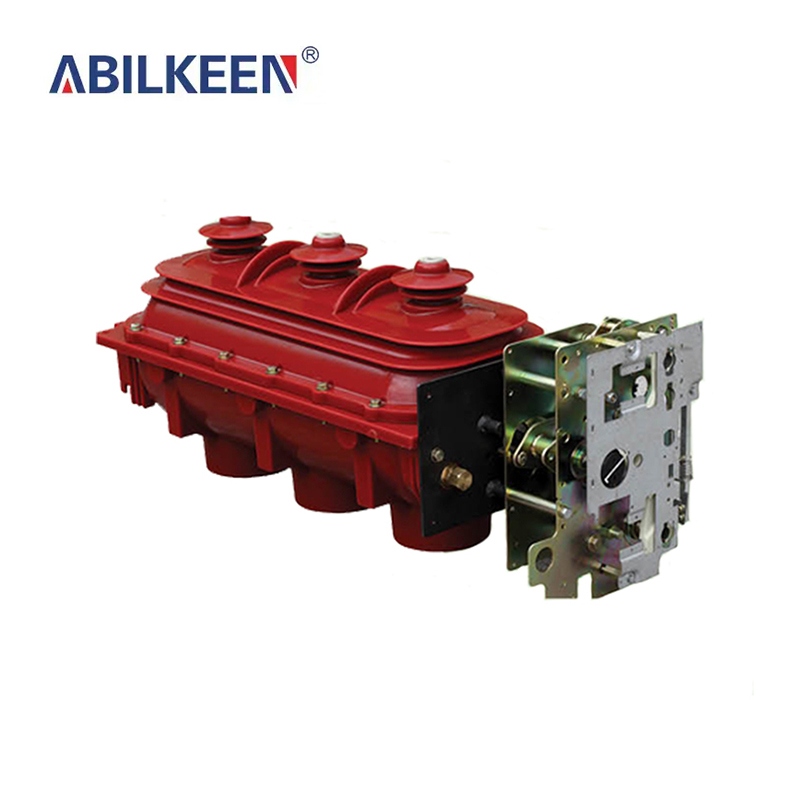

FLRN36-12D Sulfur hexafluoride (SF6) type high voltage load switch

Normal use environment conditions

◆Environmental humidity: maximum temperature +40℃, minimum temperature -40℃;

◆Humidity: The maximum average daily relative humidity is ≤95%, and the maximum average monthly relative temperature is ≤100%;

◆Altitude: ≤2000 meters;

◆Seismic resistance: 8 degrees;

◆The surrounding air should not be obviously polluted by corrosive, flammable gases, water vapor, etc., and should not be subject to frequent and severe vibrations;

◆Annual leakage rate: ≤ 0.1%;

◆Special conditions

When the load switch is used at an altitude of more than 2,000 meters, special instructions must be given so that the design can be adjusted during manufacturing. (Currently, the load switches manufactured by our company have a precedent of safe operation at an altitude of up to 3,000 meters.)

Appearance and installation dimensions
