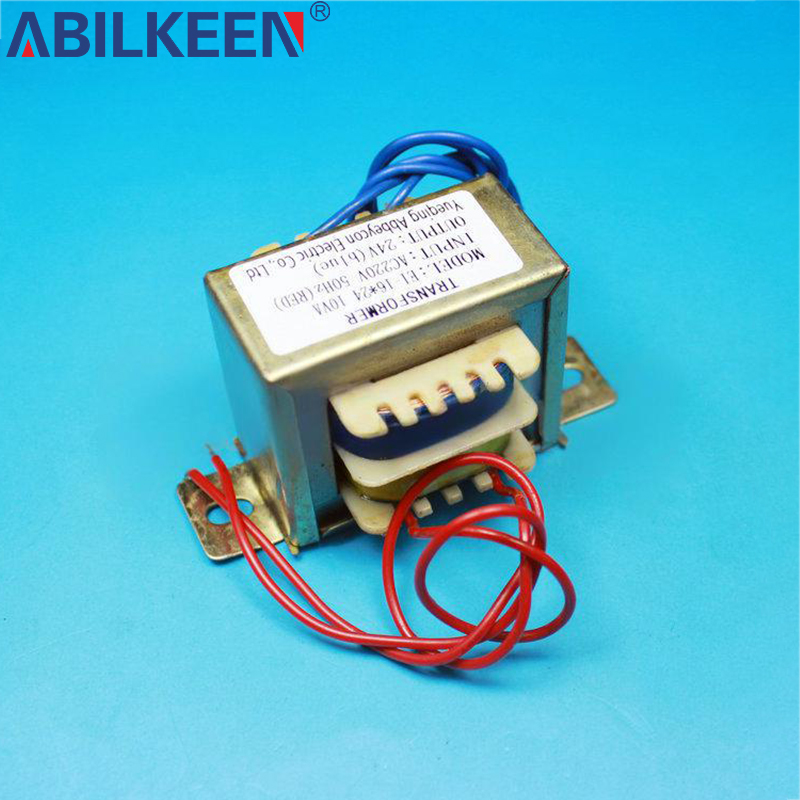

EI-16x24 10VA transformer

The EI-16x24 10VA transformer is a small industrial frequency isolation transformer featuring the classic EI-type laminated silicon steel structure. The "16" in the core specification indicates a 16mm tongue width, and the "24" designates a 24mm laminate thickness, resulting in a highly efficient magnetic circuit closure. It offers a rated capacity of 10VA and operates within a 220V ±10% input voltage range. Typical secondary outputs are 12V/24V and other low-voltage specifications, making it suitable for electronic devices requiring safe, isolated power supply.

Product Details

Core Features

Electromagnetic properties

Working frequency: 50Hz/60Hz, magnetic flux density is designed to be 1.2-1.5T

Voltage regulation: ≤8% (under full load conditions)

No-load current: <10mA (220V input)

Structural design

Core: Made of DW470 cold-rolled silicon steel sheets, with stepped staggered laminations to reduce eddy current losses

Winding: The primary winding adopts QA-1 polyurethane enameled wire (wire diameter 0.12mm), and the secondary winding adopts QZ-2 high-strength enameled wire (wire diameter 0.4mm).

Insulation system: Class B insulation (130°C temperature resistance), DMD composite insulation paper between layers

Security Certification

Comply with GB19212.1-2003 standard

Insulation resistance: >100MΩ (500VDC test)

Withstand voltage: primary-secondary 3000VAC/60s without breakdown

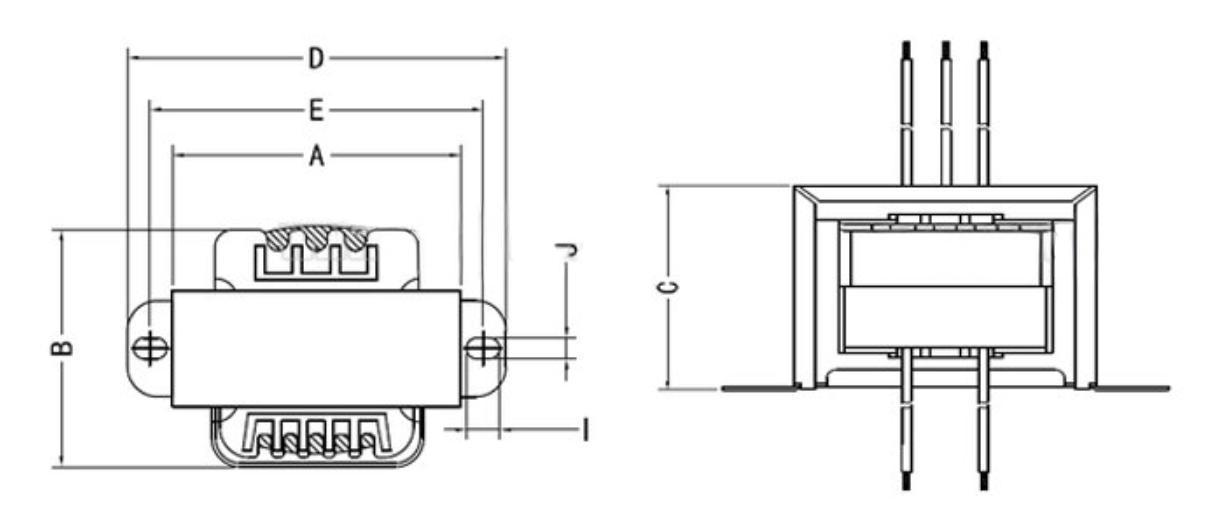

Model parameter

Item	Core type	Output power（w)	Item	Core type	Output power（w)
EI28	EI28/8x12	0.5-1	EI57	EI57/19x30	16-32
EI28	EI28/8x16	0.7-1	EI57	EI57/19x38	20-40
EI35	EI35/9.6x10	0.2-0.8	EI66	EI66/22x22	17-35
EI35	EI35/9.6x12.5	0.25-1	EI66	EI66/22x 28	24-45
EI35	EI35/9.6x16	0.4-1.7	EI66	EI66/22x35	36-58
EI35	EI35/9.6x20	0.6-2.5	EI66	EI66/22x45	55-77
EI41	EI4/13x13	0.6-2.3	EI76	EI76.2/25.4x25	65-88
EI41	EI41/13x16	1-36	EI76	EI76.2/25.4x31.5	71-95
EI41	EI41/13x21	1.6-5.5	EI76	EI76.2/25.4X40	70-97
EI41	EI41/13x26	2.3-7.7	EI76	EI76.2/25.4X50	86-123
EI48	EI48/16x16	2-5	EI85.8	EI85.8/28.6x29	70-95
EI48	EI48/16x20	2.8-7.2	EI85.8	EI85.8/28.6x36	84-120
EI48	EI48/16x25	4.6-11.1	EI85.8	EI85.8/28.6x46	105-154
EI48	EI48/16x32	7-10	EI85.8	EI85.8/28.6x58	130-200
EI54	EI54/18x18	5-12	EI96	EI96/32x40	100-150
EI54	EI54/18x22.5	8-17	EI96	EI96/32x45	110-160
EI54	EI54/18x29	11-25	EI105	EI105/35	500-700
EI54	EI54/18x36	17-34	EI114	EI114/38	700-1000
EI57	E157/19x19	7-16	All the output voltage and current are according to customers requirements
EI57	EI57/19x24	14-21
