ACIBZPZDPS-250KVA transformer
Product Overview
The ACIBZPZDPS-250KVA is a high-efficiency water-cooled transformer designed specifically for 1000Hz medium-frequency welding machines. It features Class F insulation and a 3800V withstand voltage test (1 minute without breakdown). Leakage current is strictly controlled to ≤0.5mA, ensuring electrical safety and reliability.Equipped with an 8L/min water-cooling circulation system (ZG1/4 nozzle), it supports a 20%-50% duty cycle and is suitable for high-load welding scenarios, balancing efficient heat dissipation and stable operation.
Features
1.High-precision intermediate frequency output
The operating frequency is 1000Hz, and it outputs a stable 15V AC power, which is suitable for medium frequency welding process requirements.
2.Strong protection design
F-class insulation, high temperature resistance up to 155°C;
3800V withstand voltage test, no breakdown in 1 minute;
Leakage current ≤ 0.5mA, electrically safe and reliable.
3.Efficient water cooling
8L/min circulating cooling water flow supports 20%-50% duty cycle, ensuring long-term stable operation of the equipment.
4.Intelligent temperature control protection
The protection mechanism is automatically triggered at 85℃ to effectively avoid overheating damage.
Application scenarios
◆Medium frequency welding equipment
It is suitable for high-frequency resistance welding, induction welding and other processes of automotive parts and hardware, meeting high-precision welding requirements.
◆Metal processing industry
Suitable for continuous welding and high-precision welding production lines to improve production efficiency and welding quality.
◆Harsh industrial environments
It is specially designed for fields such as mining machinery and rail transportation that require extremely high equipment reliability, ensuring stable operation under harsh working conditions.

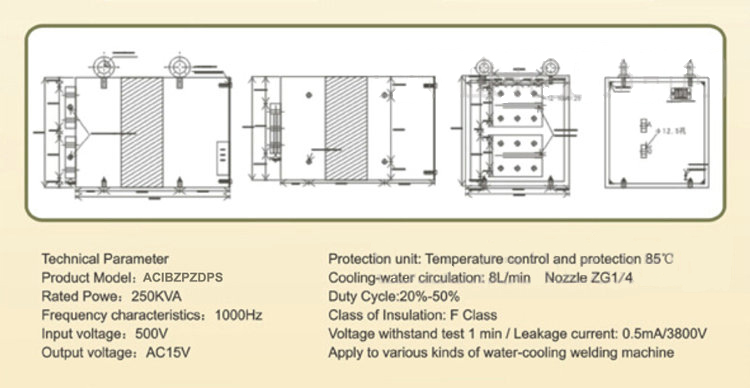

Technical Parameters
