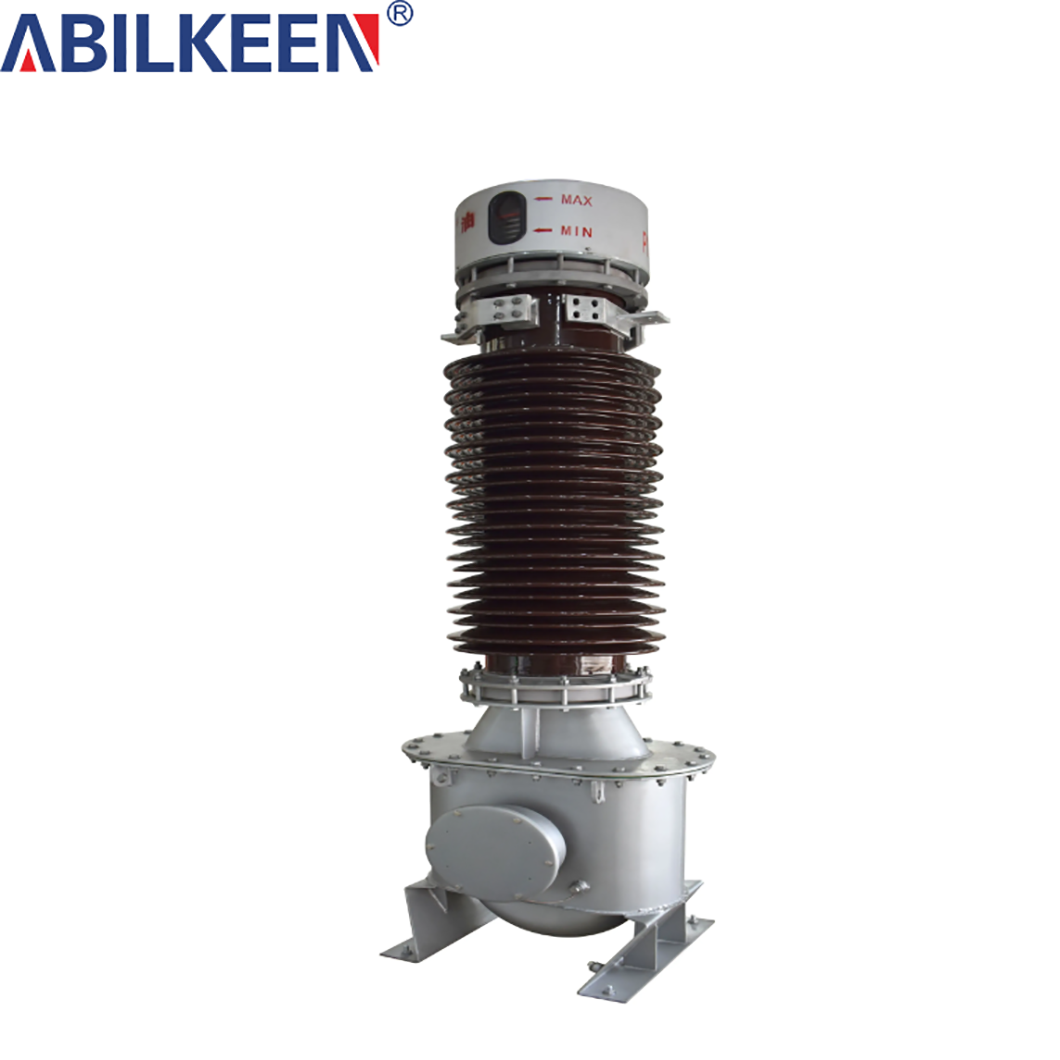

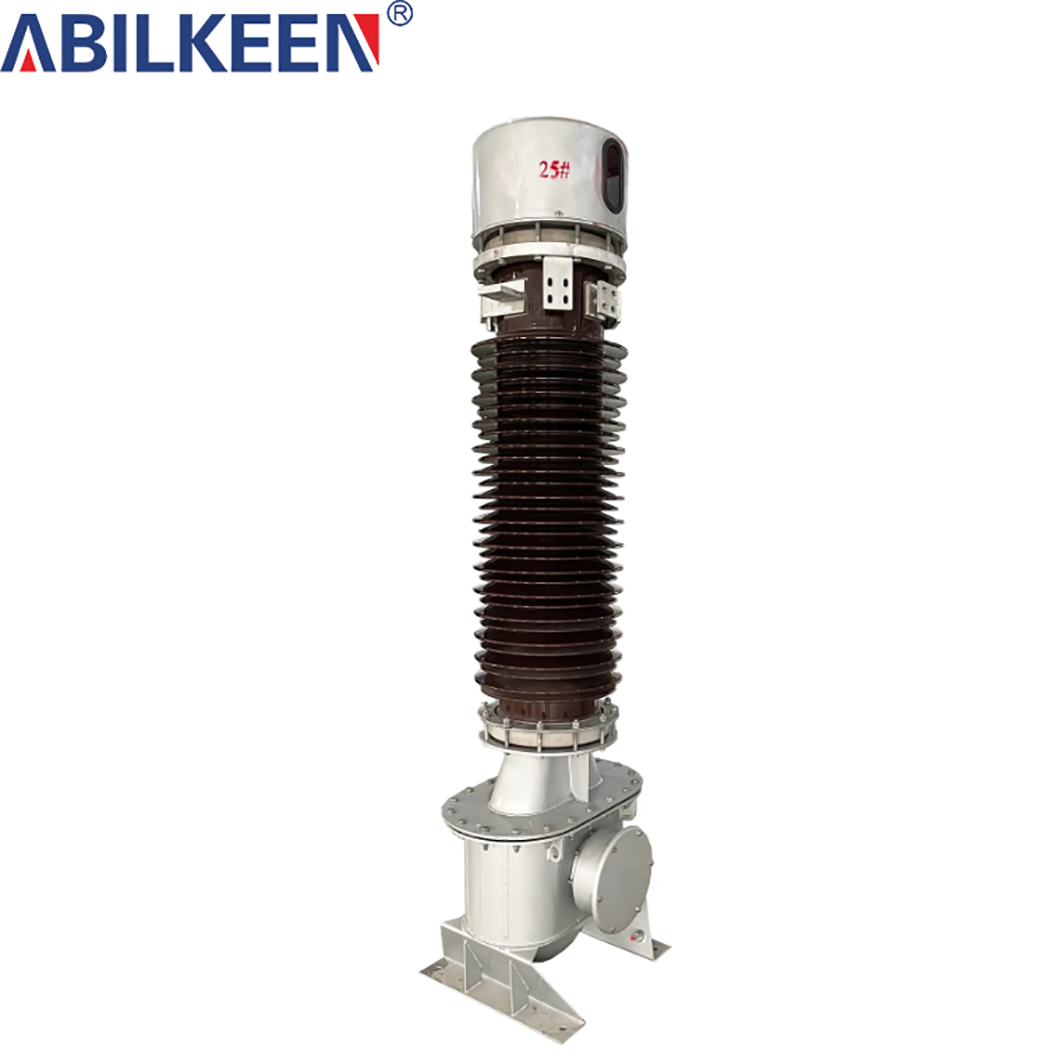

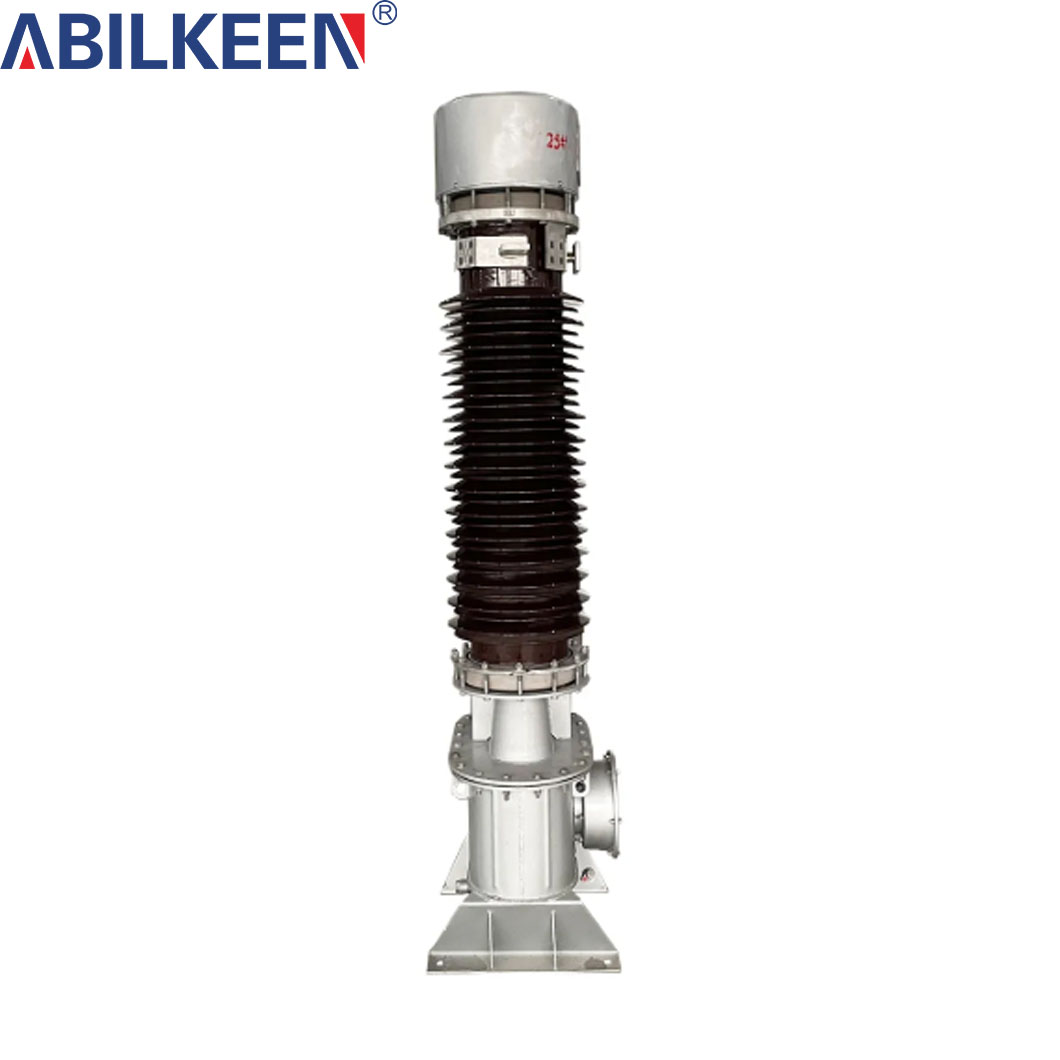

ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products

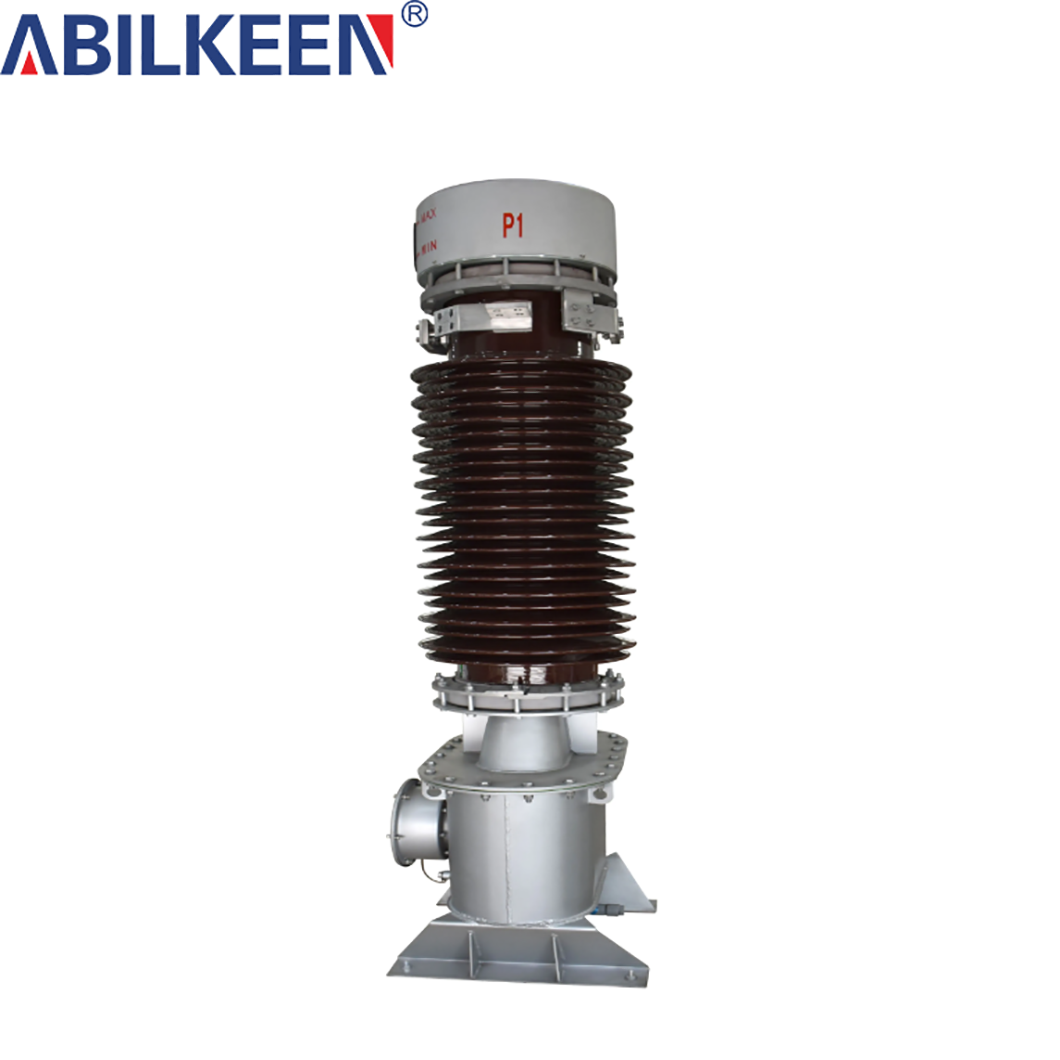

ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products

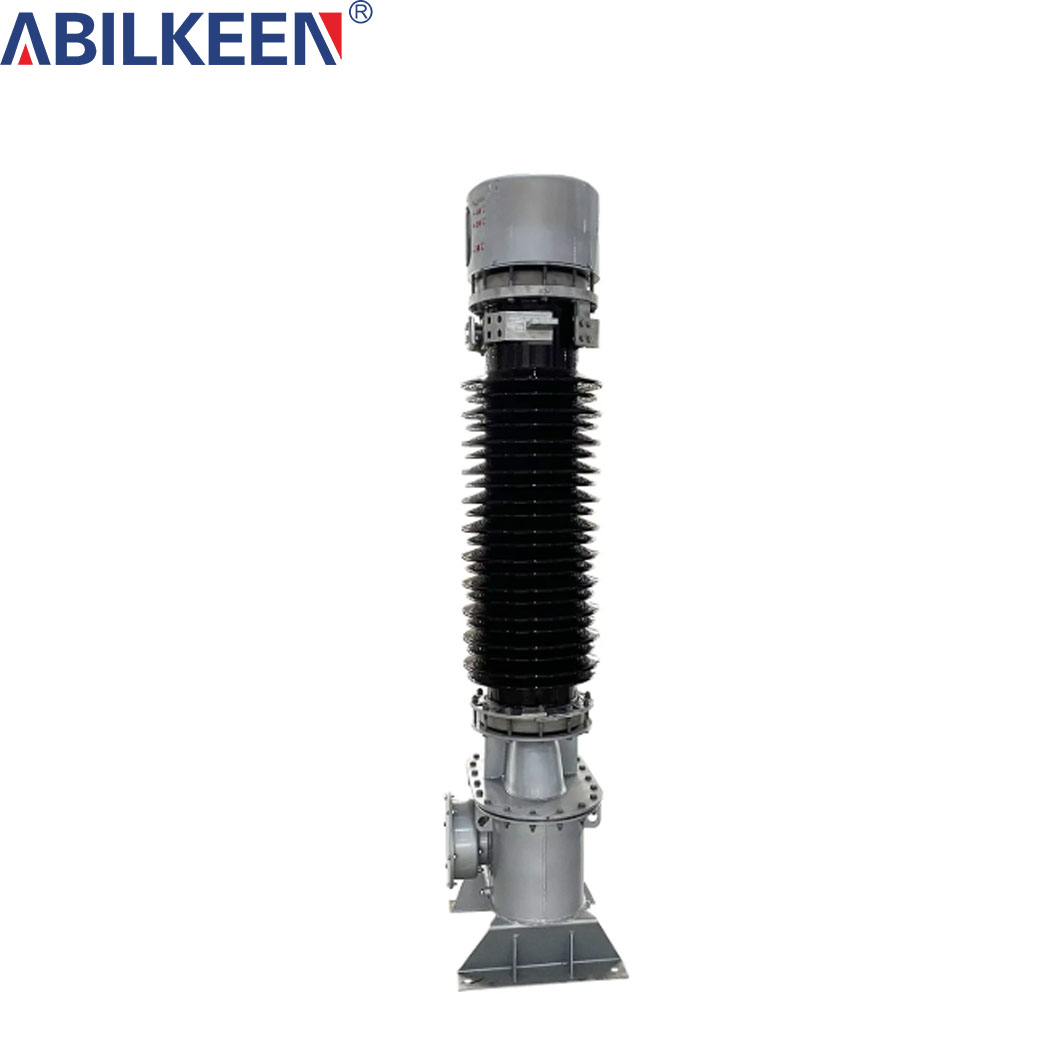

ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products

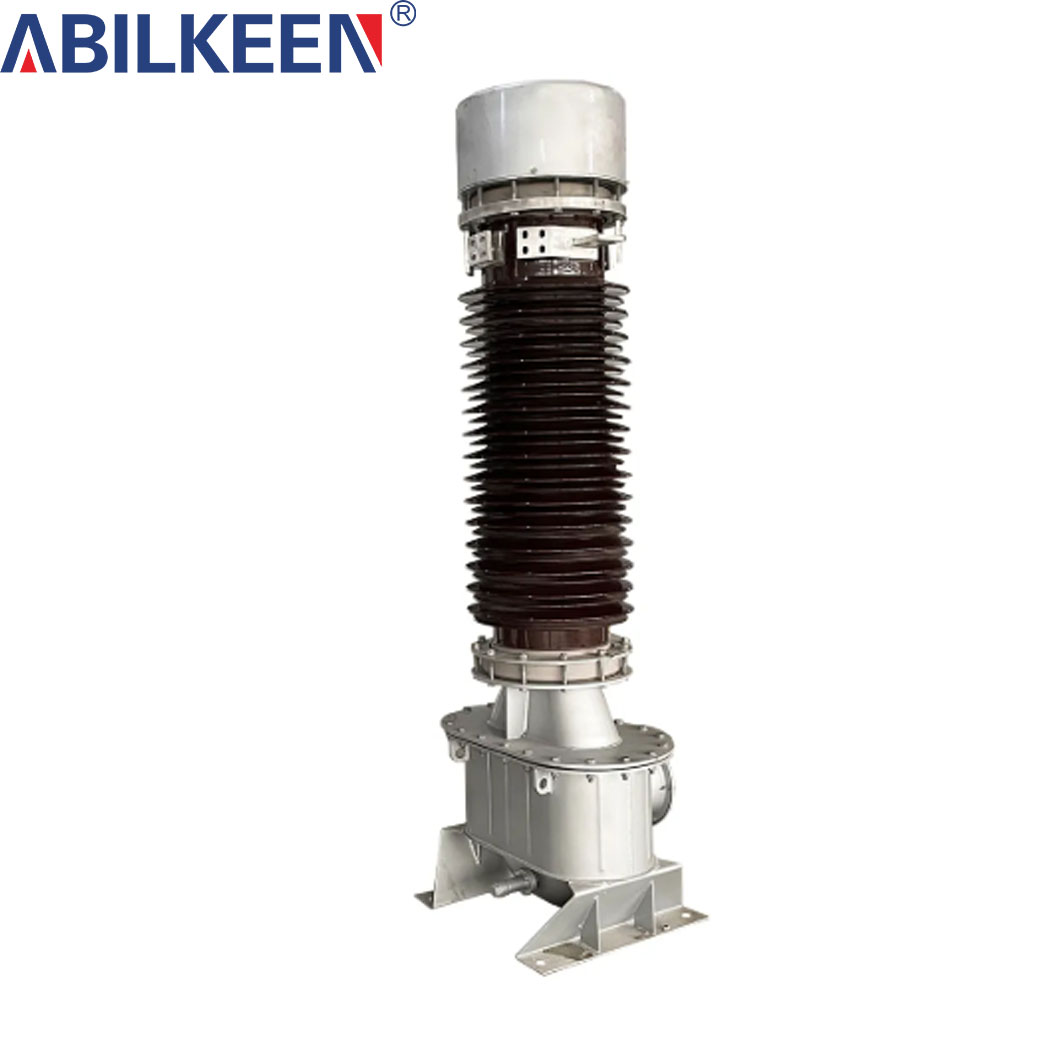

ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products
ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products
ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products

ABILKEEN Outdoor Single Phase 66kv Oil Immersed HV Transformer for MV&HV Products

LB6 - 66/LB6 - 110 circuit breakers are key equipment in power systems, mainly used to cut off or close high - voltage circuits under normal or fault conditions. They can convert the high voltage in the circuit into a standard secondary voltage of 100V or lower in proportion, which is crucial for the normal operation of protection, metering, and instrumentation systems.

    Contact us
    Product Details

    Product Overview

    Designed specifically for 50Hz, 110kV power systems, this transformer serves multiple crucial functions, including current monitoring, energy metering, and relay protection. The transformer features a robust metal expander and a fully sealed construction, ensuring durability and reliability in diverse operating conditions. Its primary winding is engineered with a unique "" - shaped capacitive insulation system, which effectively promotes an even electric field distribution, minimizes dielectric loss, and reduces partial discharge.​

    The secondary winding configuration offers flexibility, typically consisting of 3 to 6 windings that can be customized to meet specific requirements. Upon request, we can manufacture specialized current transformers with an accuracy level of 0.2S, ideal for applications demanding precise measurements. As an outdoor - rated device, it operates seamlessly within an ambient temperature range of -30℃ to +40℃.​

    For different environmental needs, we provide two distinct models. The LB6 - 110W2 (LCWB6 - 110W2) is optimized for polluted regions at altitudes up to 1700m, while the LB6 - 110GYW2 (LCWB6 - 110GYW3) is designed to withstand harsh conditions in high - altitude, polluted areas, operating reliably at altitudes up to 3500m.

    Product Parameters

    Rated Voltage (kV) Rated Primary Voltage (kV) Level Combination Accuracy Class Rated Output (VA)  Accuracy Limit Factor Polarity Rated Short-Time Thermal Current (kA) Rated Dynamic Current (kA) Rated Lightning Impulse Withstand Voltage (kA) Rated Creepage Distance (cm·kV) Oil Weight (kg) Total Weight (kg)
    Full turns Tap 0.5 level
    66 2x25
    ~2x750/5    		 P/P/0.5
    P/P/0.2
    P/P/0.2S
    P/P/0.5/0.2S    		 5P、10P
    0.5
    0.2
    0.2S    		 50 15 Reduction 2.7 ~ 50         6.8 ~ 125 72.5/140/325 1.8 100 440
    50 30
    50 30
    40 30
    2×600/5 (Measurement Tapped)
    2×300/5    		 P/P/0.5
    P/P/0.2
    P/P/0.2S
    P/P/0.5/0.2S    		 5P、10P
    0.5
    0.2
    0.2S    		 50 15 25 ~ 50          62 ~ 125
    50 30
    50 30
    40 30
    2×750/5 (Measurement Tapped)
    2×400/5    		 P/P/0.5
    P/P/0.2
    P/P/0.2S
    P/P/0.5/0.2S    		 5P、10P
    0.5
    0.2
    0.2S    		 50 15 25 ~ 50           62 ~ 125 2.5
    50 30
    50 30
    40 30
    2×1000/5 (Measurement Tapped)
    2×500/5    		 P/P/0.5
    P/P/0.2
    P/P/0.2S
    P/P/0.5/0.2S    		 5P、10P
    0.5
    0.2
    0.2S    		 50 15 25 ~ 50        62 ~ 125
    50 30
    50 30
    40 30
