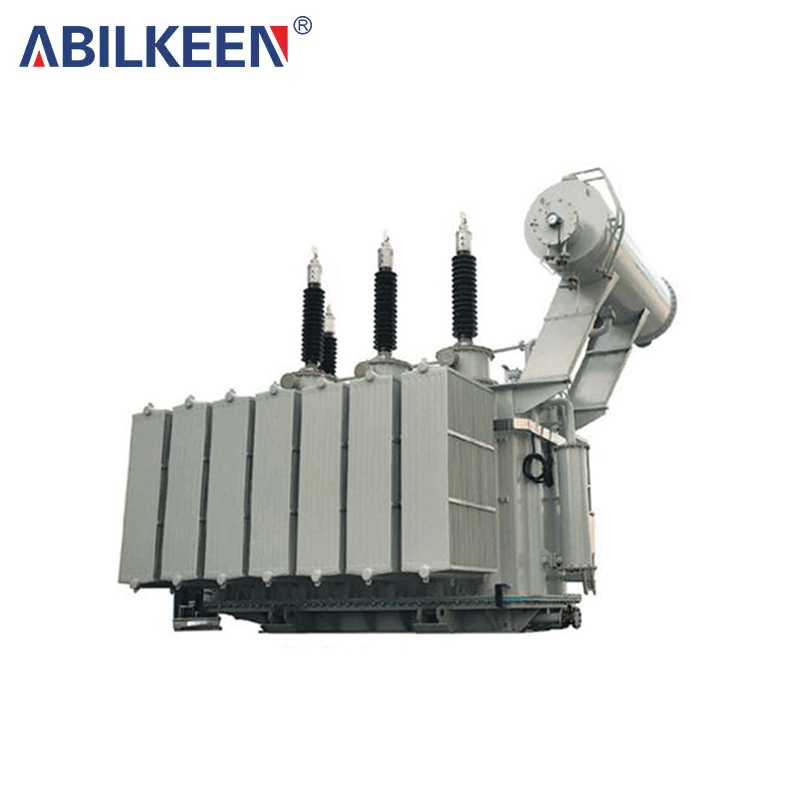

115kV 69kV Power Transformer
Product Introduction
The 115kV and 69kV power transformers are based on the absorption of advanced technologies at home and abroad, and after in-depth research and development, the transformer core, coil, body, lead, oil tank and other key components have been fully optimized and strictly verified. This series of improvements makes the product perform well in low partial discharge, low loss, low noise, light weight and high reliability, fully meeting the needs of modern power systems.
The excellent performance of these transformers has not only won the trust of the majority of users, but also been highly praised by relevant experts, becoming a benchmark product in the industry. Its design concept emphasizes stability, economy and environmental protection, so that it can effectively reduce energy consumption and reduce the impact on the environment during operation. In addition, the structural design of 115kV and 69kV power transformers also fully considers the convenience of installation and maintenance, ensuring that users can easily operate and maintain them during use.
This product is widely used in power plants, substations, large-scale industrial and mining petrochemical enterprises, etc. It can operate stably in various complex working environments to ensure the safety and reliability of the power system. Through continuous technological innovation and optimization, 115kV and 69kV power transformers will continue to provide users with efficient and reliable power solutions and promote the sustainable development of the power industry.
Technical Data Sheet
Technical Data for 115KV Class Three Phase Two Winding OLTC Power Transformer
|
Rated |
High Voltage |
Low Voltage |
Connection |
Short Circuit |
Loss |
No load |
|
|
No-load Loss(KW) |
On-load |
||||||
|
10000 |
115 |
6.3 |
YNd11 |
10.5 |
11.8 |
51.2 |
0.82 |
|
12000 |
13.7 |
59.5 |
0.82 |
||||
|
15000 |
16.3 |
73.1 |
0.76 |
||||
|
20000 |
19.5 |
88.4 |
0.76 |
||||
|
25000 |
22.7 |
105 |
0.69 |
||||
|
30000 |
27.4 |
126 |
0.69 |
||||
|
37500 |
32.9 |
148 |
0.63 |
||||
|
50000 |
38.9 |
184 |
0.63 |
||||
|
60000 |
46.4 |
221 |
0.57 |
||||
Note:The above data is only subject to our standard design,special requirement can be customized.
Technical Data for 115KV Class Three Phase Two Winding NLTC Power Transformer
|
Rated |
High Voltage |
Low Voltage |
Connection |
Short Circuit |
Loss |
No load |
|
|
No-load Loss(KW) |
On-load |
||||||
|
10000 |
115 |
6.3 |
YNd11 |
10.5 |
10.5 |
50.2 |
0.64 |
|
12000 |
12.4 |
59.5 |
0.64 |
||||
|
15000 |
15 |
73.1 |
0.59 |
||||
|
20000 |
17.8 |
88.4 |
0.59 |
||||
|
25000 |
21 |
105 |
0.54 |
||||
|
30000 |
25 |
126 |
0.54 |
||||
|
37500 |
29.9 |
148 |
0.56 |
||||
|
50000 |
35.3 |
178.5 |
0.52 |
||||
|
60000 |
41.9 |
221 |
0.48 |
||||
Note:The above data is only subject to our standard design,special requirement can be customized.
Technical Data for 69KV Class Three Phase Two Winding OLTC Power Transformer
|
Rated |
High Voltage |
Low Voltage |
Connection |
Short Circuit |
Loss |
No load |
|
|
No-load Loss(KW) |
On-load |
||||||
|
10000 |
69 |
6.3 |
YNd11 |
9 |
11.6 |
47.6 |
0.75 |
|
12000 |
13.6 |
56.5 |
0.53 |
||||
|
15000 |
16.3 |
69.5 |
0.49 |
||||
|
20000 |
19.2 |
84.2 |
0.49 |
||||
|
25000 |
22.6 |
99.5 |
0.42 |
||||
|
30000 |
26.8 |
120 |
0.42 |
||||
|
37500 |
31.9 |
140.3 |
0.39 |
||||
|
50000 |
38.6 |
174.3 |
0.39 |
||||
|
60000 |
44.4 |
210 |
0.39 |
||||
Note:The above data is only subject to our standard design,special requirement can be customized.
Technical Data for 69KV Class Three Phase Two Winding NLTC Power Transformer
|
Rated |
High Voltage |
Low Voltage |
Connection |
Short Circuit |
Loss |
No load |
|
|
No-load Loss(KW) |
On-load |
||||||
|
10000 |
69 |
6.3 |
YNd11 |
9 |
12.1 |
47.6 |
0.75 |
|
12000 |
12.6 |
56.5 |
0.53 |
||||
|
15000 |
15.1 |
69.5 |
0.49 |
||||
|
20000 |
17.9 |
84.2 |
0.49 |
||||
|
25000 |
21.1 |
99.5 |
0.42 |
||||
|
30000 |
25.1 |
120 |
0.42 |
||||
|
37500 |
30 |
140.3 |
0.39 |
||||
|
50000 |
35.4 |
174.3 |
0.39 |
||||
|
60000 |
42.1 |
210 |
0.39 |
||||
