· Overview
JN15-12 model indoor HV earthing switch its performance meets the GB1985-89 ≤ AC high-voltage switches and earthing switches ≥ next door and the requirements of IEC129 for 312 kV and below, AC 50Hz power systems with a variety of models supporting the use of high voltage switchgear, as grounding protection.
· design, advanced technology and reliable performance;
· simple structure, easy installation;
· fast points, joint capabilities.
· Environmental conditions
· altitude not exceeding 1000m ;
· ambient temperature: +40 ℃ upper limit of 10 ℃ ;
· allows storage at 30 ℃;
· seismic intensity of less than 8 degrees;
· non-flammable, explosive, strict Health and dust, chemical corrosion and severe vibration place;
· Technical parameters
project |
unit |
data |
rated voltage |
KV |
12 |
Rated short time withstand current |
KA |
31.5 |
Rated short duration |
S |
4 |
Rated short-circuit current |
KA |
80 |
Rated peak withstand current |
KA |
80 |
center distance between poles |
mm |
150, 210, 230, 250, 275 |
Rated insulation level |
1min power frequency withstand voltage |
KV |
on the ground, and white /very room |
42/48 75/85 |
lightning impulse withstand voltage |

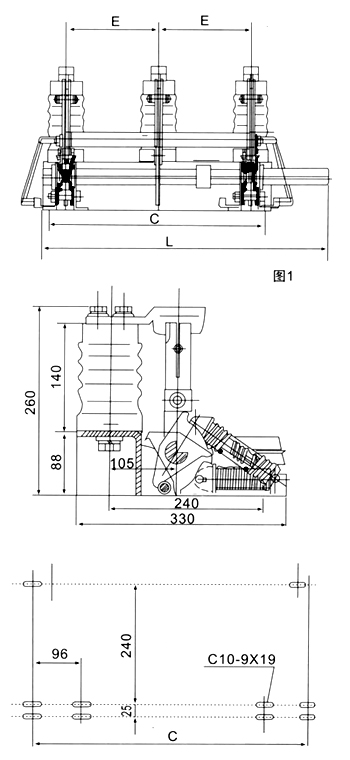

· Figure 1: Outline drawing

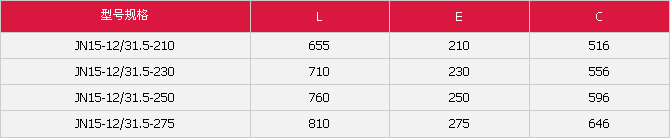

· contour and installation diagram
